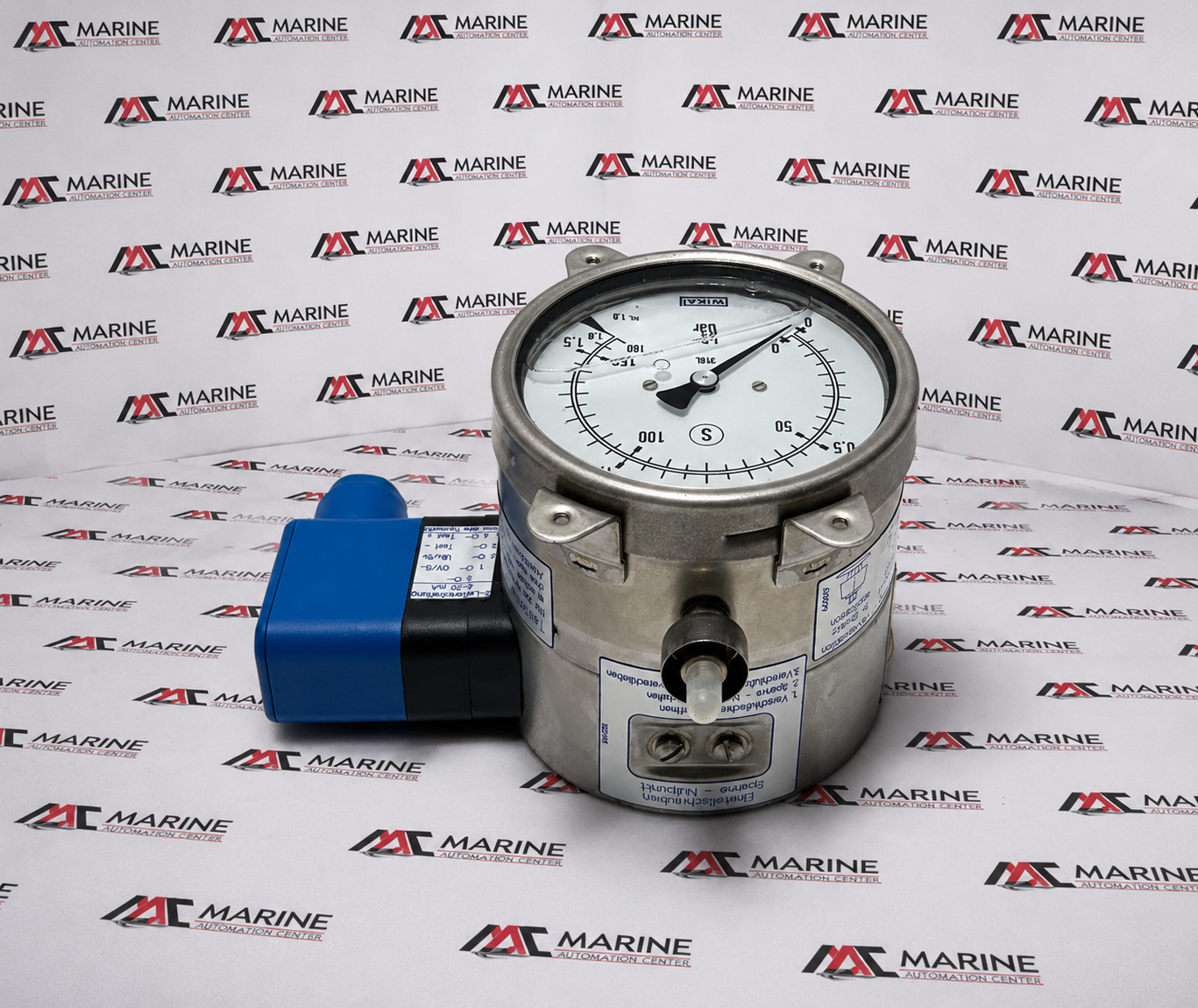

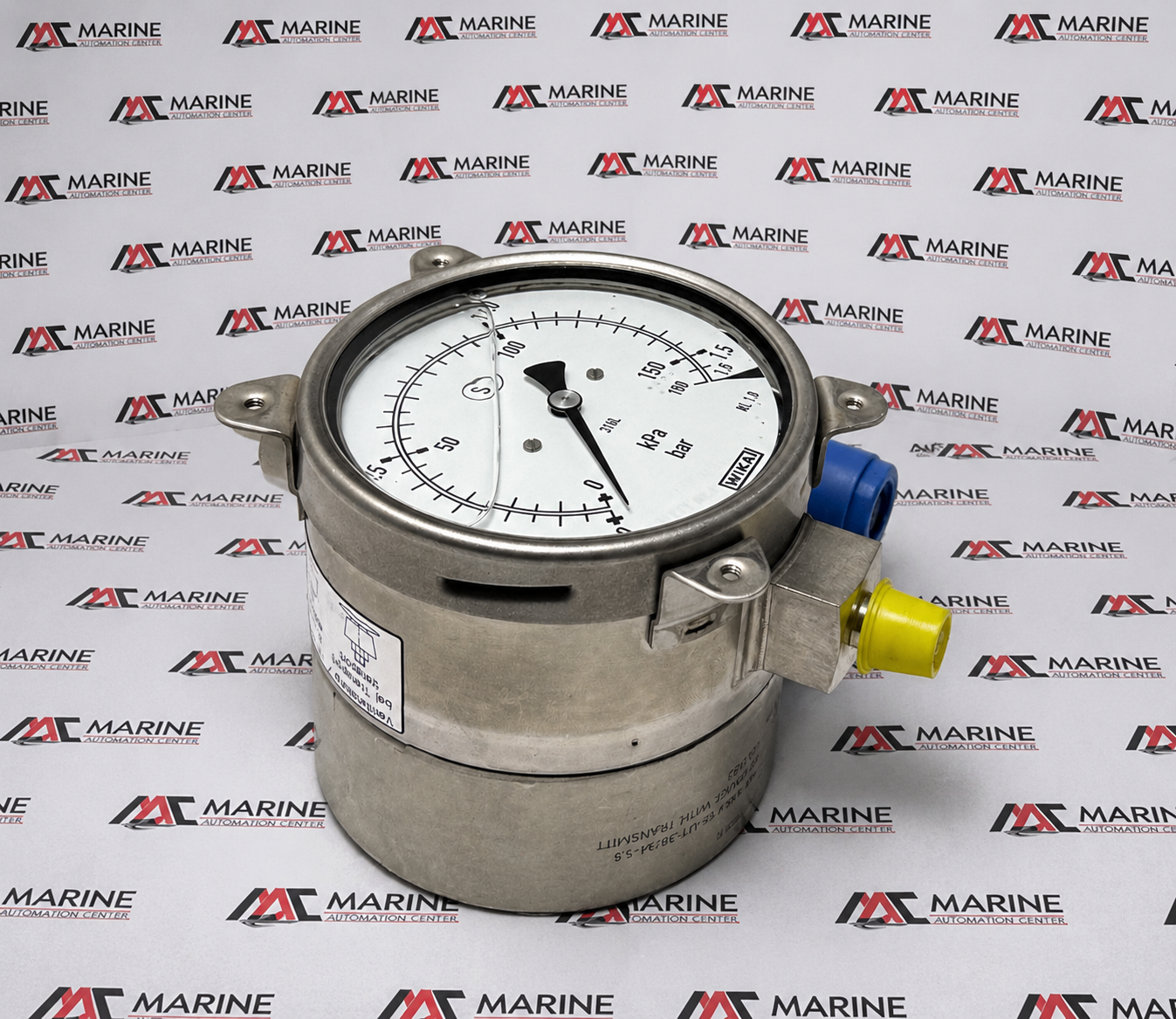

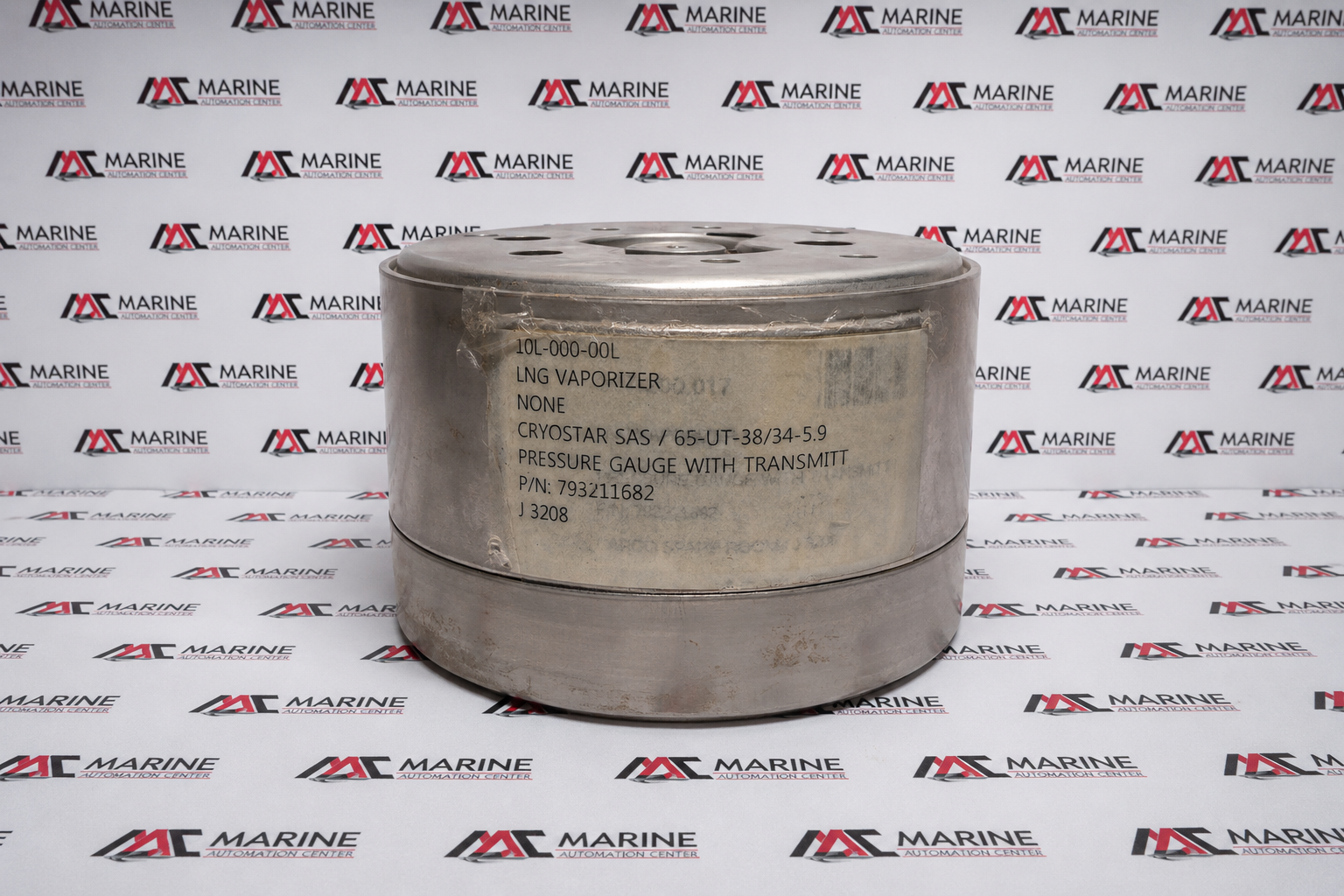

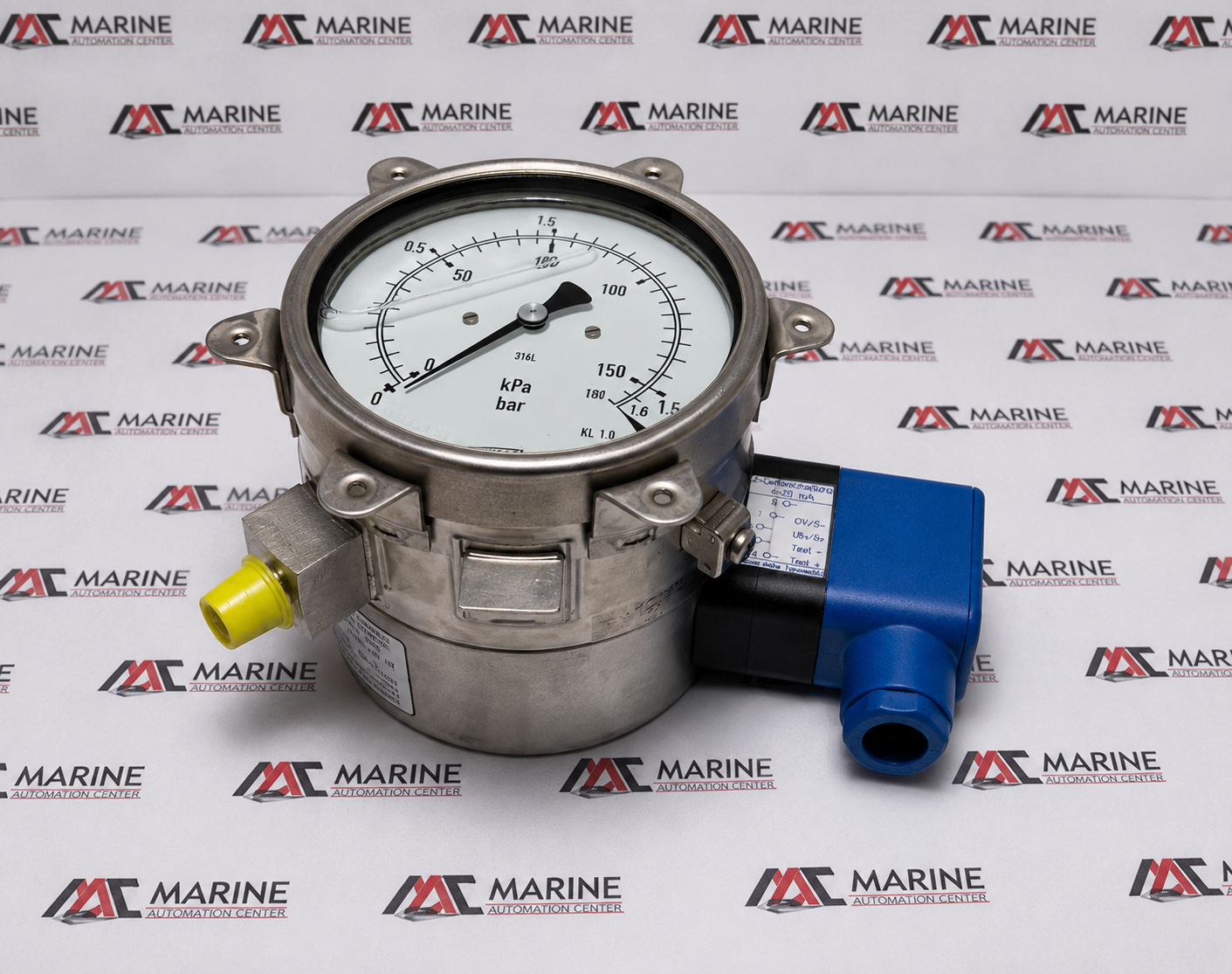

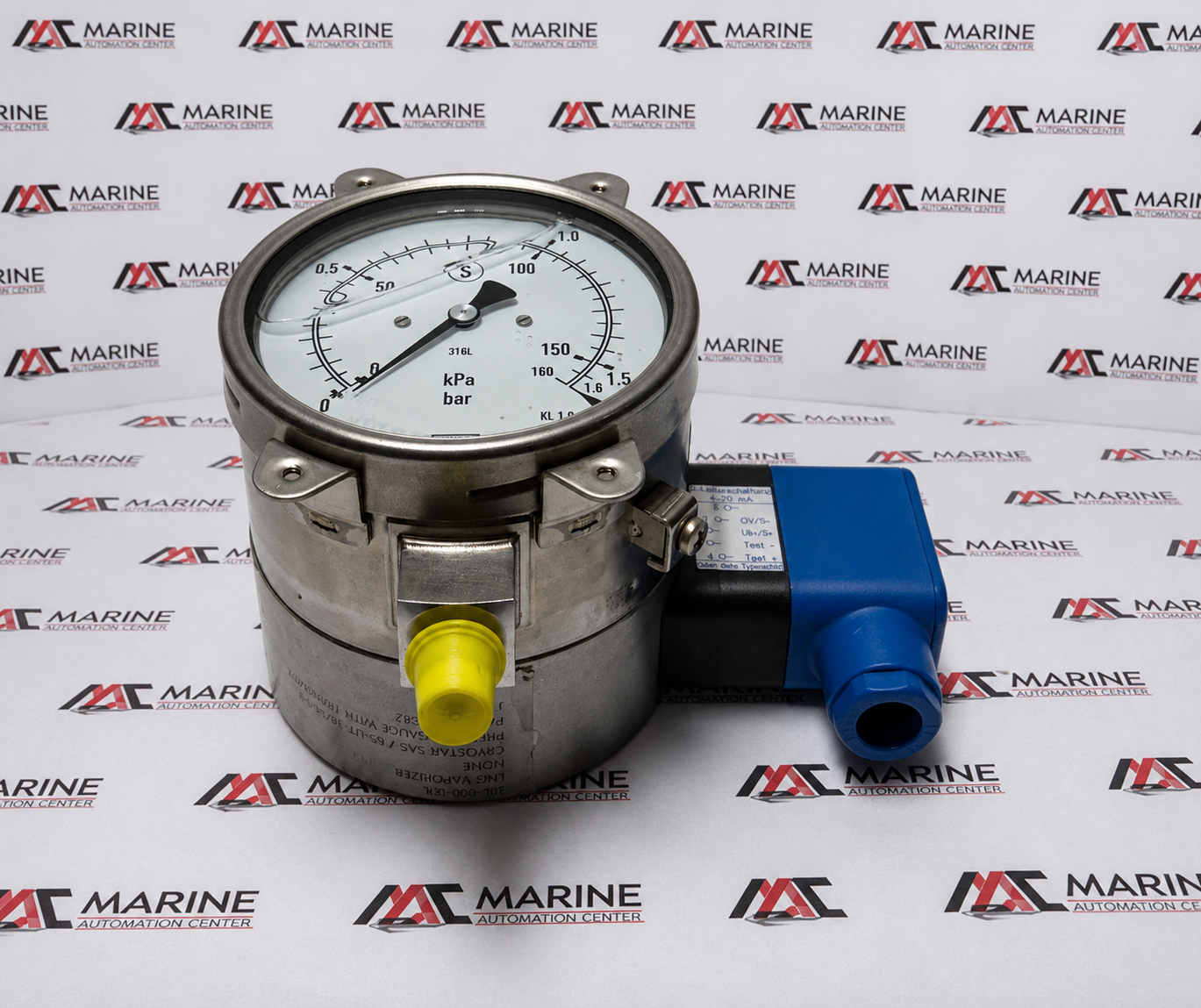

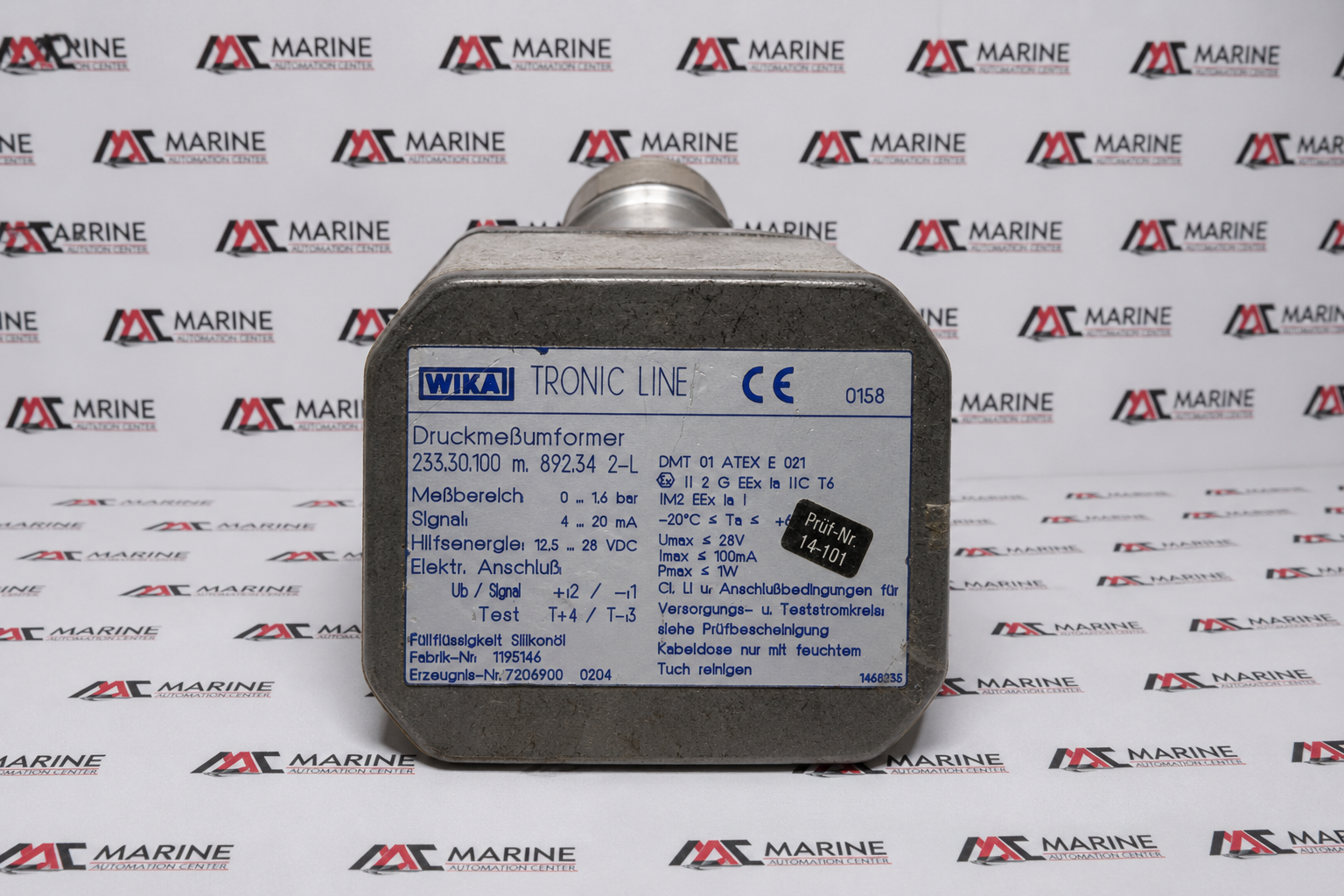

WIKA TRONIC LINE Pressure Transmitter
WIKA Pressure Transmitter, Part No. 233.30.100, Model 892.34 2-L is a high-quality industrial pressure transmitter designed for accurate and reliable pressure measurement in process control applications. Manufactured by WIKA, it provides stable performance, durable construction, and precise pressure monitoring in demanding industrial environments
BRAND
WIKA
TYPE
Pressure Transmitter
PART NO.
233.30.100
MODEL
892.34 2-L
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | WIKA |
| TYPE | Pressure Transmitter |
| PART NO. | 233.30.100 |
| MODEL | 892.34 2-L |
| Voltage Rating | 12.5 to 28 VDC |
| Output Signal | 4–20 mA (2-wire loop powered) |
| Pressure Range | 0 to 1.6 bar |
| Application | Industrial pressure measurement for gases and liquids in hazardous (ATEX) areas |
| IEC / Protection | IEC/EN intrinsic safety, IP65 enclosure (from official archived datasheet) |
| ATEX Approval | DMT 01 ATEX E 021 |
| Explosion Protection | ATEX Intrinsically Safe |
| Serial / Manufacturing No | 7206900 |
| Pressure Range | 0...1.6 bar |
| Supply Voltage | 12.5...28 VDC |
| Loop Type | Two-wire |
| Maximum Input Voltage | 28 V |
| Maximum Power | 1w |
| Ambient Temperature | -20°C to +60°C |
| CE Marking | Yes (CE 0158) |
| Certification | DMT 01 ATEX E 021 |
| Protection Rating | IP65 |
| Made In | Germany |
| REF NO | 1530 |
