Westlock Controls Explosionproof Valve Position Monitor XA Series (AVID XA)
The Westlock Controls / AVID XA Series (P/N: XA-0B203BD00-00-AR1) is an explosionproof valve position monitor (limit switch box) designed for reliable valve position indication and feedback in hazardous industrial environments. It features a rugged IP66/IP67-rated enclosure, visual position indicator, and compatibility with NAMUR-mounted quarter-turn actuators, making it ideal for marine automation, oil & gas, chemical processing, offshore platforms, and other demanding process control applicati
BRAND
Westlock Controls
TYPE
Explosionproof Valve Position Monitor / Limit Switch Box
PART NO.
XA-0B203BD00-00-AR1
MODEL
XA Series (AVID XA)
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Westlock Controls |
| TYPE | Explosionproof Valve Position Monitor / Limit Switch Box |
| PART NO. | XA-0B203BD00-00-AR1 |
| MODEL | XA Series (AVID XA) |
| MANUFACTURER | Pentair Valves & Controls |
| Product Series | AVID XA Hazardous Area Valve Position Monitor |
| Customer ID No. | XA-0B203BD00-00-AR1 |
| Switch Type | 2 × Pepperl+Fuchs NJ2-V3-N NAMUR Inductive Proximity Sensors |

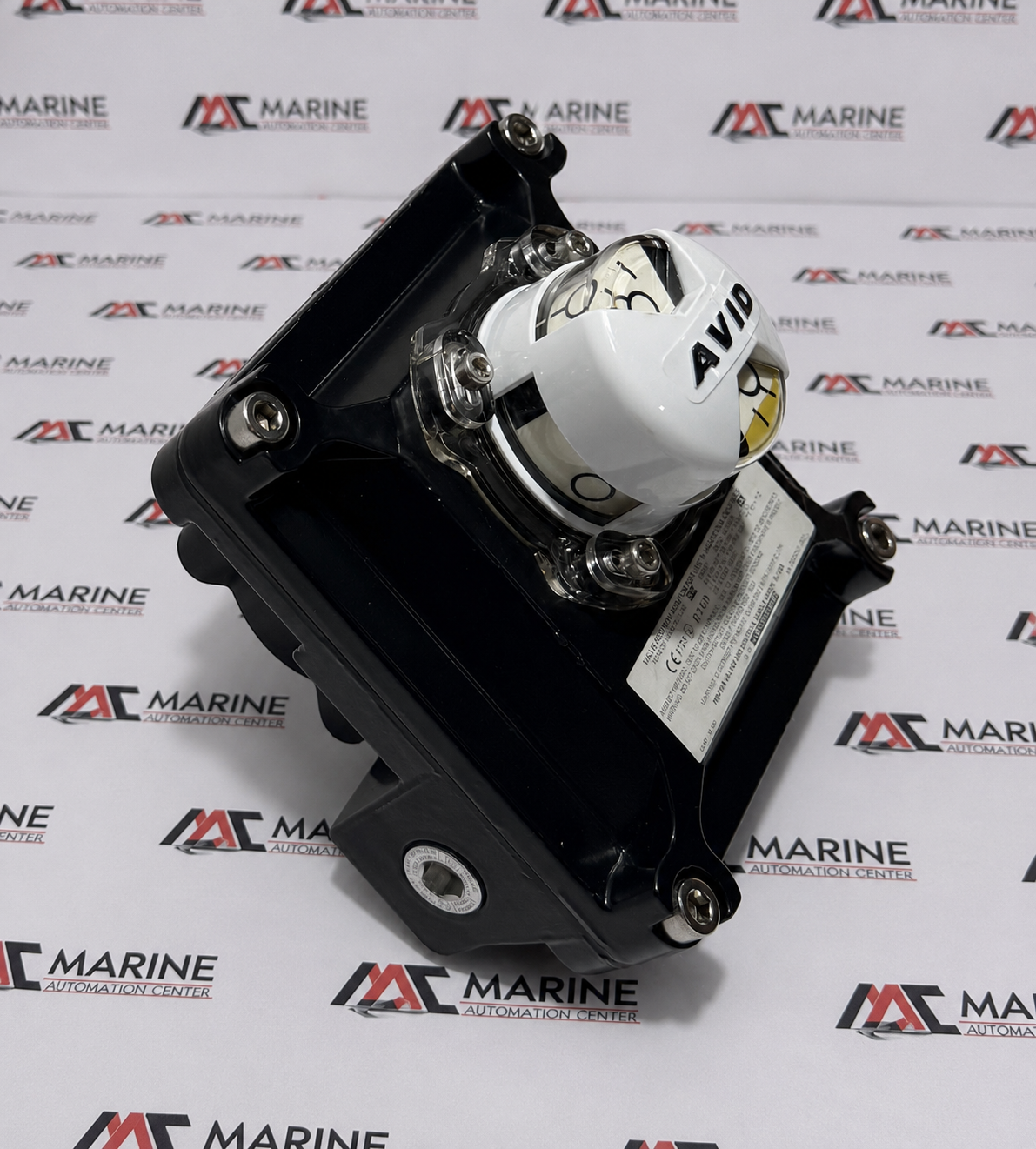

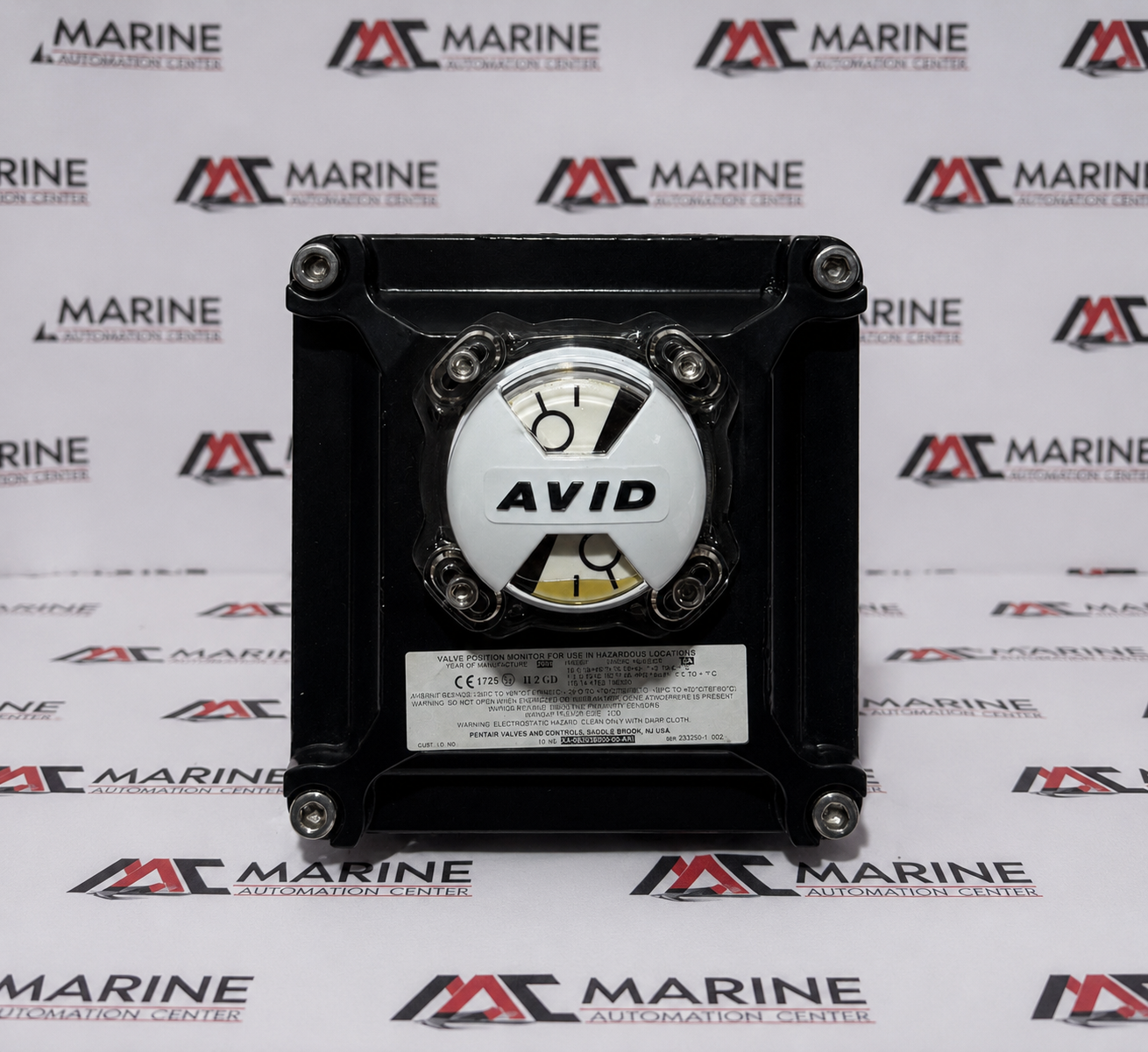

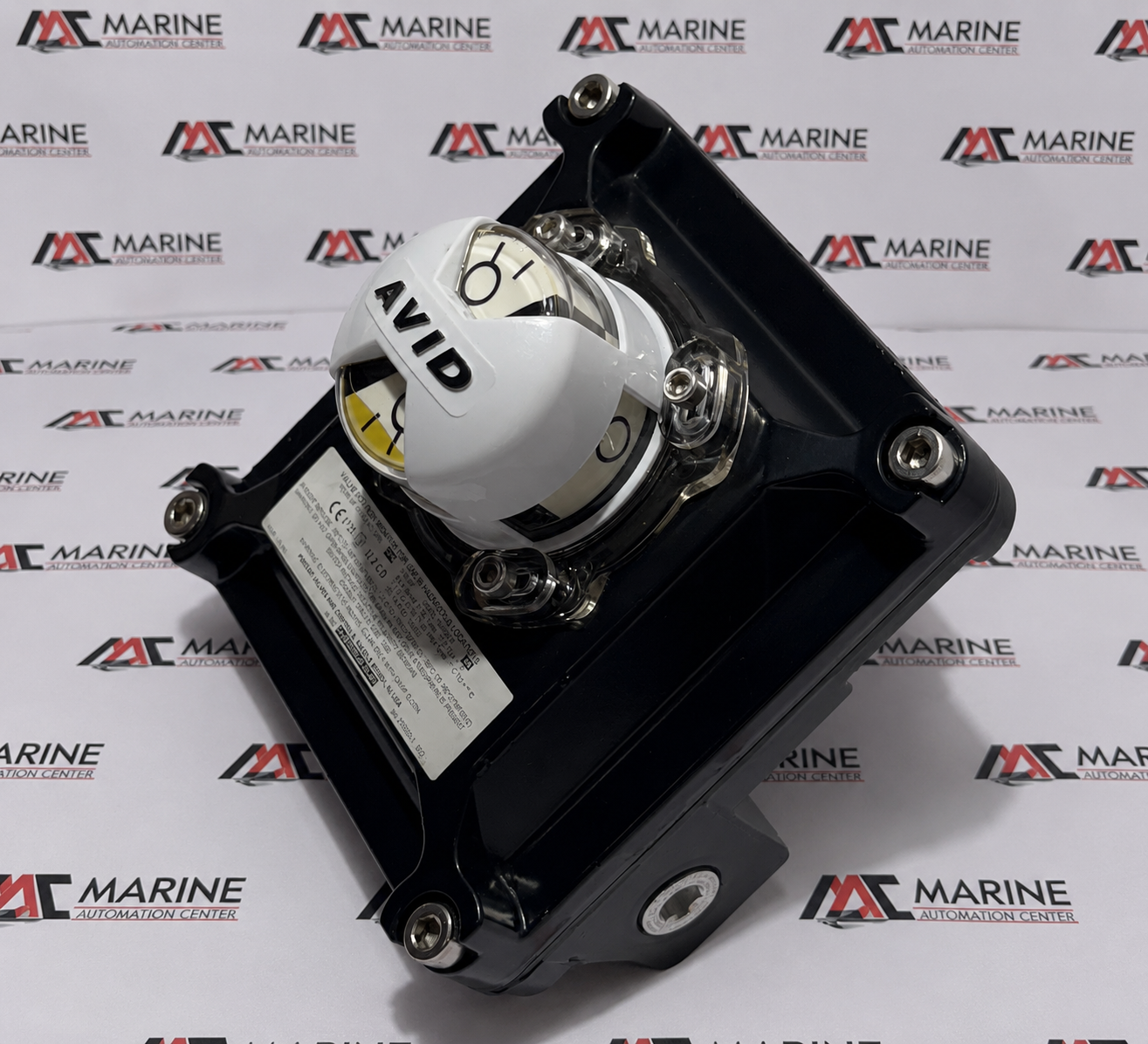

| Visual Indicator | HiVue 360° Open/Closed Position Beacon |

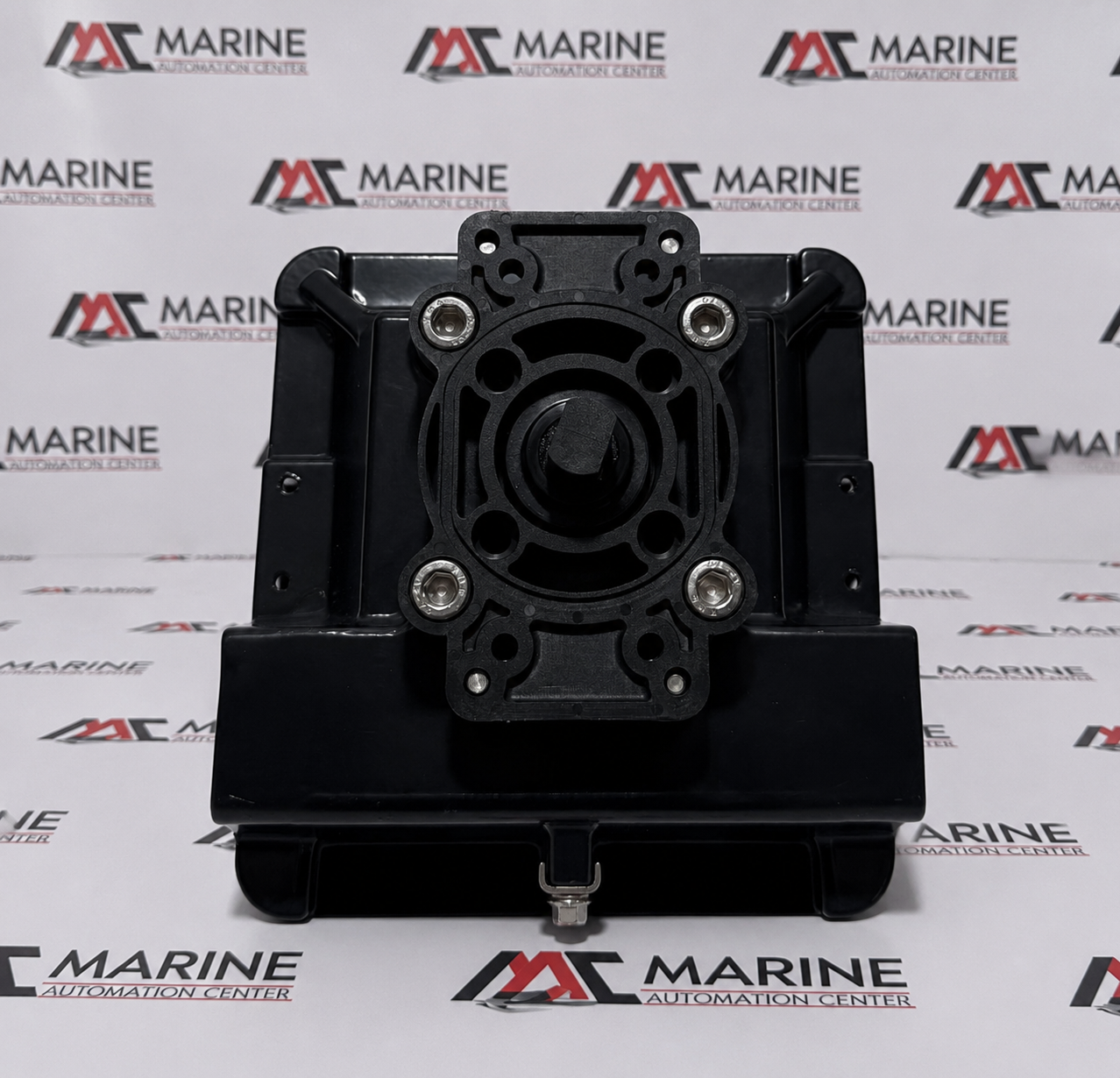

| Output Shaft | NAMUR Standard Rotary Shaft |
| Mounting | Direct Mount / ModMount NAMUR Bracket Compatible |

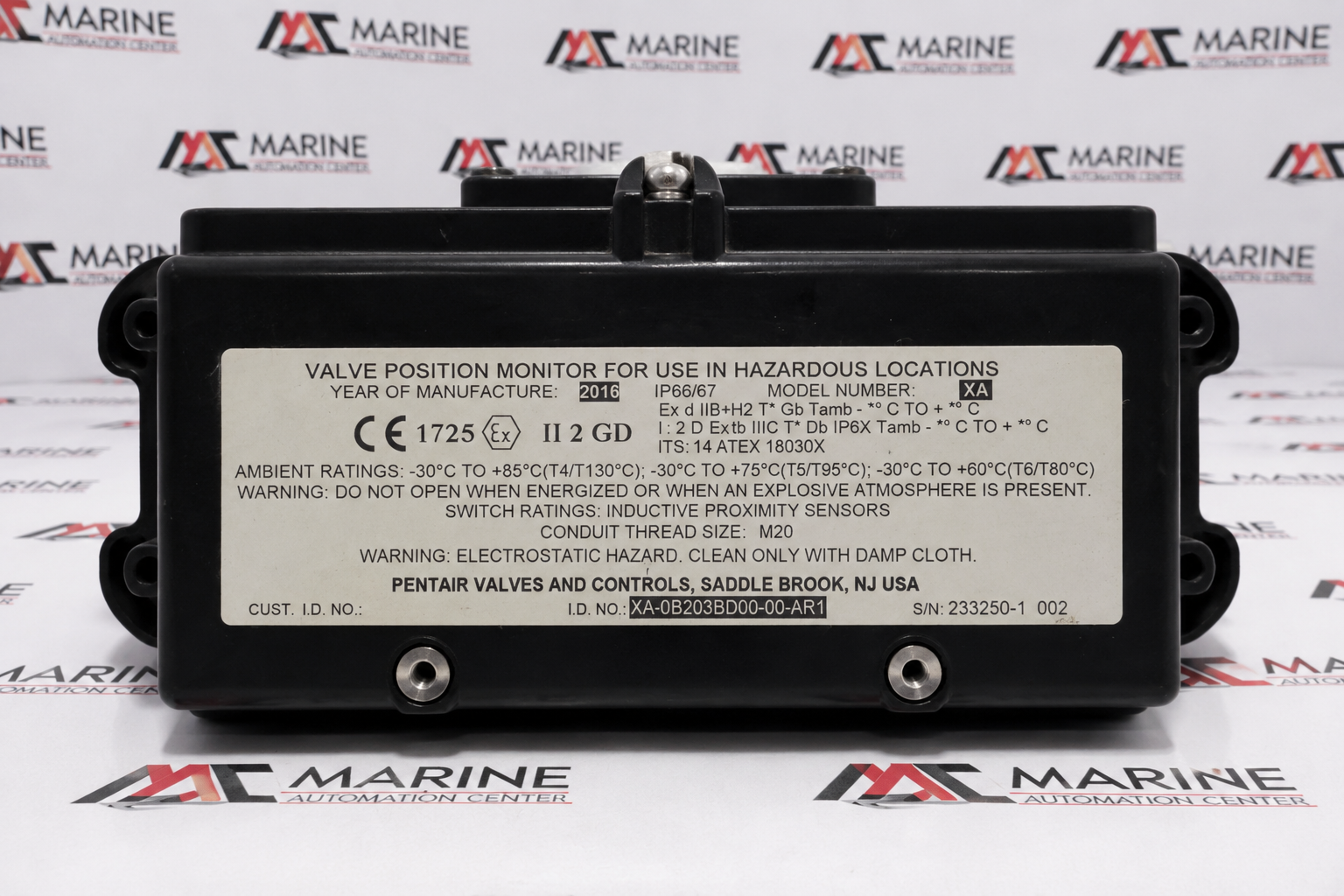

| Housing Material | Heavy-Duty Aluminum, Black Epoxy Coated |
| Hazardous Area Certification | ATEX II 2 GD |
| Explosion Protection | Ex d IIB+H2 / Ex tb IIIC |
| Conduit Entries | 2 × M20 Threaded Entries |
| Application | Quarter-turn valve monitoring for pneumatic actuators, process valves, marine automation systems, oil & gas, offshore platforms, chemical plants, refineries and hazardous industrial environments. |
| Made In | USA |
| REF NO | 1411 |
