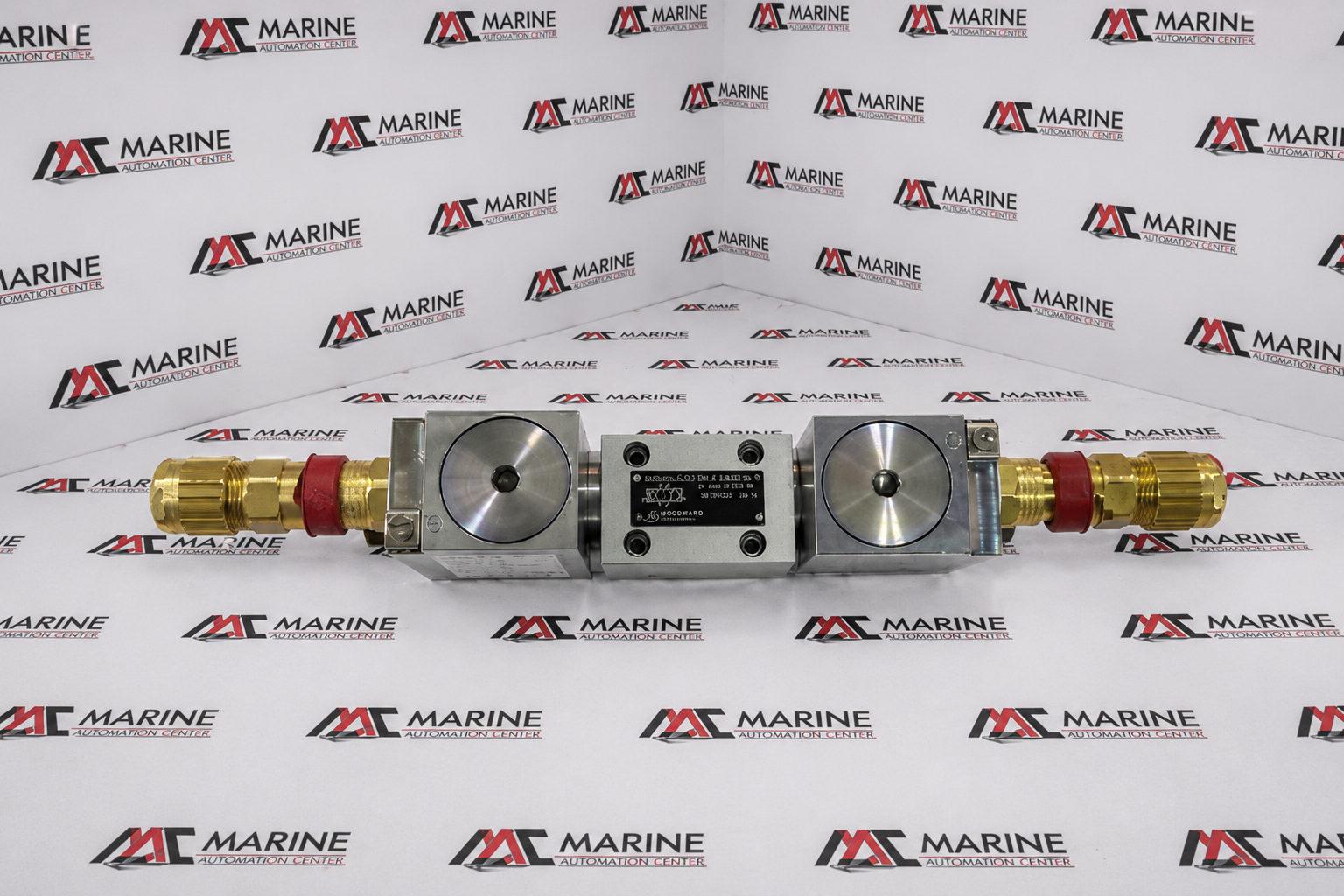

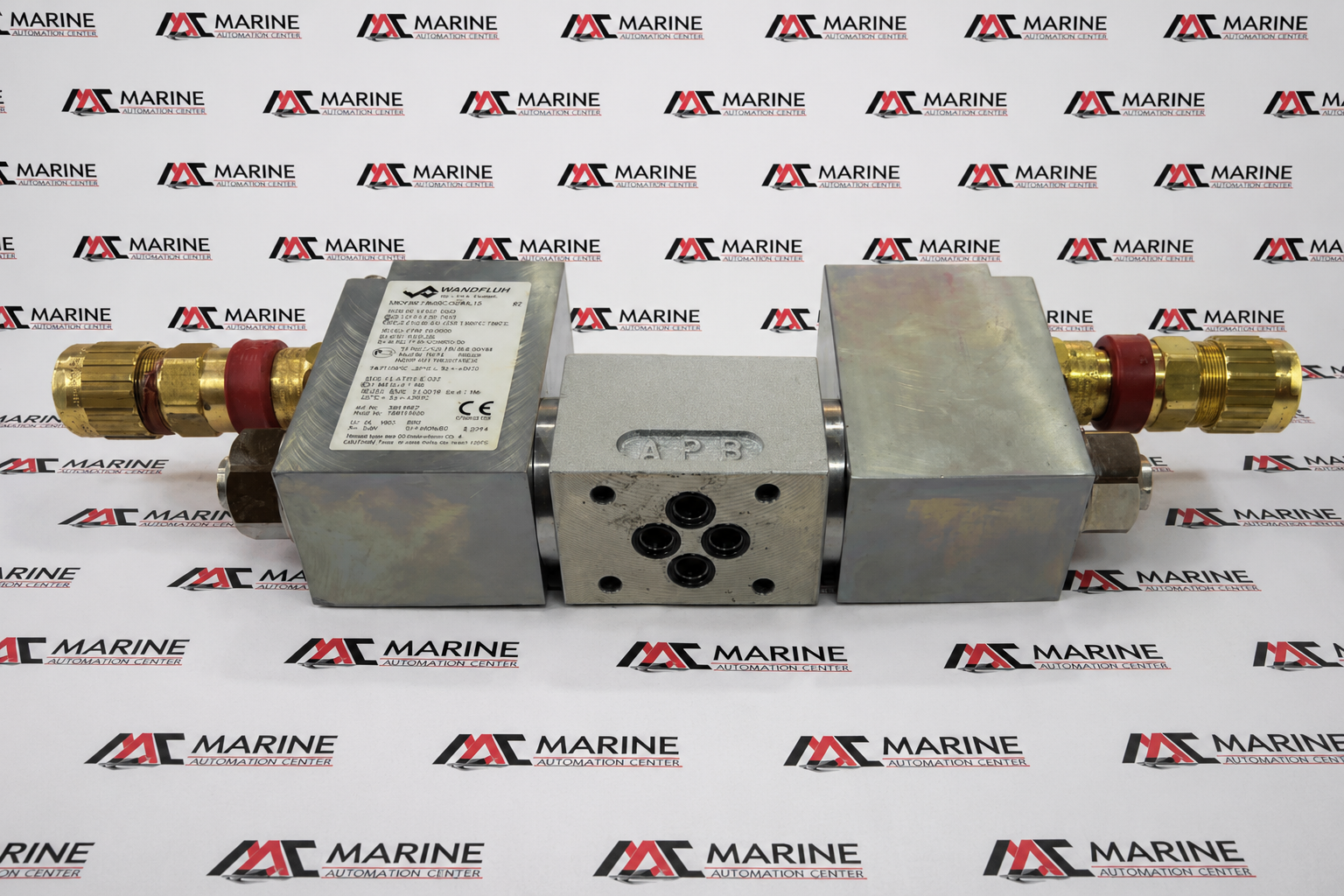

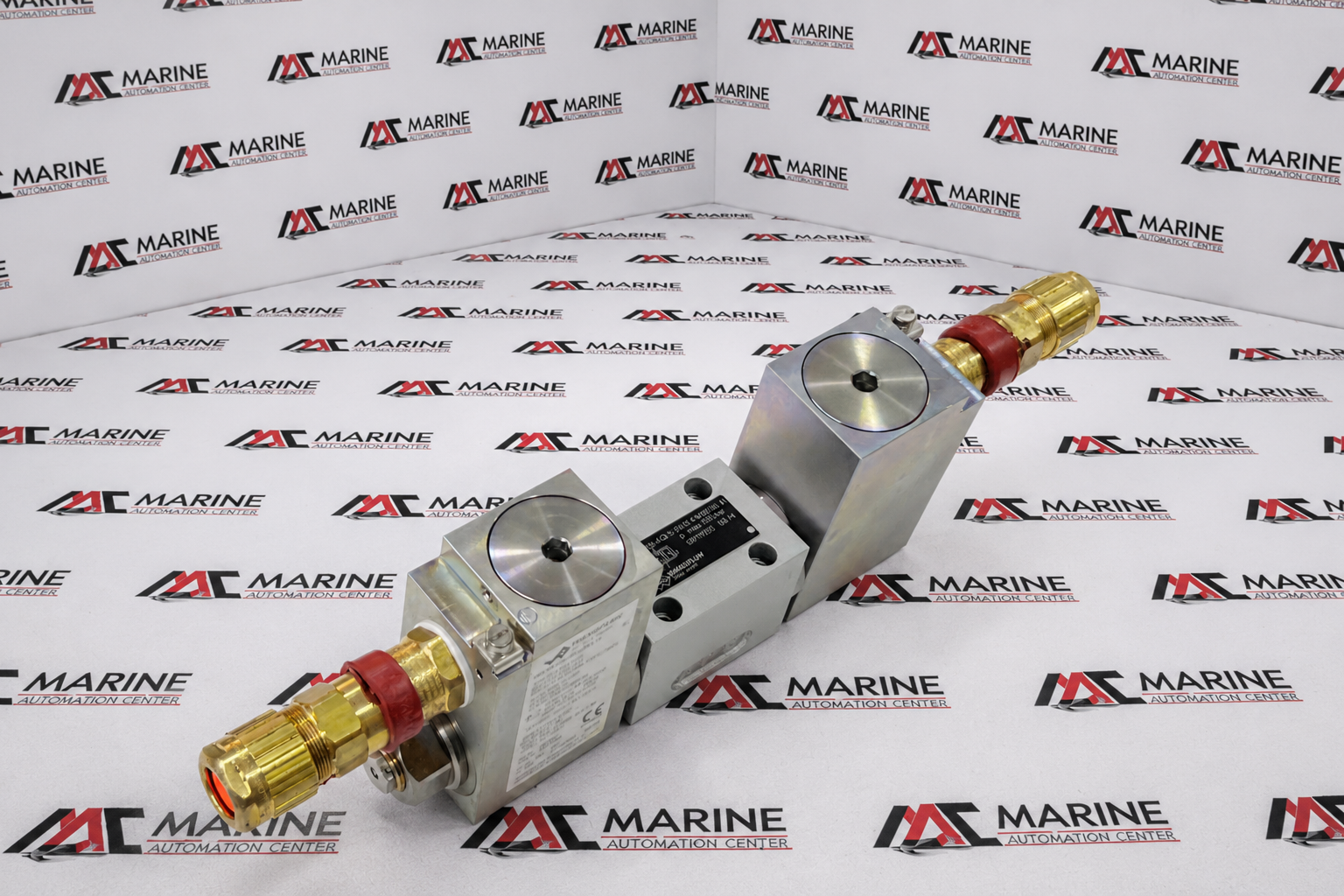

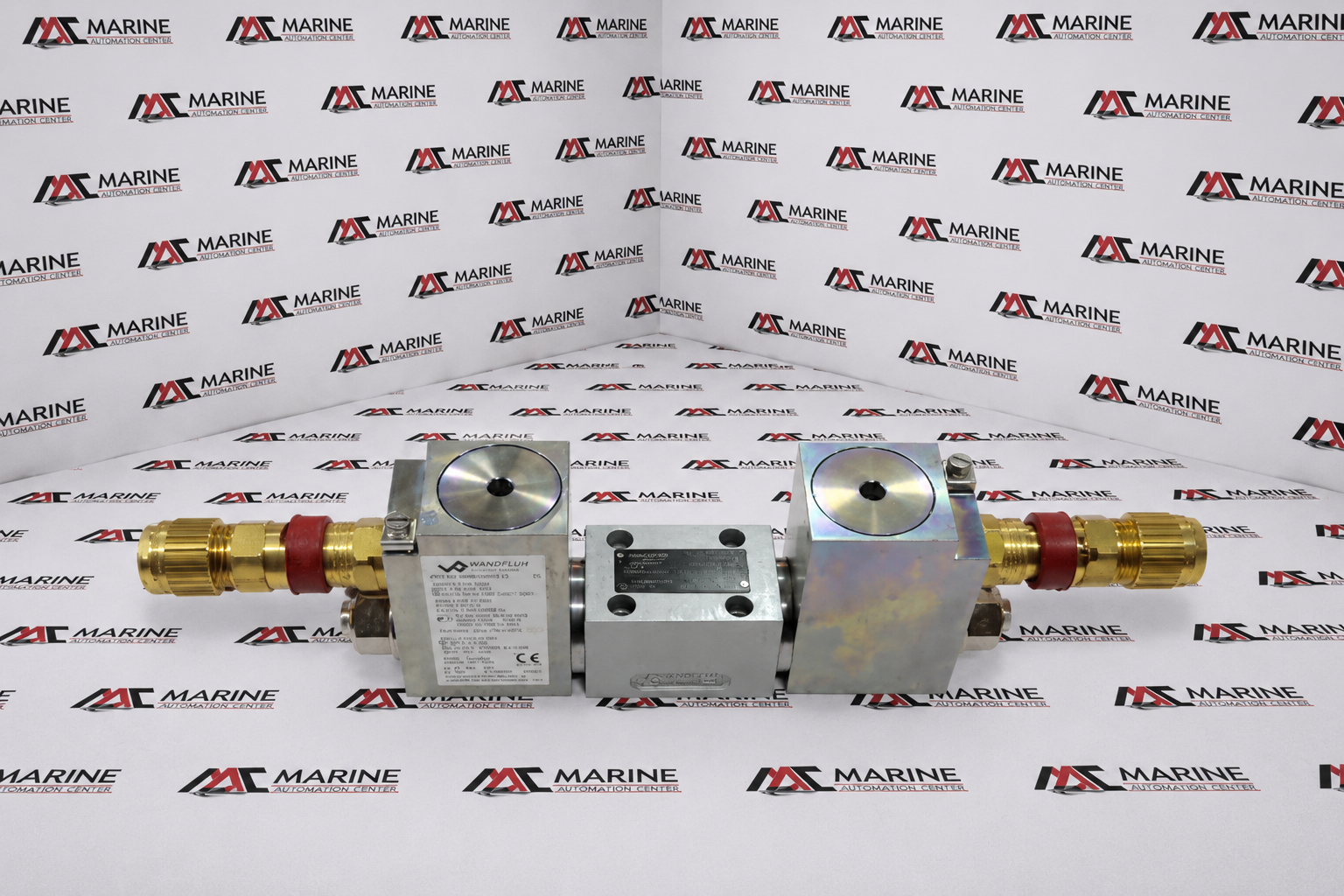

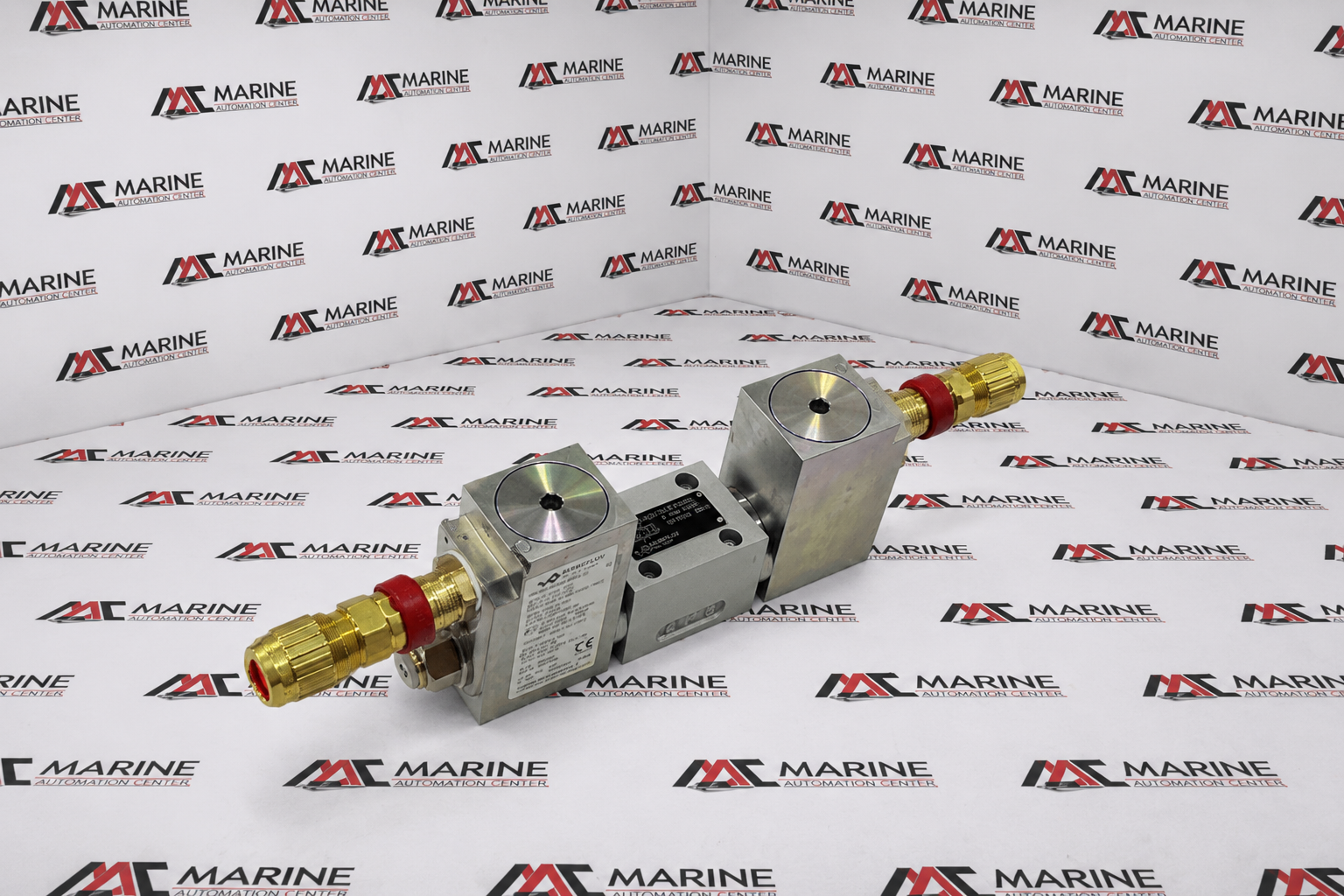

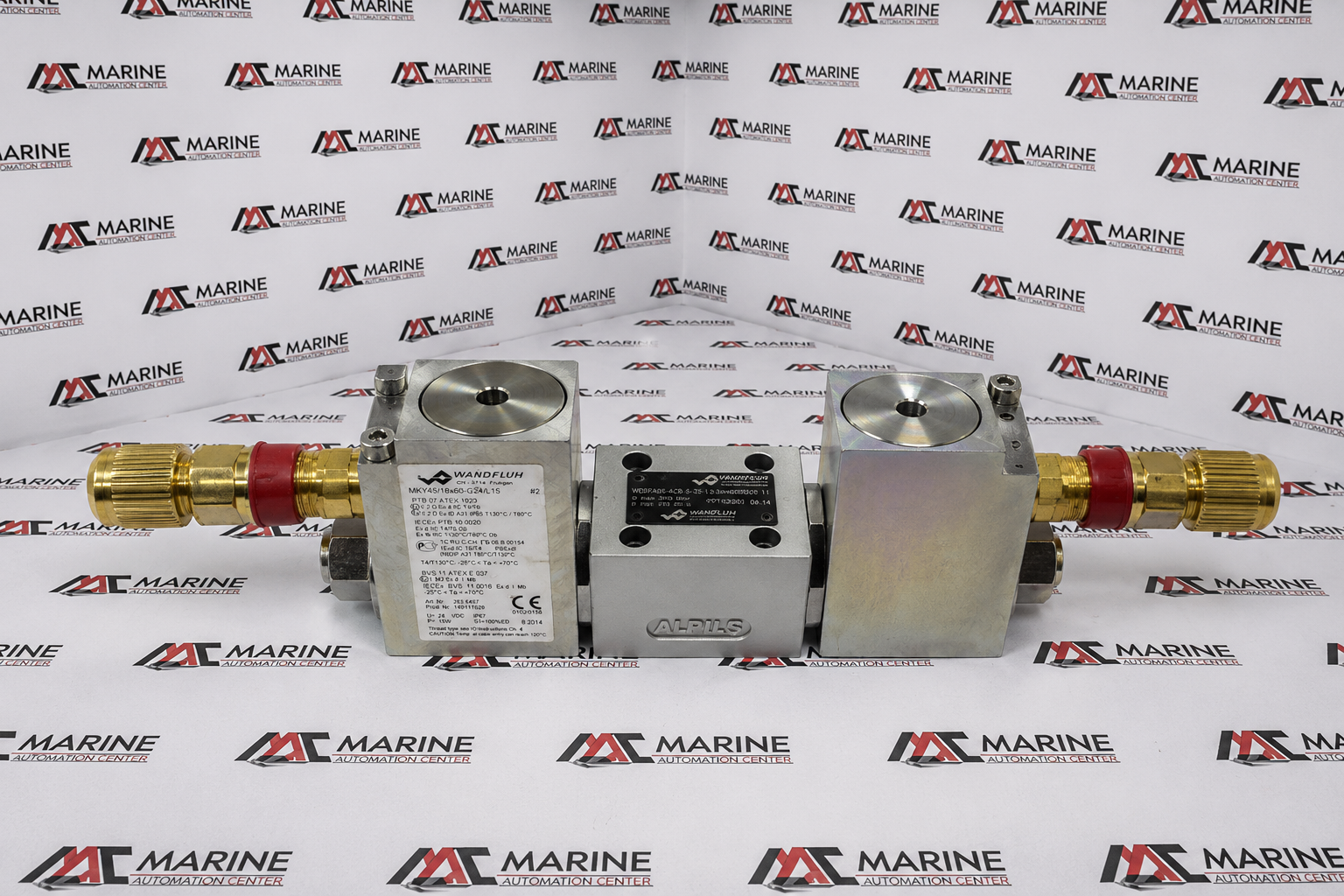

Wandfluh Electro-Proportional Directional Spool Valve WDBFA06
The Wandfluh WDBFA06-ACB-S-25/L15-K1M102/165 is an electro-proportional directional spool valve designed for precise proportional control of hydraulic fluid flow and direction in industrial hydraulic systems. It provides smooth, accurate regulation of actuator speed and position through proportional electrical input, making it ideal for machine tools, mobile hydraulics, marine equipment, and industrial automation. Its robust construction ensures reliable performance and long service life in dema
BRAND
Wandfluh
TYPE
Electro-Proportional Directional Spool Valve
PART NO.
WDBFA06-ACB-S-25/L15-K1M102/165
MODEL
WDBFA06
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Wandfluh |
| TYPE | Electro-Proportional Directional Spool Valve |
| PART NO. | WDBFA06-ACB-S-25/L15-K1M102/165 |
| MODEL | WDBFA06 |
| COIL MODEL | MKYA5/18x60-G24/L15 |
| ACTUATION | Double Solenoid Operated |
| VALVE FUNCTION | 4/3-Way Electro-Proportional Directional Control Valve |
| MOUNTING TYPE | Subplate / CETOP 03 (NG6) Interface |
| PORT DESIGNATION | P, T, A, B |
| MAXIMUM OPERATING PRESSURE | 350 bar |
| SOLENOID VOLTAGE | 24 V DC |
| POWER CONSUMPTION | 22 W |
| DUTY RATING | ED 100% (Continuous Duty) |
| PROTECTION CLASS | IP67 |
| AMBIENT TEMPERATURE | -25°C to +70°C |
| APPLICATION | Hydraulic proportional directional control for industrial and marine hydraulic systems |
| Made In | Swiss Made |
| Ref no. | 347 |
