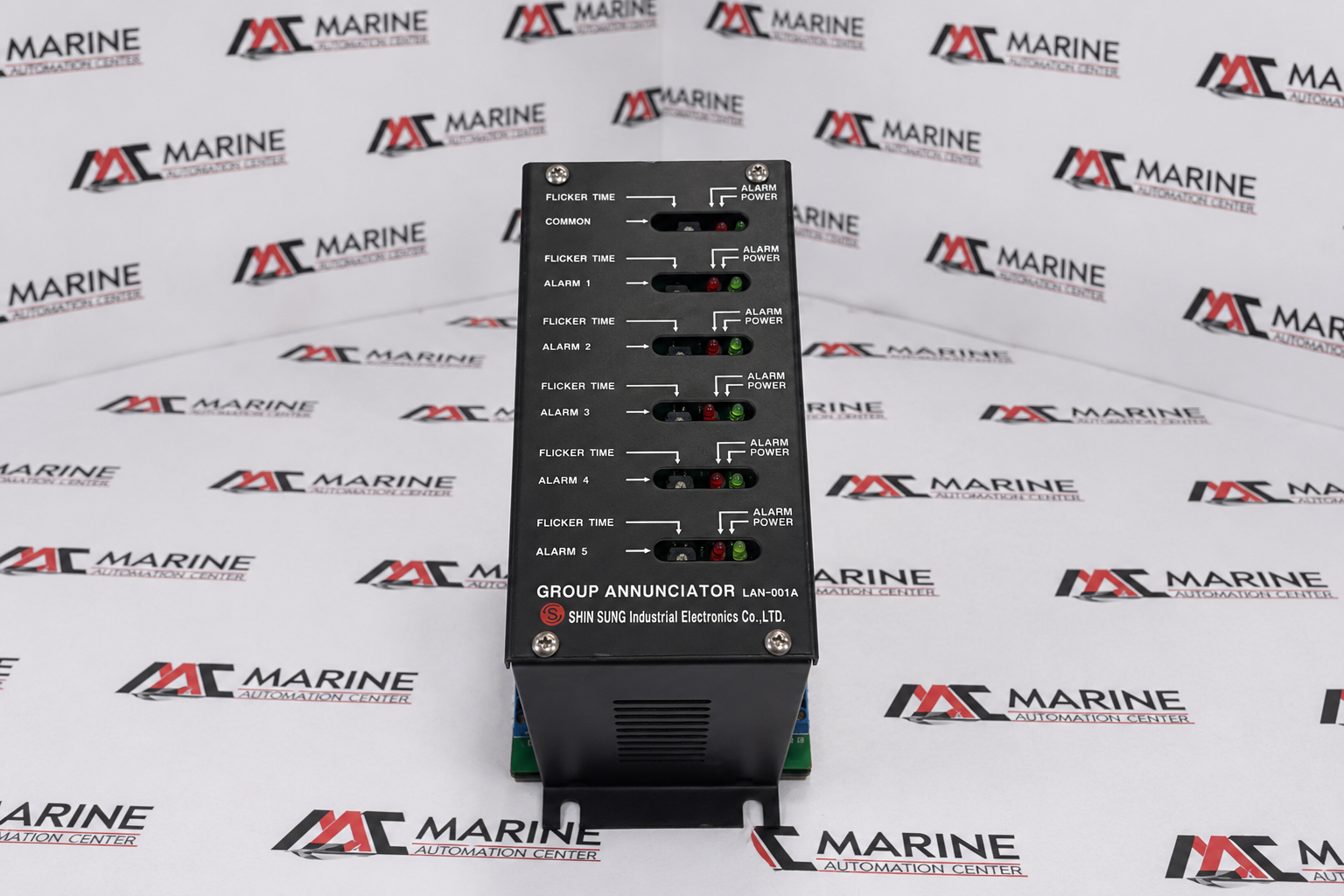

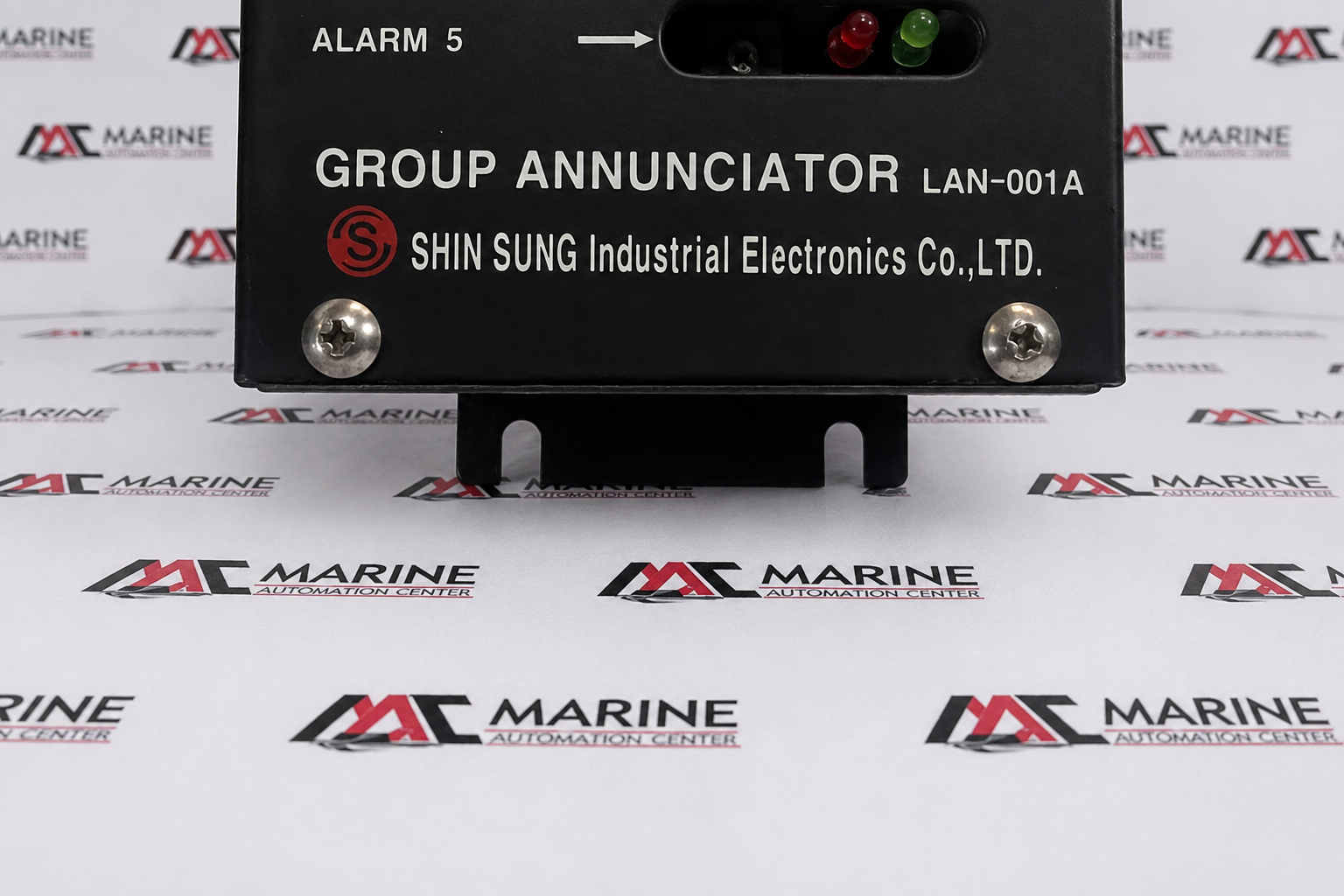

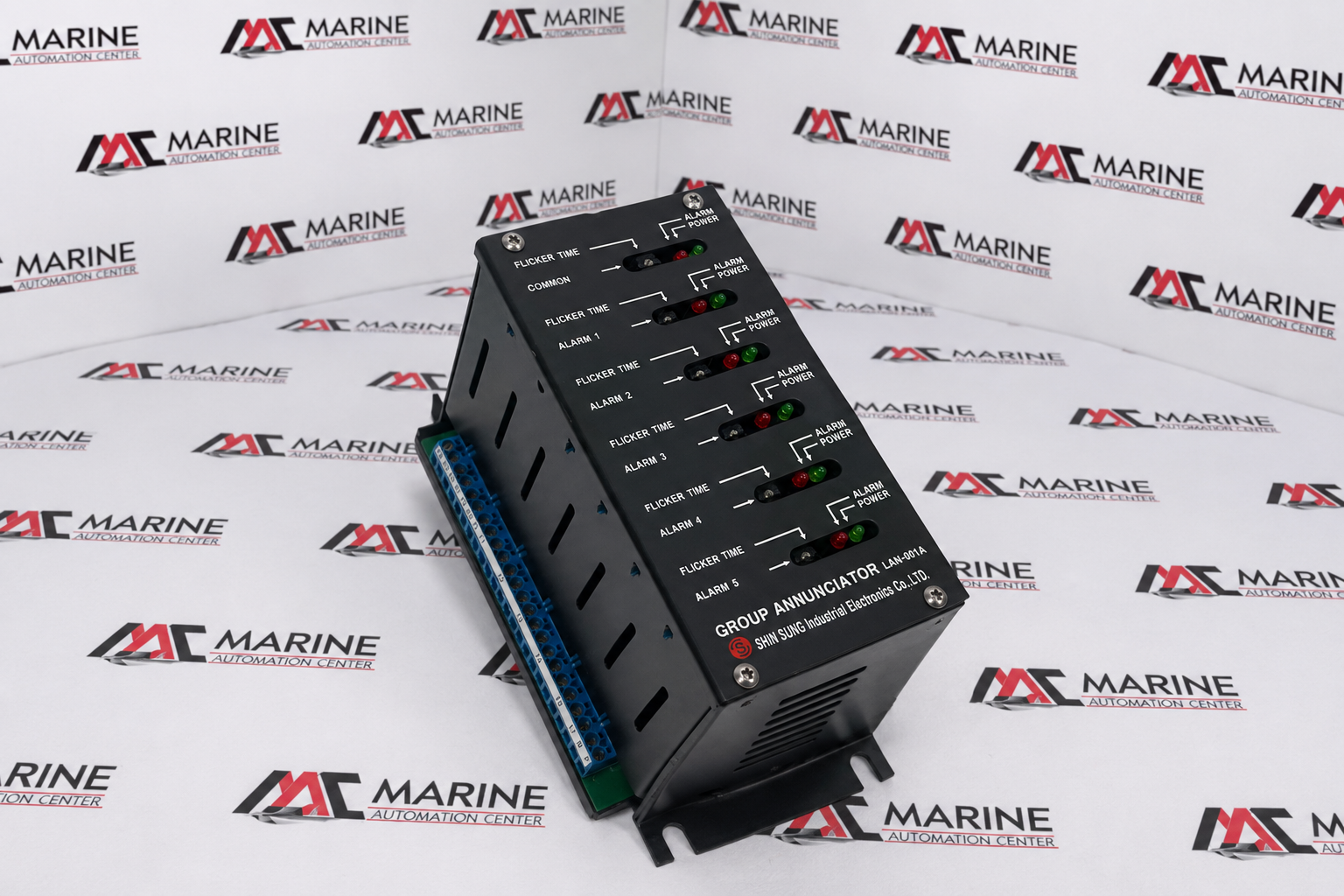

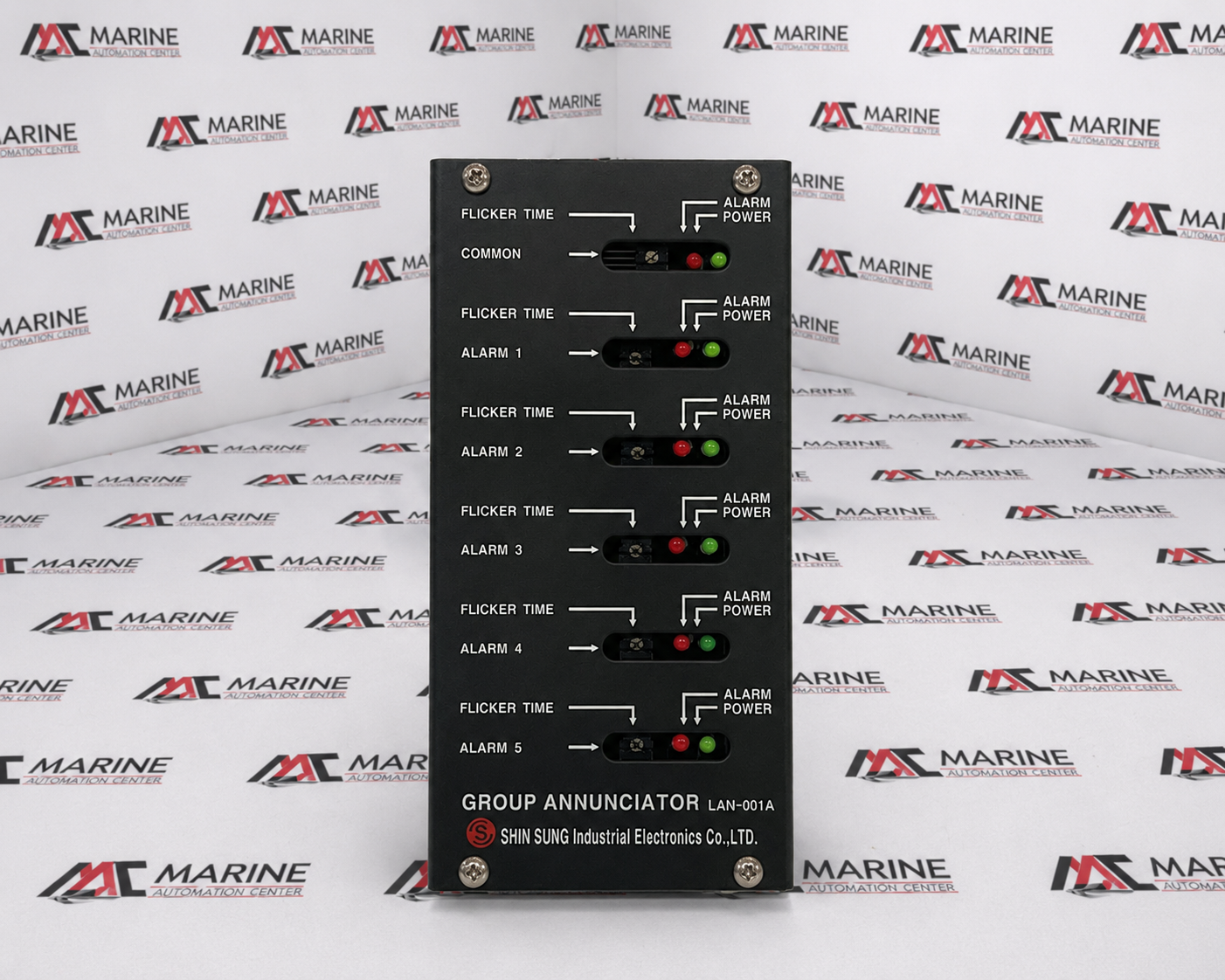

Shin Sung Group Annunciator LAN-001A
The Shin Sung LAN-001A Group Annunciator is an industrial alarm annunciator designed to monitor multiple system inputs and provide clear visual and audible alarm indication for fault conditions. It enhances operational safety by enabling fast fault identification and alarm management, making it ideal for marine vessels, power plants, engine rooms, and industrial automation systems.
BRAND
Shin Sung
TYPE
Group Annunciator
PART NO.
Shin Sung Group Annunciator LAN-001A
MODEL
LAN-001A
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Shin Sung |
| TYPE | Group Annunciator |
| PART NO. | Shin Sung Group Annunciator LAN-001A |
| MODEL | LAN-001A |
| POWER SUPPLY | DC 24 V |
| ALARM INDICATION | Red & Green LED indicators for each alarm channel |
| FLICKER TIMER | Adjustable Flicker Time for Common and Alarm 1–5 |
| INPUT TERMINALS | Multi-terminal screw terminal block |
| MOUNTING TYPE | Panel Mount |
| POWER MARKING | DC24V |
| APPLICATION | Marine alarm monitoring, group alarm annunciation, machinery alarm indication, engine room alarm systems, ship automation and industrial monitoring applications. |
| TERMINAL TYPE | Screw Terminal Connections |
| INDICATOR TYPE | LED (Red / Green) |
| MADE IN | South Korea |
| REF NO | 491 |
