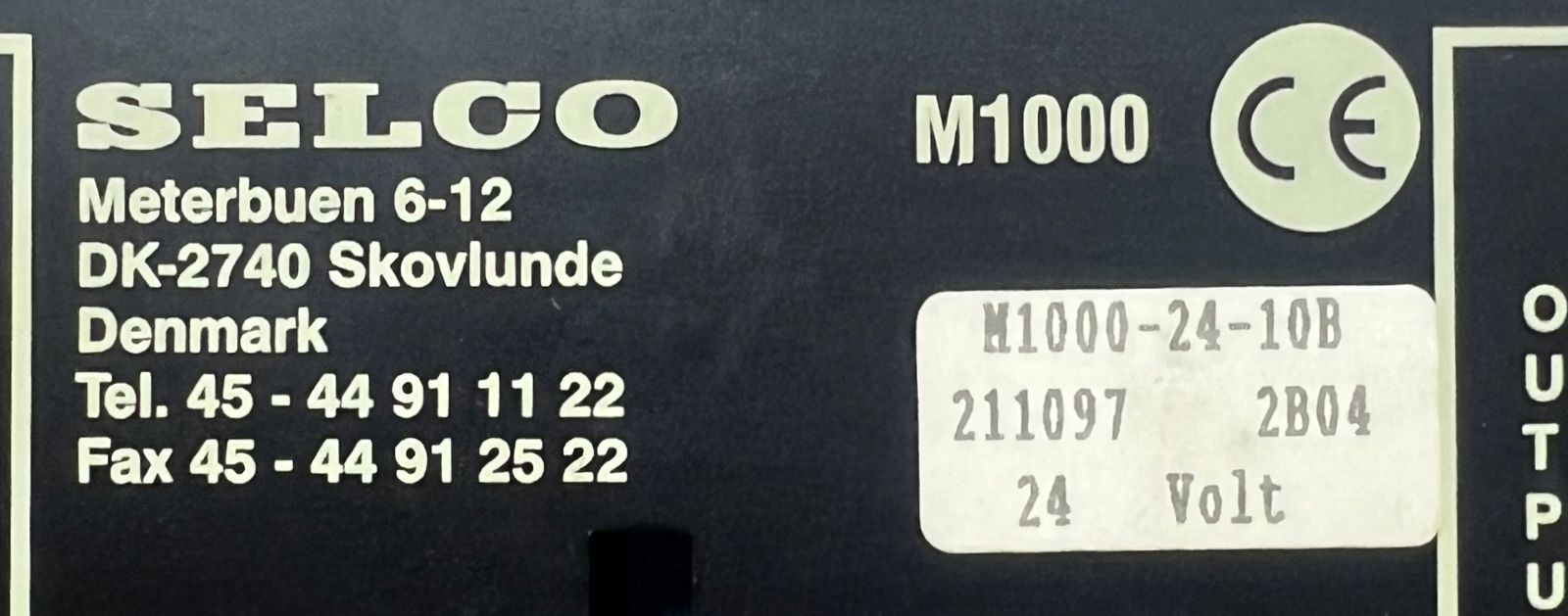

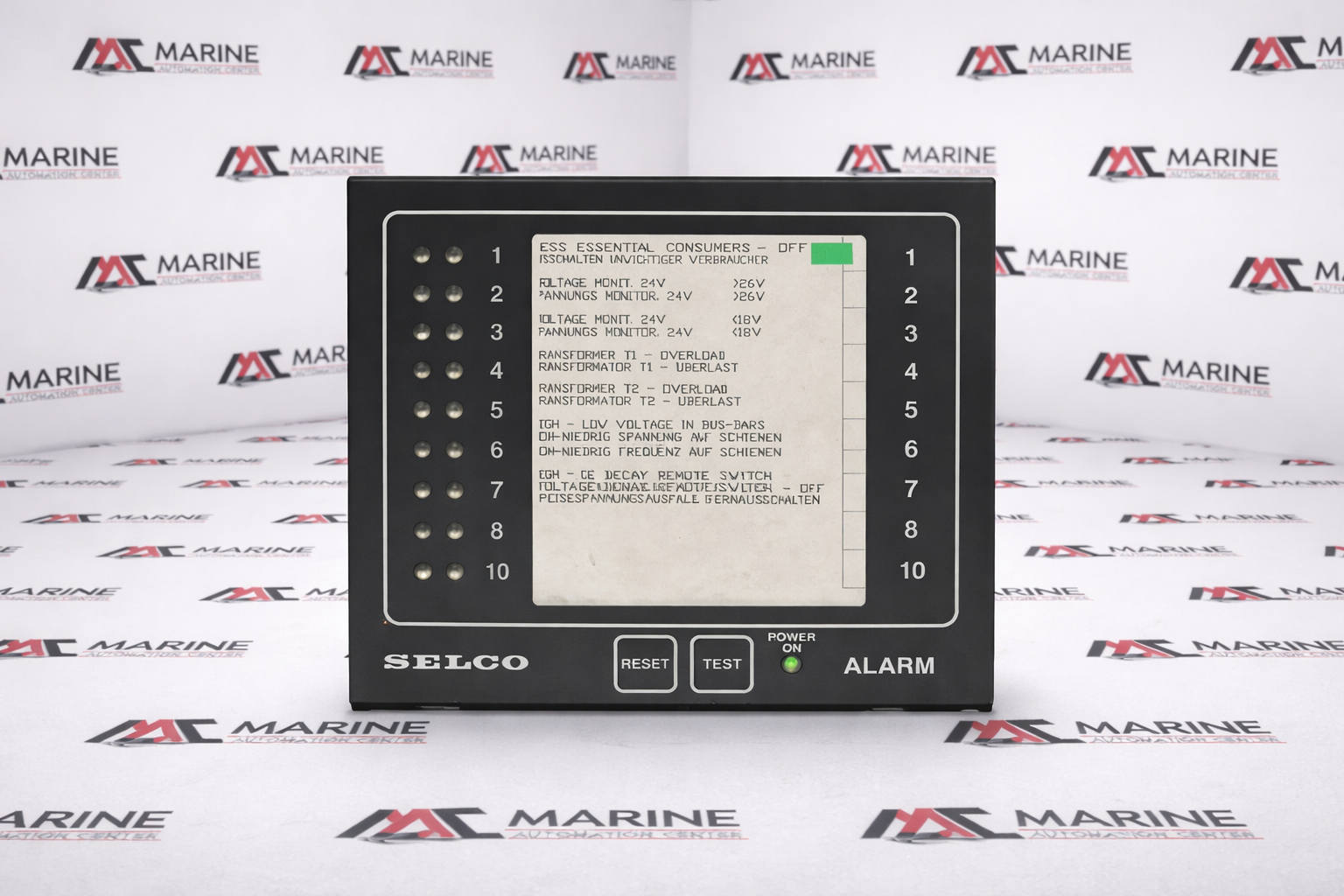

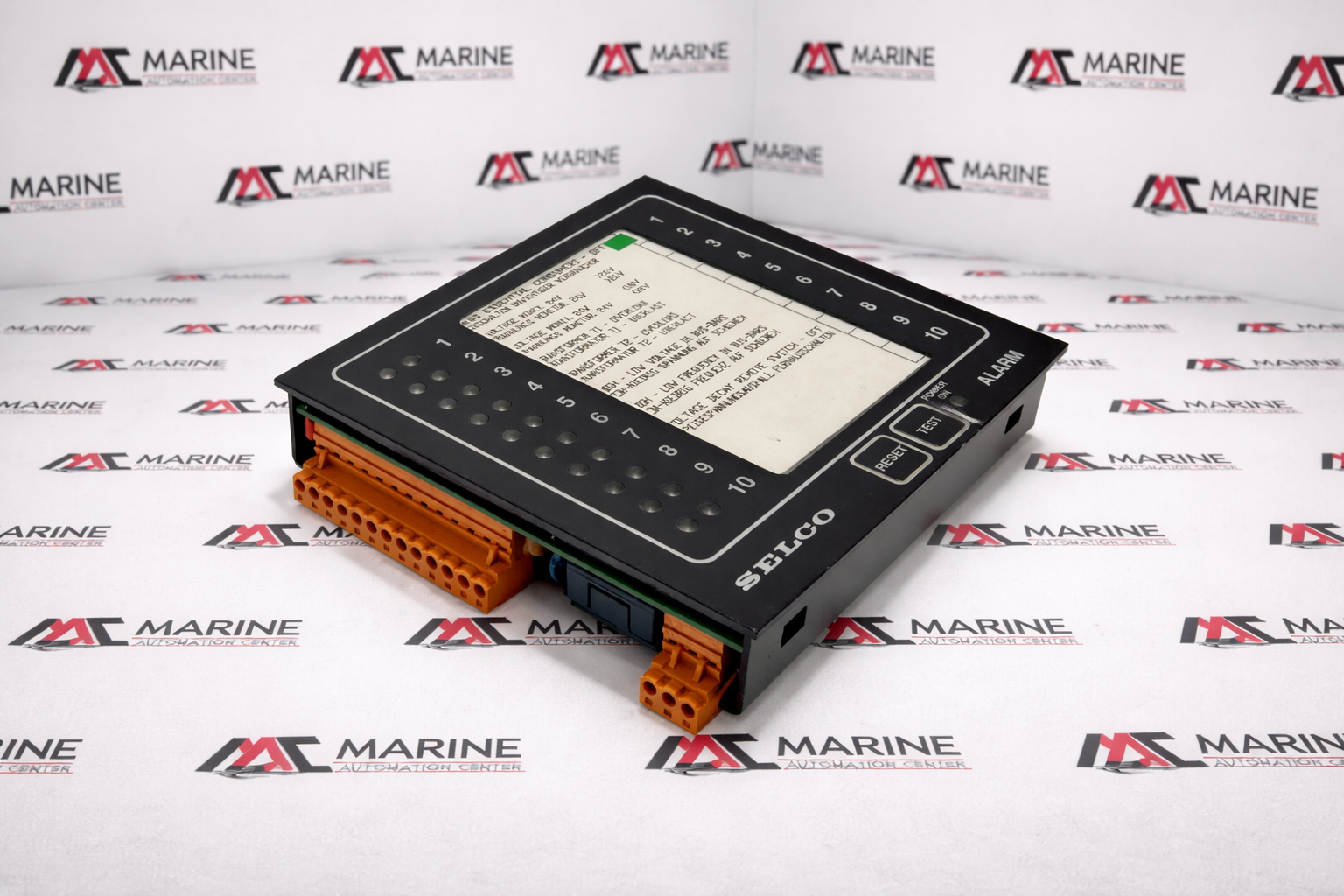

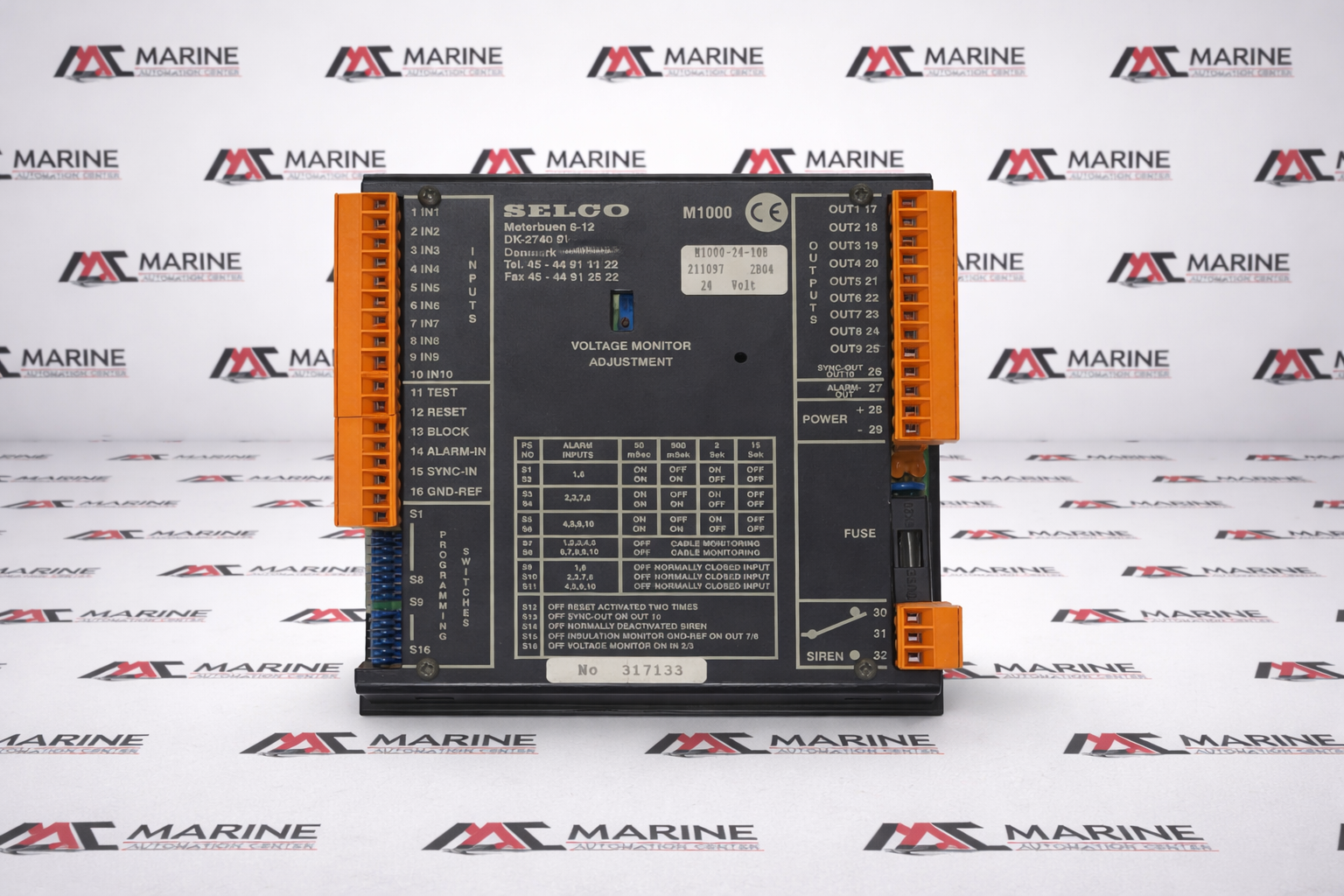

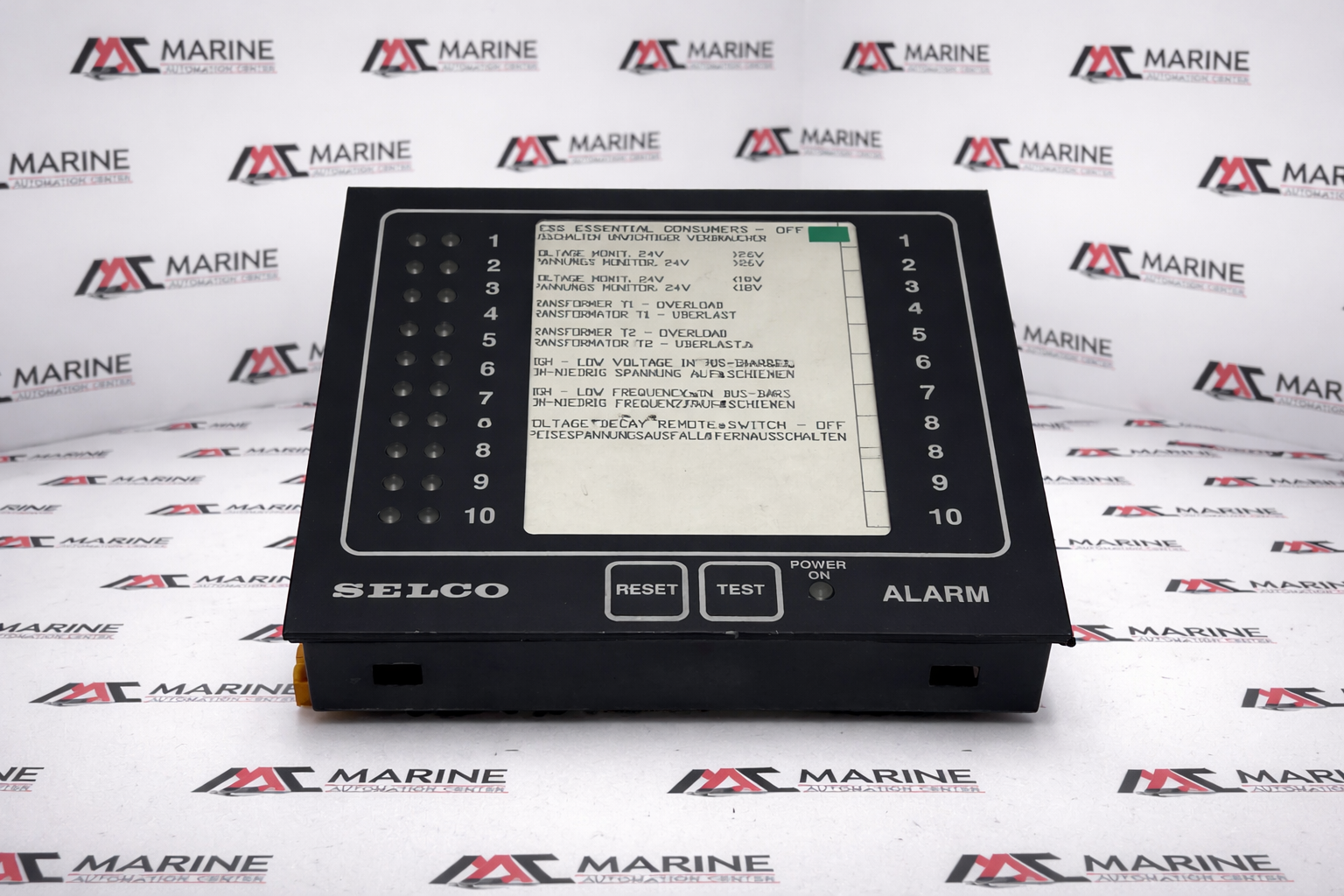

SELCO 10-Channel Marine Alarm Monitor
The Selco M1000-24-10B 10-Channel Marine Alarm Monitor is a compact marine alarm monitoring unit designed to supervise up to 10 alarm inputs and provide clear visual and audible indication of abnormal conditions. It is suitable for engine rooms, control panels, generators, and other marine automation systems requiring reliable fault and alarm monitoring.
BRAND
SELCO
TYPE
10-Channel Marine Alarm Monitor
PART NO.
M1000-24-10B
MODEL
M1000
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | SELCO |
| TYPE | 10-Channel Marine Alarm Monitor |
| PART NO. | M1000-24-10B |
| MODEL | M1000 |
| PART NUMBER | M1000-24-10B |
| UNIT NO. | 211097 |
| VOLTAGE | 24 V DC |
| ALARM INPUTS | 10 inputs (IN1–IN10) |
| SIREN CONNECTION | Terminals 30, 31, 32 |
| INPUT TYPE | Normally Open (NO) / Normally Closed (NC) potential-free contacts |
| OUTPUT CAPACITY | Max. 150 mA/channel |
| POWER CONSUMPTION | Max. 180 mA |
| AMBIENT TEMPERATURE | -10°C to +70°C |
| INSULATION MONITOR | 25 kΩ ±8 kΩ |
| VOLTAGE MONITOR | High: >26 V / Low: <18 V |
| ALARM FUNCTIONS | Essential consumers, voltage, transformer overload, bus-bar voltage/frequency and voltage decay monitoring |
| APPLICATION | Marine electrical alarm and switchboard monitoring |
| MADE IN | Denmark |
| REF NO | 957 |
