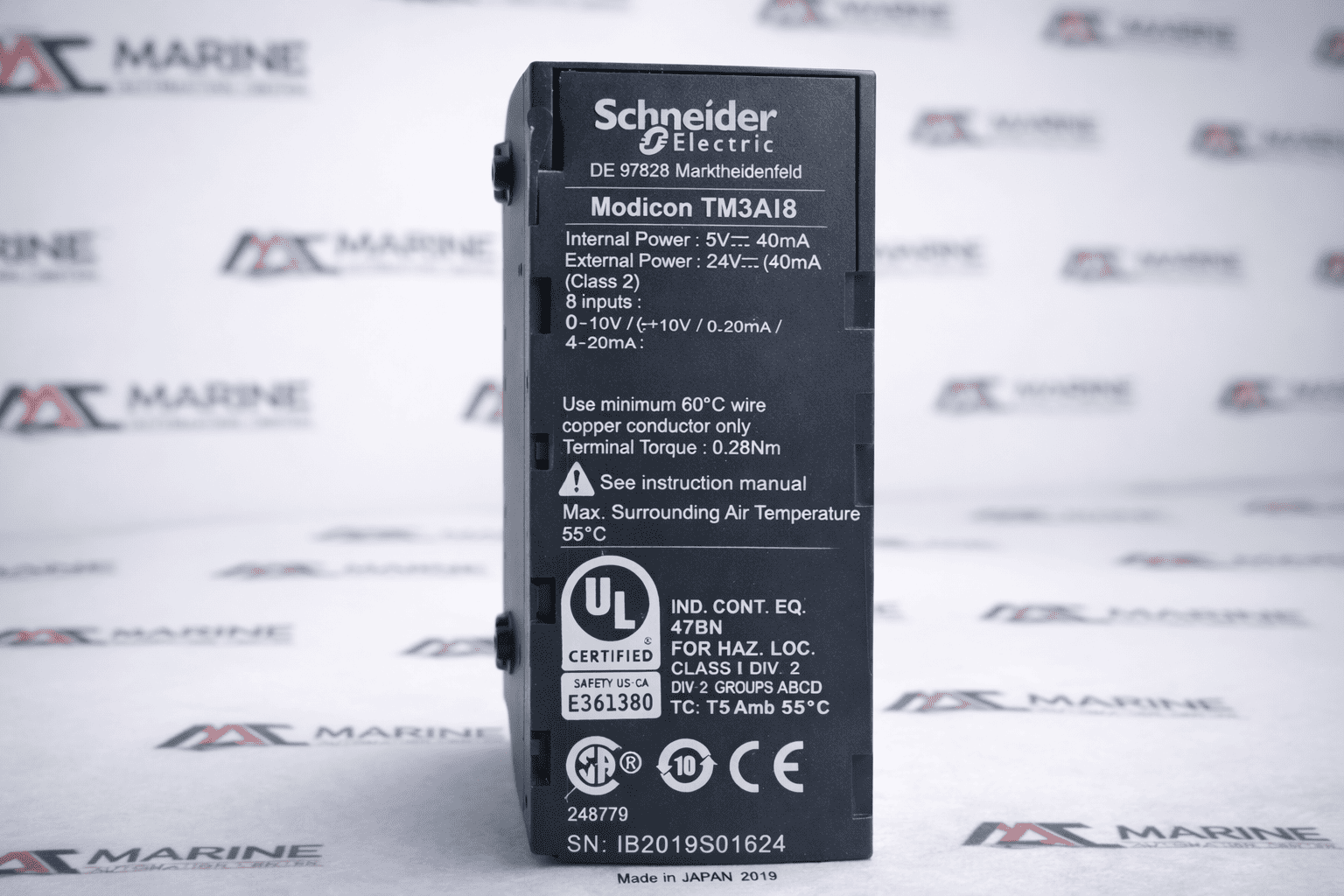

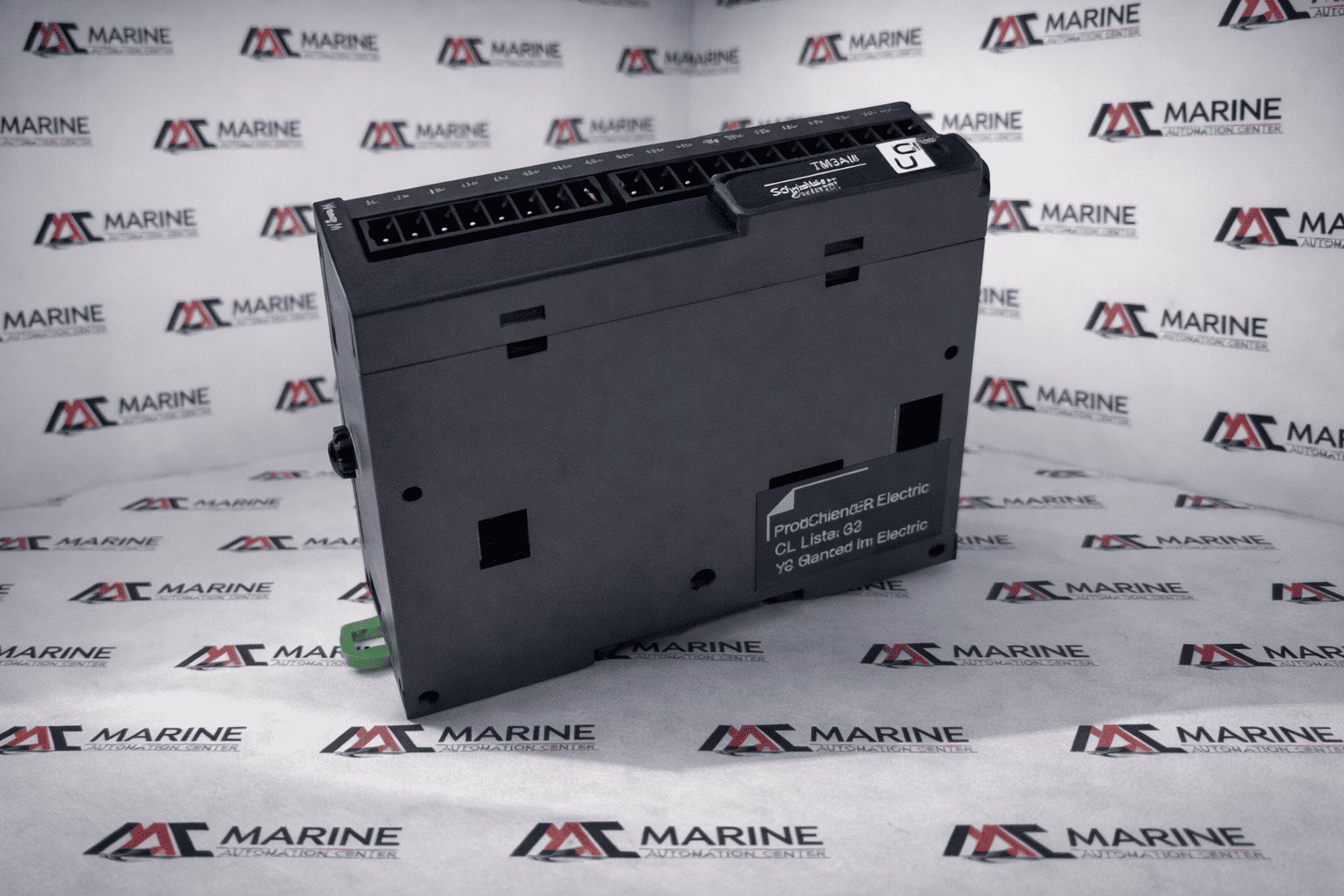

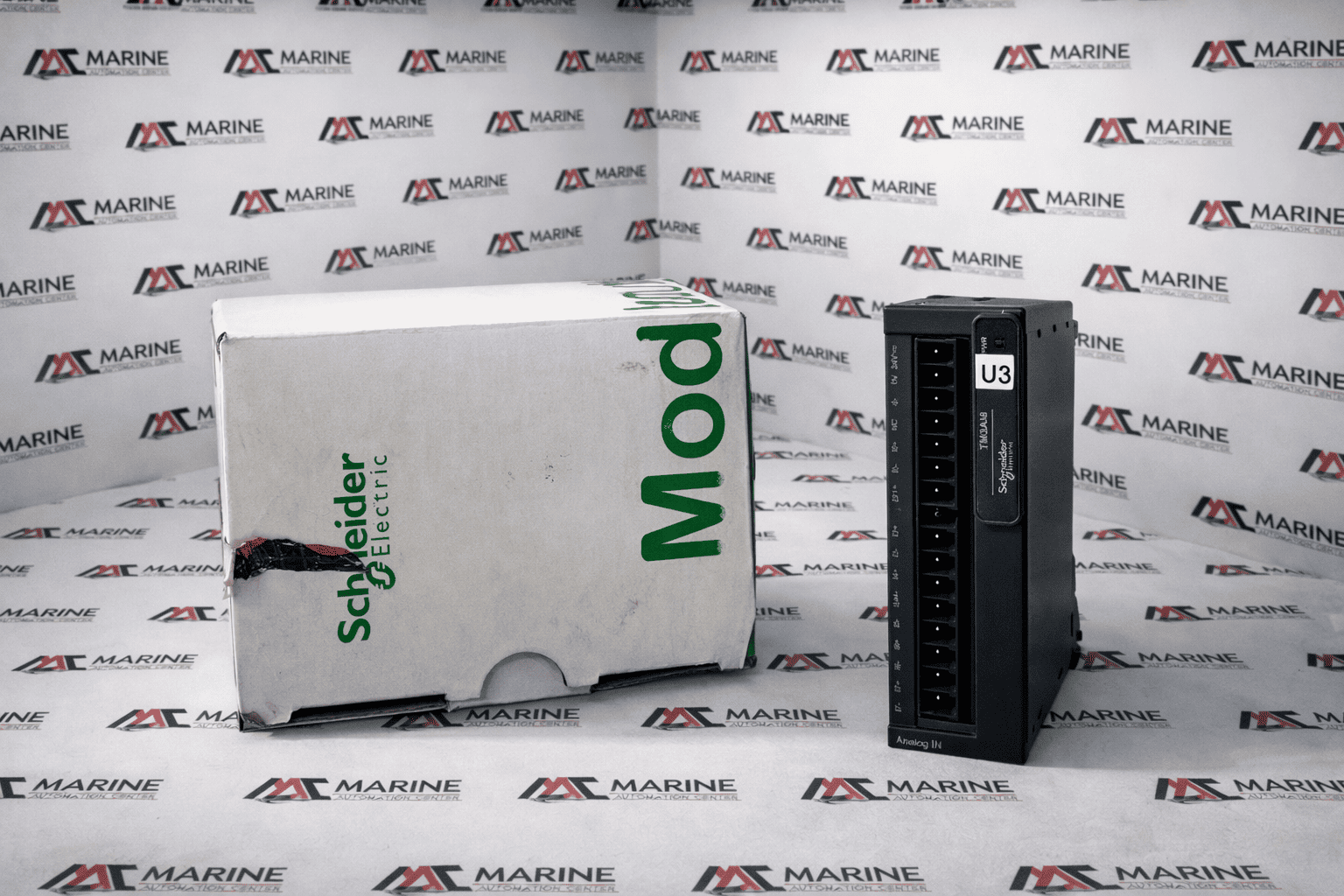

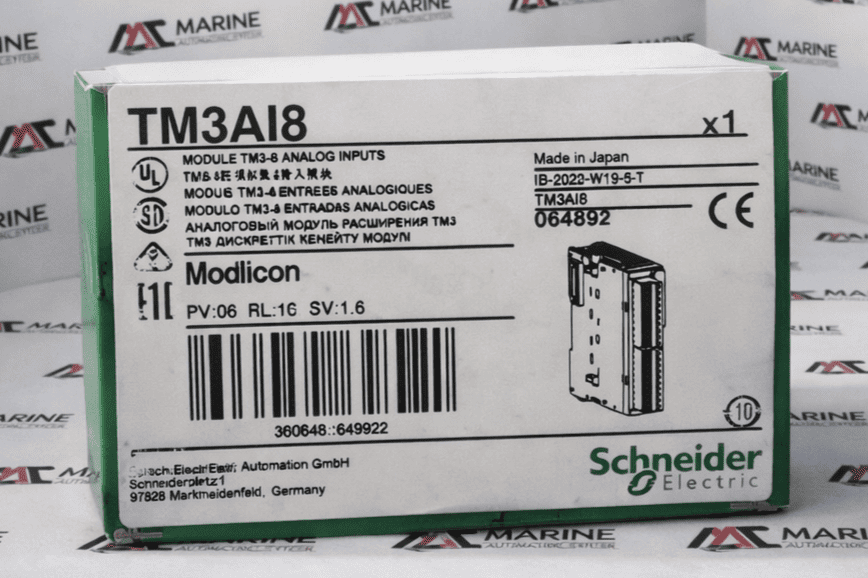

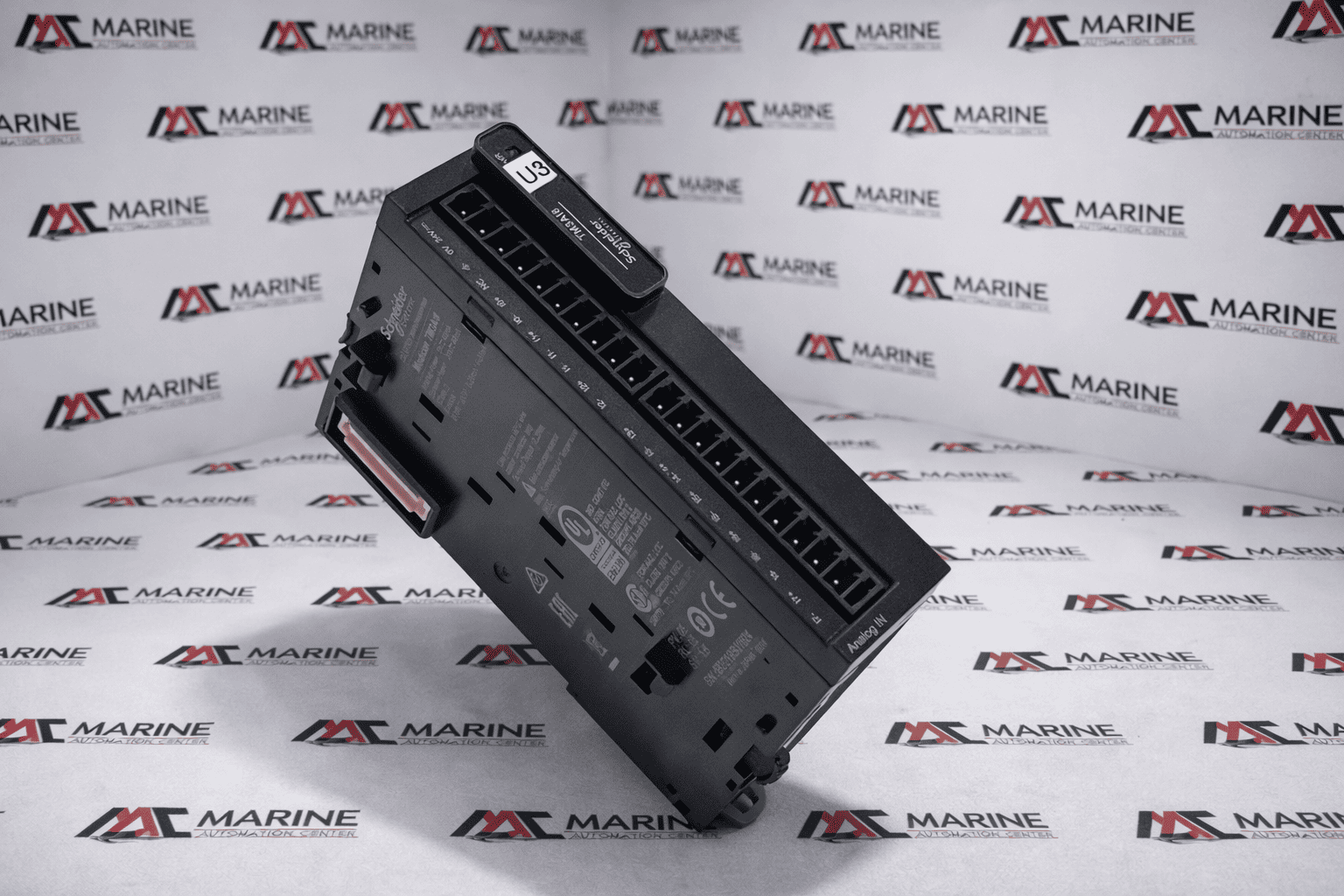

Schneider Electric Tm3ai8 Analog Input Module

This module is part of the Modicon TM3 range, designed for Modicon M221, Modicon M241, Modicon M251, and Modicon M262 controllers. It features 8 analogue inputs with 11-bit + sign (12-bit) resolution and operates on 24V DC supply. Current consumption is 35–45mA at 5V DC and 30mA at 24V DC external supply. Suitable for controlling variable speed drives and devices with current or voltage inputs. Provides 1500V AC insulation (input/supply) and 500V AC (input/logic), IP20 rated. Compact size (
