Rexroth Hydraulic Pressure Relief

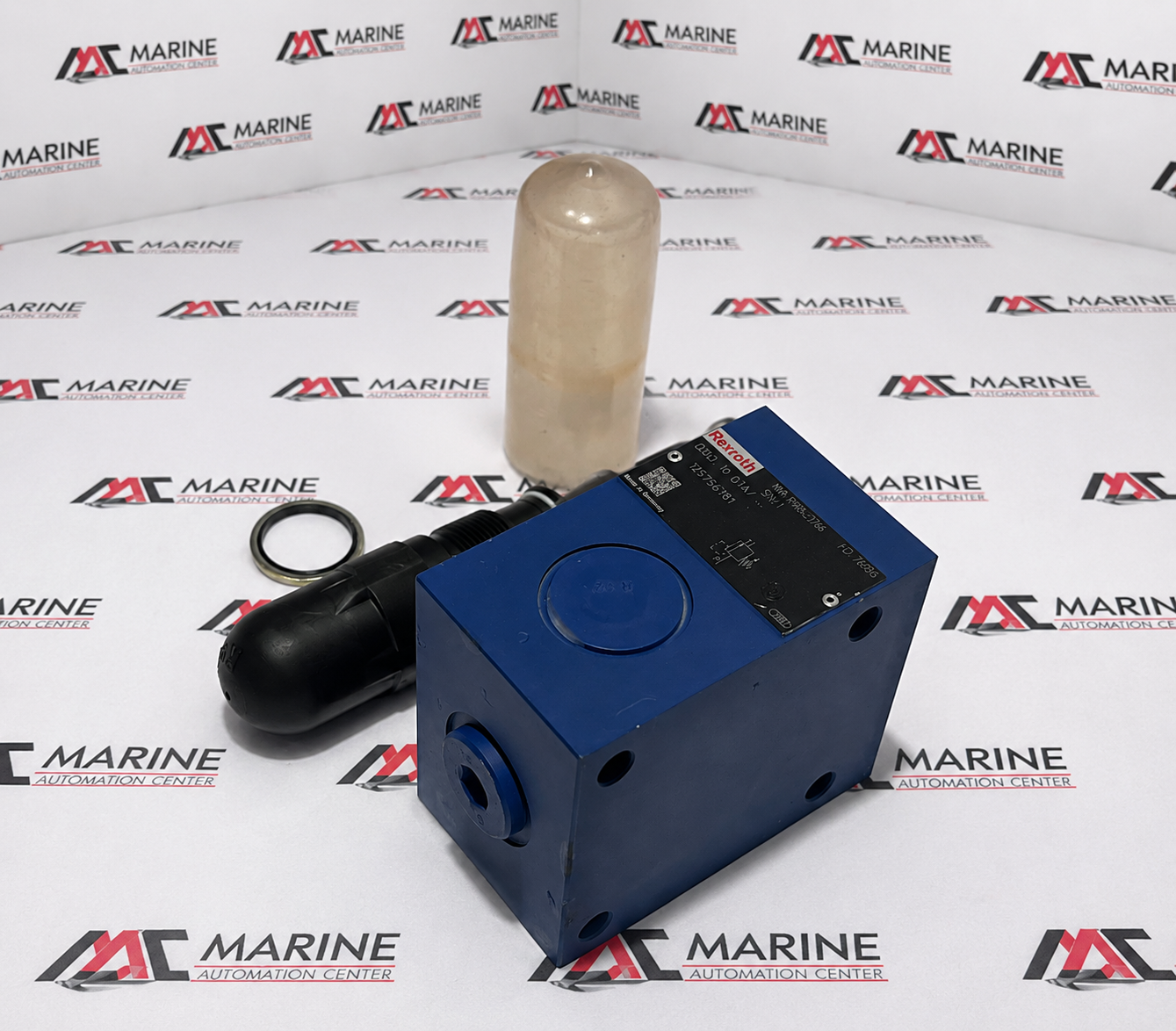

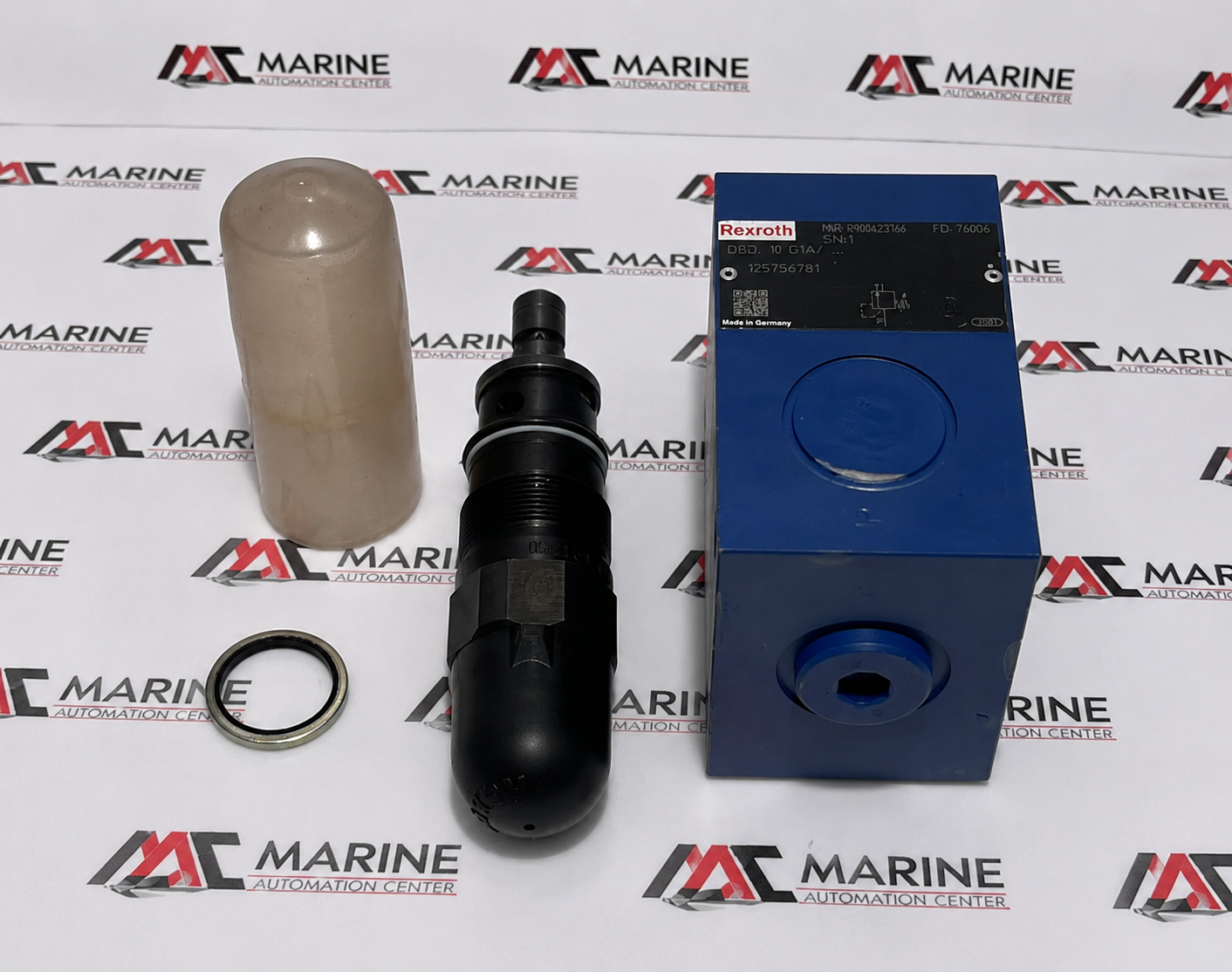

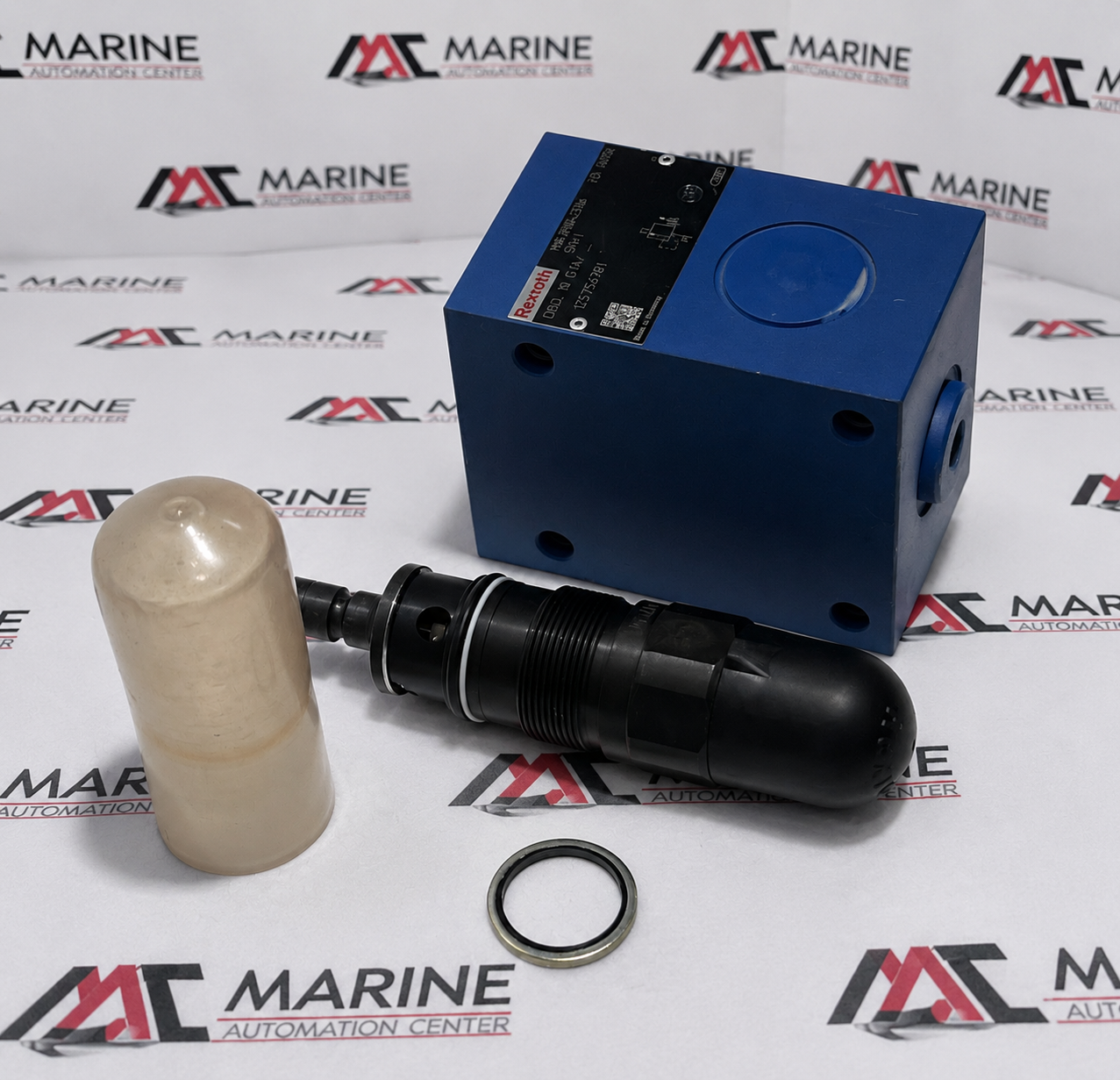

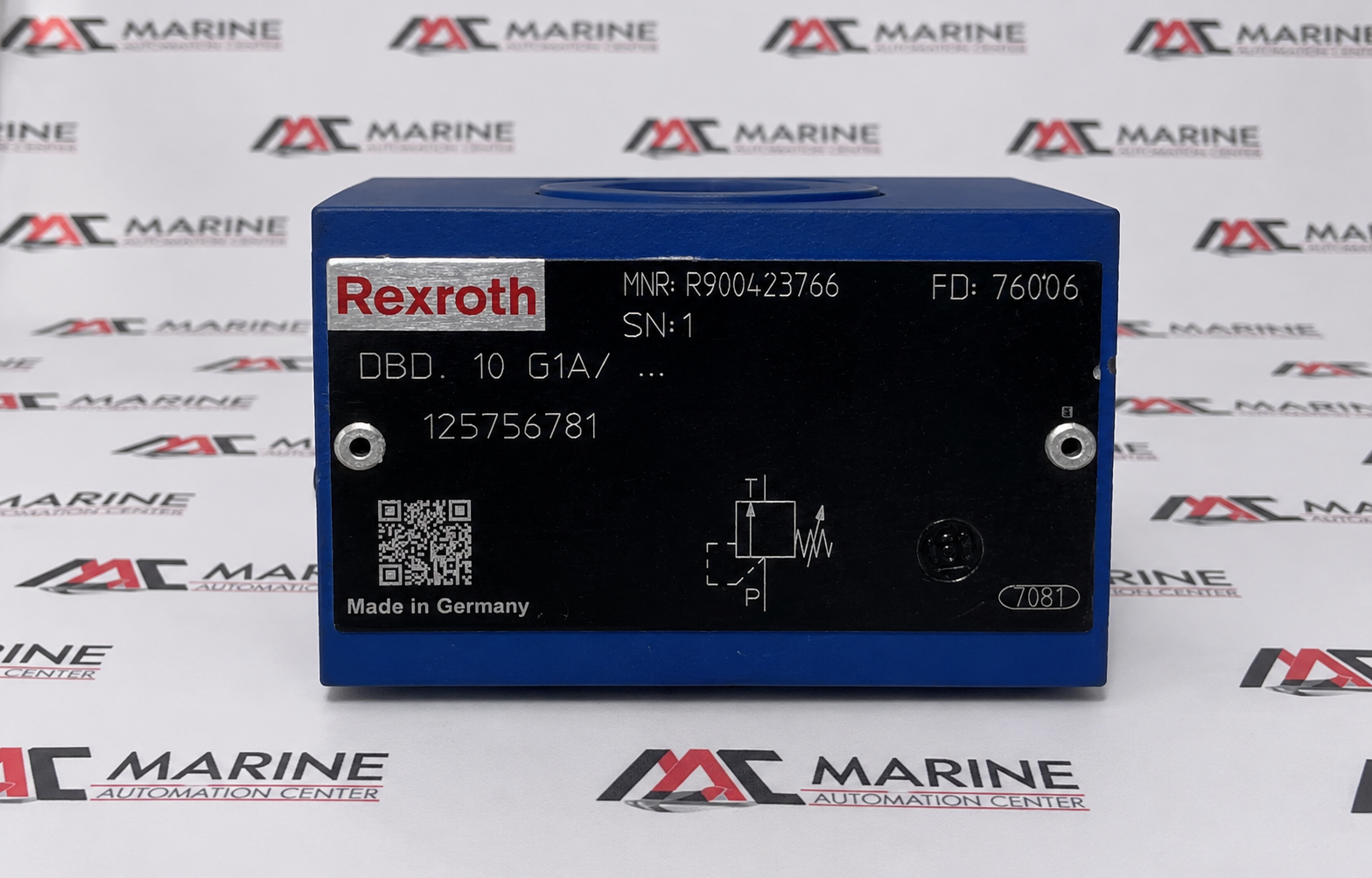

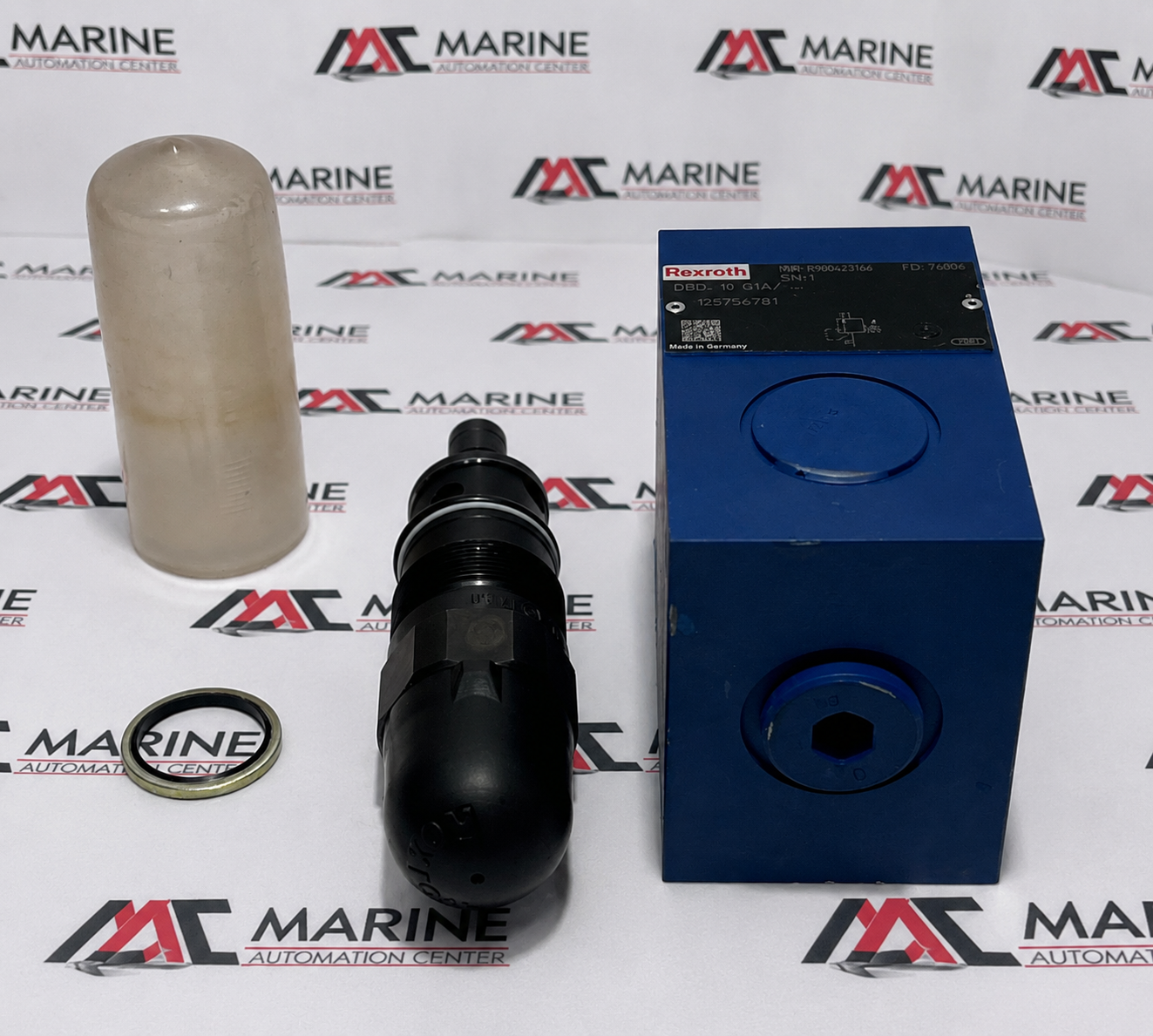

The Rexroth R900423766 DBD.10 G1A is a hydraulic pressure relief valve designed to protect hydraulic systems by limiting maximum operating pressure. It provides accurate pressure regulation, reliable overpressure protection, and durable performance, making it ideal for industrial hydraulic machinery, fluid power systems, and automation applications.
BRAND
Rexroth
TYPE
Hydraulic Pressure Relief Valve
PART NO.
R900423766
MODEL
DBD.10 G1A
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Rexroth |
| TYPE | Hydraulic Pressure Relief Valve |
| PART NO. | R900423766 |
| MODEL | DBD.10 G1A |
| MNR (Material Number) | R900423766 |
| SIZE (NG) | NG10 (Nominal Size 10) |
| VALVE DESIGN | Direct Operated Seat-Type Pressure Relief Valve |
| MOUNTING TYPE | Screw-in Cartridge / Manifold Mounted |
| FUNCTION | Limits and protects hydraulic systems from excessive pressure by diverting oil from port P to port T when the preset pressure is reached. |
| MAX. OPERATING PRESSURE | Up to 400 bar (Standard DBD Version) |
| MAXIMUM FLOW | Up to 330 L/min |
| PORTS | P (Pressure), T (Tank/Return) |
| PRESSURE ADJUSTMENT | Factory Adjustable (depending on pressure rating) |
| APPLICATION | Hydraulic power units, industrial machinery, marine hydraulic systems, presses, mobile hydraulics, oil & gas equipment, machine tools, heavy industrial automation |
| MADE IN | Germany |
| REF NO. | 1294 |
