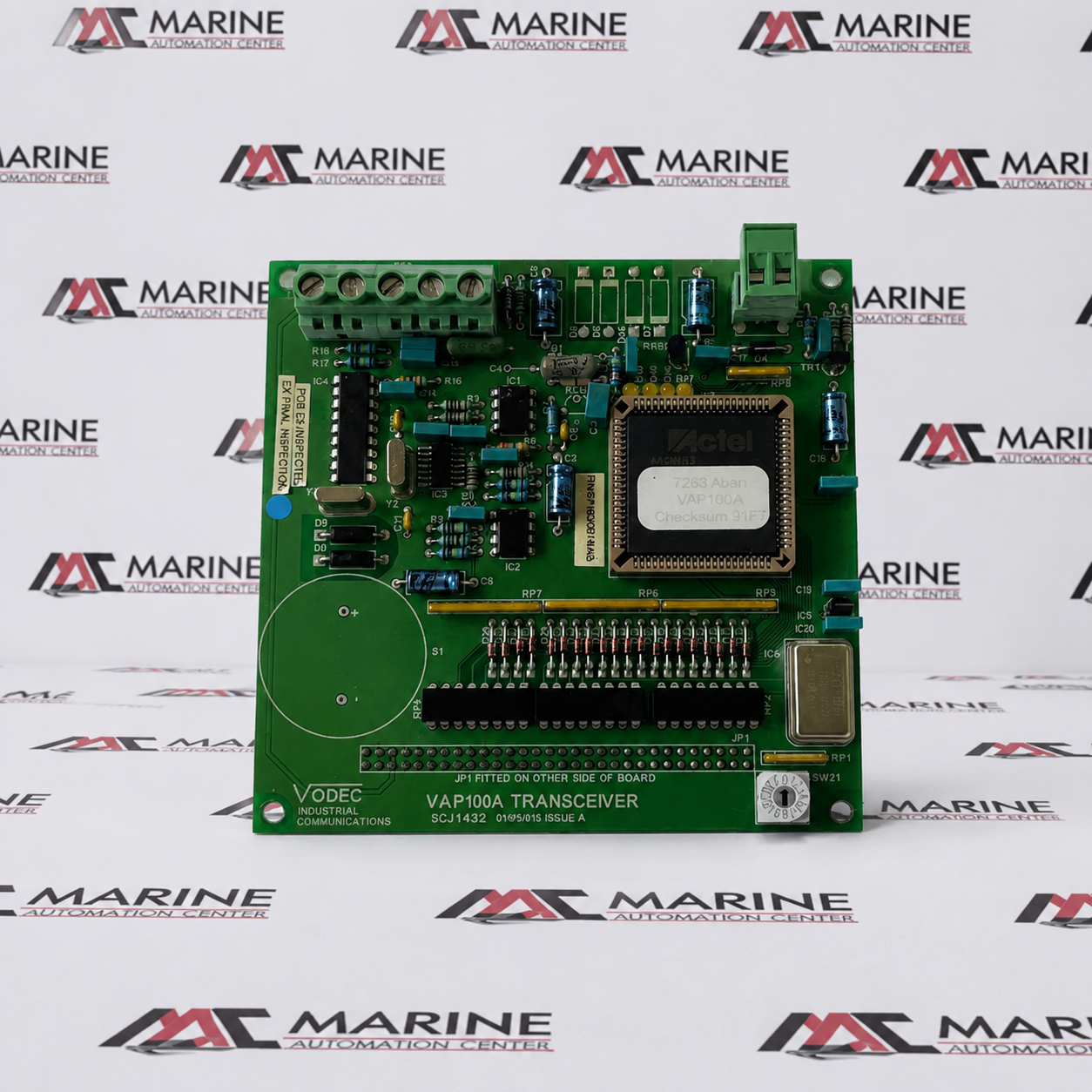

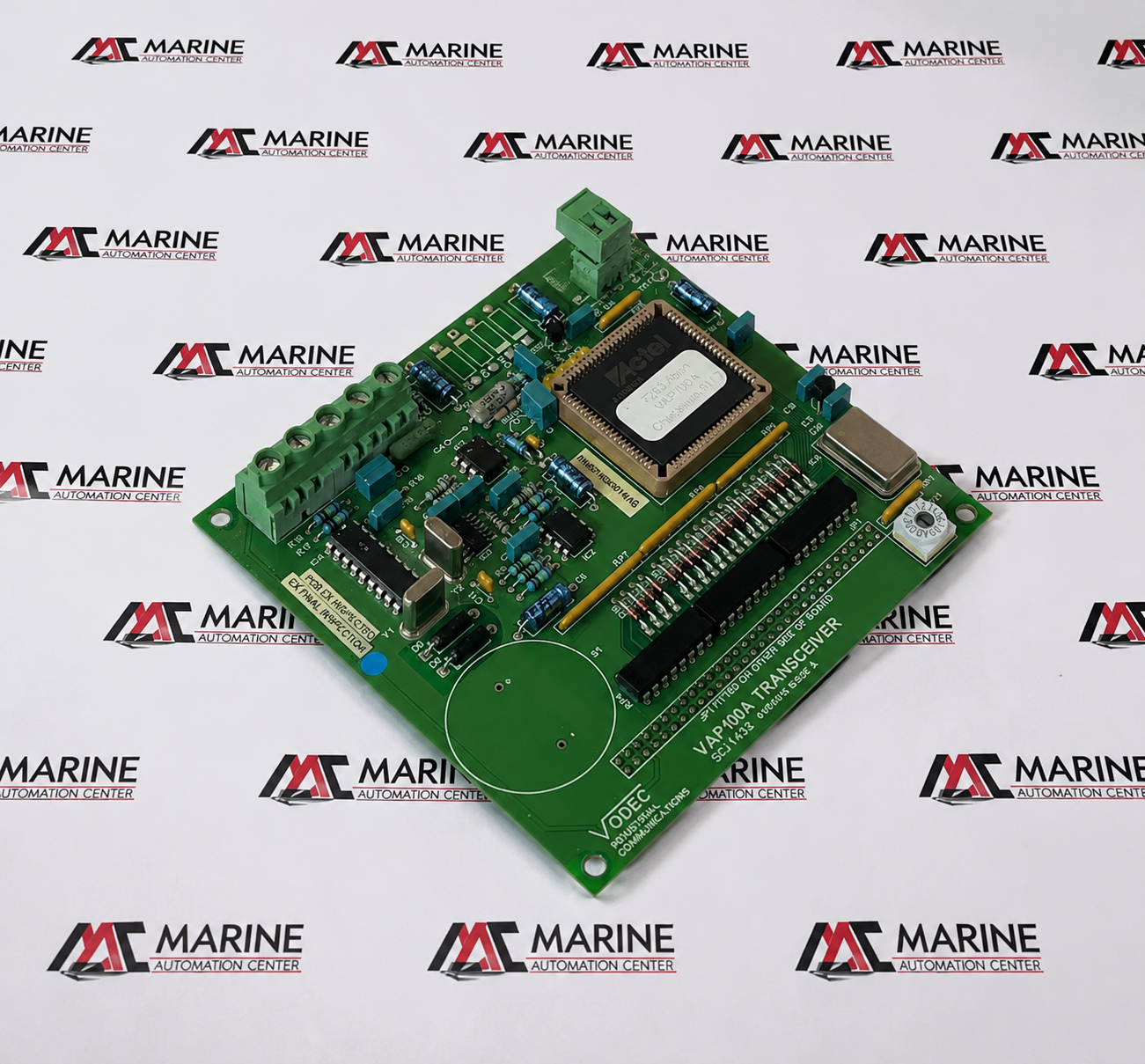

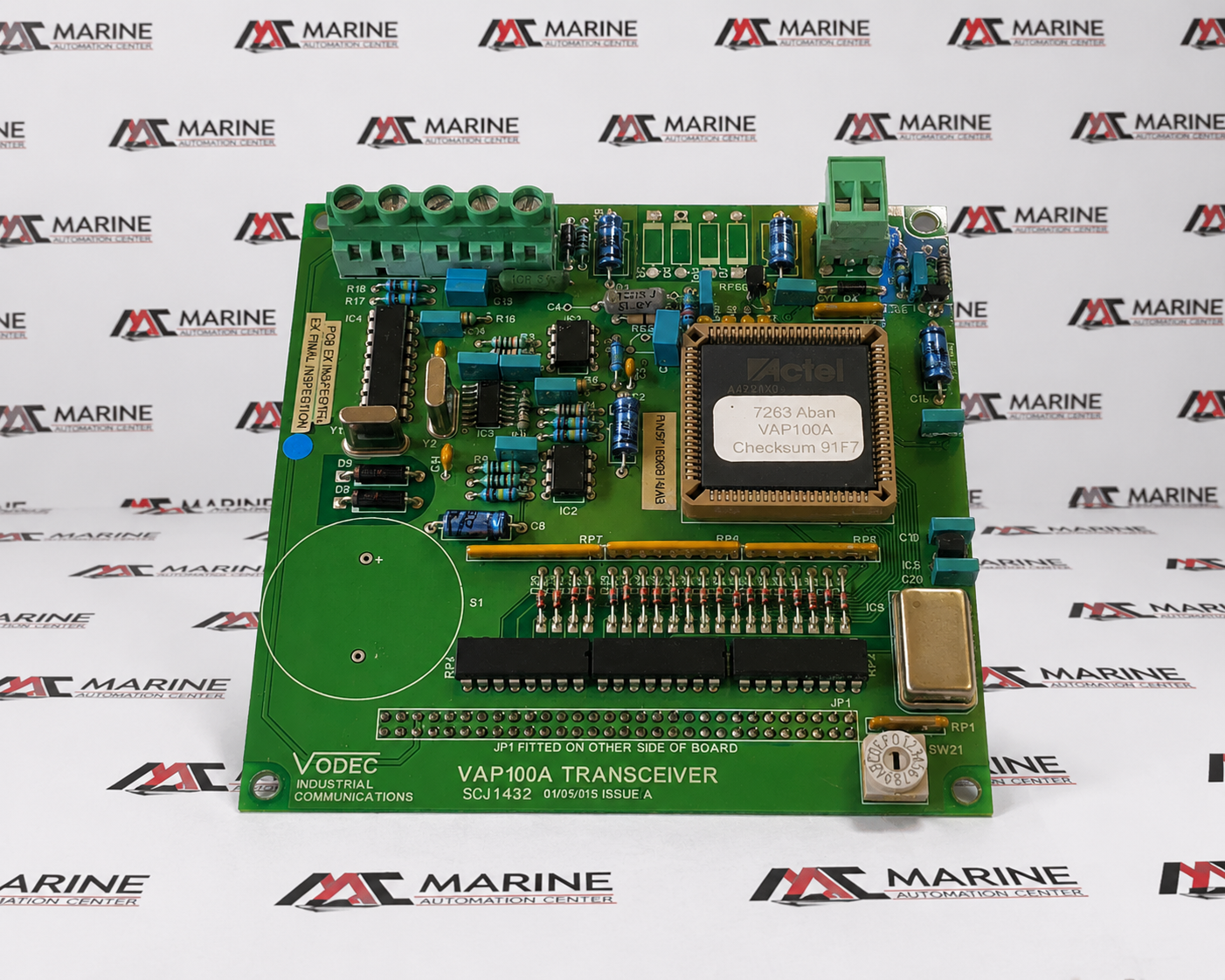

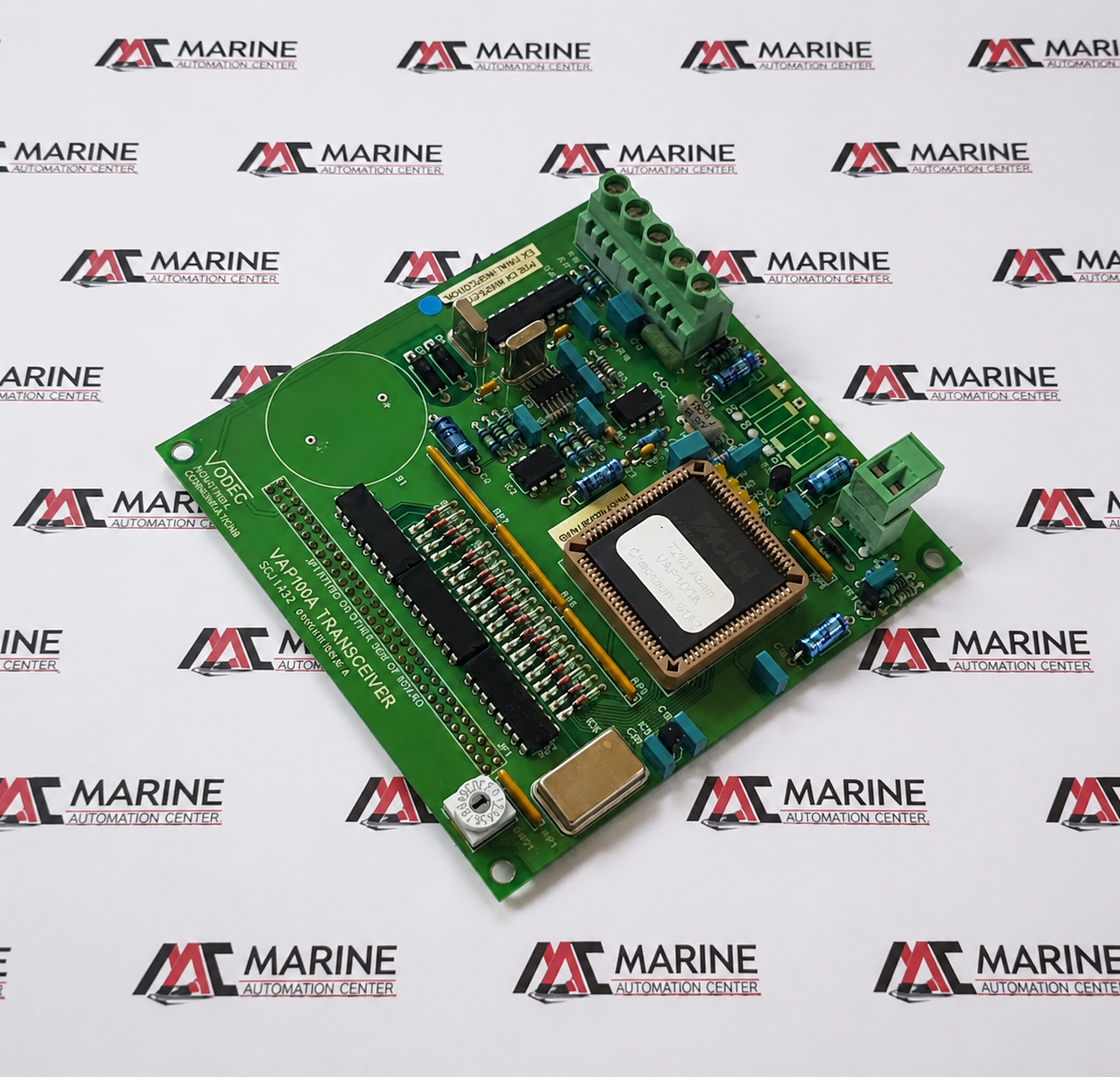

PSC VODEC Transceiver Board
PSC VODEC VAP100A Transceiver Board (Part No. 425.094.01.475) is a transceiver interface board designed for PSC VODEC Public Address & General Alarm (PA/GA) systems. It enables reliable transmission and reception of audio and control signals, supporting dependable voice communication and emergency alarm broadcasting in marine, offshore, and industrial installations
BRAND
PSC VODEC
TYPE
Transceiver Board / Public Address & General Alarm (PA/GA) System Interface
PART NO.
425.094.01.475
MODEL
VAP100A Transceiver Board
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | PSC VODEC |
| TYPE | Transceiver Board / Public Address & General Alarm (PA/GA) System Interface |
| PART NO. | 425.094.01.475 |
| MODEL | VAP100A Transceiver Board |
| Voltage Rating | 5 V DC phantom power line distribution |
| Application | Integrated into marine master control panel networks, emergency microphone intercom stations, and shipboard hazardous-area public address systems |
| IEC | Built to align with hazardous area zone specifications (often associated with Ex ib IIC T4 configurations) |
| System Connectivity Layout | Employs a phantom-powered single twisted core pair loop to transport simultaneous communication data, phantom power, and system health status tracking signals |
| Processor Configuration | Utilizes an on-board Actel A40MX04 field-programmable gate array (FPGA) processing chipset for robust signal conversion logic |
| Physical Assembly Build | Multi-layer moisture-resistant industrial green mask epoxy board featuring rugged multi-pin terminal blocks at the edge for reliable high-vibration environment links |
| Made In | United Kingdom / Germany |
| REF NO | 388 |
