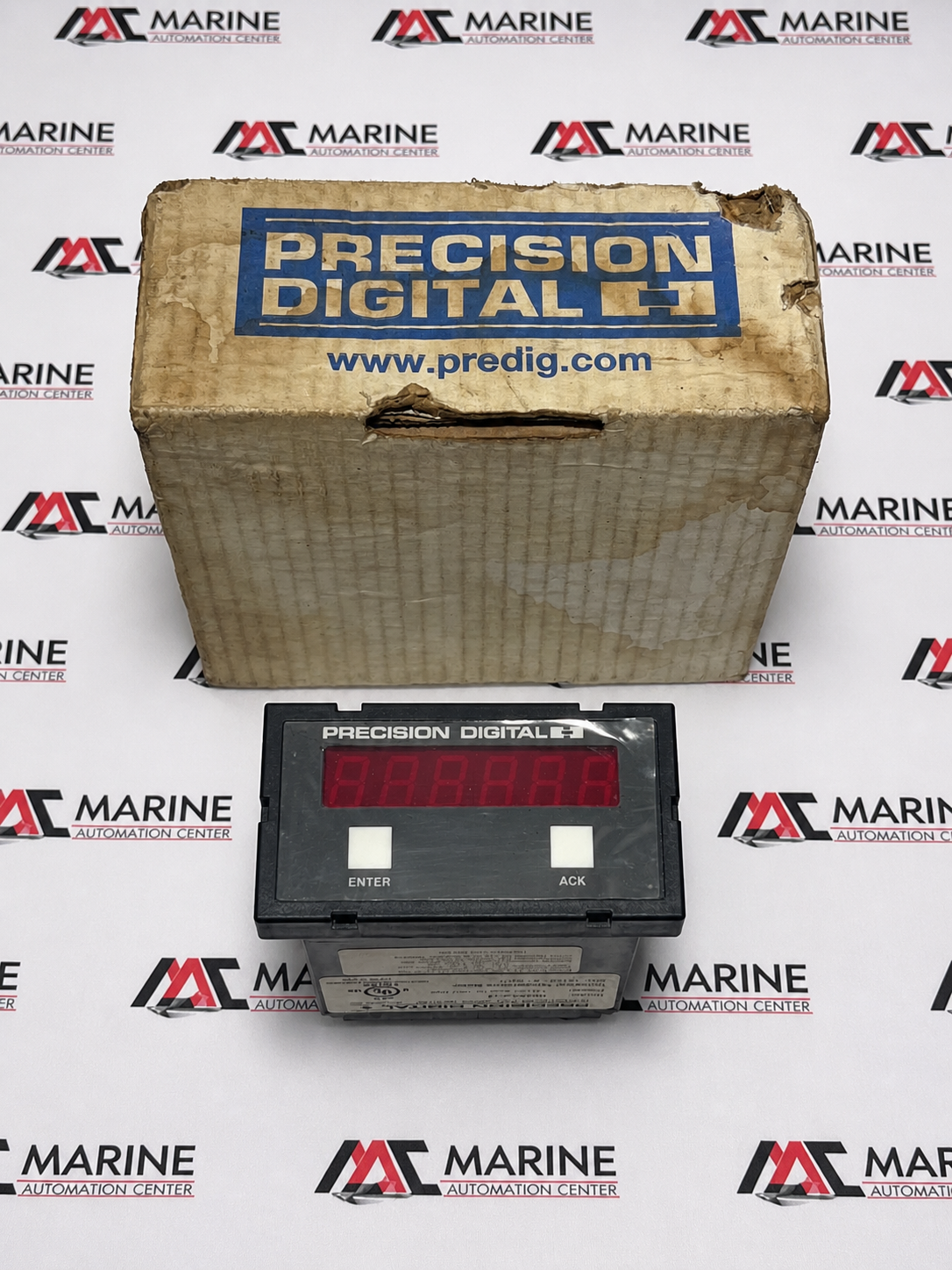

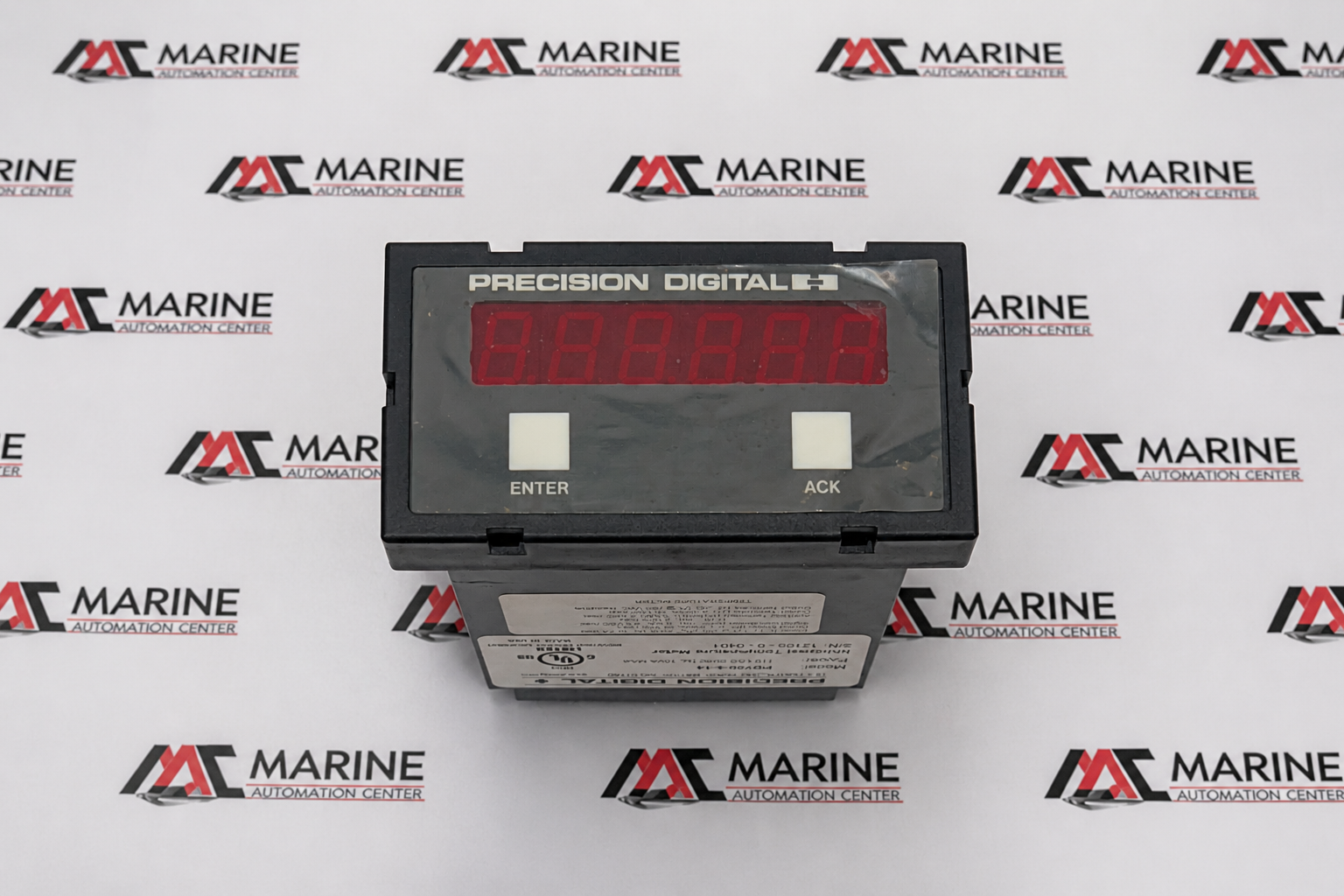

PRECISION DIGITAL PD750-3-14 UNIVERSAL TEMPERATURE METER
Precision Digital PD750-3-14 universal temperature meter with RTD and thermocouple input support. Features 4–20mA output, relay control, and 115/230 VAC operation for industrial applications.
BRAND
PRECISION DIGITAL
TYPE
UNIVERSAL TEMPERATURE METER
PART NO.
PRECISION DIGITAL PD750-3-14 UNIVERSAL TEMPERATURE METER
MODEL
PD750-3-14
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | PRECISION DIGITAL |
| TYPE | UNIVERSAL TEMPERATURE METER |
| PART NO. | PRECISION DIGITAL PD750-3-14 UNIVERSAL TEMPERATURE METER |
| MODEL | PD750-3-14 |

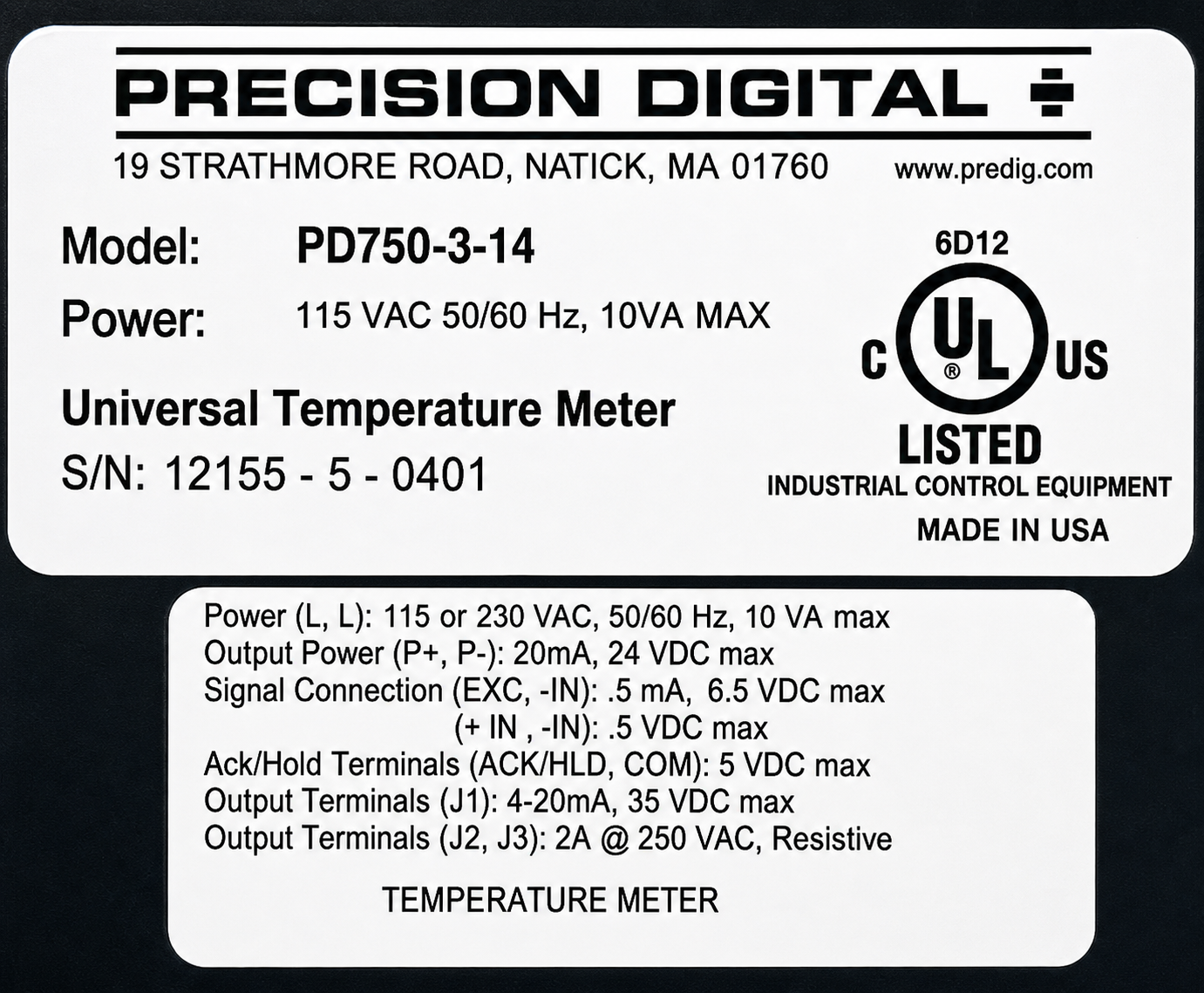

| Power | 115 VAC 50/60 Hz, 10VA MAX |
| S/N | 12155-5-0401 |
| Output Power | 24 VDC max, 20 mA |
| Signal Connection | 5 mA, 6.5 VDC max |
| (+ IN, -IN) | 5 VDC max |
| Output terminal(j1) | 4-20mA, 35 VDC max |
| Output terminal(j2,j3) | 2A @ 250 VDC |
| Made in | USA |
| REFERENCE NO. | 1157 |
