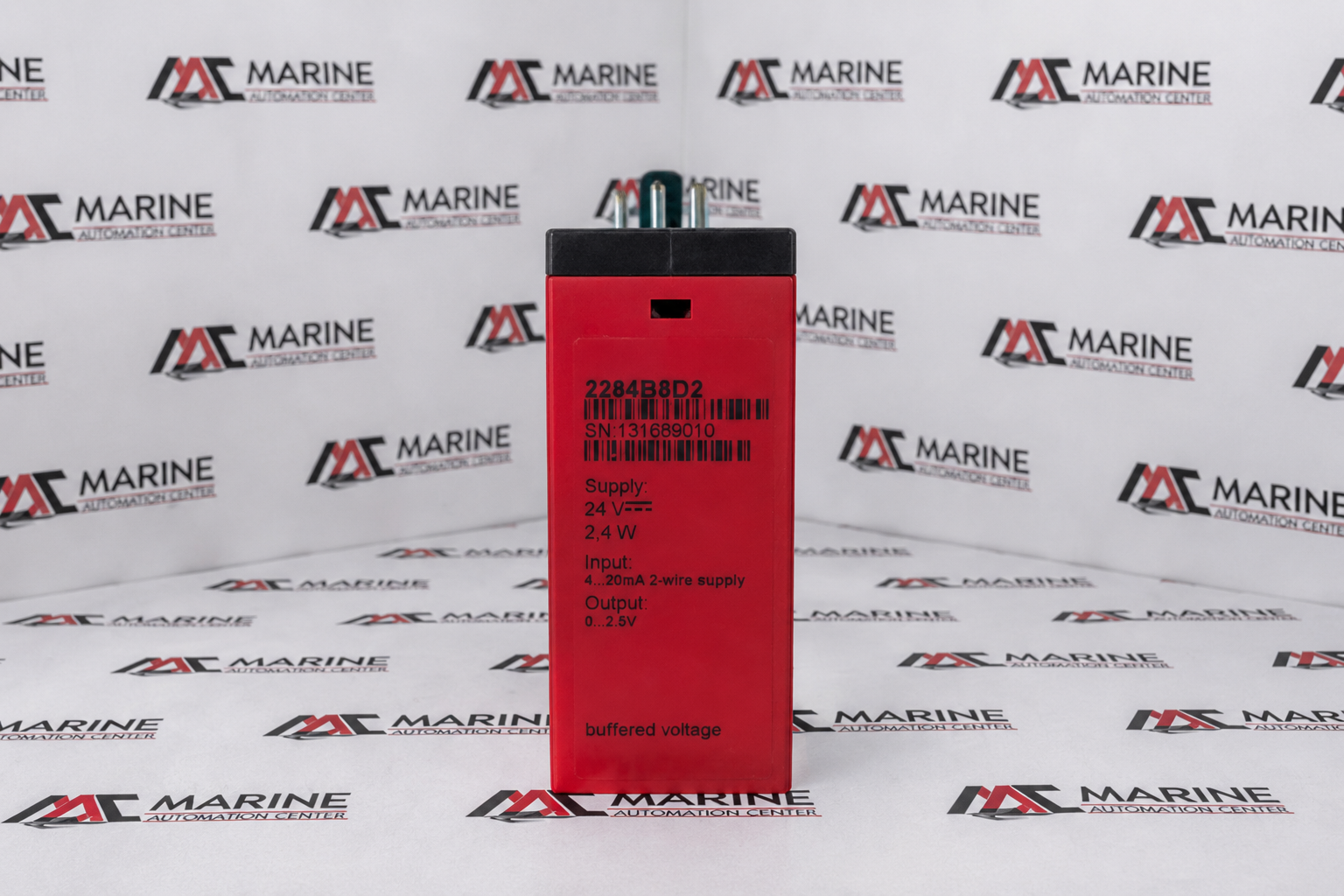

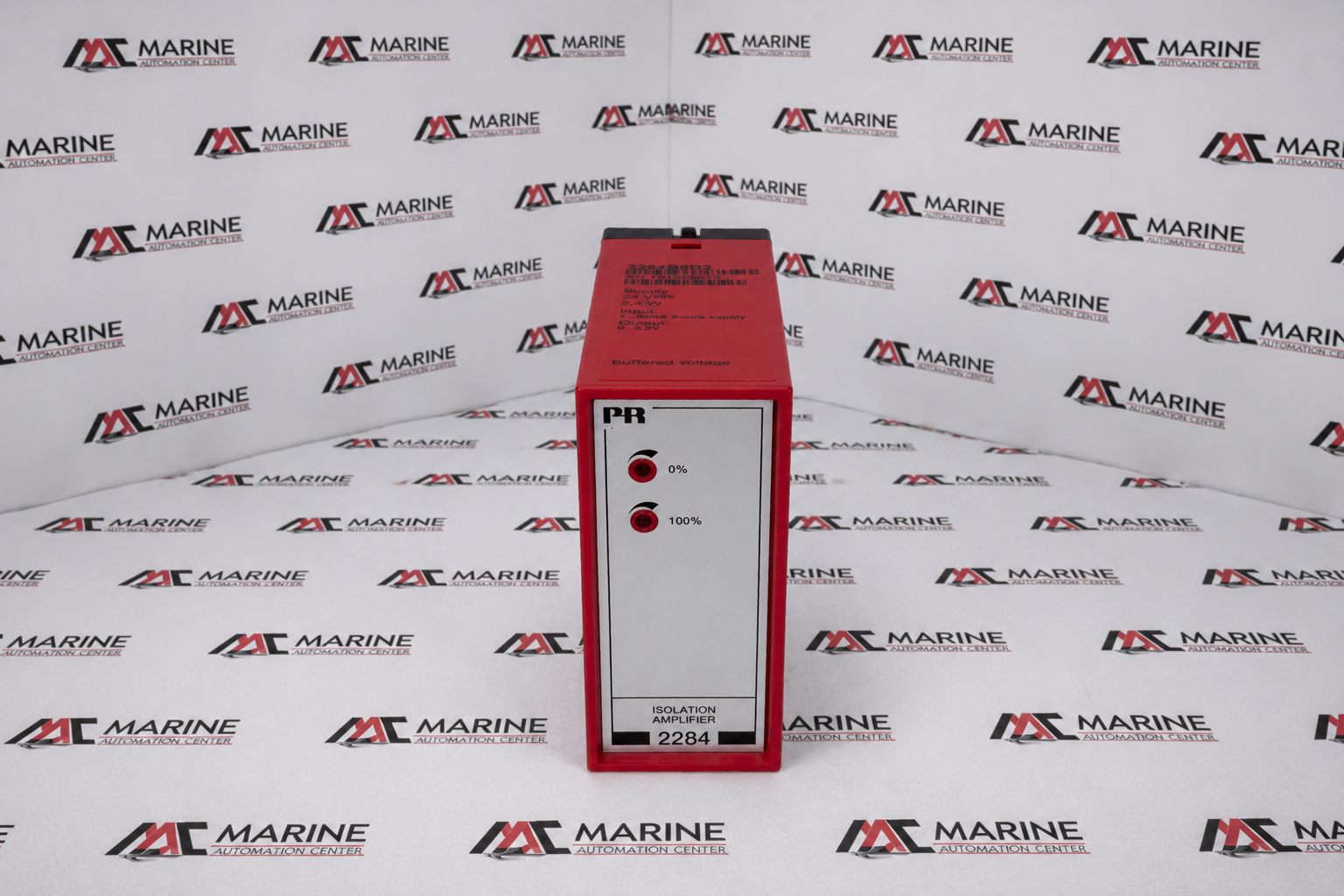

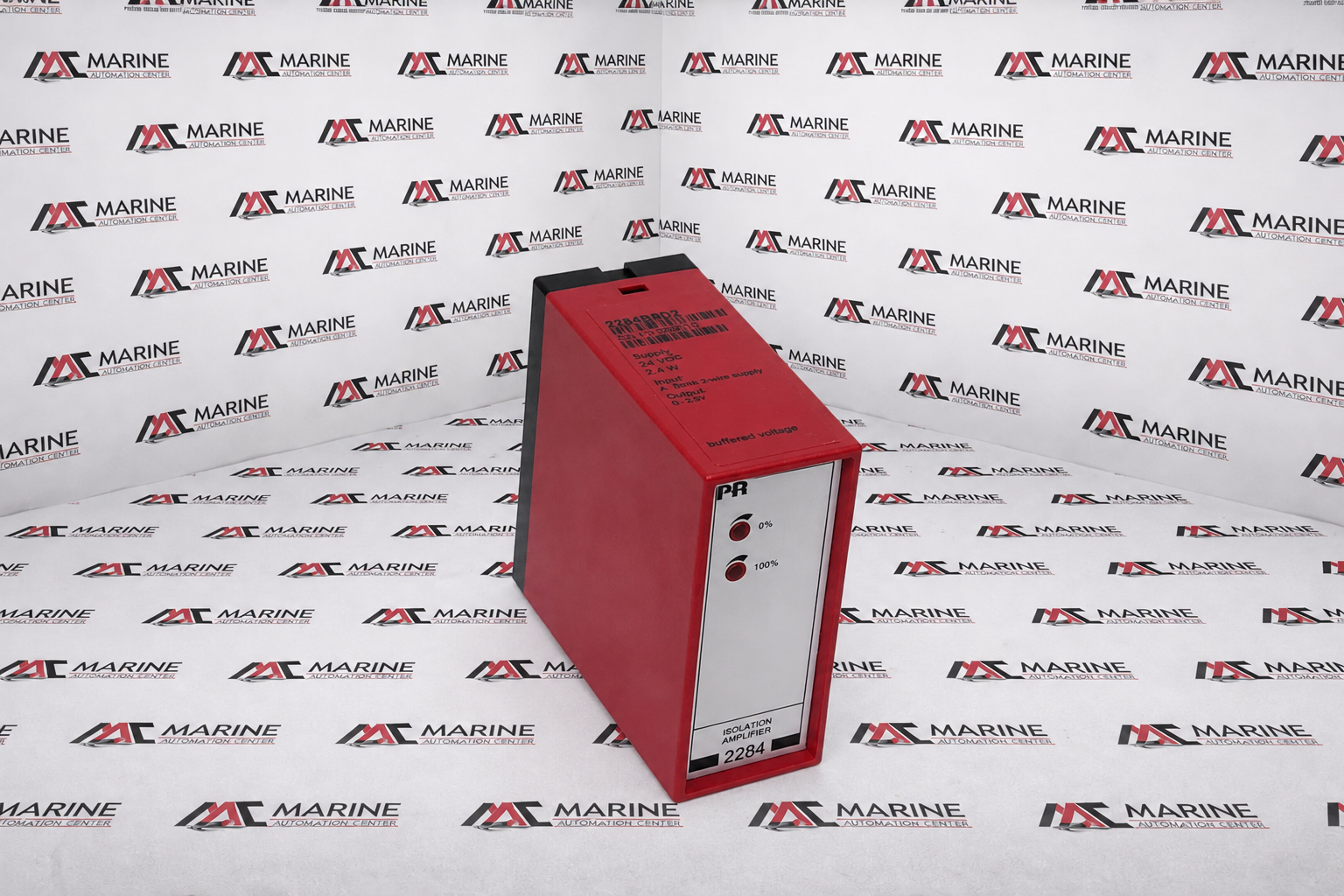

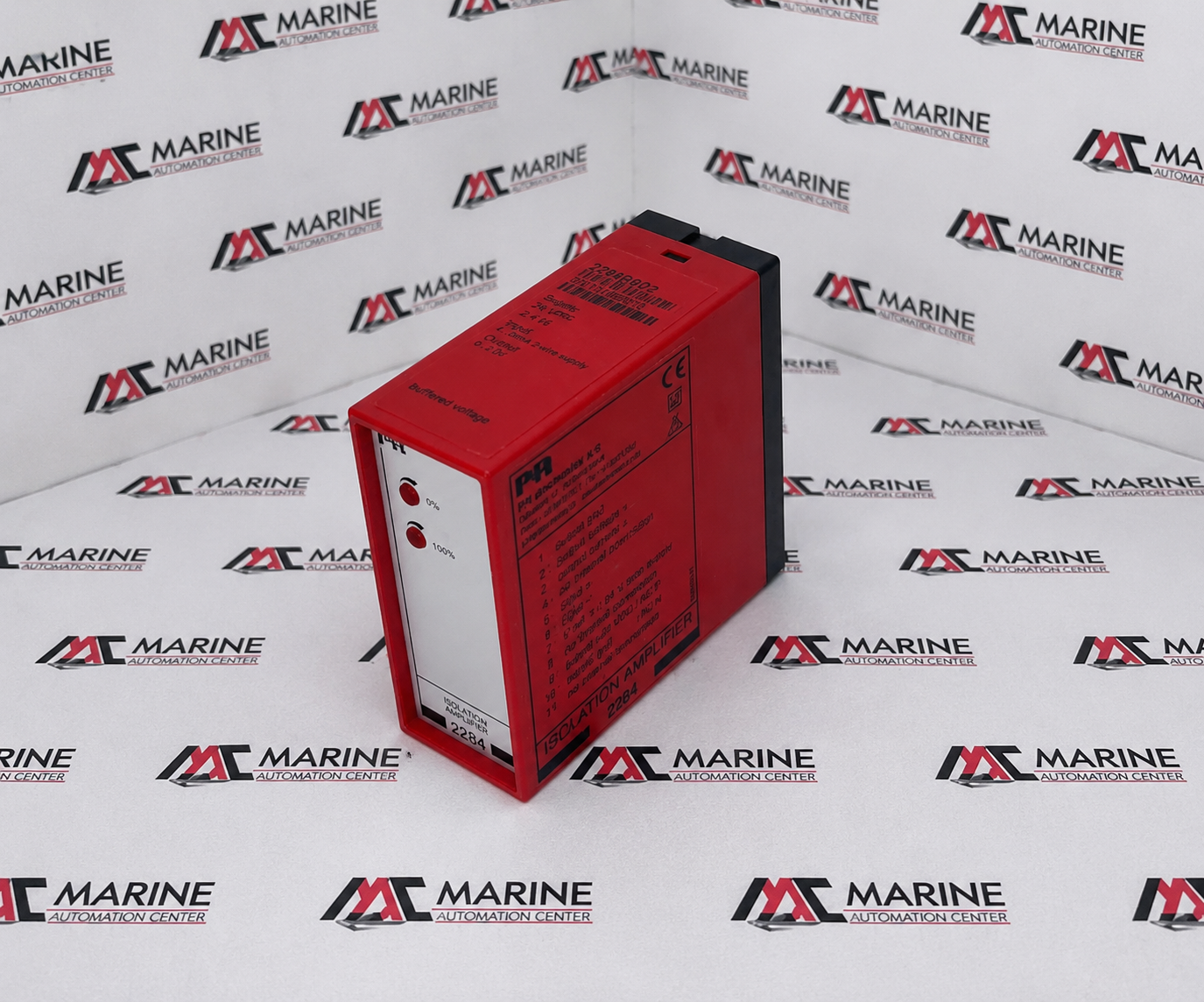

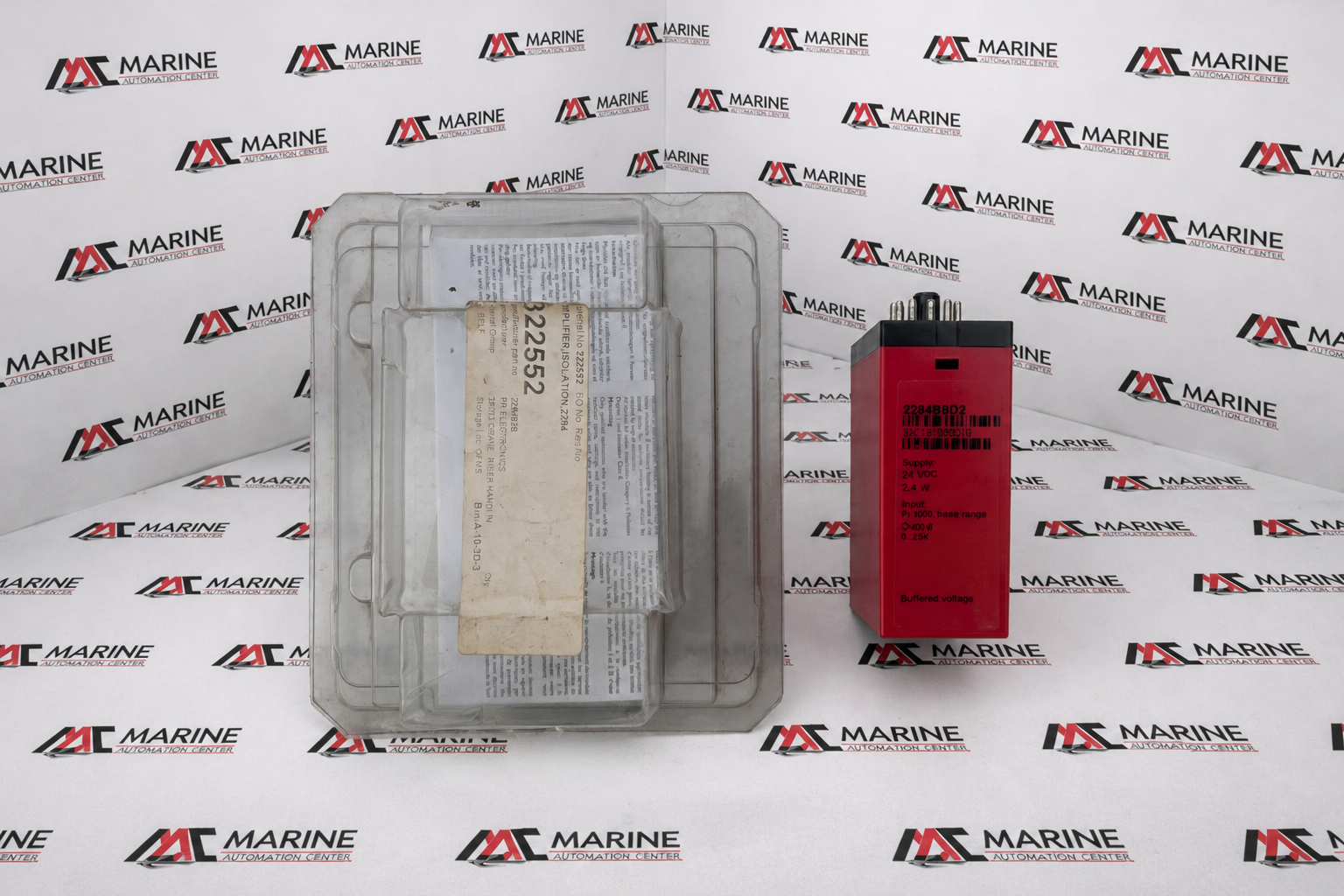

PR Electronics Isolation Amplifier / Signal Isolator 2284B8D2
The PR Electronics 2284 (Model: 2284B8D2) is an Isolation Amplifier / Signal Isolator designed for reliable signal conditioning and galvanic isolation in industrial automation systems. It isolates, converts, and transmits analog current or voltage signals between field instruments and control systems, protecting equipment from ground loops, electrical noise, and voltage surges. The module delivers high accuracy and stable performance, making it ideal for PLC, DCS, and process control application
BRAND
PR Electronics
TYPE
Signal Isolator
PART NO.
2284
MODEL
2284B8D2
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | PR Electronics |
| TYPE | Signal Isolator |
| PART NO. | 2284 |
| MODEL | 2284B8D2 |
| Voltage Rating | 24 V DC Supply |
| Power Consumption | 2.4 W |
| Input Signal | 4–20 mA, 2-wire transmitter supply |
| Output Signal | 0–2.5 V DC (Buffered Voltage) |
| Buffered Output | Buffered Voltage Output |
| Supply Voltage | 24 V DC |
| Current Loop Supply | Integrated 24 V Loop Supply / Reference Output |
| Input Type | Analog Current Input (4–20 mA) |
| Output Type | Analog Voltage Output (0–2.5 V DC) |
| Isolation | Galvanic isolation between input, output and supply |
| Response Adjustment | Front panel 0% and 100% calibration adjustment |

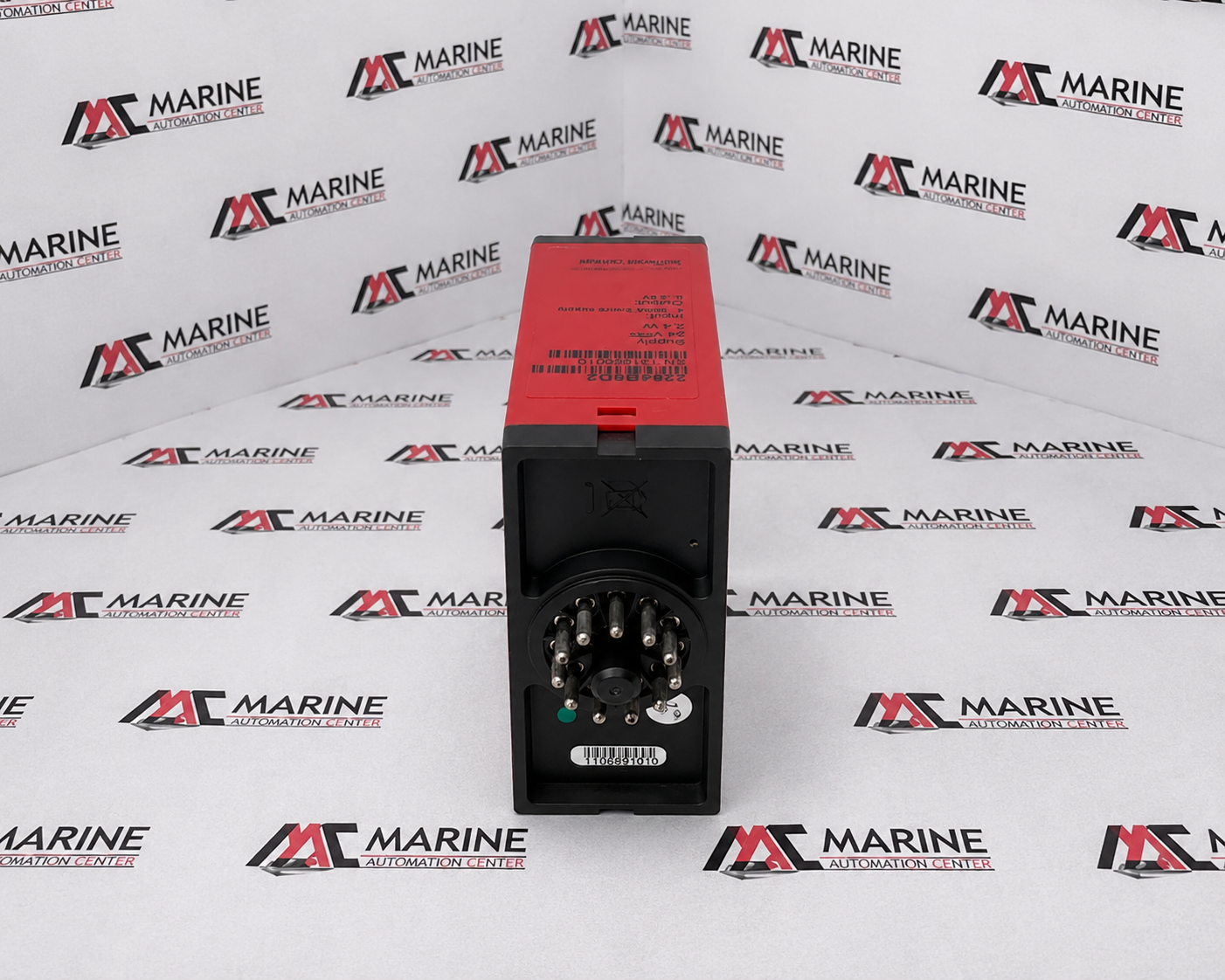

| Connector Type | 11-pin Plug-in Module |
| Application | Signal isolation, analog signal conditioning, 4–20 mA signal conversion, PLC/DCS interface, industrial process control and instrumentation |
| Made In | Denmark |
| REF NO. | 449 |
