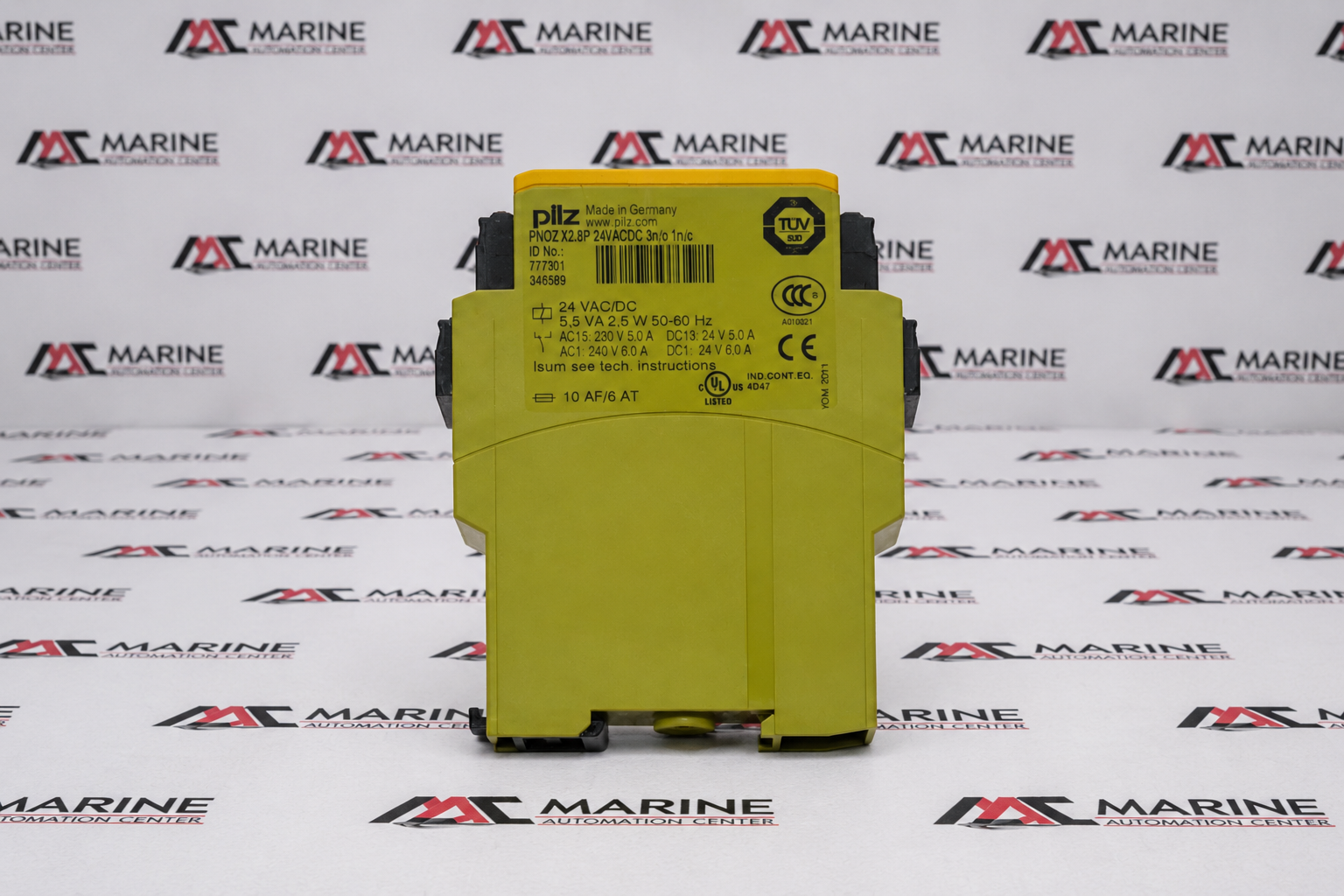

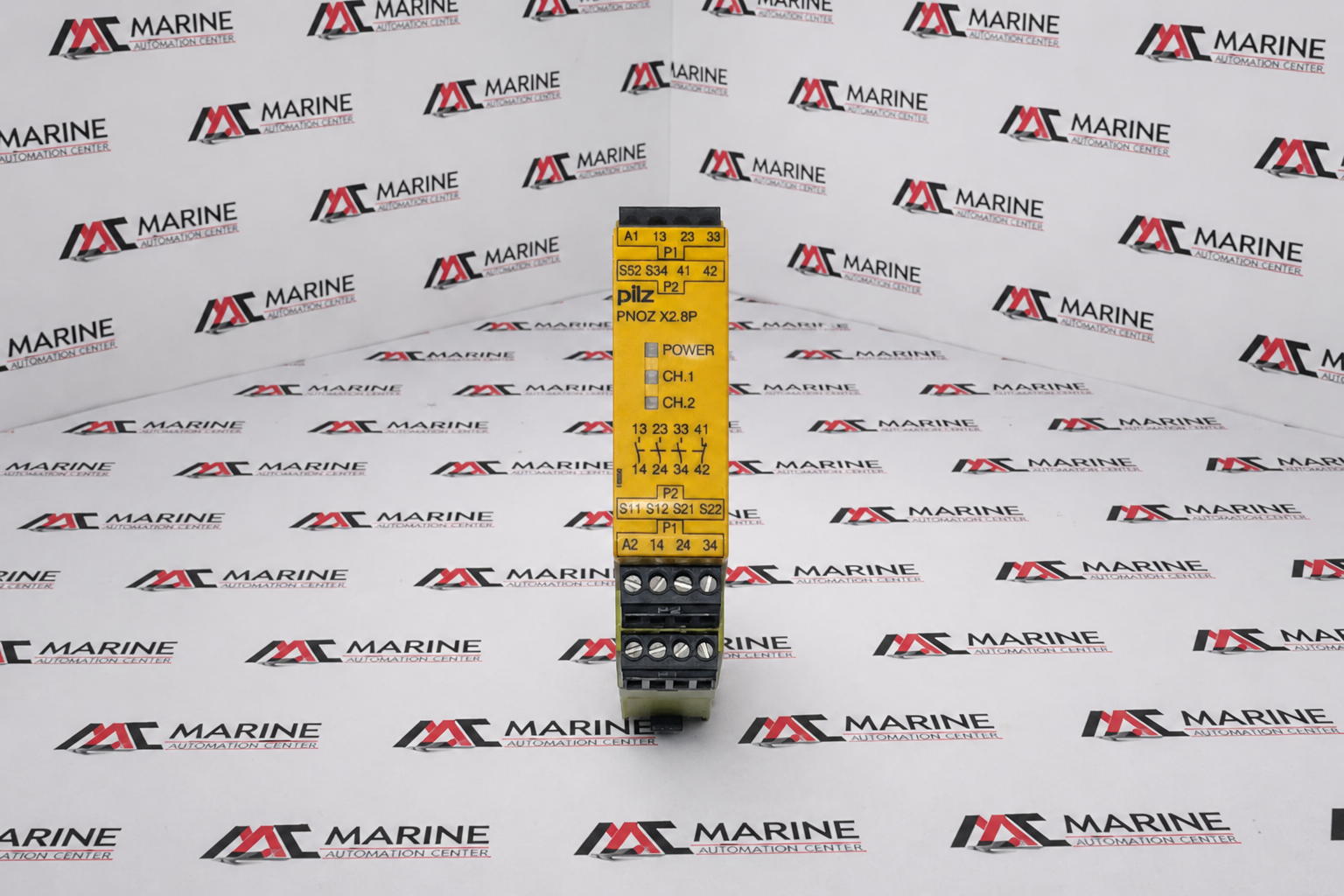

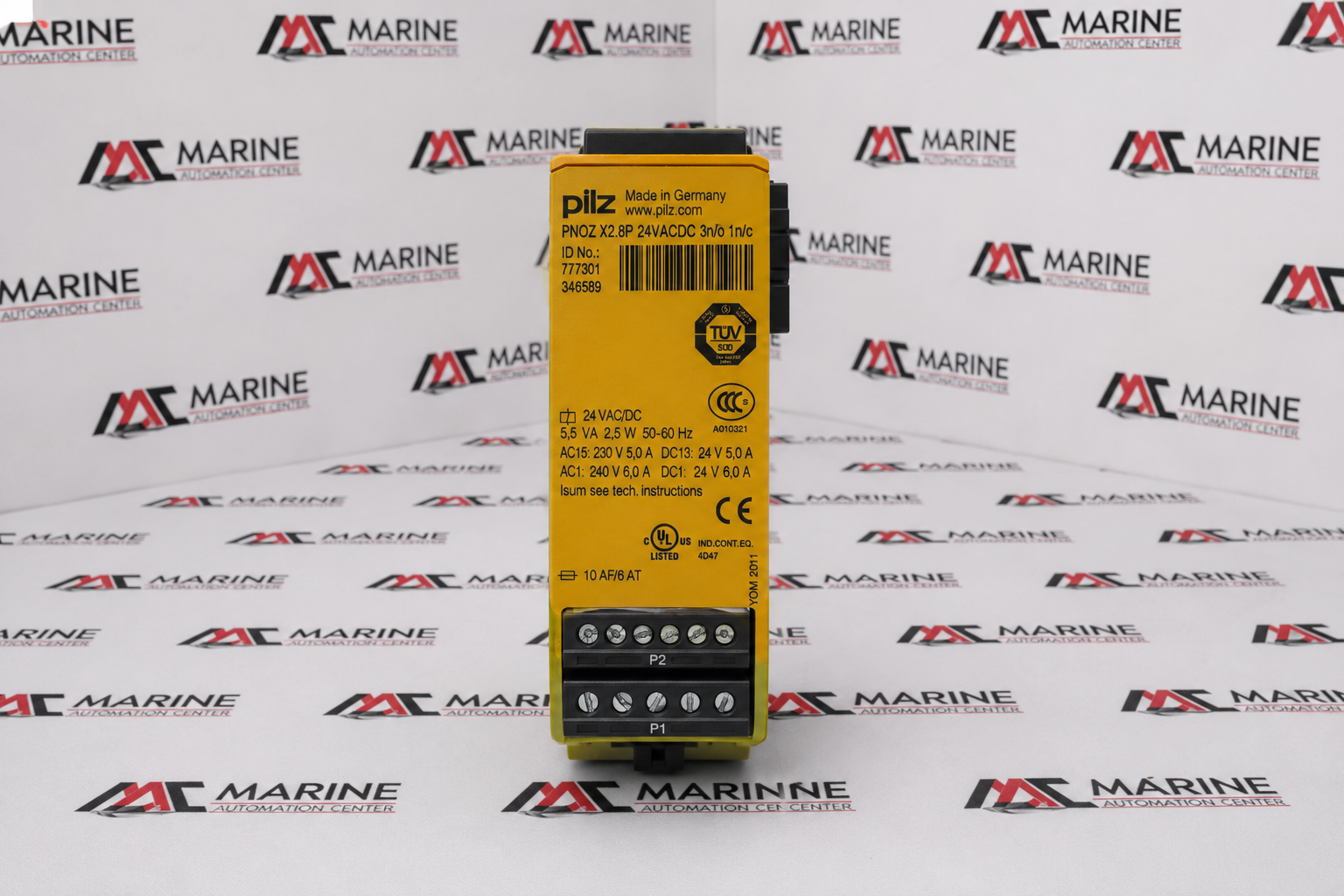

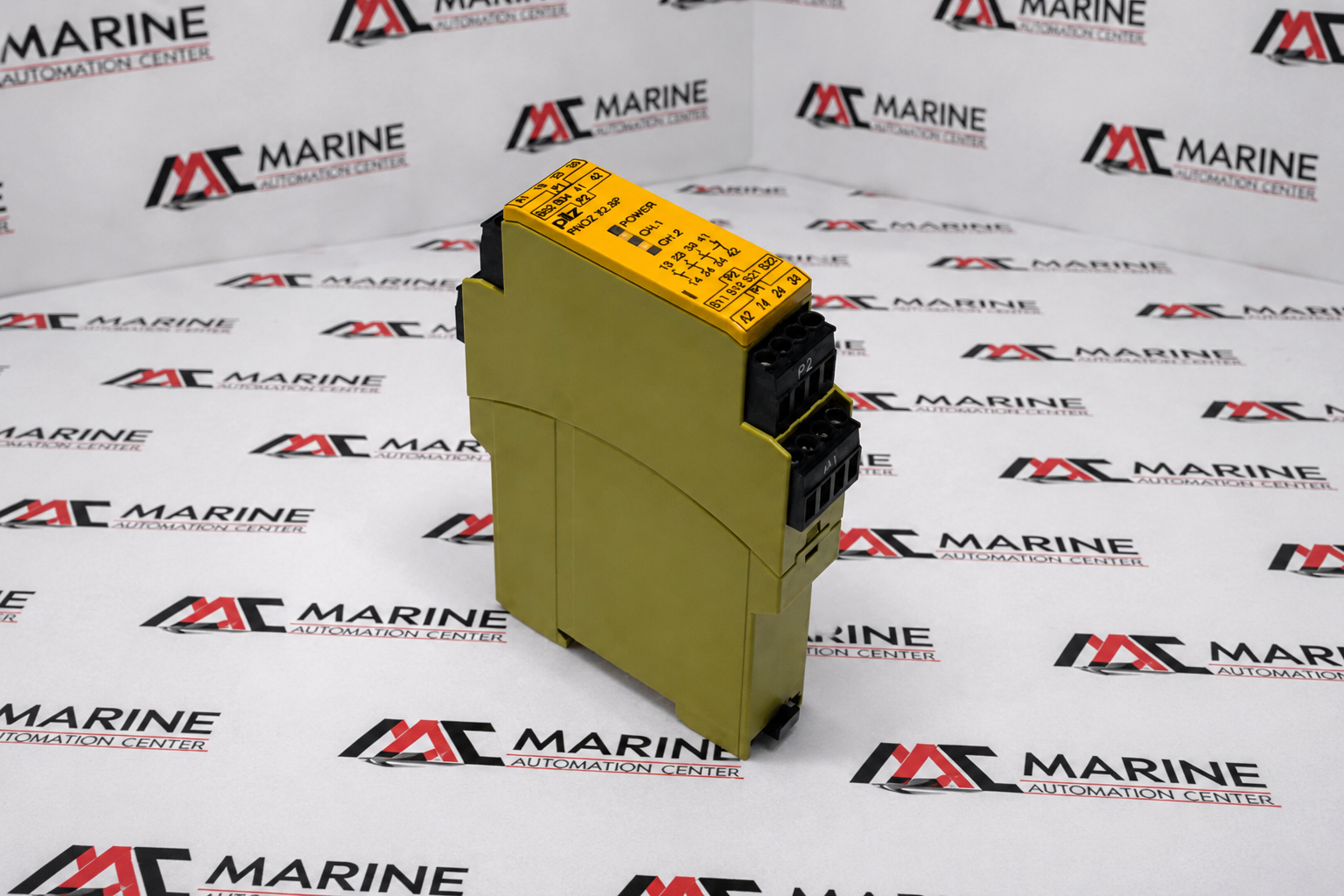

Pilz GmbH PNOZ X2.8P Safety Relay
Pilz GmbH PNOZ X2.8P Safety Relay (Part No. 777301) is a high-performance industrial safety relay designed to monitor emergency stop circuits, safety gates, and other critical machine safety functions. It features reliable dual-channel monitoring, 3 normally open (NO) safety contacts, and 1 normally closed (NC) auxiliary contact, ensuring safe machine shutdown and compliance with industrial safety standards. Ideal for automation, manufacturing, and machine protection applications.
BRAND
Pilz
TYPE
Safety Relay
PART NO.
777301
MODEL
PNOZ X2.8P
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Pilz |
| TYPE | Safety Relay |
| PART NO. | 777301 |
| MODEL | PNOZ X2.8P |
| MANUFACTURER | Pilz GmbH & Co. KG |
| SUPPLY VOLTAGE | 24 V AC/DC |
| POWER CONSUMPTION | 5.5 VA / 2.5 W |
| SAFETY OUTPUT CONTACTS | 3 Normally Open (3 N/O) |
| AUXILIARY OUTPUT CONTACTS | 1 Normally Closed (1 N/C) |
| SWITCHING CATEGORY (AC15) | 230 V AC, 5.0 A |
| RECOMMENDED FUSE | 10 A Fast Acting (AF) / 6 A Time Delay (AT) |
| STATUS INDICATION | POWER, CH.1, CH.2 LED Indicators |
| MOUNTING TYPE | DIN Rail Mount |
| TERMINAL TYPE | Screw Terminal |
| SAFETY FUNCTION | Emergency Stop Monitoring, Safety Gate Monitoring, Safety Circuit Monitoring |
| APPLICATION | Machine safety circuits, emergency stop systems, safety gate monitoring, industrial automation, process control, and marine automation systems |
| CERTIFICATIONS | CE, cULus Listed, TÜV SÜD Approved, CCC |
| MADE IN | Germany |
| REF NO | 1309 |
