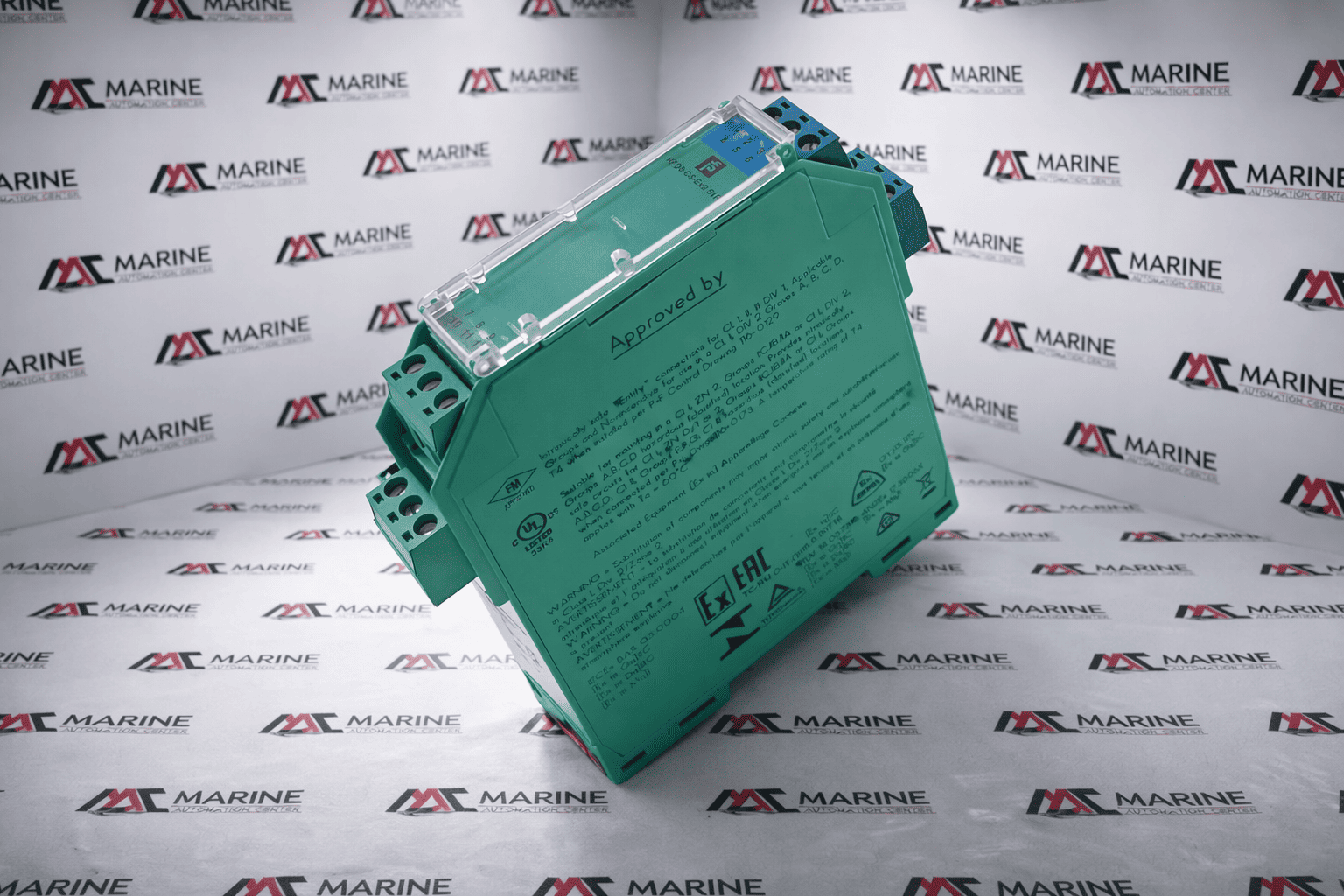

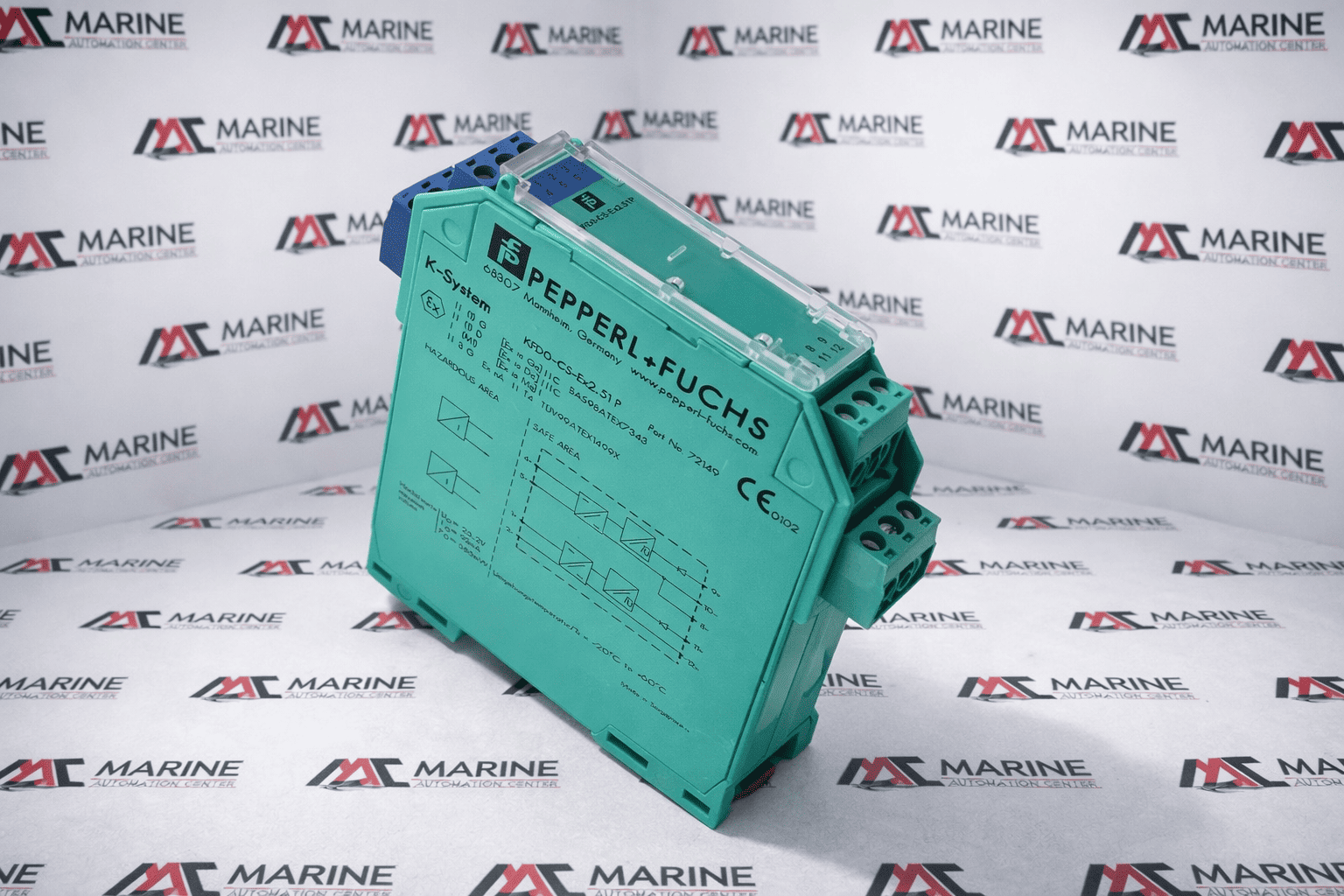

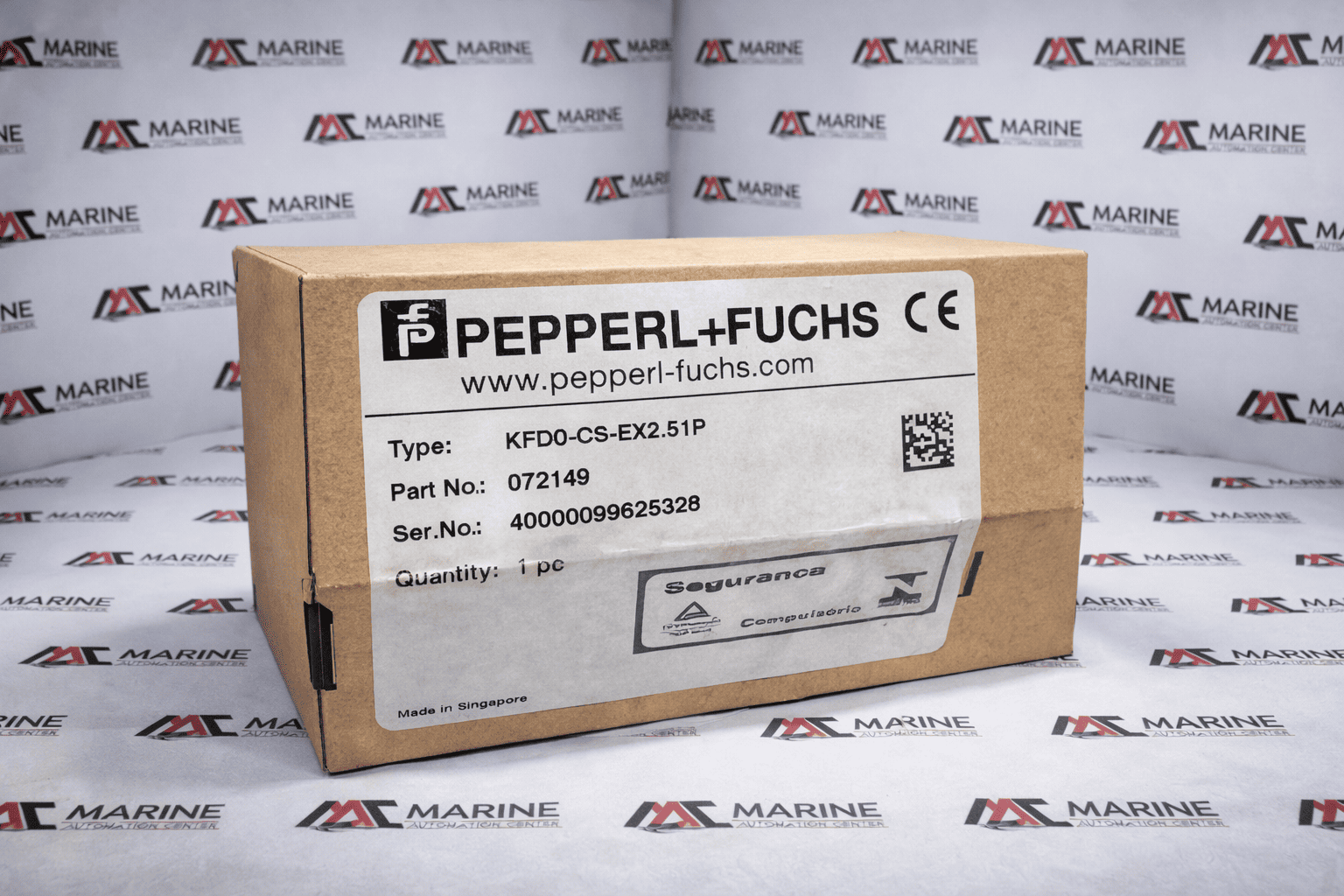

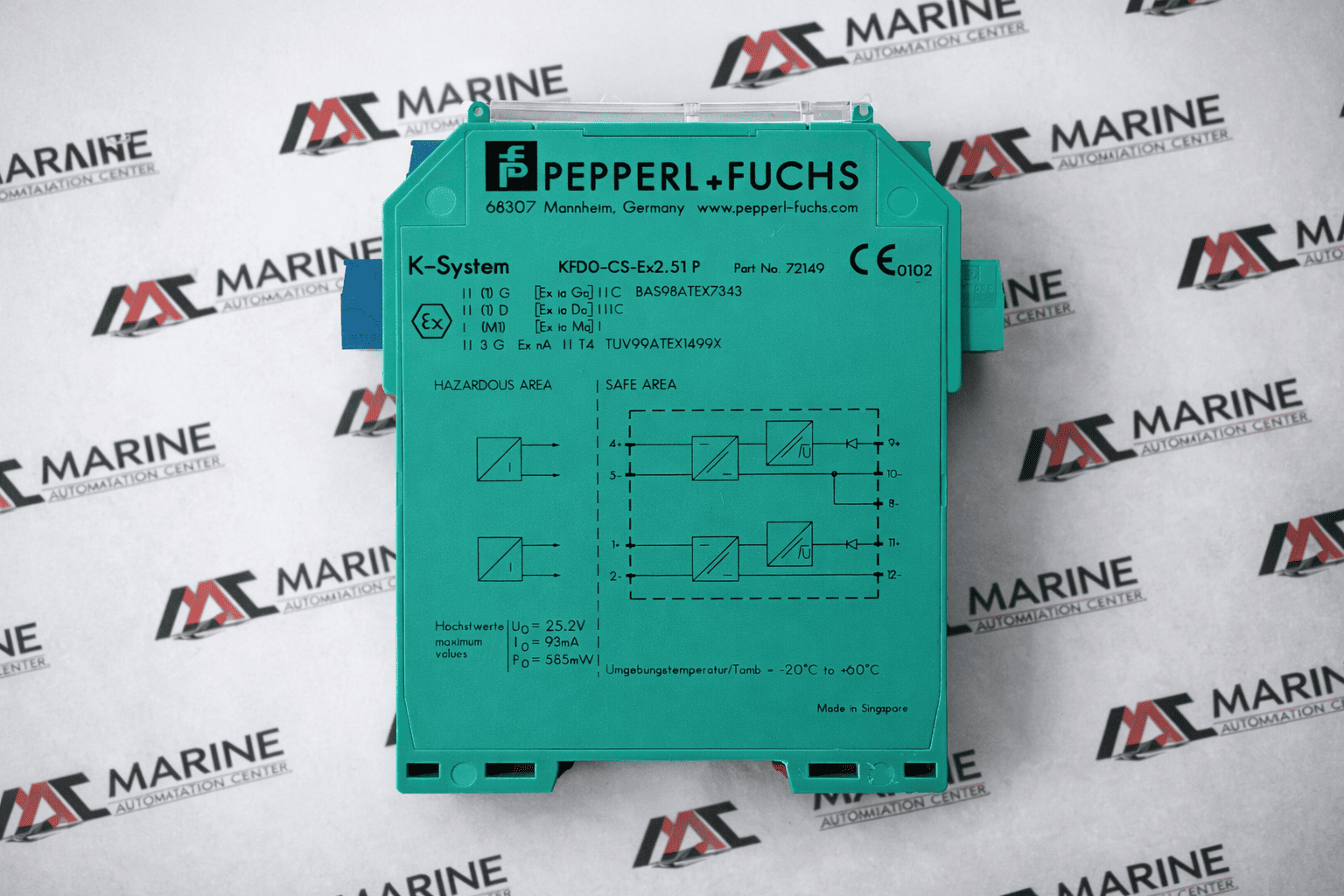

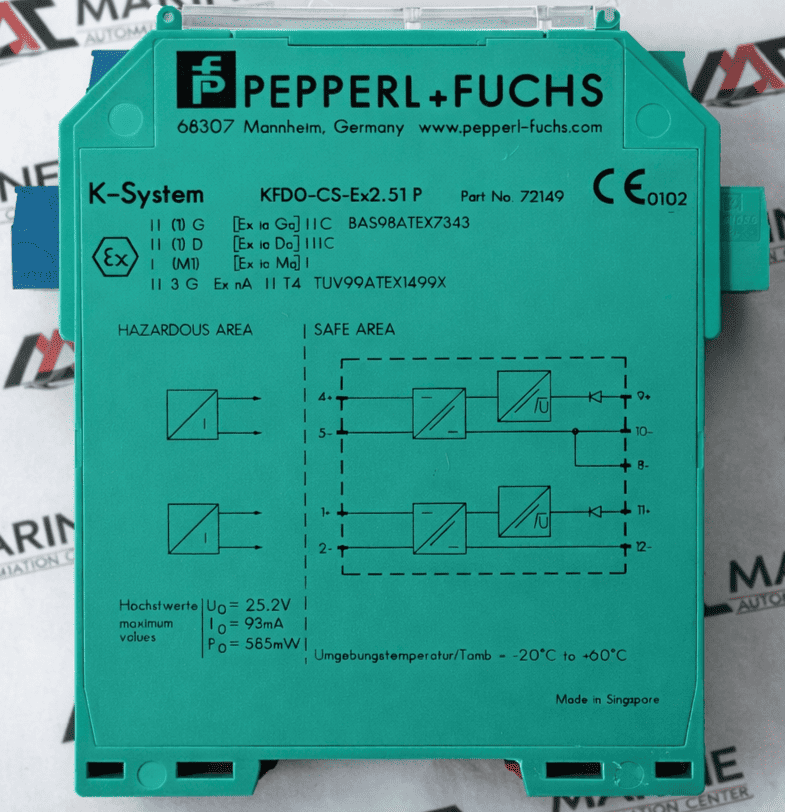

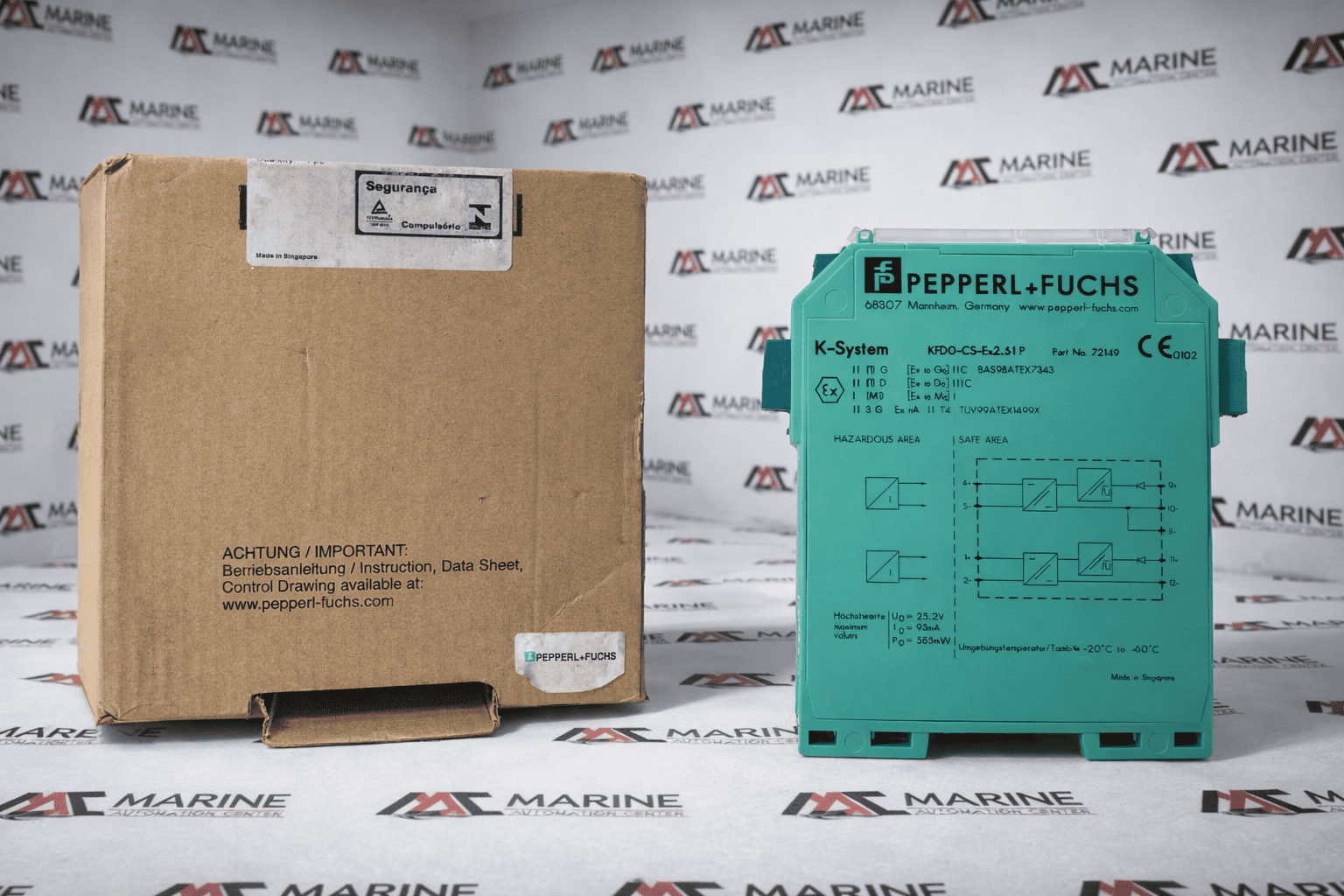

Pepperl+Fuchs kfdo-cs-ex2.51p Current Driver 72149
The Pepperl+Fuchs KFD0-CS-Ex2.51P Current Driver/Repeater 72149 is a high-reliability intrinsic safety barrier designed for precise analog signal transmission in hazardous industrial environments. Manufactured by Pepperl+Fuchs, it supports 0–40 mA current input/output with loop-powered 4–35V DC operation. Its 2-channel isolated barrier design and SIL 2 safety rating ensure safe signal transfer between hazardous and non-hazardous areas. Ideal for process automation, instrumentation, and control s
BRAND
Pepperl+Fuchs
TYPE
Current Driver
PART NO.
72149
MODEL
Pepperl+Fuchs kfdo-cs-ex2.51p Current Driver 72149
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Pepperl+Fuchs |
| TYPE | Current Driver |
| PART NO. | 72149 |
| MODEL | Pepperl+Fuchs kfdo-cs-ex2.51p Current Driver 72149 |
| Series | K-system |
| Type | kfdo-cs-ex2.51p |
| Serial No | 40000099625328 |
| Uo | 25.2v |
| Io | 93ma |
| Po | 585mw |
| Tamb | -20c to +60c |
| Made in | Singapore |
| Ref.No. | 537 |
