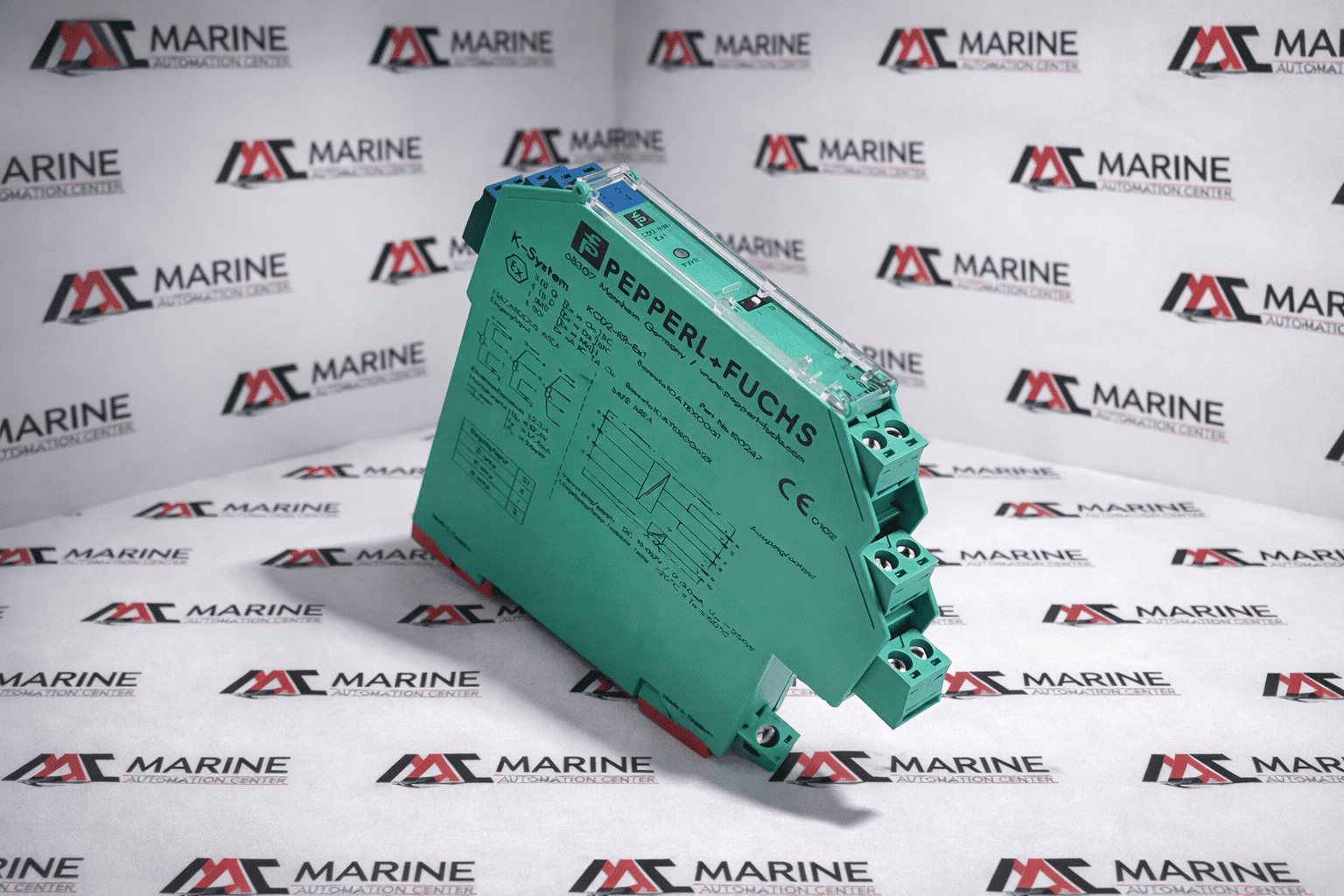

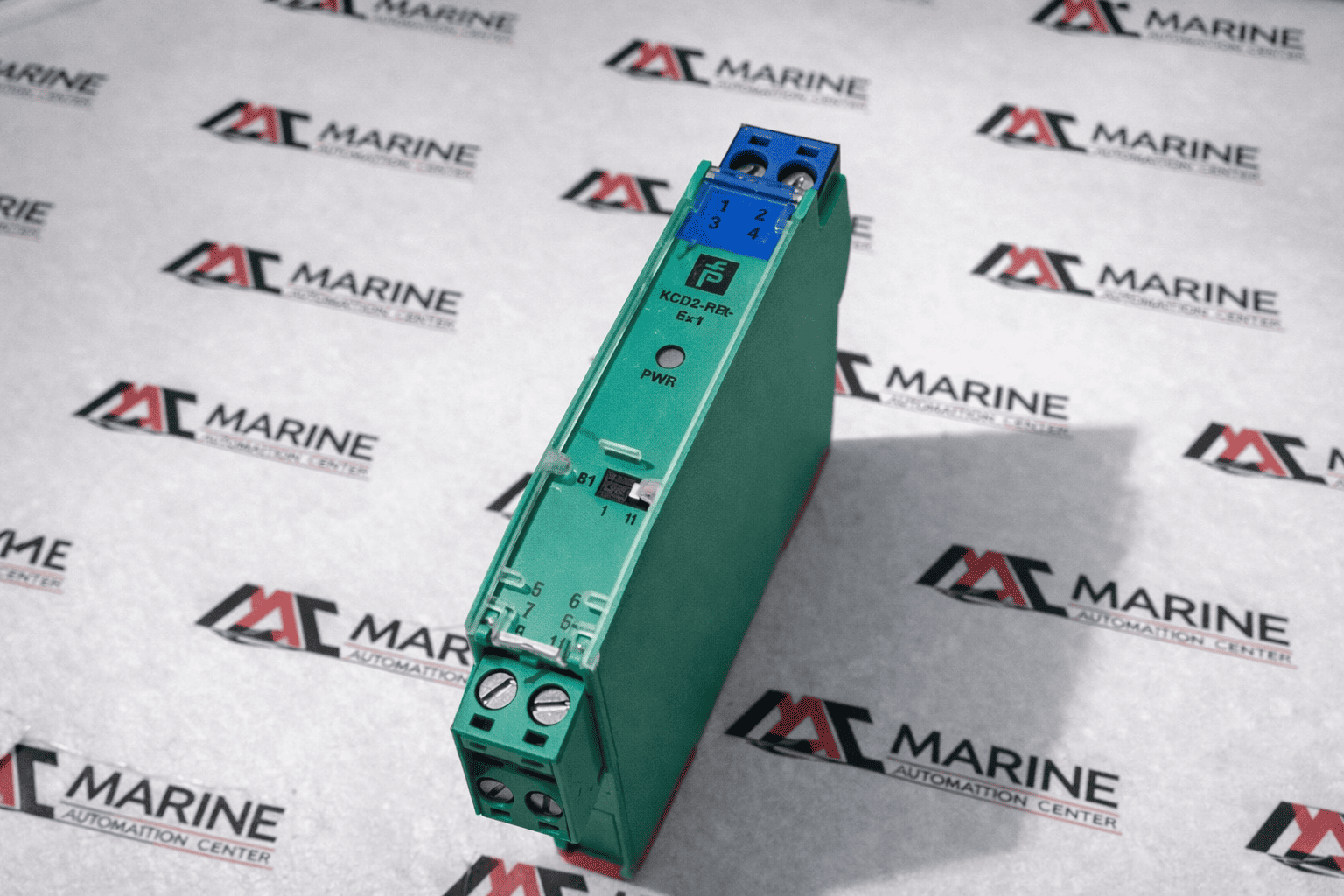

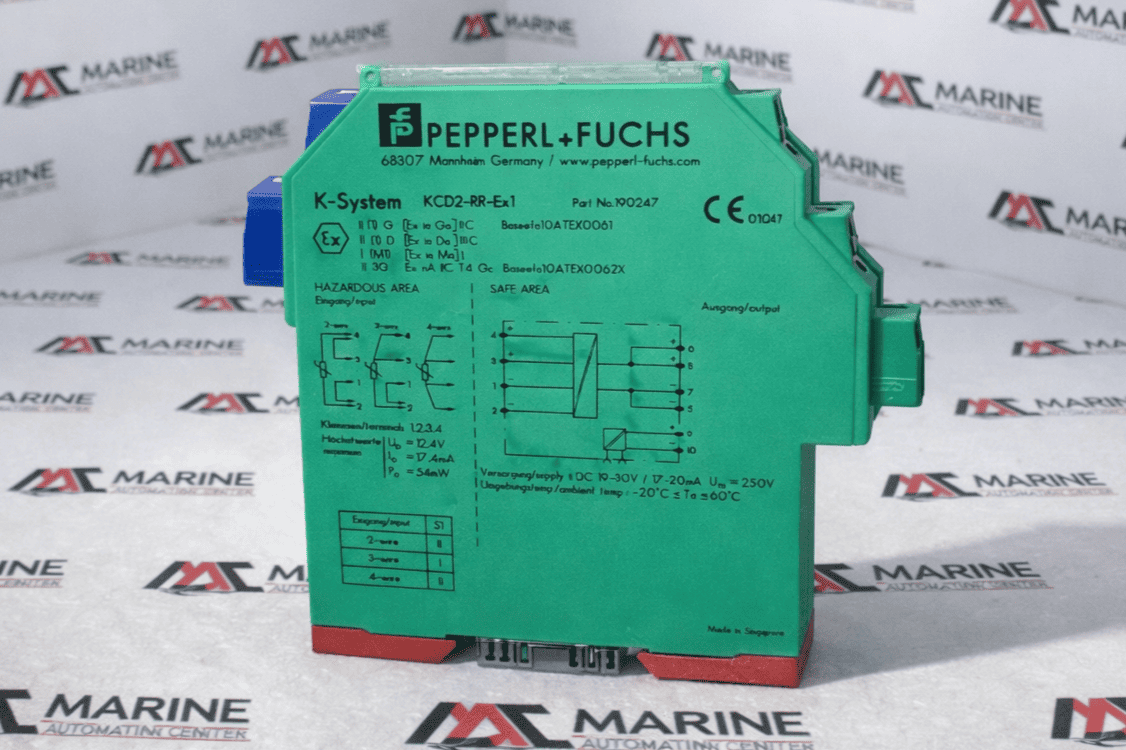

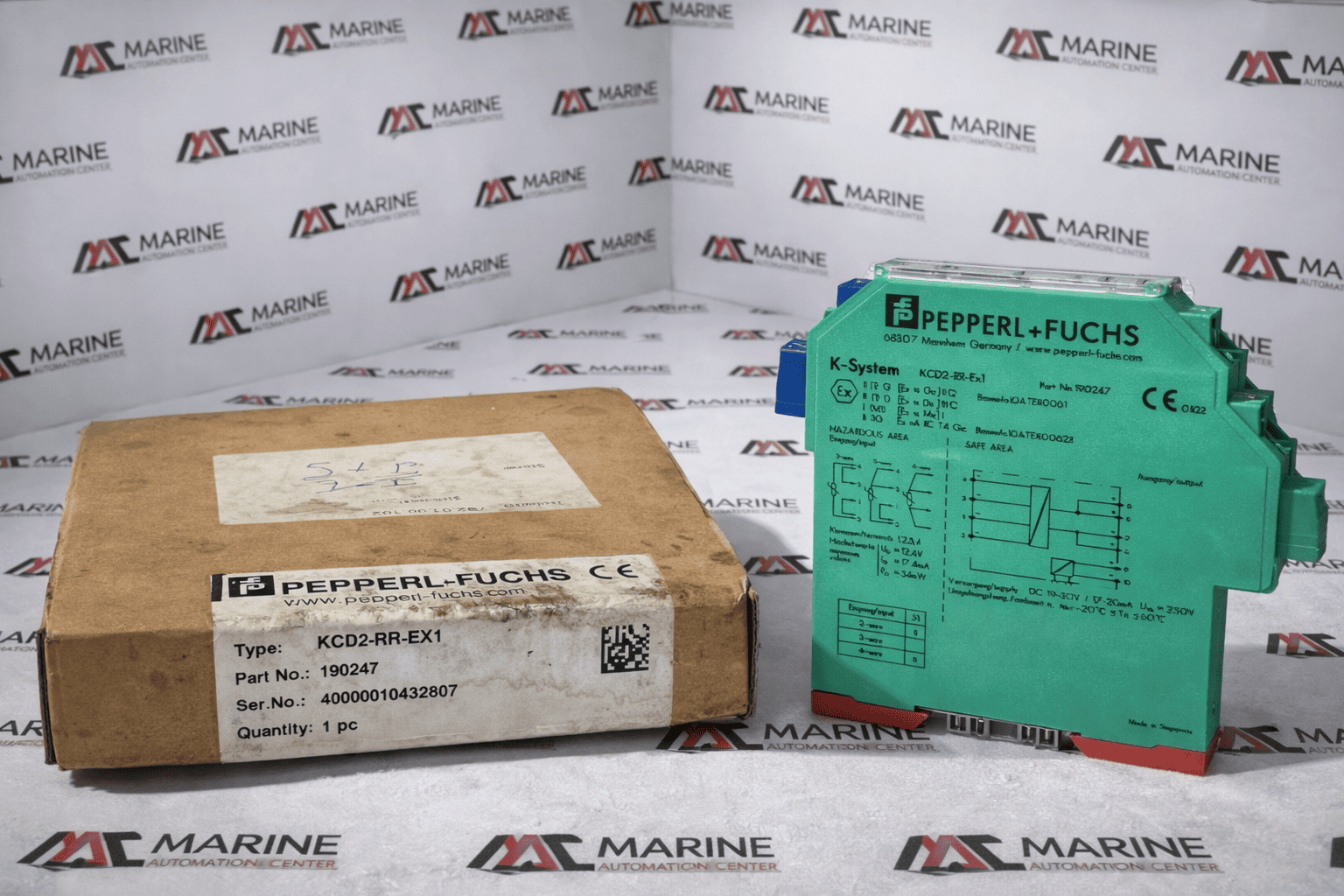

Pepperl+Fuchs KCD2-RR-Ex1 Safety Barrier 190247
The Pepperl+Fuchs KCD2‑RR‑Ex1 Safety Barrier (190247) is a high-performance intrinsic safety barrier designed for reliable signal transmission in hazardous industrial environments. Manufactured by Pepperl+Fuchs, it provides safe isolation for RTD and resistance signals from hazardous areas to control systems. With 24V DC operation, SIL 2 safety rating, and 0.1% accuracy, it ensures stable and precise process monitoring. Ideal for automation, process control, and explosion-protected installations
BRAND
Pepperl+Fuchs
TYPE
Safety Barrier
PART NO.
KCD2-RR-Ex1
MODEL
Pepperl+Fuchs KCD2-RR-Ex1 Safety Barrier 190247
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Pepperl+Fuchs |
| TYPE | Safety Barrier |
| PART NO. | KCD2-RR-Ex1 |
| MODEL | Pepperl+Fuchs KCD2-RR-Ex1 Safety Barrier 190247 |

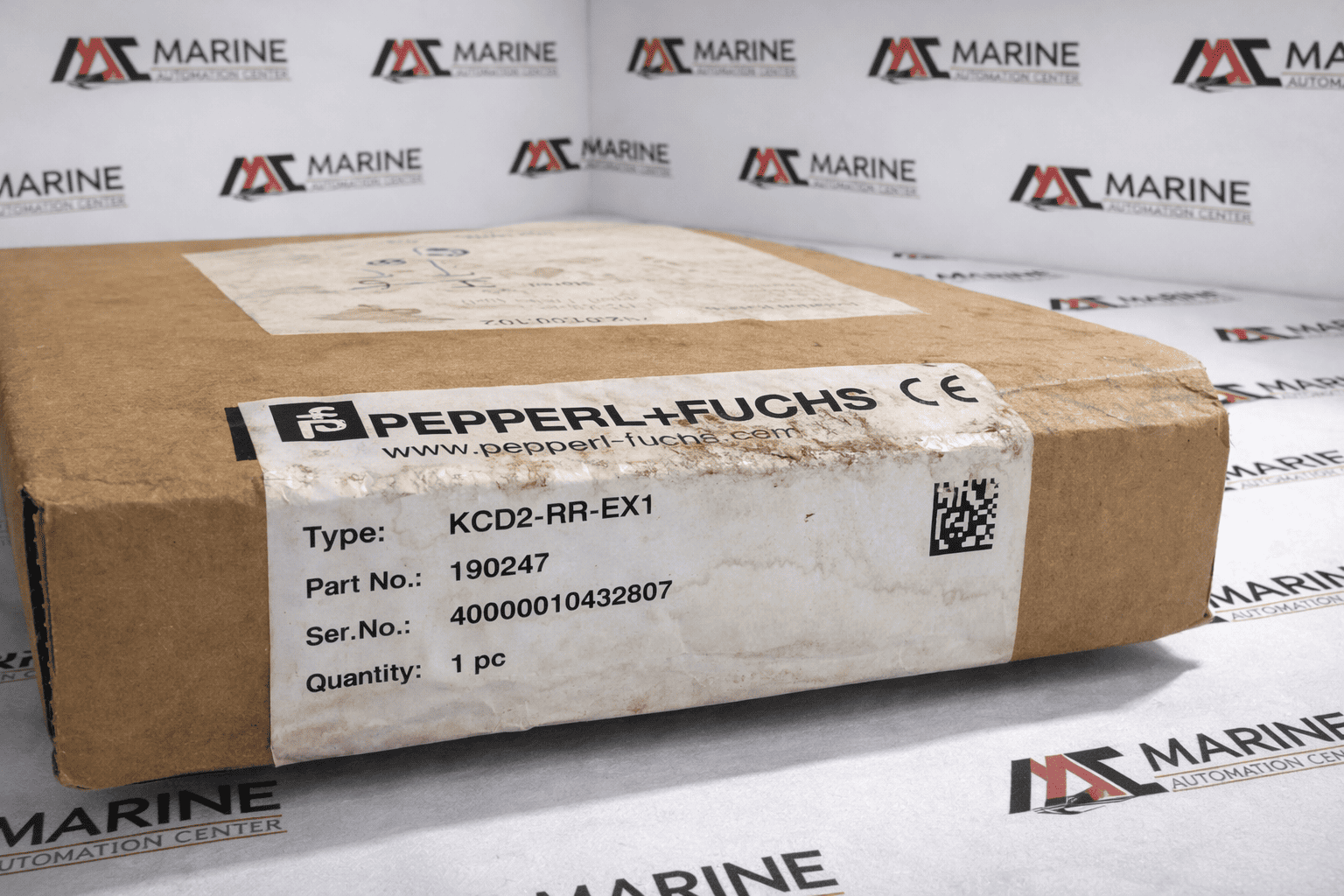

| Serial No | 40000010432807 |

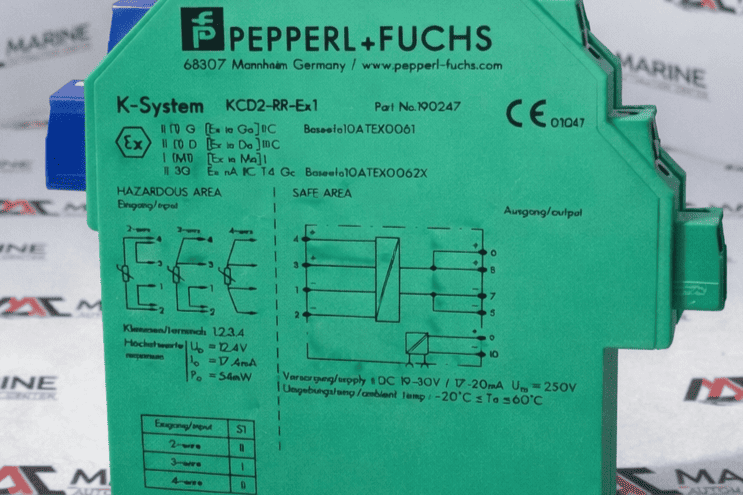

| Terminals | 1,2,3,4 |
| Uo | 12.4v |
| Lo | 17.4ma |
| Po | 54mw |
| Supply | Dc 19-30v/ 17-20ma Um=250v |
| Ambient Temp | -20cBaseefa10atex0061 |
| : | Baseefa10atex0062x68307 |
| Made In | Singapore |
| Ref.No. | 530 |
