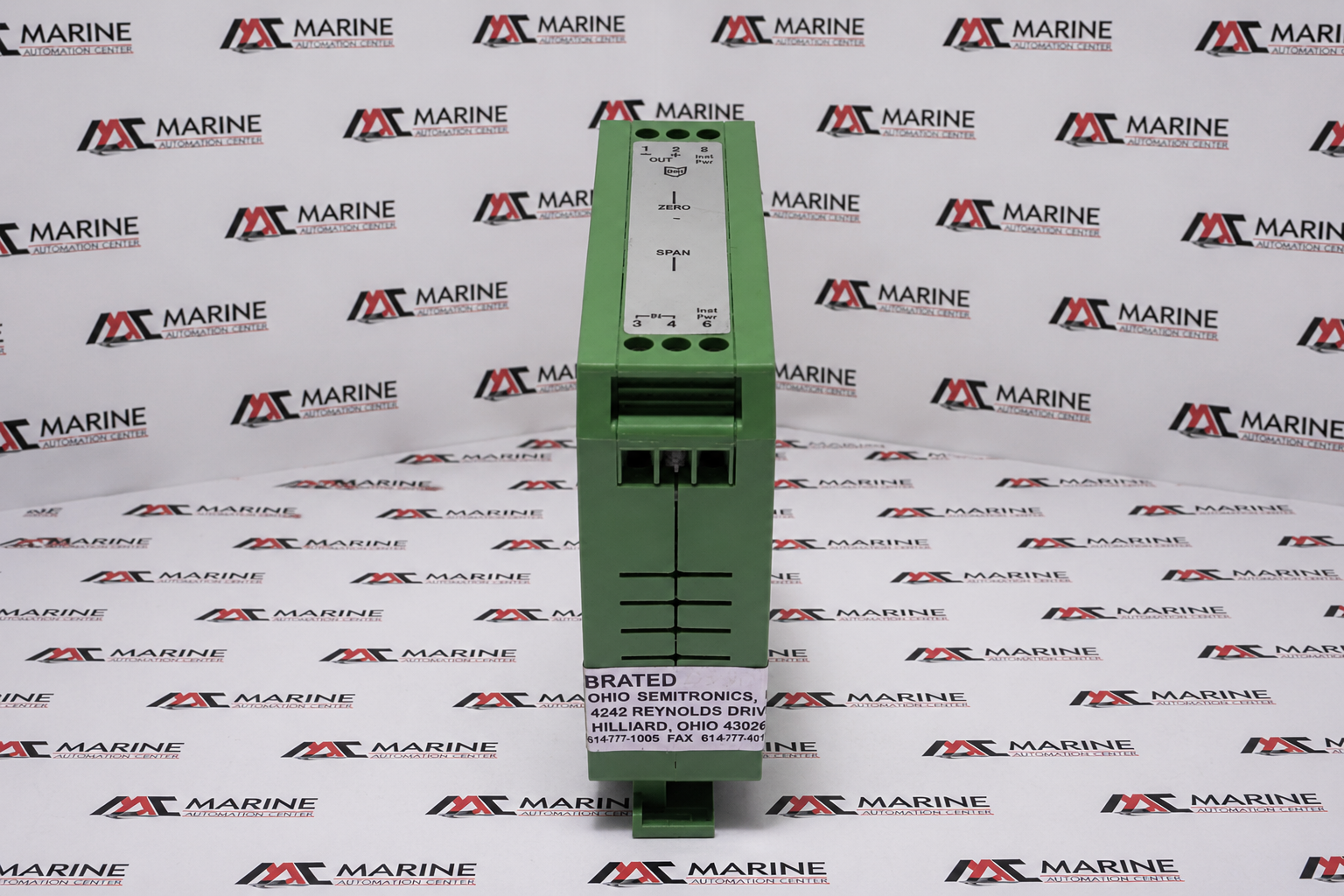

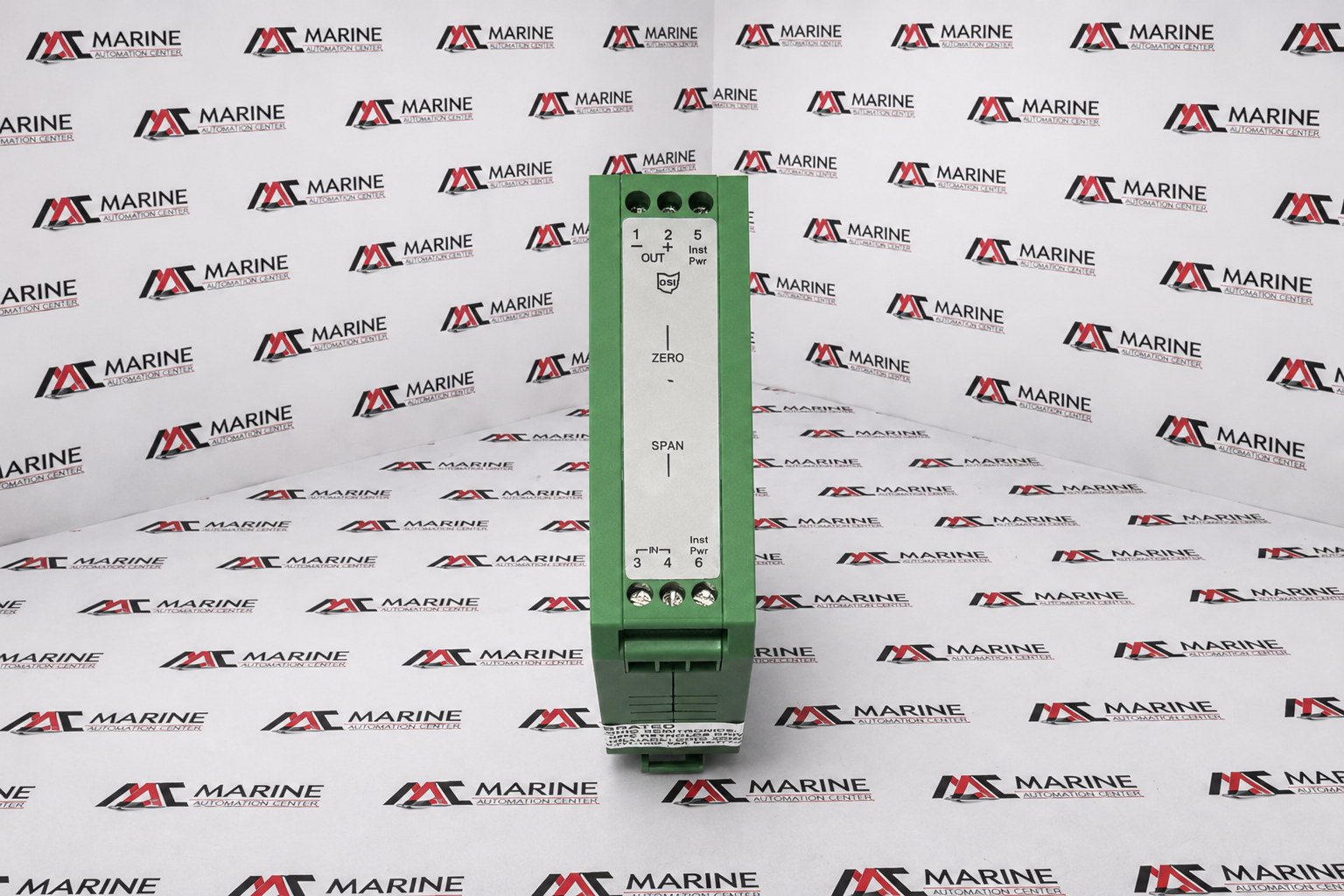

Ohio Semitronics (OSI) AC Current Transducer MCT5-005E
The Ohio Semitronics (OSI) MCT5-005E is an AC current transducer designed to accurately measure alternating current and convert it into a proportional analog output signal for monitoring and control systems. It is commonly used in industrial automation, power distribution, energy management, motor monitoring, generator protection, and marine electrical applications where reliable current measurement and electrical isolation are required.
BRAND
Ohio Semitronics (OSI)
TYPE
AC Current Transducer
PART NO.
MCT5-005E
MODEL
MCT5-005E
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Ohio Semitronics (OSI) |
| TYPE | AC Current Transducer |
| PART NO. | MCT5-005E |
| MODEL | MCT5-005E |
| MANUFACTURER | Ohio Semitronics, Inc. (OSI) |
| Input Current | 0–5 AAC |
| Input Frequency | 48–65 Hz (60 Hz Nominal) |
| Output Signal | 4–20 mA DC |
| Instrument Power | 85–135 VAC, 50/60 Hz, 3 VA |
| Accuracy | ±0.25% Full Scale |
| Response Time | 400 ms (99% Response) |
| Burden | 0.175 VA (5 A Model) |
| Output Load | 0–500 Ω |
| Voltage Rating | 85–135 VAC Instrument Supply |
| Application | AC current measurement and conversion to an isolated 4–20 mA analog output for PLC, SCADA, marine automation, energy management, power monitoring, and industrial control systems. |
| IEC | IEC Compliant Industrial Current Transducer |

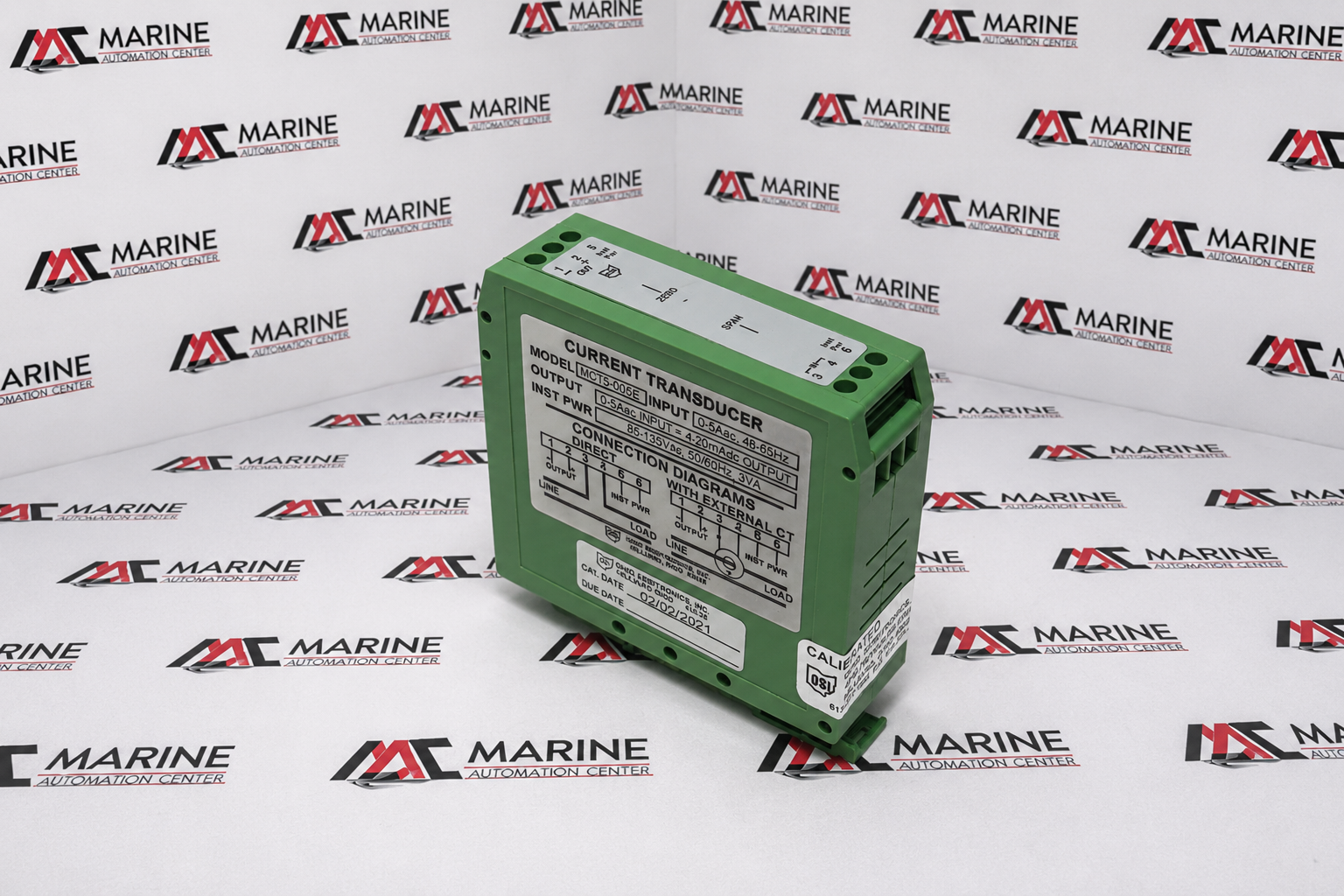

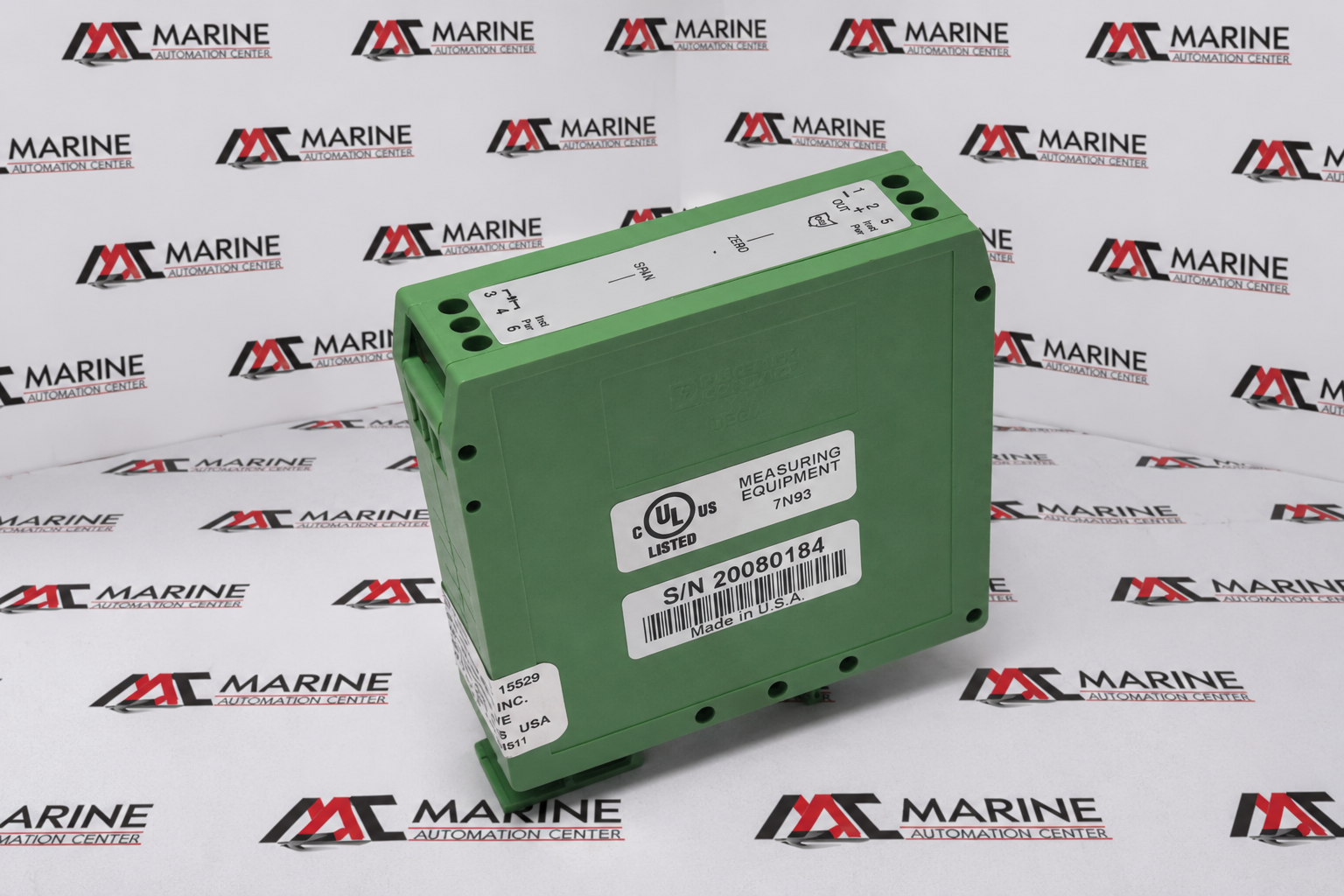

| Product Label Details | Current Transducer; Model: MCT5-005E; Input: 0–5 AAC, 48–65 Hz; Output: 4–20 mADC; Instrument Power: 85–135 VAC, 50/60 Hz, 3 VA; Serial No.: 20080184; UL Listed Measuring Equipment 7N93; Calibration Date: 02/02/2021; Due Date: 02/02/2021; Manufacturer: Oh |
| Made In | U.S.A |
| REF NO | 1520 |
