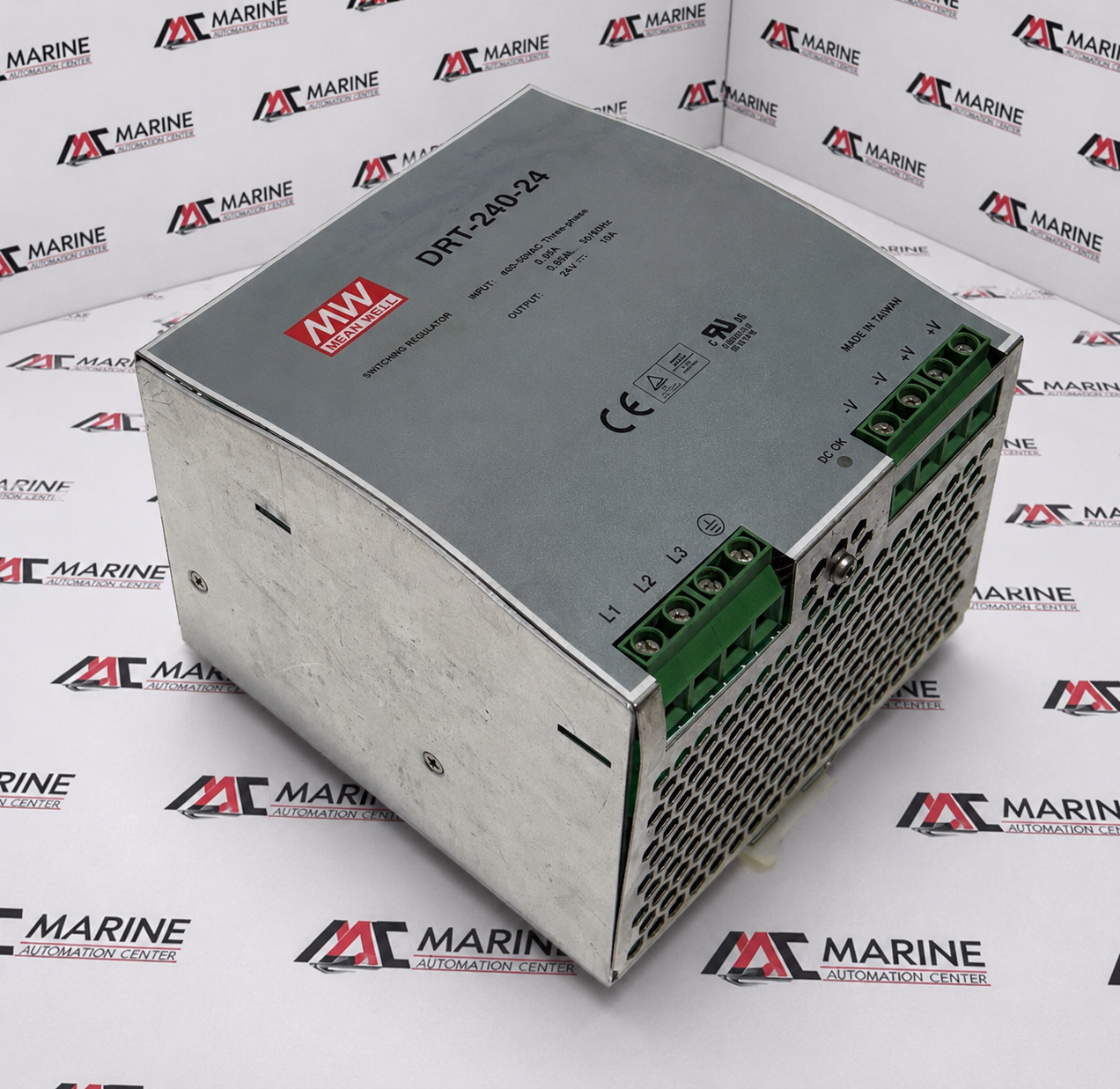

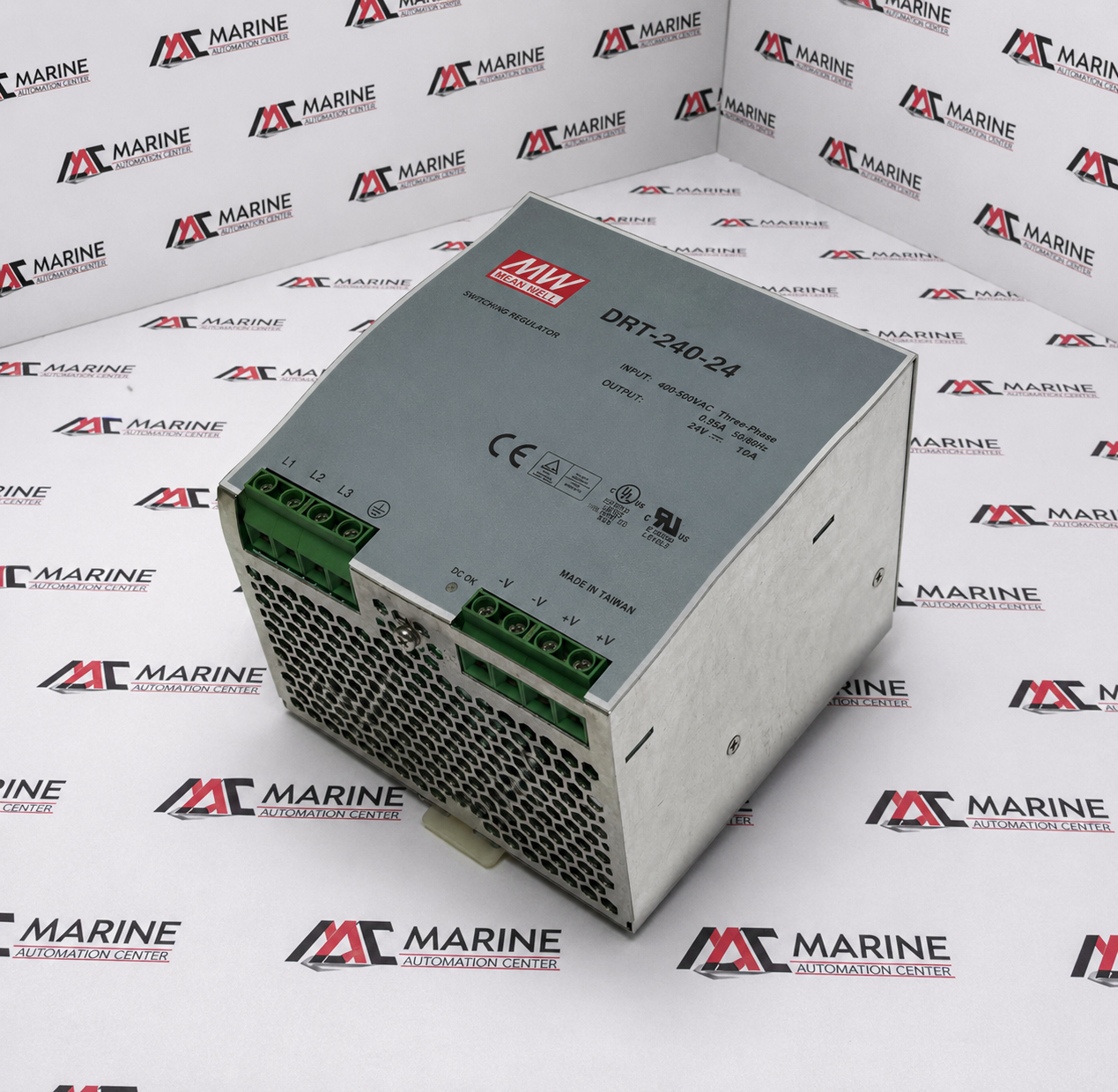

Mean Well DRT-240-24 DIN Rail Switching Power Supply
Mean Well DRT-240-24 DIN Rail Switching Power Supply (Part No. DRT-240-24) is a high-efficiency industrial switching power supply designed to deliver stable 24 VDC output for automation and control systems. Featuring DIN rail mounting, reliable performance, and robust protection functions, it ensures continuous power for PLCs, sensors, control panels, and industrial equipment. Ideal for factory automation, process control, and industrial power distribution applications.
BRAND
Mean Well
TYPE
Power Supply
PART NO.
DIN Rail Switching Power Supply DRT-240-24
MODEL
DRT-240-24
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Mean Well |
| TYPE | Power Supply |
| PART NO. | DIN Rail Switching Power Supply DRT-240-24 |
| MODEL | DRT-240-24 |
| MANUFACTURER | Mean Well Enterprises Co., Ltd. |
| Input Voltage | 400–500 VAC, Three-Phase |
| Input Current | 0.55 A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 24 V DC (Adjustable) |
| Output Current | 10 A |
| Output Power | 240 W |

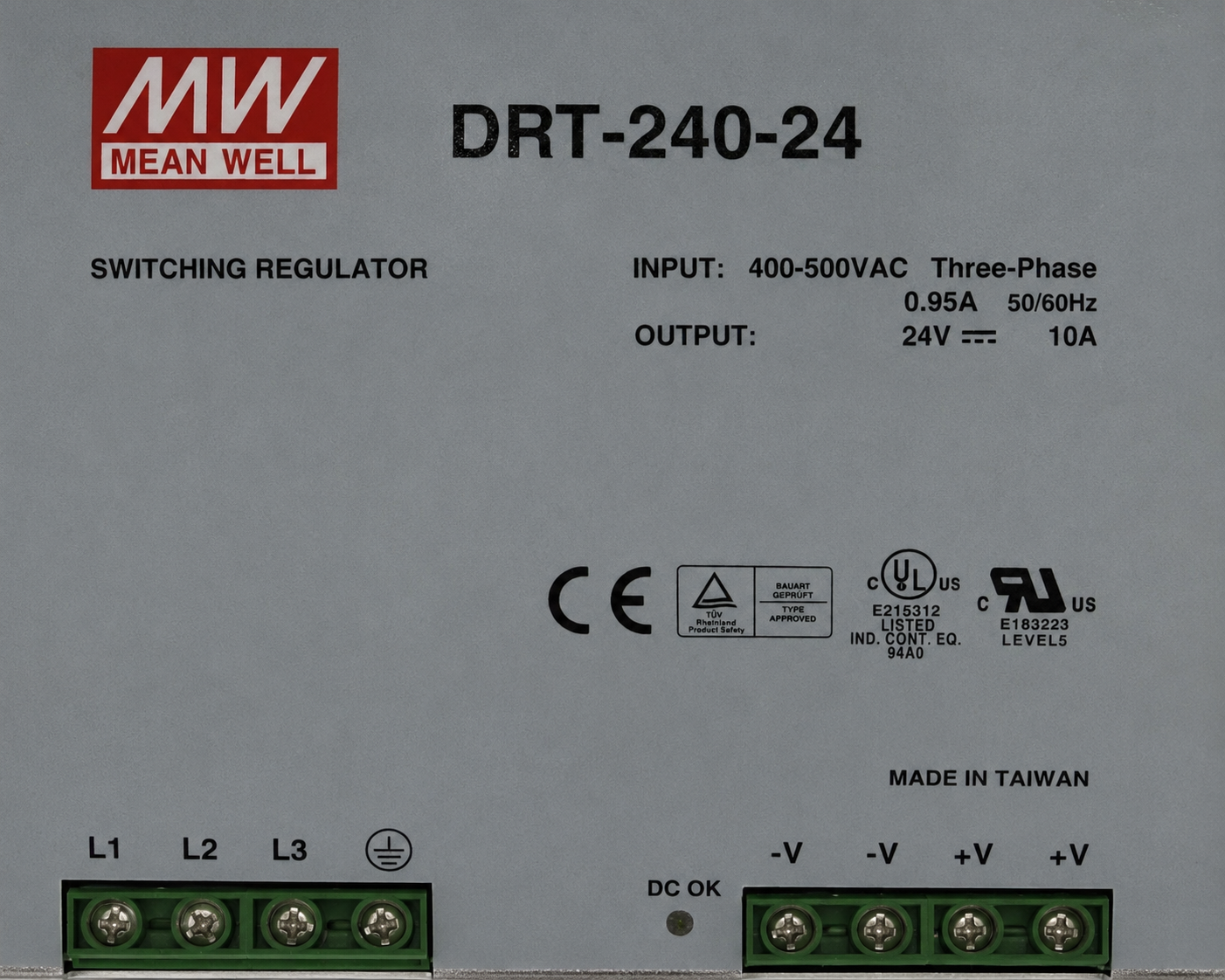

| Output Terminals | Dual +V and Dual -V Screw Terminals |
| DC OK Indicator | Green LED Status Indicator |
| Cooling Method | Natural Convection with Perforated Metal Ventilation |
| Mounting Type | DIN Rail Mount |
| Power Adjustment | Front Panel Voltage Trimming Potentiometer |
| Application | Industrial automation, control panels, PLC systems, process control, and machine power supply |
| Made In | Taiwan |
| REF NO | 1414 |
