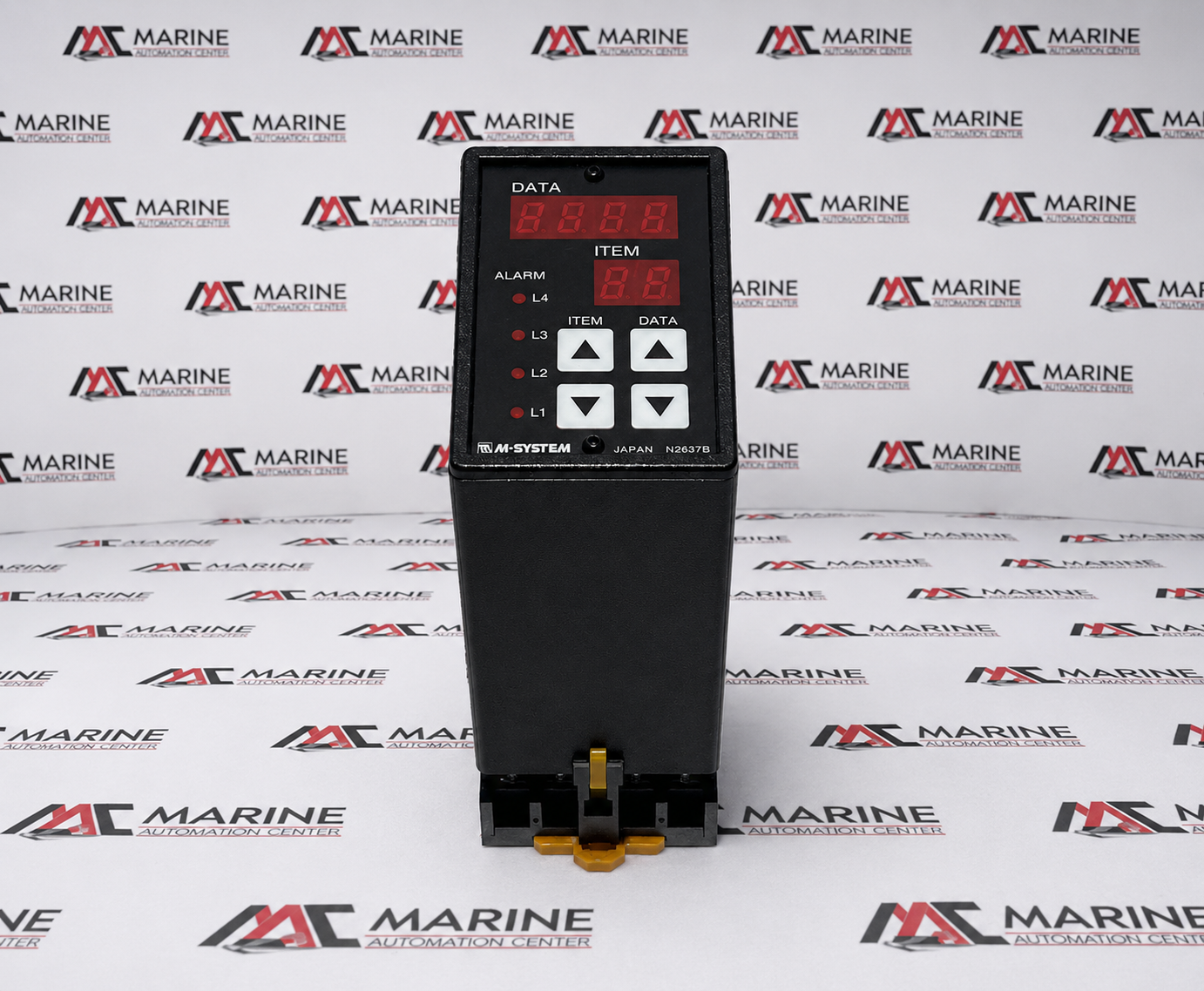

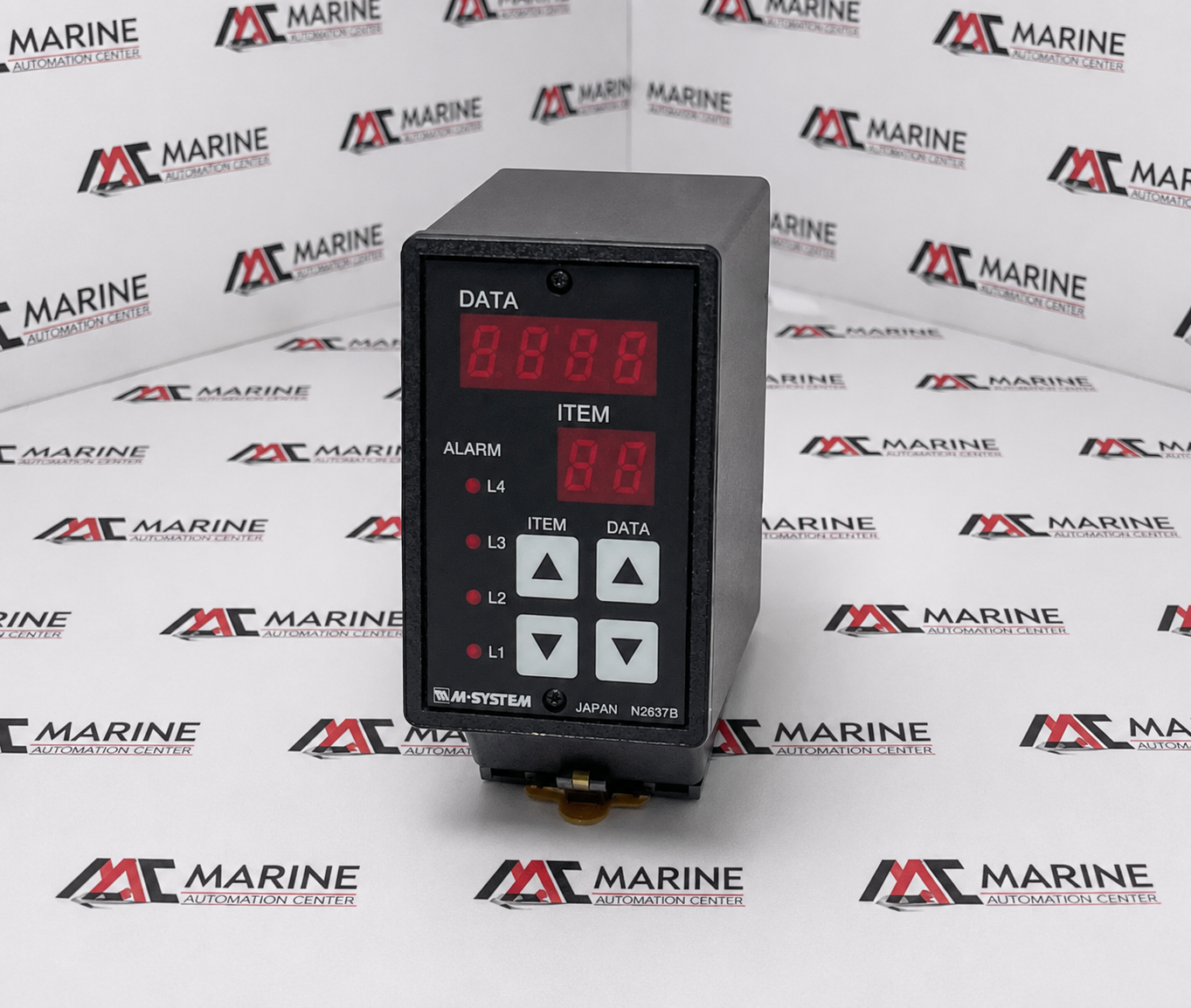

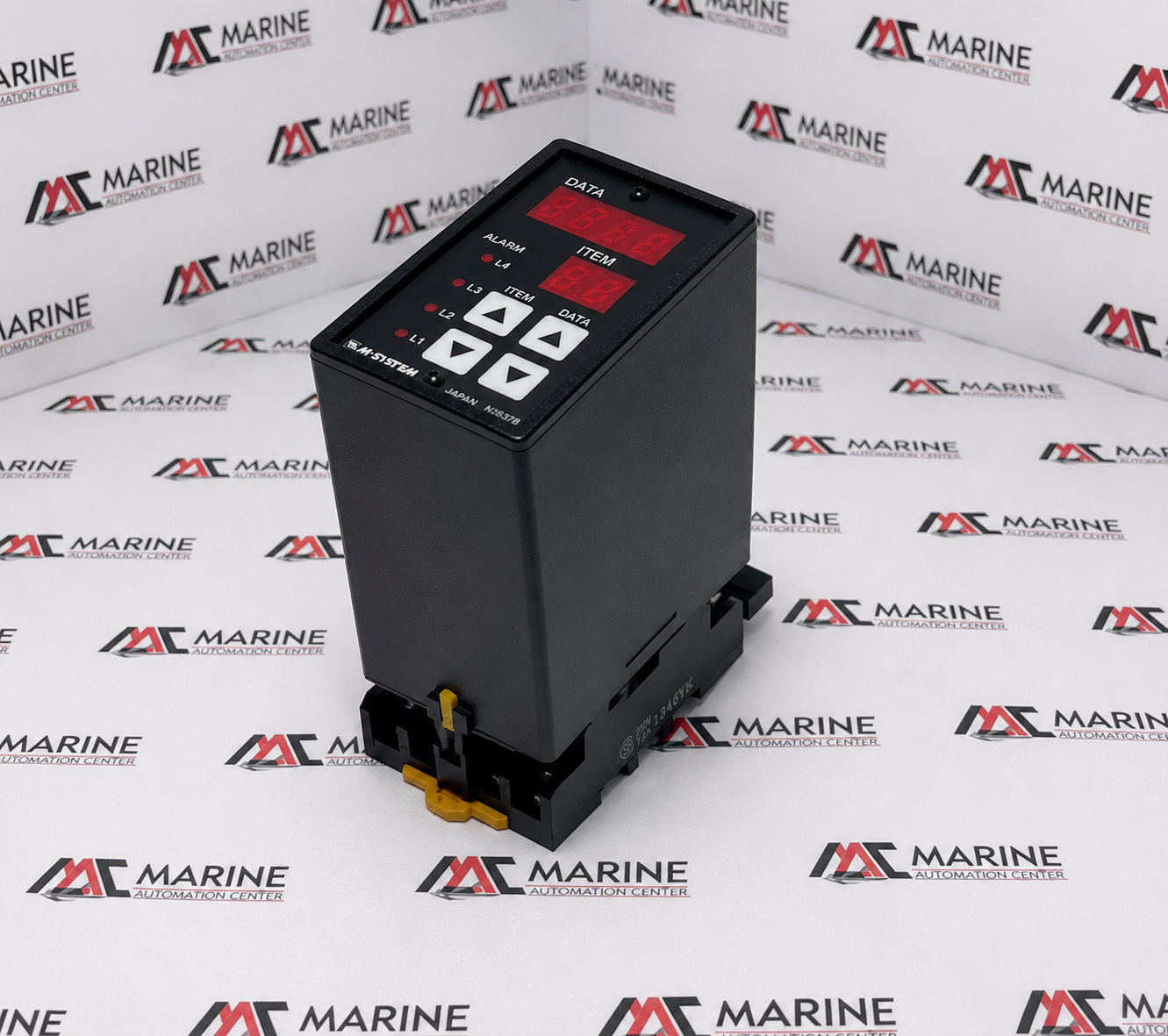

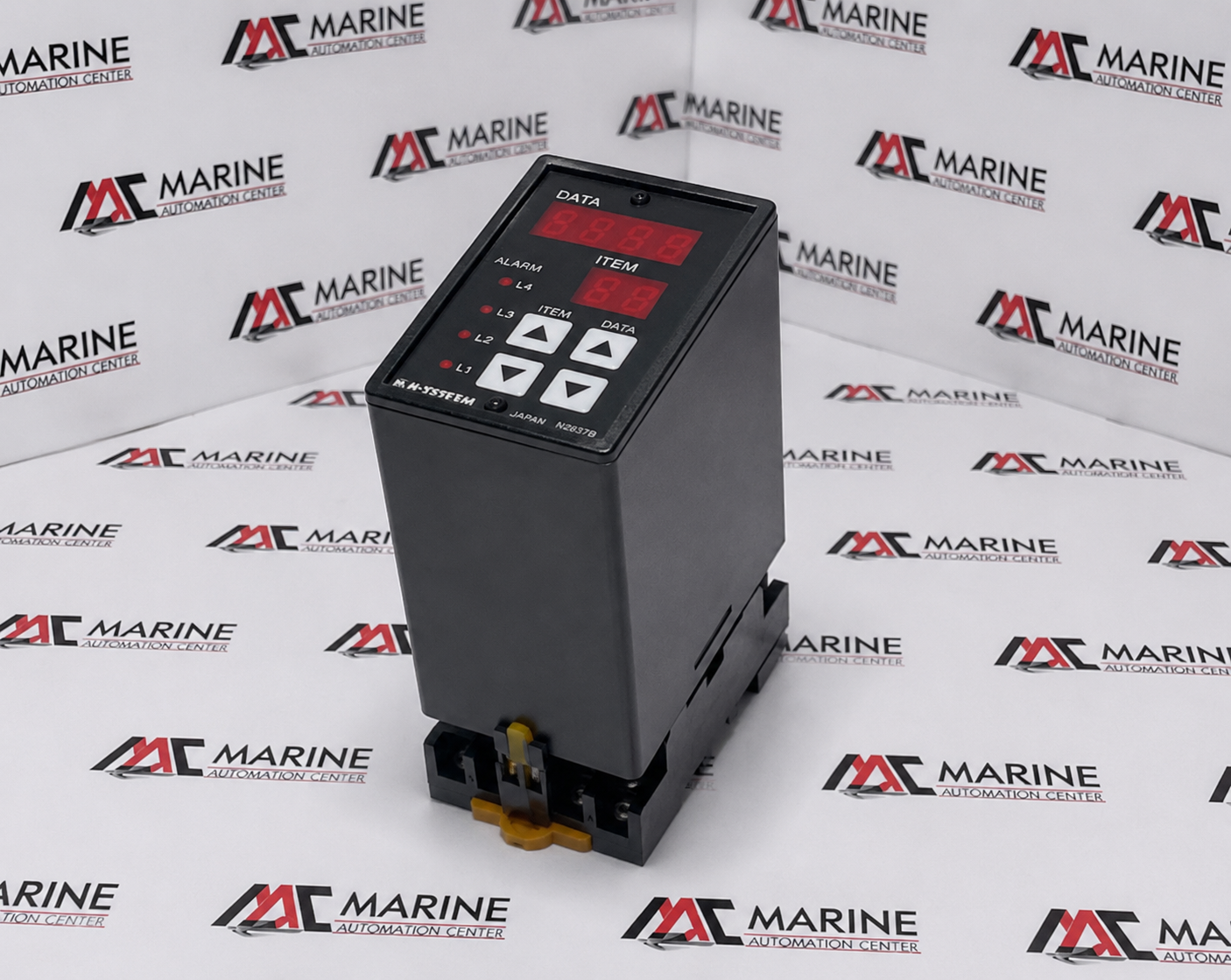

M-SYSTEM AS4V-Z15-R DC Alarm
M-System AS4V-Z15-R DC Alarm is an industrial DC signal alarm that monitors analog DC input signals and provides reliable alarm outputs when preset thresholds are exceeded. It is designed for process monitoring and automation systems, ensuring accurate fault detection and dependable operation
BRAND
M-SYSTEM
TYPE
DC Alarm / Signal Alarm
PART NO.
AS4V-Z15-R
MODEL
AS4V Series DC Alarm
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | M-SYSTEM |
| TYPE | DC Alarm / Signal Alarm |
| PART NO. | AS4V-Z15-R |
| MODEL | AS4V Series DC Alarm |
| Voltage Rating | 24 V DC (Operational power supply range) |
| Application | Industrial instrumentation monitoring, process plant automation loop surveillance, and maritime alert network fail-safe relay outputs |
| IEC | CE marked; complies with industrial electromagnetic compatibility regulations |
| Input Signal Support | DC voltage or current sensor input variants |
| Output 1 & 2 Contact Relays | Dual channel isolated configuration |
| Power Supply Voltage Input | 24 V DC auxiliary loop network |

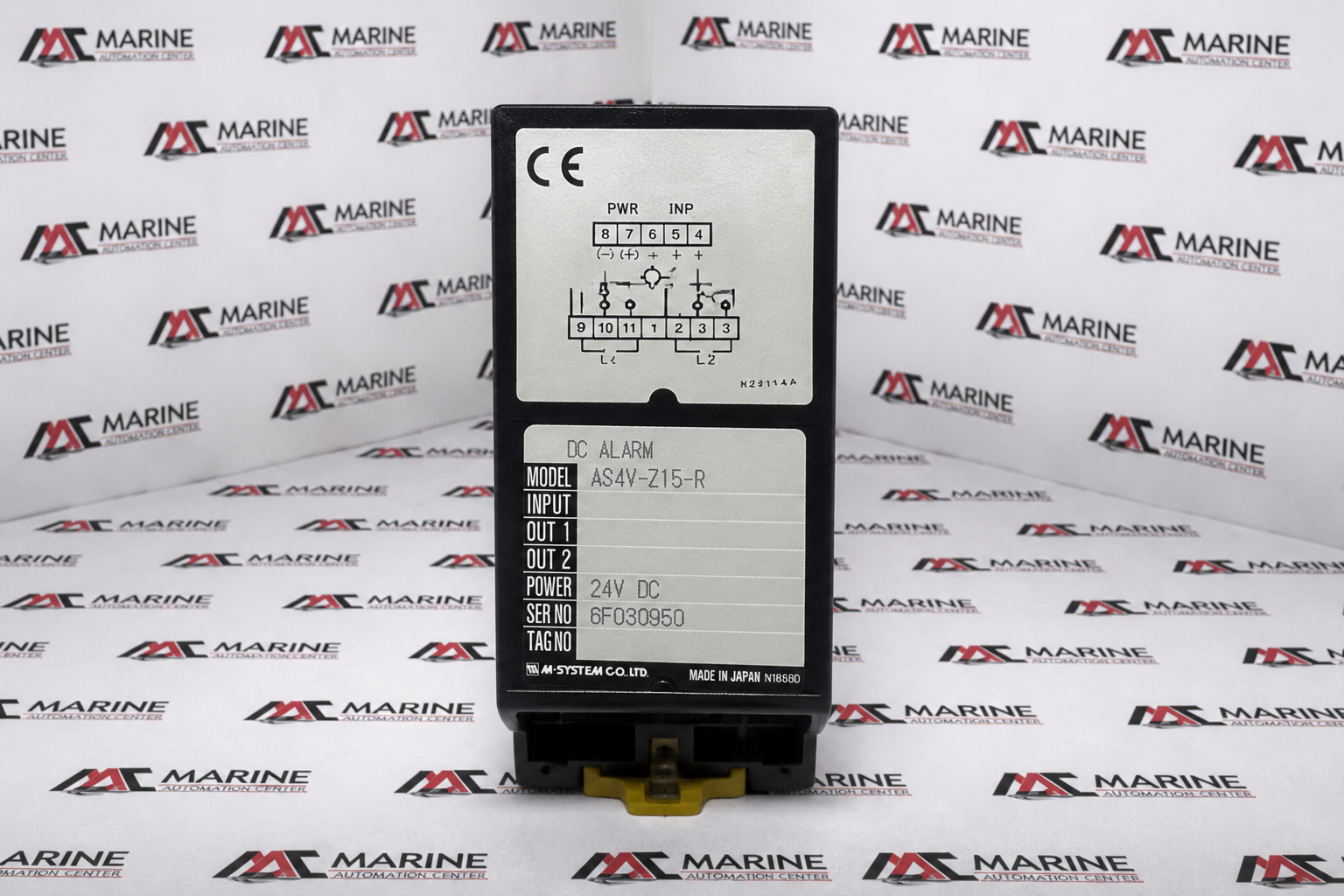

| Terminal Wiring Layout Configuration | PWR (Power Input): Pins 7 (-) and 8 (+) INP (Signal Input): Pins 5 (+) and 4 (+) L1 Relay Output: Pins 9, 10, 11 L2 Relay Output: Pins 1, 2, 3 |
| Enclosure Specifications | Dust-protected structural resin compound enclosure housing (Model style N29114A) |
| Made In | Japan |
| REF NO | 1356 |
