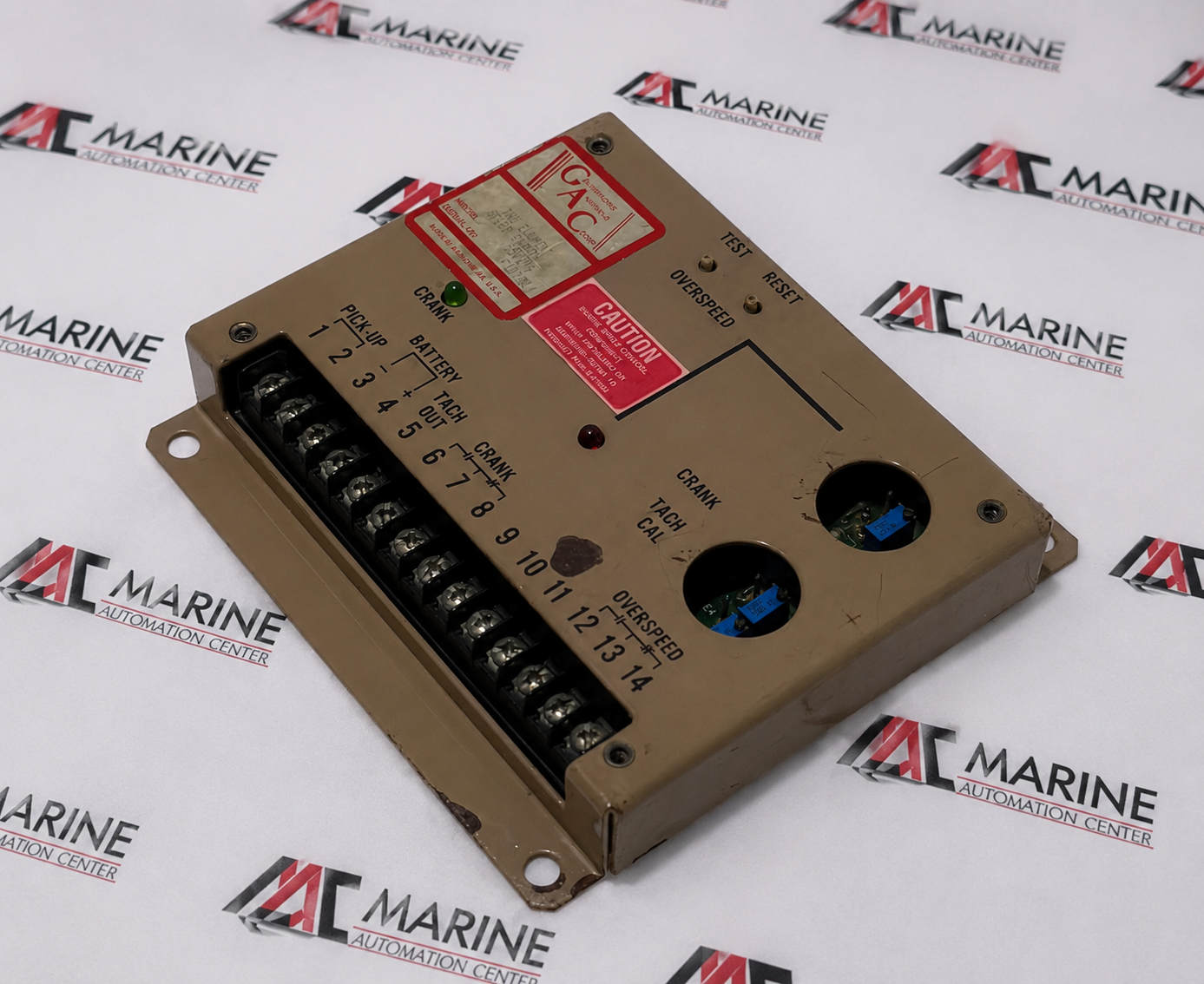

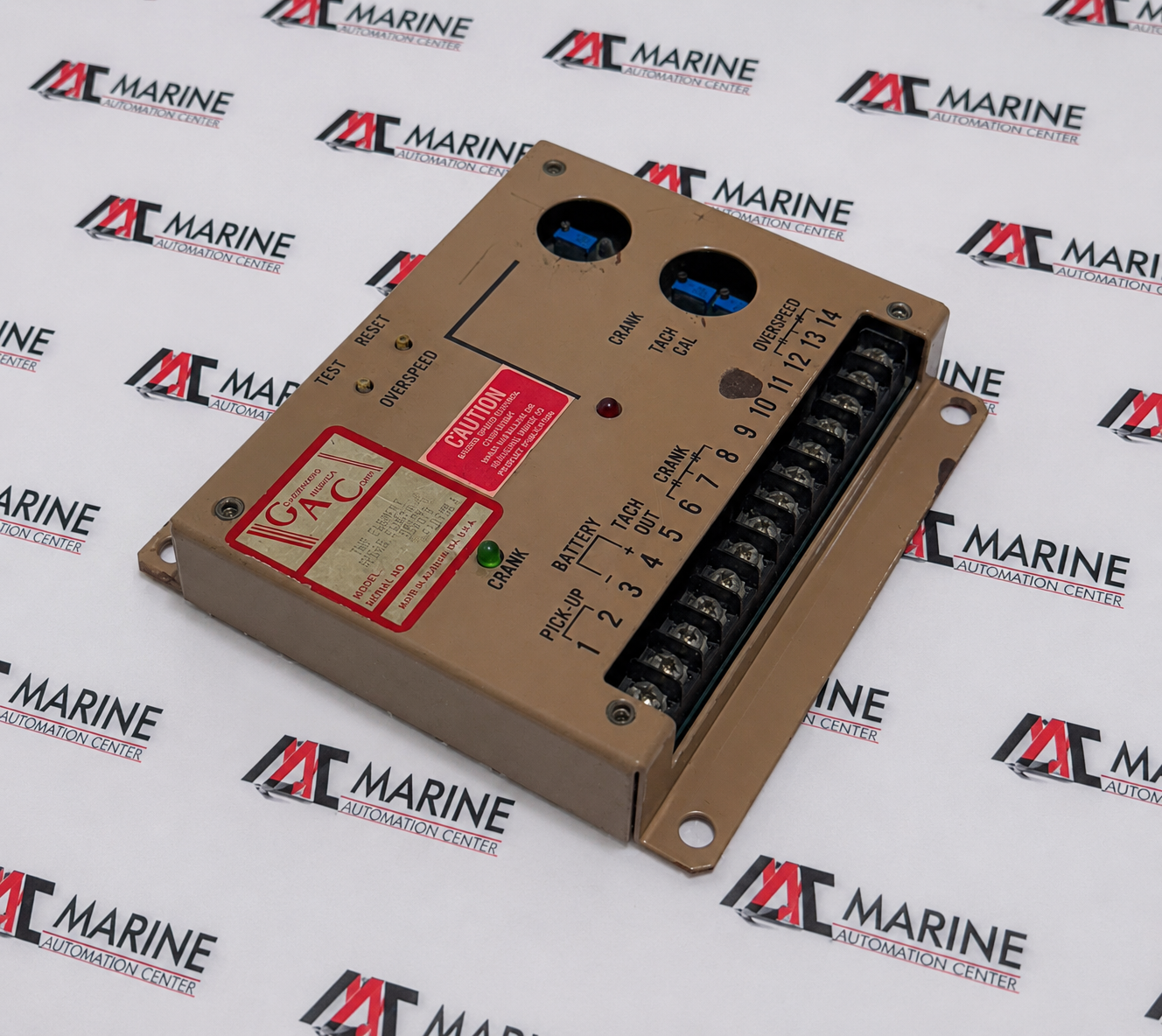

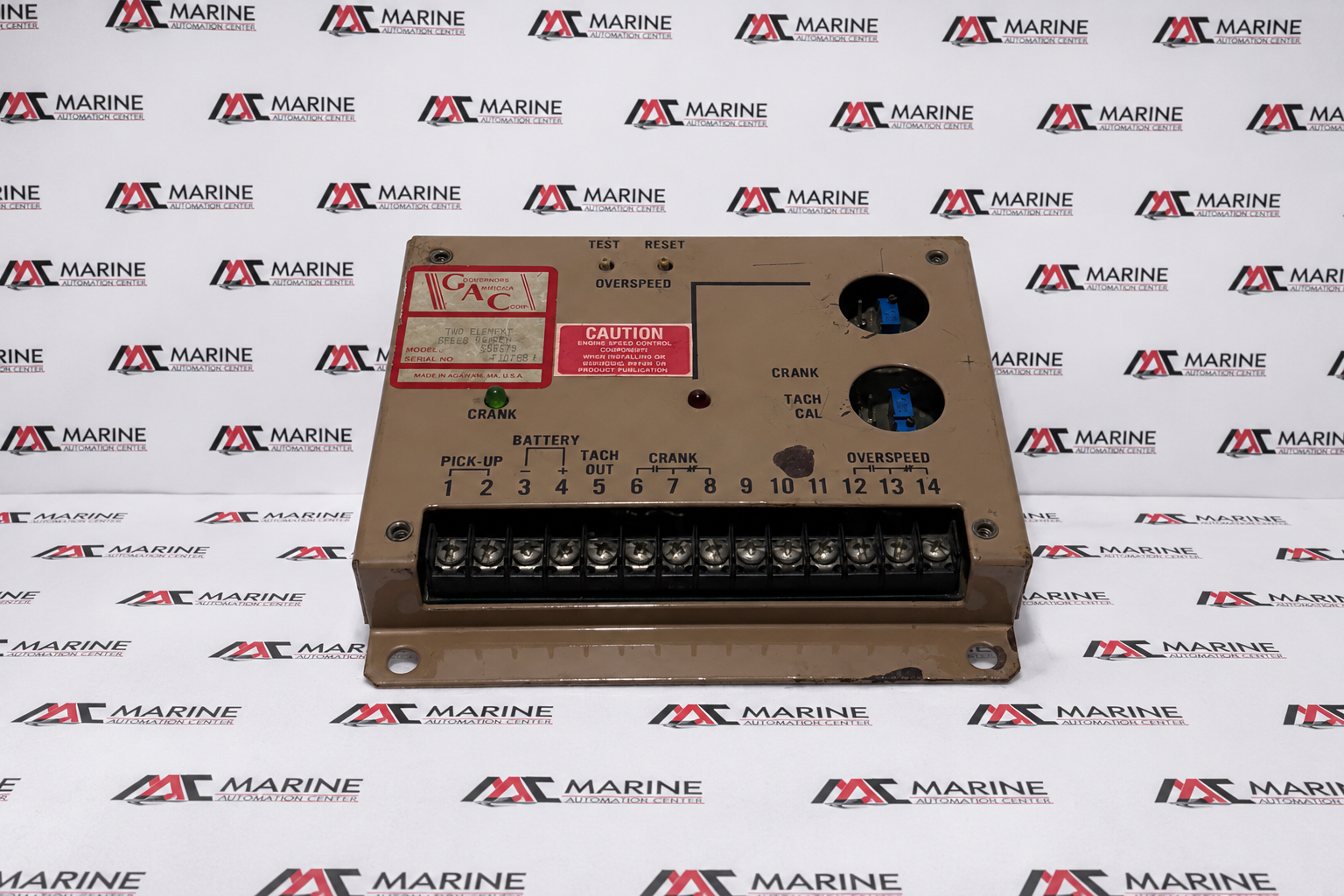

Governors America Corp. GAC SS0375 Speed Control Unit
Governors America Corp. (GAC) SS0375 Speed Control Unit is a reliable two-element speed control and speed switch module designed for engine governor systems. It accurately monitors and controls engine speed while providing overspeed protection, ensuring stable engine performance and safe operation in industrial, marine, and power generation applications
BRAND
GAC (Governors America Corp.)
TYPE
Two-Element Speed Control Unit / Speed Switch
PART NO.
Two-Element Speed Control Unit / Speed Switch SS0375
MODEL
SS0375
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | GAC (Governors America Corp.) |
| TYPE | Two-Element Speed Control Unit / Speed Switch |
| PART NO. | Two-Element Speed Control Unit / Speed Switch SS0375 |
| MODEL | SS0375 |
| Voltage Rating | 12 V DC or 24 V DC Battery Systems (Transient and reverse voltage protected) |
| Application | Oversight of crucial engine velocity functions, combining continuous electronic monitoring, magnetic sensor processing, overspeed tripping, and crank termination sequencing for industrial and marine gensets |
| IEC | Built to standard industrial vibration, humidity, and electronic isolation specifications |
| Primary Terminal Logic Structure | Pins 1 & 2: Magnetic Pick-Up sensor input lines. Pins 3 & 4: DC Battery supply connection tracks (- and +). Pins 5 & 6: Tachometer Signal Output. Pins 7 & 8: Crank termination control loop terminals. Pins 12, 13 & 14: Dedicated overspeed relay contact saf |
| Two-Element Monitoring | Monitors two distinct, independent programmable engine speed milestones—specifically Crank Termination (low speed) and Overspeed Protection (high speed) |
| Input Signal | Receives precise engine speed information via an external magnetic speed sensor/pickup that measures ring gear teeth rotation |
| Automation Relays | Utilizes heavy-duty relay outputs (typically 5 Amp) to trip safety solenoids, cut fuel, or pass control over to an automatic starter |
| Built-in Testing | Features a native overspeed test function to verify trip operations safely without overspeeding the physical engine |
| Made In | USA (Agawam, MA) |
| REF NO | 1422 |
