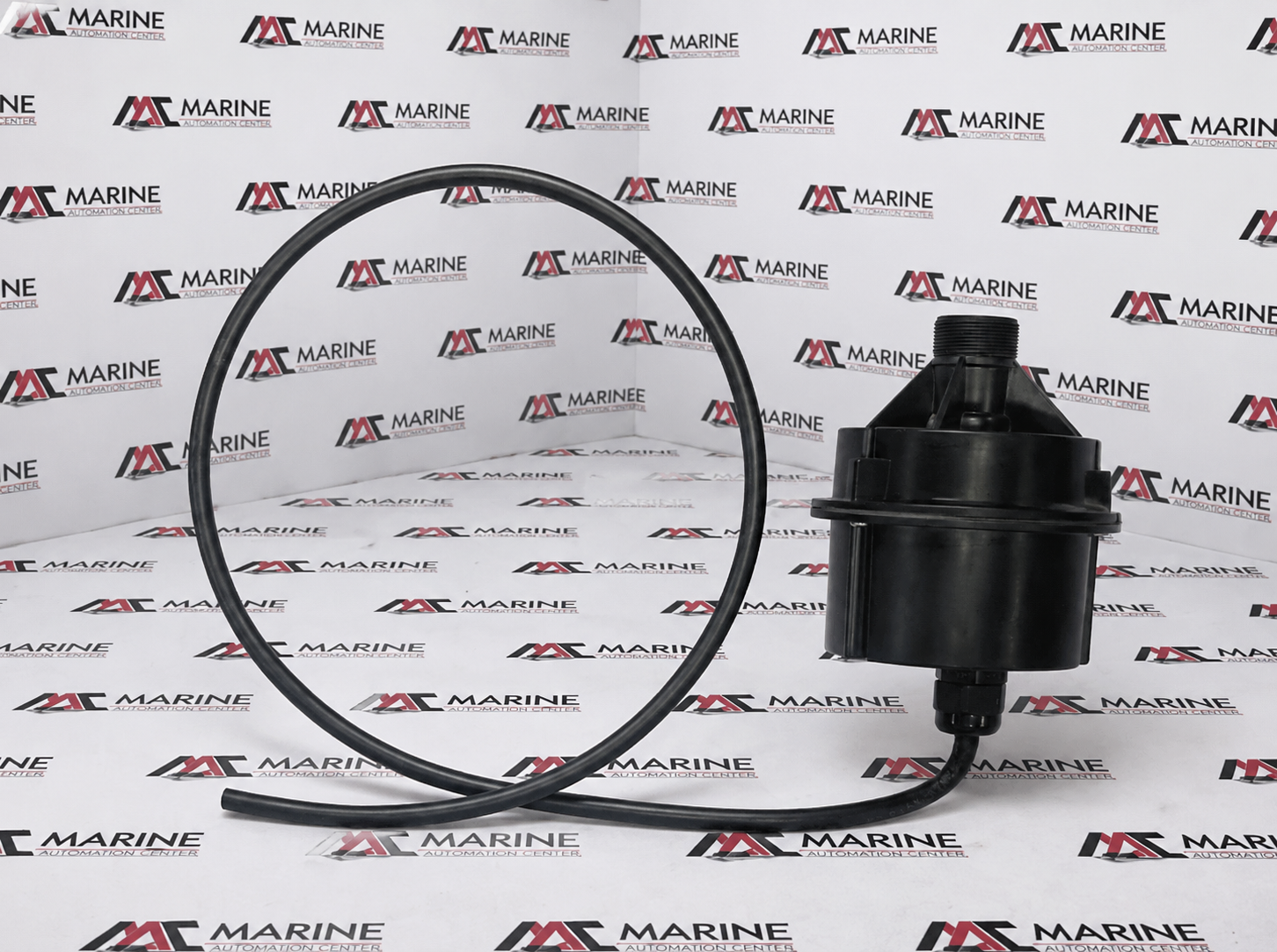

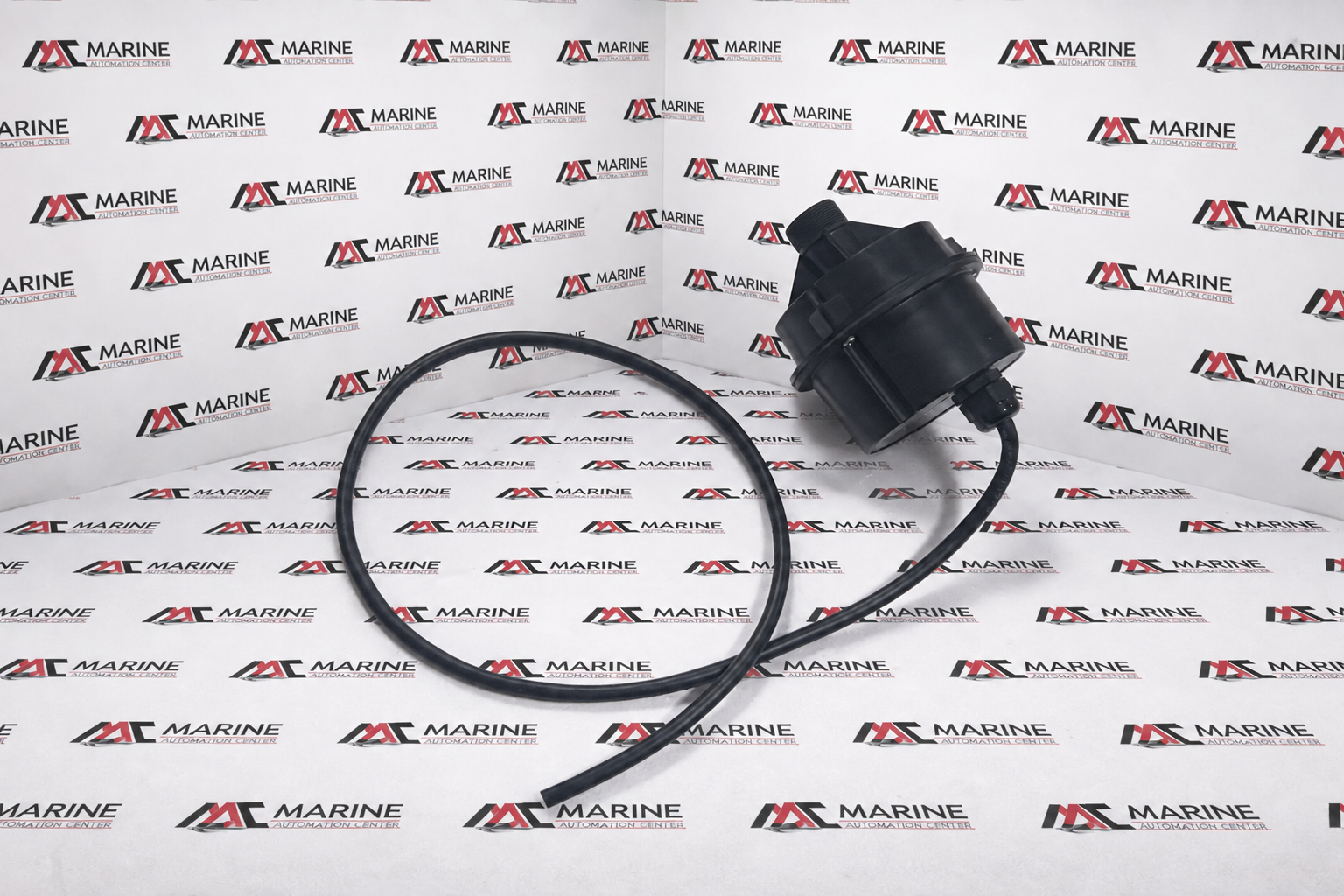

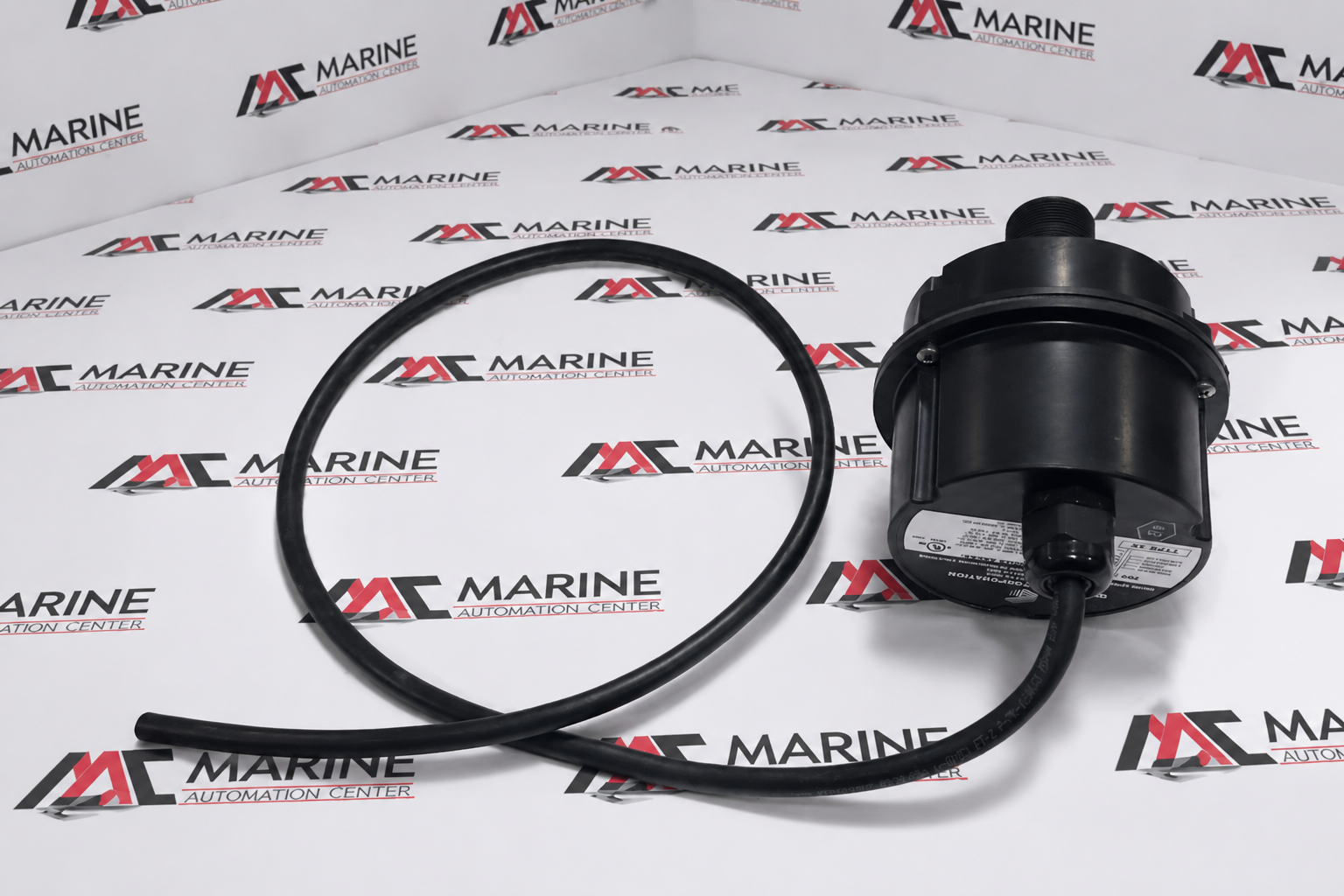

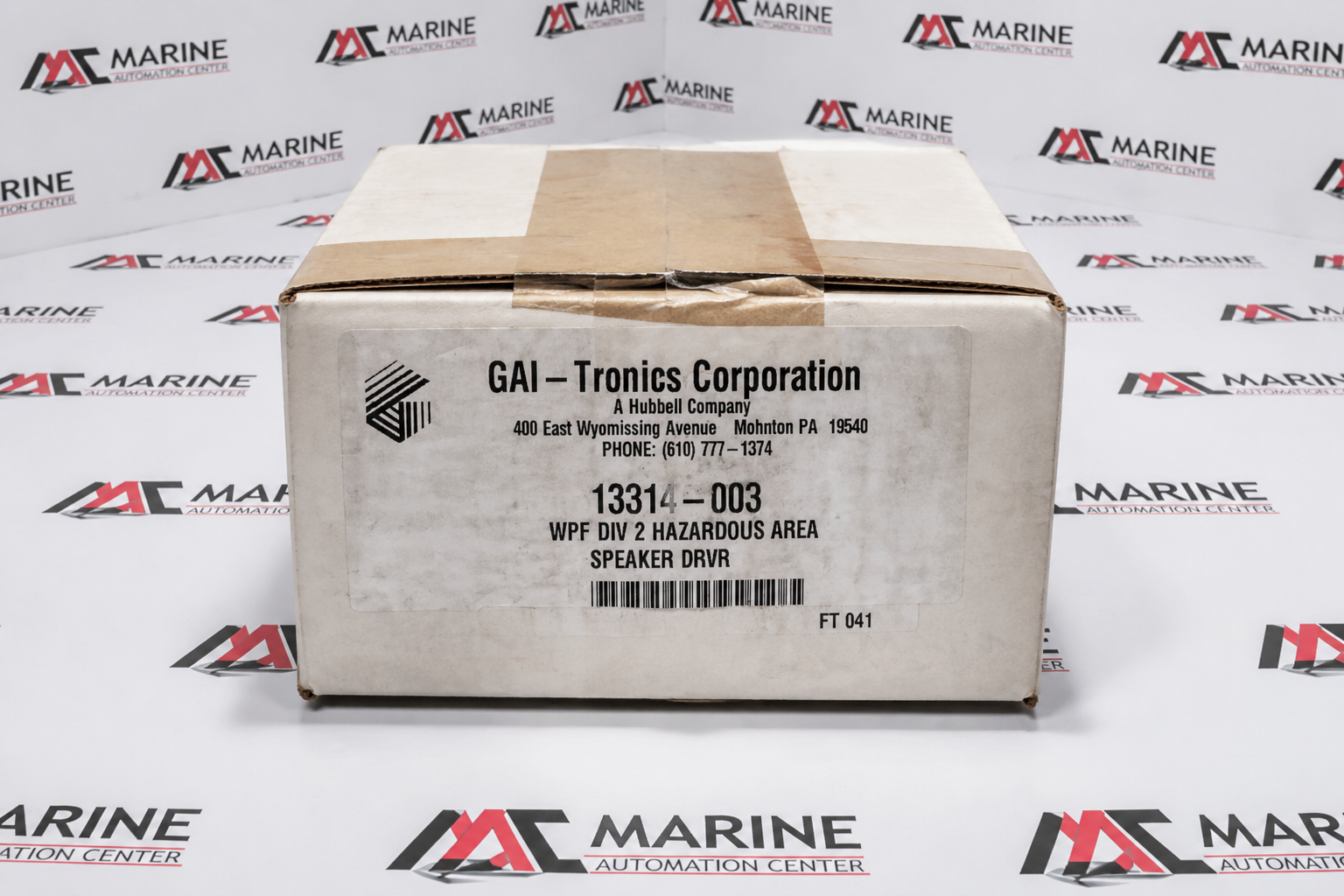

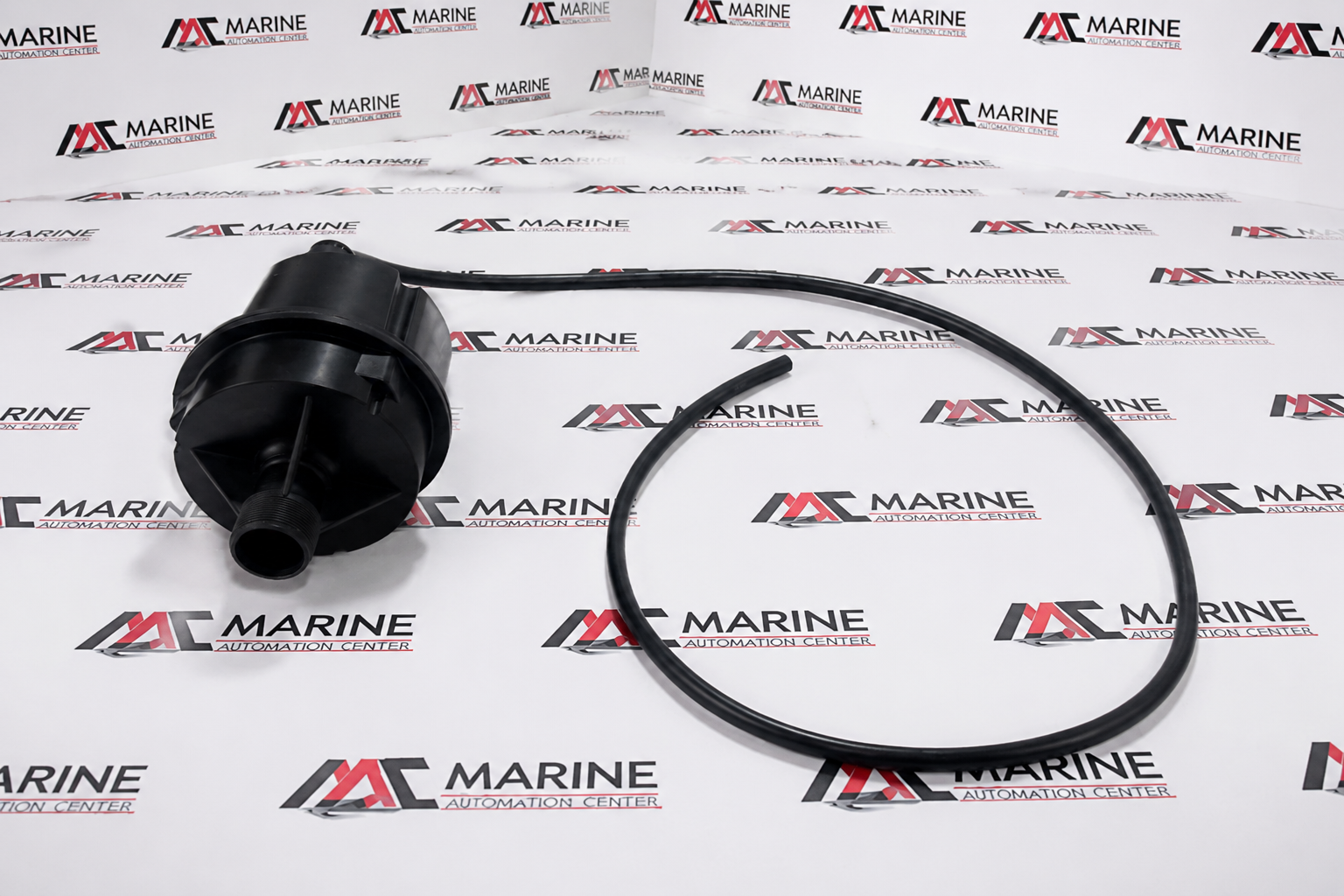

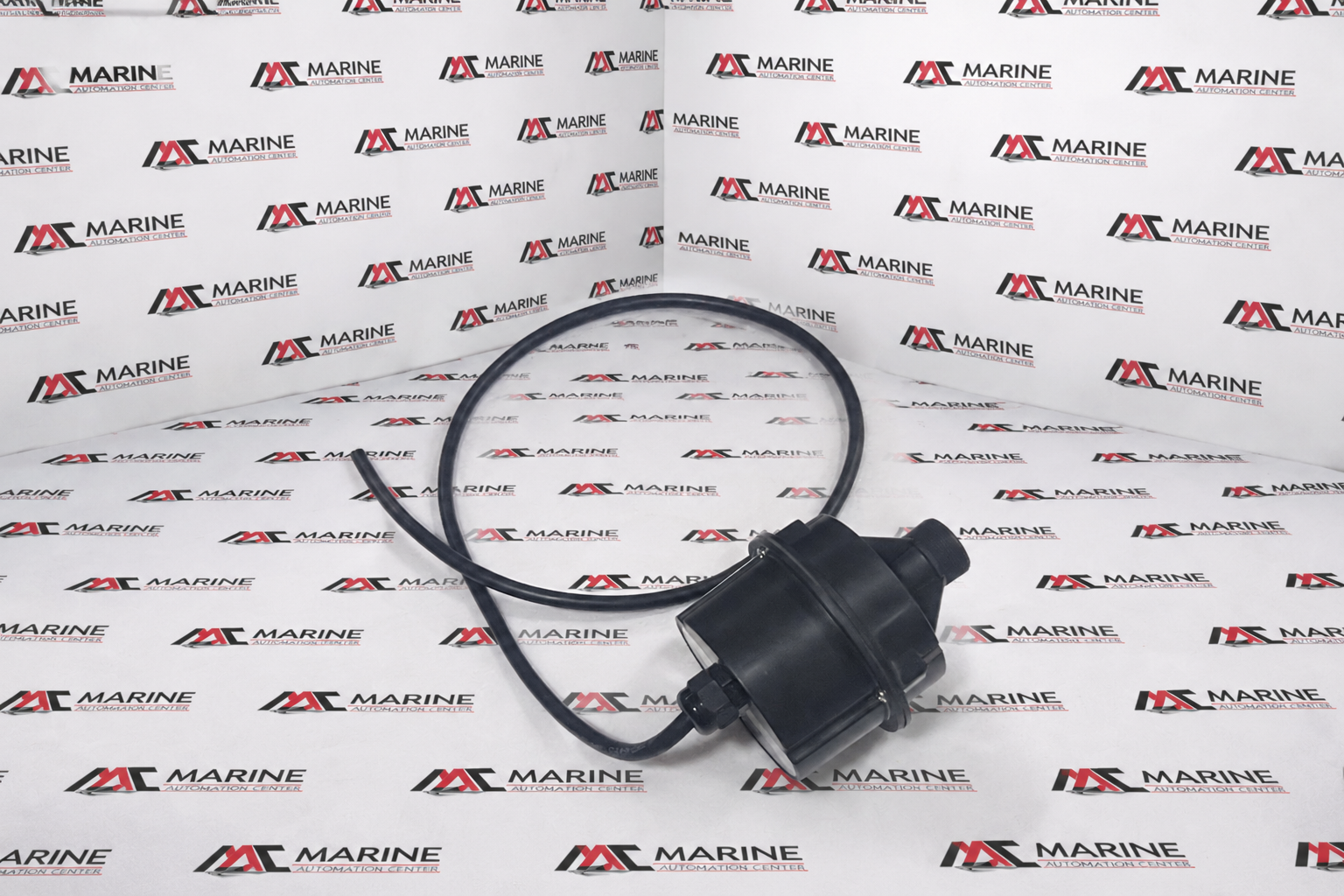

GAI-Tronics 13314-003 Hazardous Area Horn Driver
GAI-Tronics Hazardous Area Horn Driver (P/N: 13314-003) is a 30-Watt explosion-proof compression horn driver designed for clear and reliable audio communication in industrial and hazardous environments. It features a 70V audio input, weather-resistant NEMA 4X construction, and is suitable for use in areas with high noise, corrosive conditions, and hazardous classifications. It is designed to connect with GAI-Tronics horn assemblies for paging, alarm, and emergency notification systems
BRAND
GAI-TRONICS
TYPE
Explosion Proof Horn Driver / Loudspeaker Driver
PART NO.
13314-003
MODEL
13314-003 30-Watt Horn Driver
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | GAI-TRONICS |
| TYPE | Explosion Proof Horn Driver / Loudspeaker Driver |
| PART NO. | 13314-003 |
| MODEL | 13314-003 30-Watt Horn Driver |
| Voltage Rating | 70 V AC |
| Application | High-noise public address and general alarm (PA/GA) broadcasts in industrial processing plants, marine decks, off-shore platforms, oil refineries, and chemical storage sites. |
| IEC | ATEX/IECEx hazard area standard equivalent structural parameters (UL Listed Class I, Div 2 / Class II, Div 2 / Class III). |
| Rated Power Capacity | 30 Watts RMS |

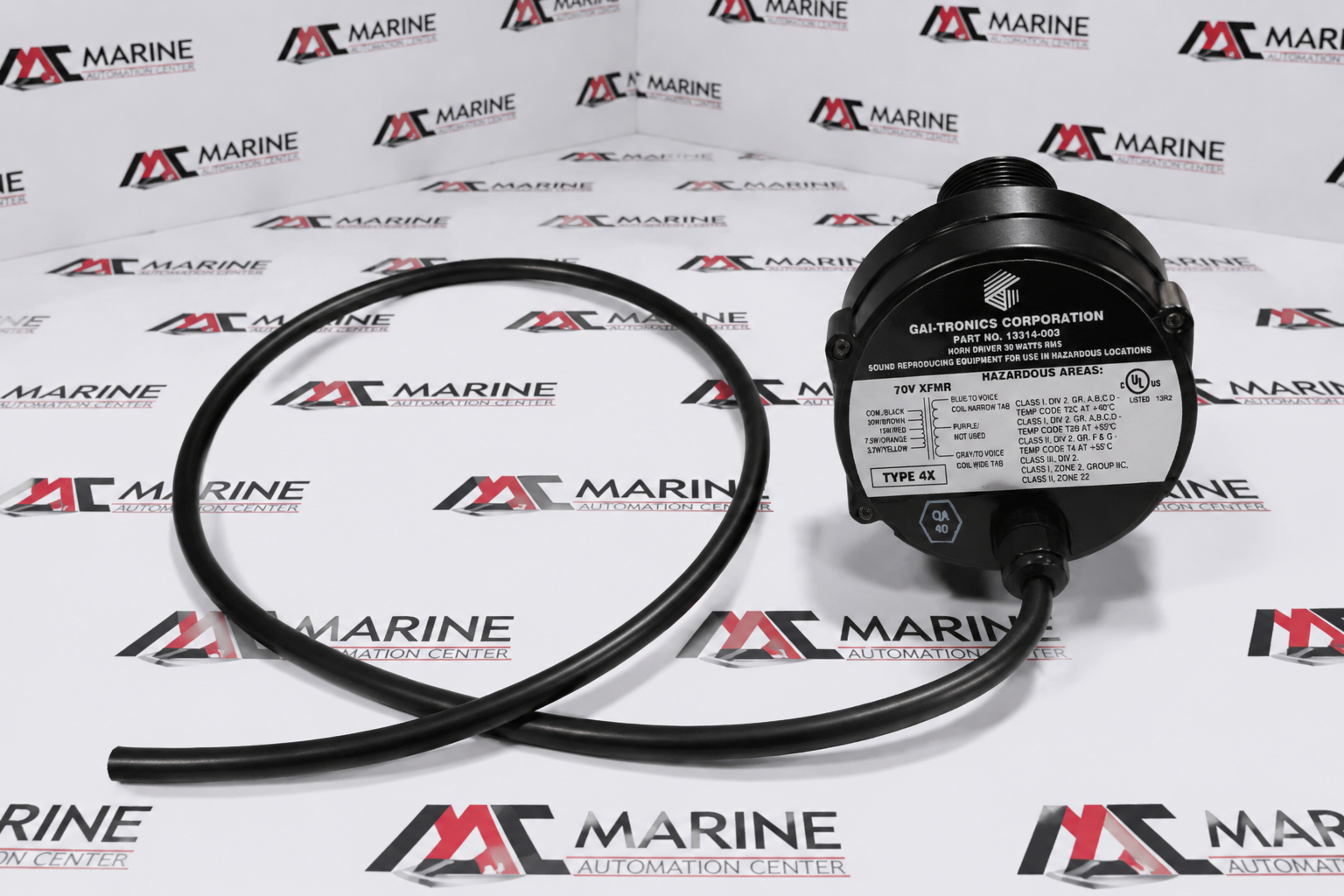

| Integrated Line Transformer | COM: Black wire 30W: Brown wire (Blue to Voice Coil Narrow Tab configuration connection) 15W: Red wire (Purple wire Not Used) 7.5W: Orange wire 3.7W: Yellow wire |
| Enclosure Environmental Sealing Protection | NEMA Type 4X rating |
| Hazardous Area Protection | Class I, Division 2, Groups A, B, C, and D: Temp Code T2C at +60°C / Temp Code T2D at +50°C. Class I, Zone 2, Group IIC: Temp Code T2 at +60°C. Class II, Division 2, Groups F and G: Temp Code T4A at +50°C / Temp Code T4 at +60°C. Class III, Division 2 Cla |
| Mechanical Thread Interface | Standard threaded compression collar coupling designed to adapt cleanly to industrial horn flares or sound projector housings |
| Integrated Hardware Tail | Factory-terminated thick insulated structural marine-grade multi-conductor wire pigtail cable ensuring sealed structural electrical delivery paths |
| Made In | United States (USA) |
| REF NO | 346 |
