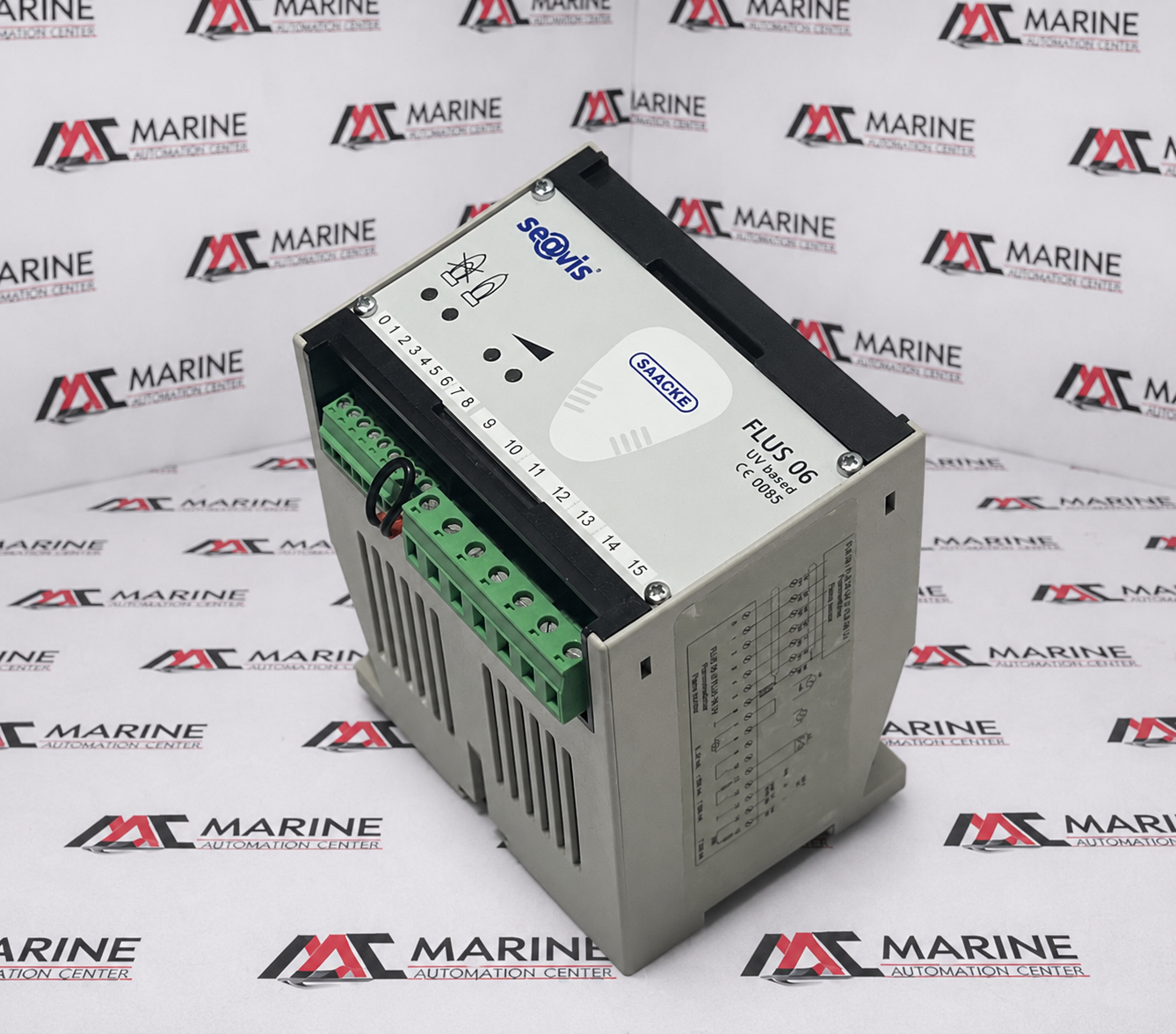

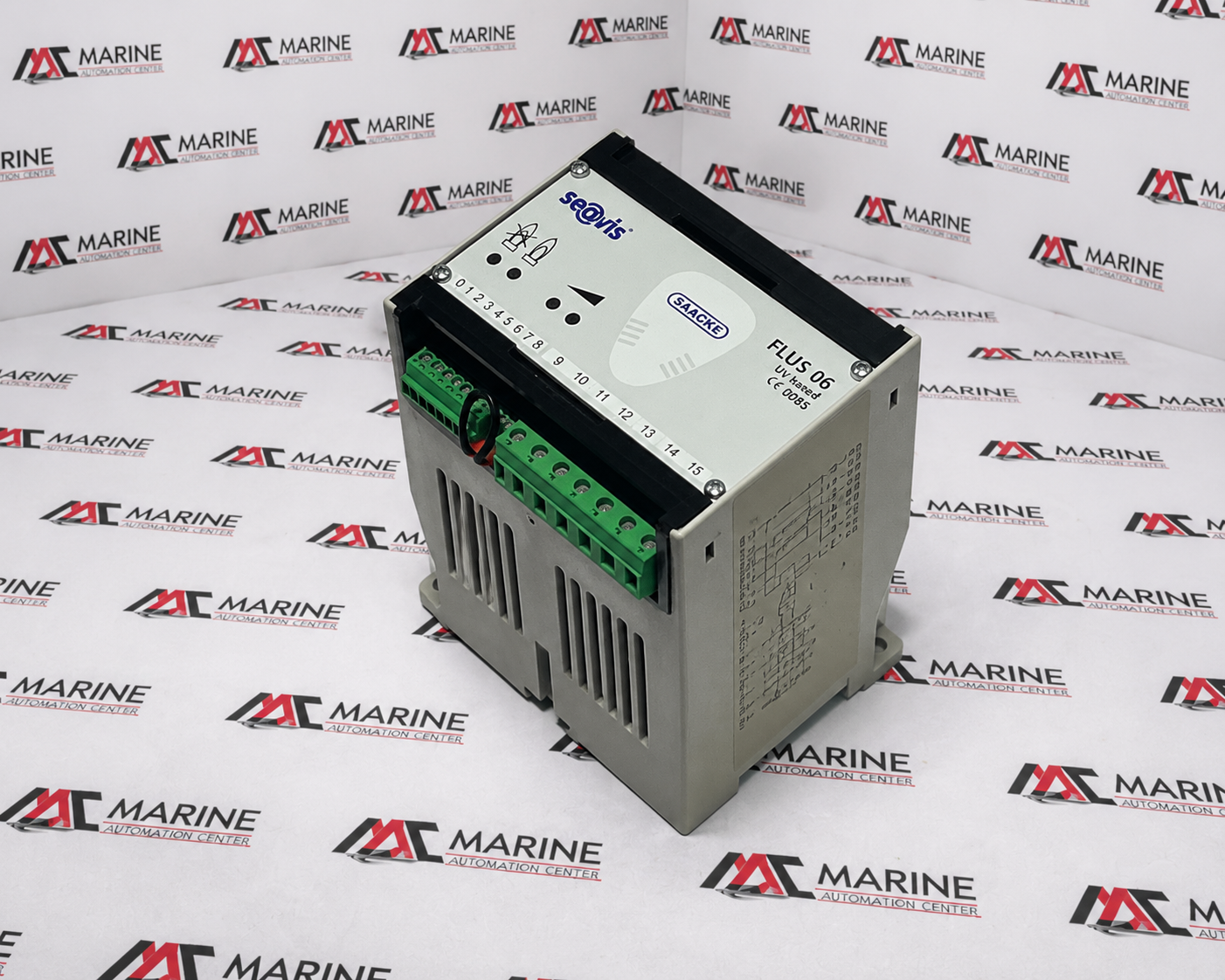

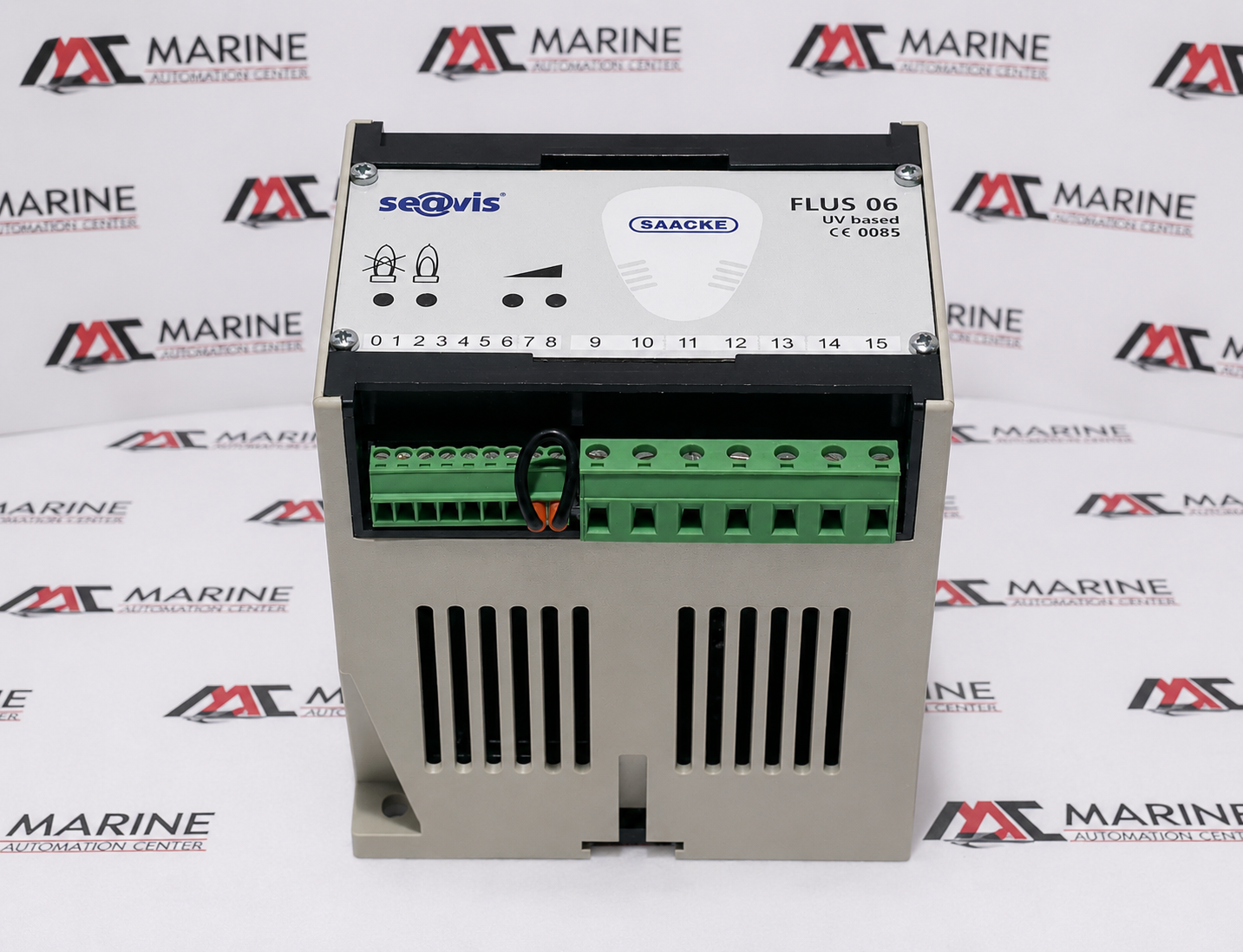

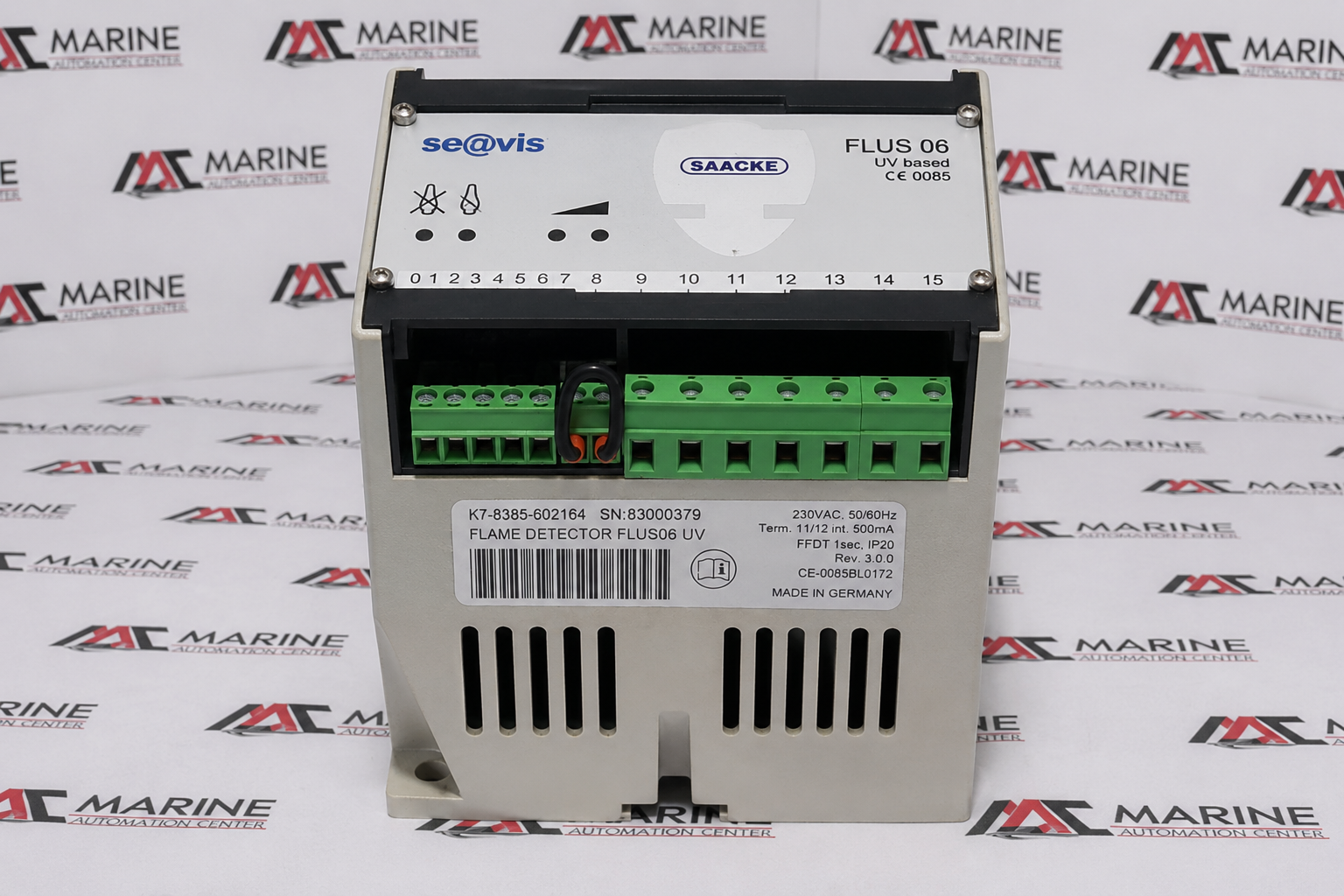

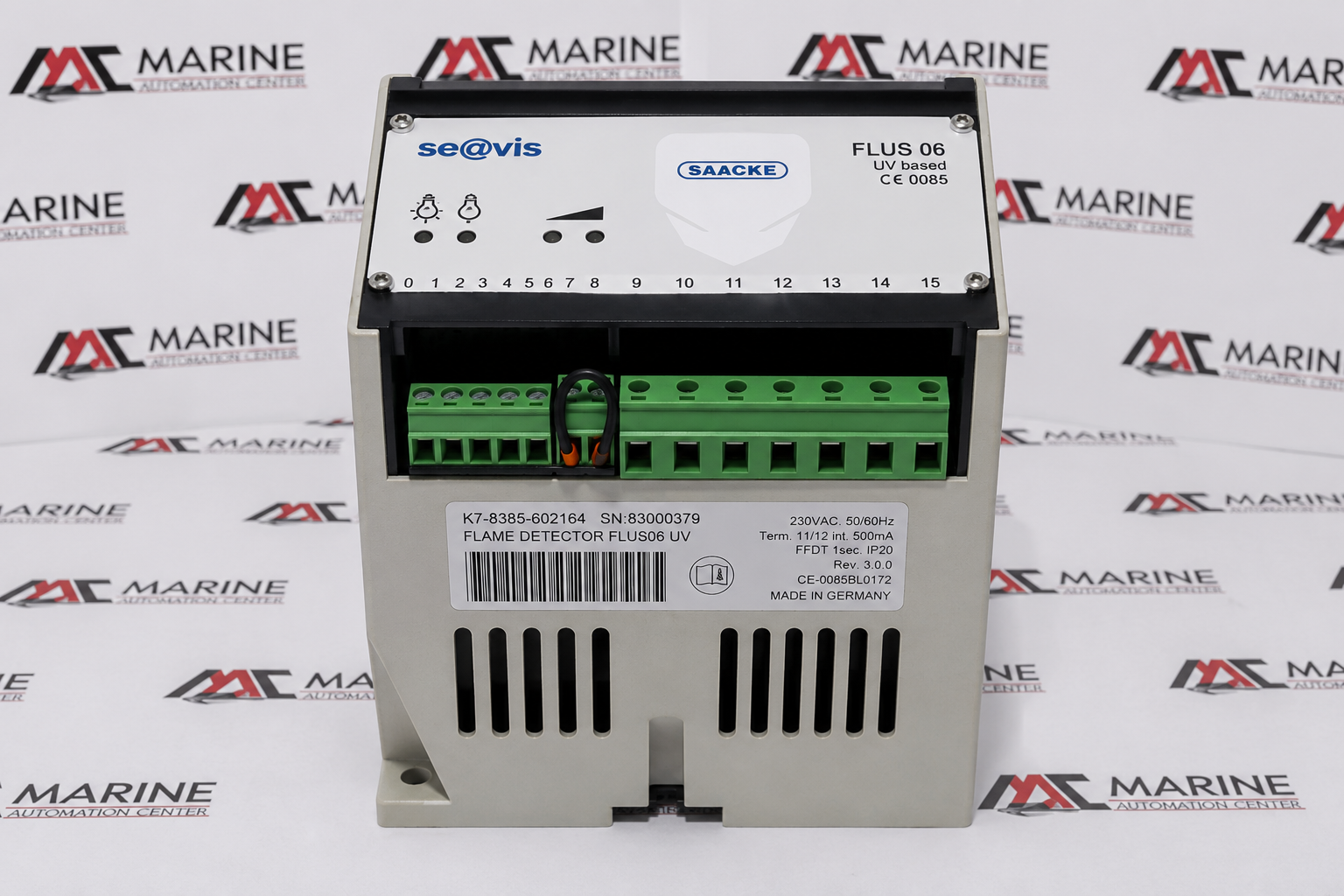

FLUS 06 UV Flame Detector
The FLUS 06 UV (K7-8385-602164) is a UV-based burner flame supervision controller designed for reliable flame monitoring in industrial and marine boiler/burner systems. It detects ultraviolet radiation emitted by burner flames, ensuring safe burner operation by instantly identifying flame failure and triggering fuel shut-off to protect equipment and personnel. The unit is commonly used in SAACKE burner management systems for oil, gas, and dual-fuel combustion applications.
BRAND
SAACKE (se@vis)
TYPE
UV-Based Flame Detector
PART NO.
K7-8385-602164
MODEL
FLUS 06 UV
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| Technology | Ultraviolet (UV) Flame Detection |
| Supply Voltage | 230 VAC (+15% / -20%), 50/60 Hz |
| Power Consumption | Approx. 5 VA |
| Terminal Fuse | Terminal 11/12, Internal 500 mA |
| Flame Failure Detection Time (FFDT) | 1 Second |
| Protection Class | IP20 |
| Revision | Rev. 3.0.0 |
| CE Marking | CE 0085 |
| Controller Platform | se@vis Burner Management System |
| Sensor Type | Compatible with SAACKE FLS 09 UV Flame Scanner |
| Detection Principle | Ultraviolet flame radiation monitoring for burner flame supervision |
| Application | Marine boilers, industrial boilers, thermal oil heaters, gas burners, oil burners, dual-fuel combustion systems, burner management systems |
| Output Function | Continuous flame monitoring with flame ON/OFF status and burner safety shutdown on flame failure |
| Made In | Germany |
| Ref no. | 1315 |
