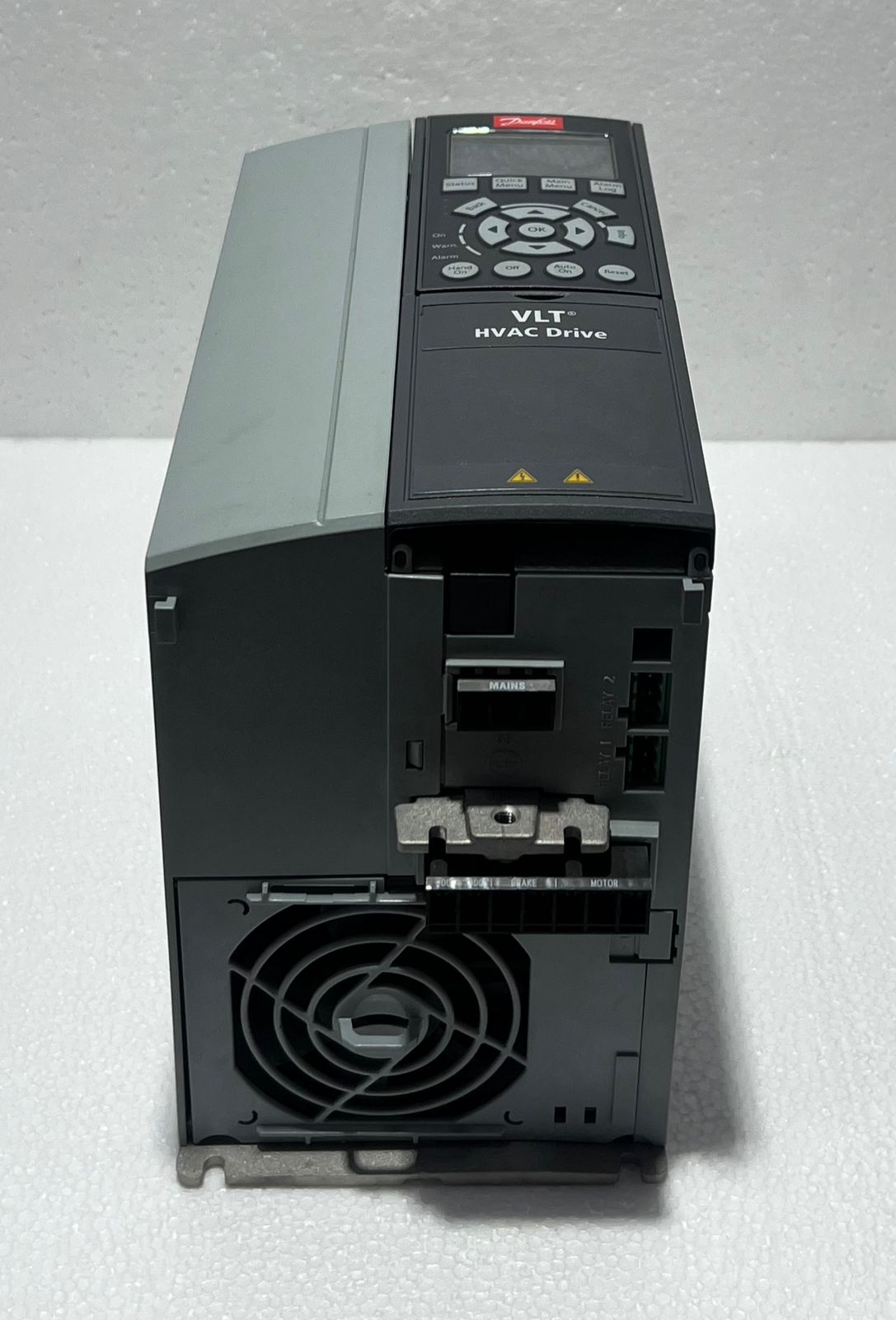

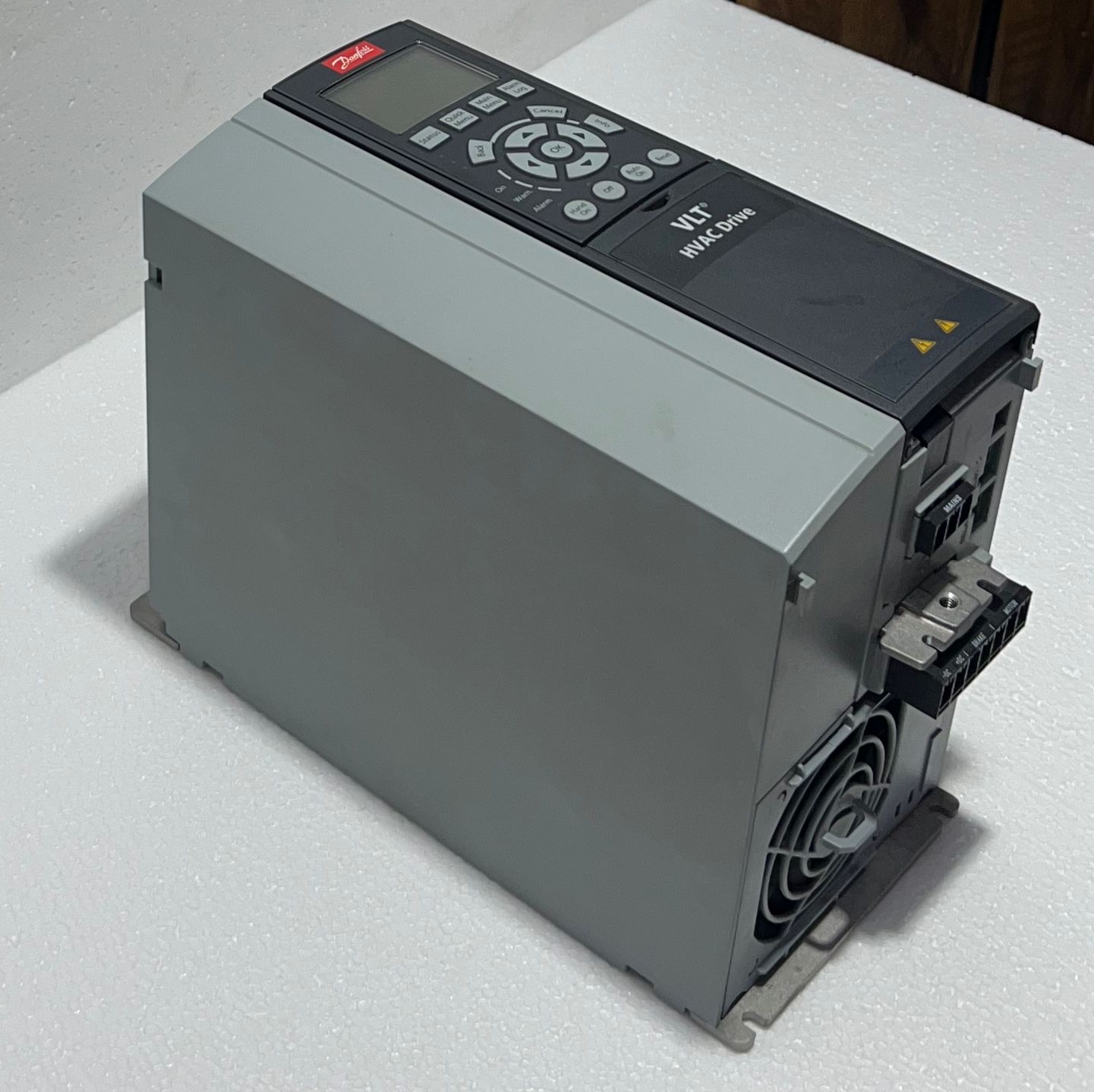

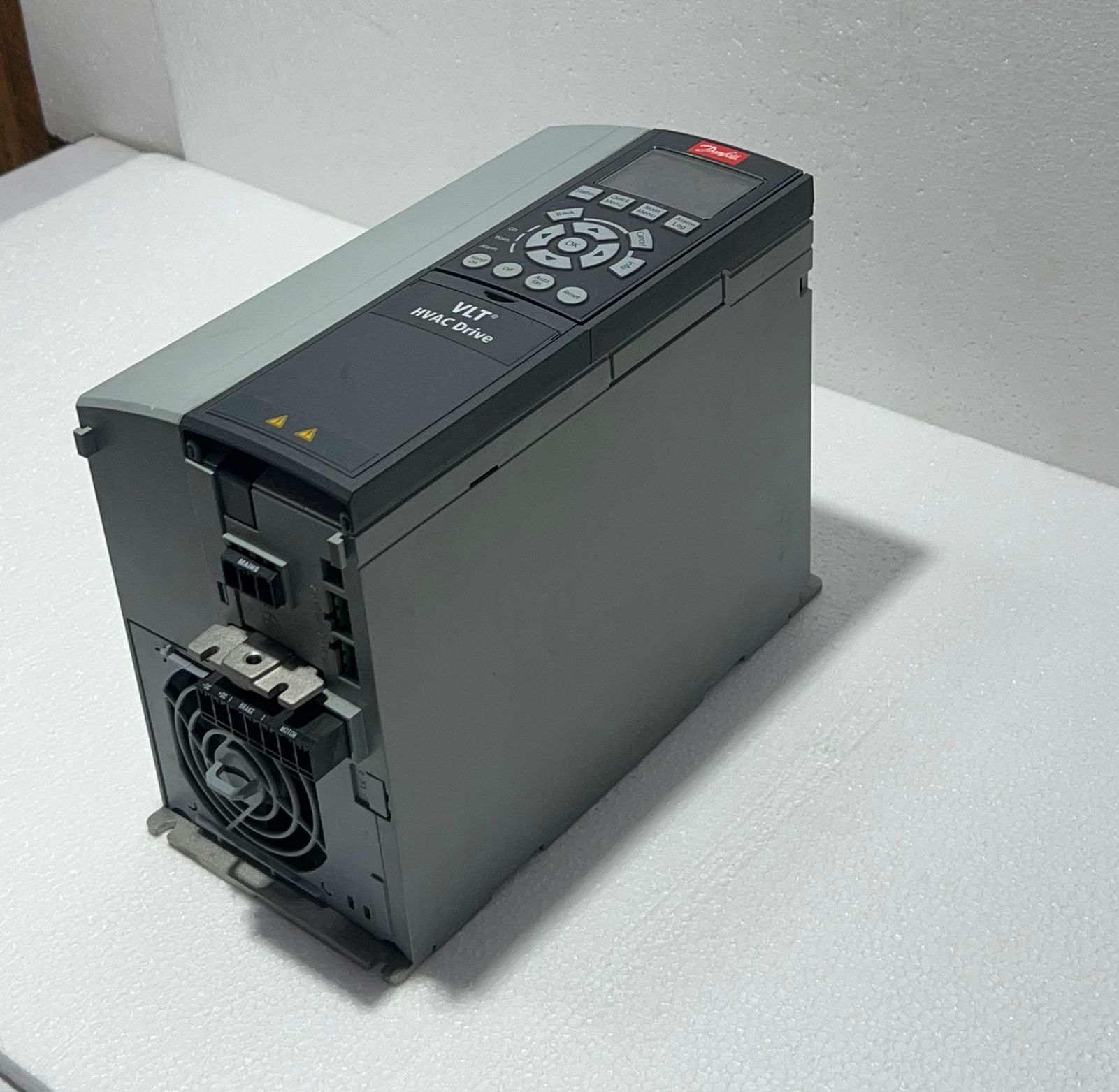

Danfoss VLT HVAC Drive FC 102.
Danfoss VLT® HVAC Drive FC 102 (Part No. P15K) is a high-performance variable frequency drive (VFD) designed to optimize the control of HVAC equipment, including fans, pumps, and compressors. It delivers precise motor speed control, improved energy efficiency, and reliable operation, making it ideal for commercial buildings, industrial facilities, and HVAC automation applications.
BRAND
Danfoss
TYPE
Frequency Drive
PART NO.
P15K
MODEL
FC 102
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Frequency Drive |
| PART NO. | P15K |
| MODEL | FC 102 |
| MANUFACTURER | Danfoss |
| Input Voltage | 380–480 VAC |
| Input Frequency | 50/60 Hz |
| Input Phase | Three Phase |
| Input Power | 1.1–1000 kW |
| Output Power | 15 kW / 20 HP |
| Motor Power Range | 0.75–900 kW |
| Low Harmonic Drive Range | 380–480 V, 160–710 kW |
| Enclosure Rating | IP55 / Type 12 |
| RFI Filter | H3 – RFI Class A1/B (C1) |
| Brake Chopper | None (No Brake Chopper) |
| Local Control Panel | Graphical Local Control Panel |
| PCB Coating | Standard (Not Coated PCB) |
| Frame Size | B1 |
| Application | HVAC Motor Speed Control and Energy Managemen |
| Made In | India |
| REF NO | 1331 |
