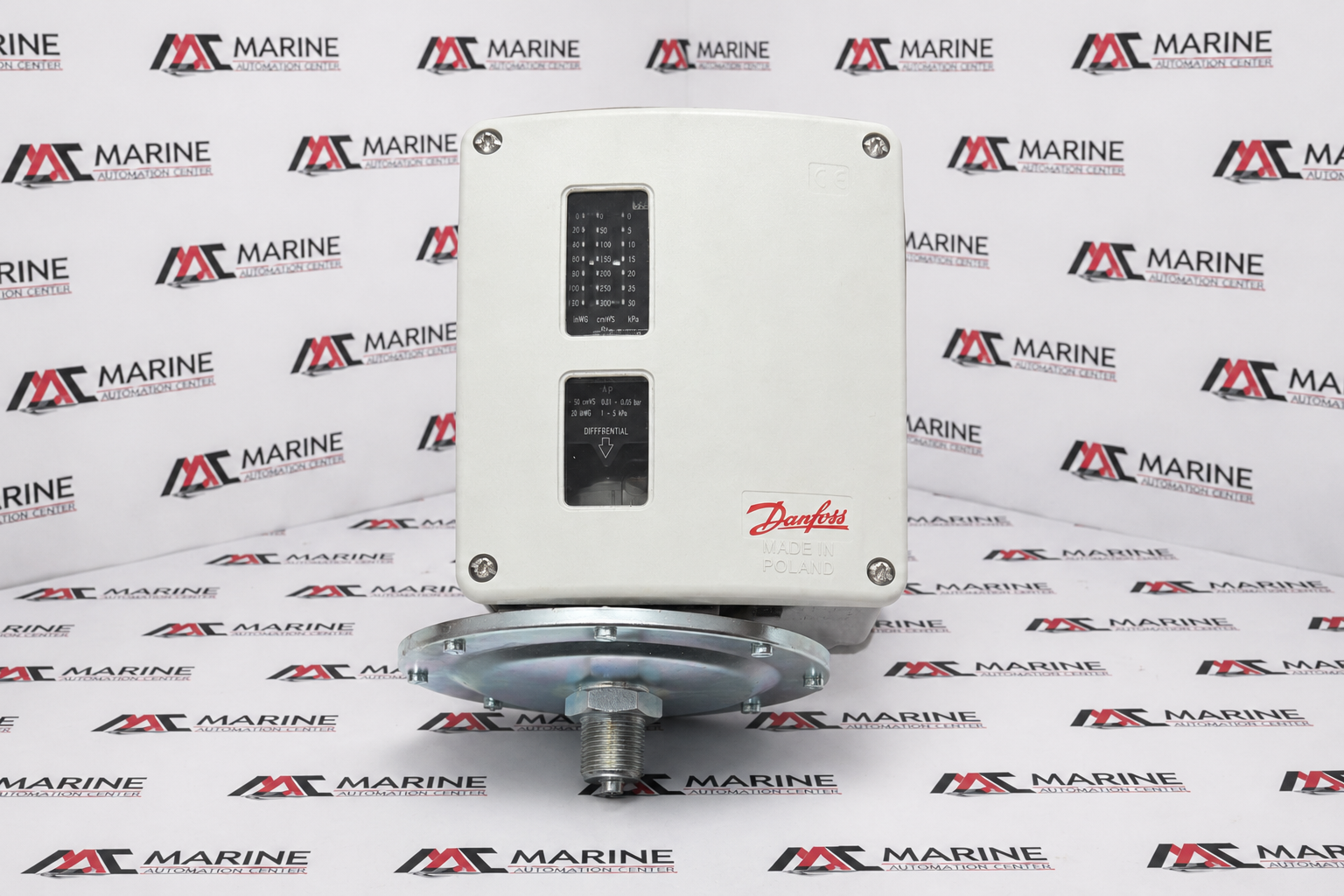

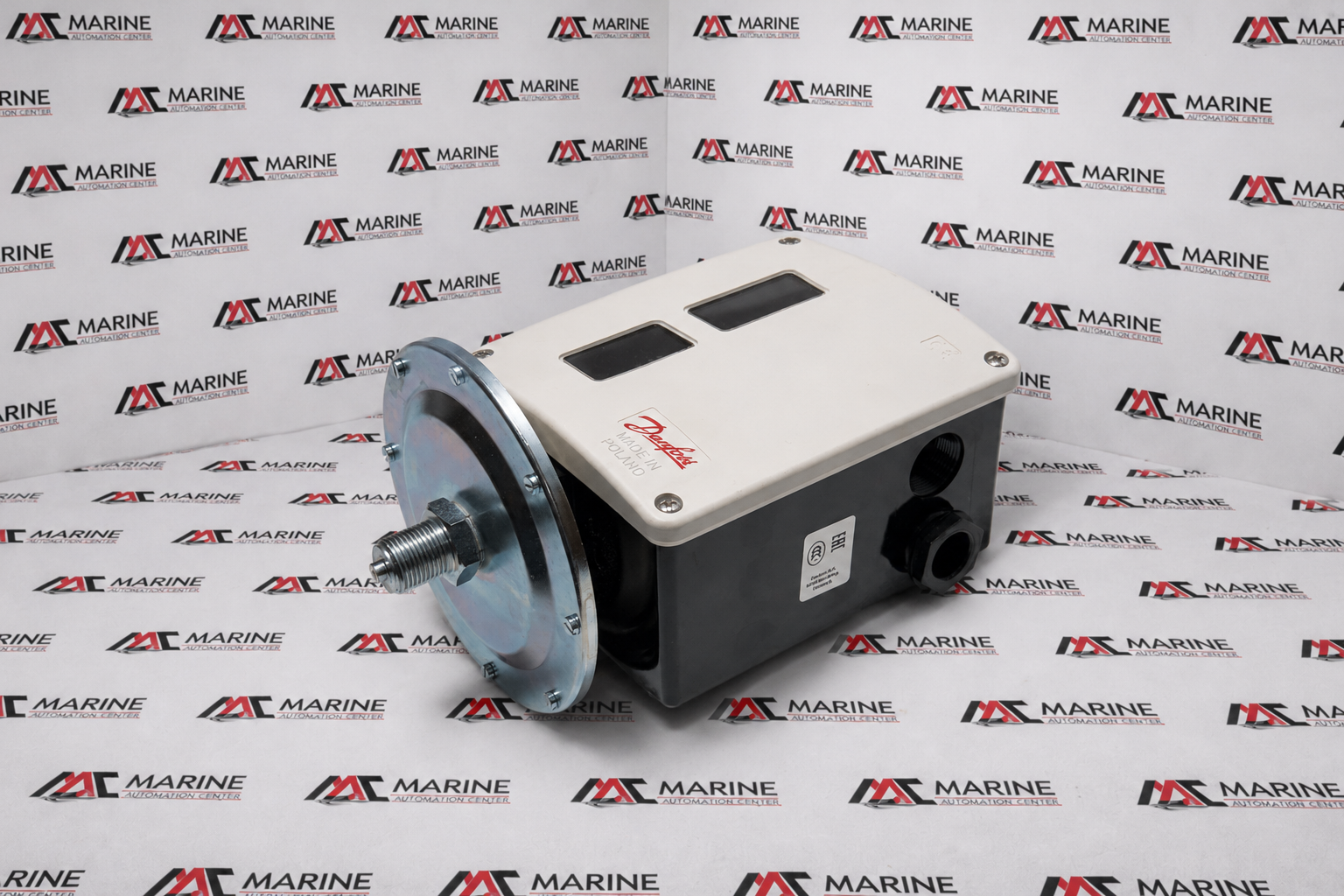

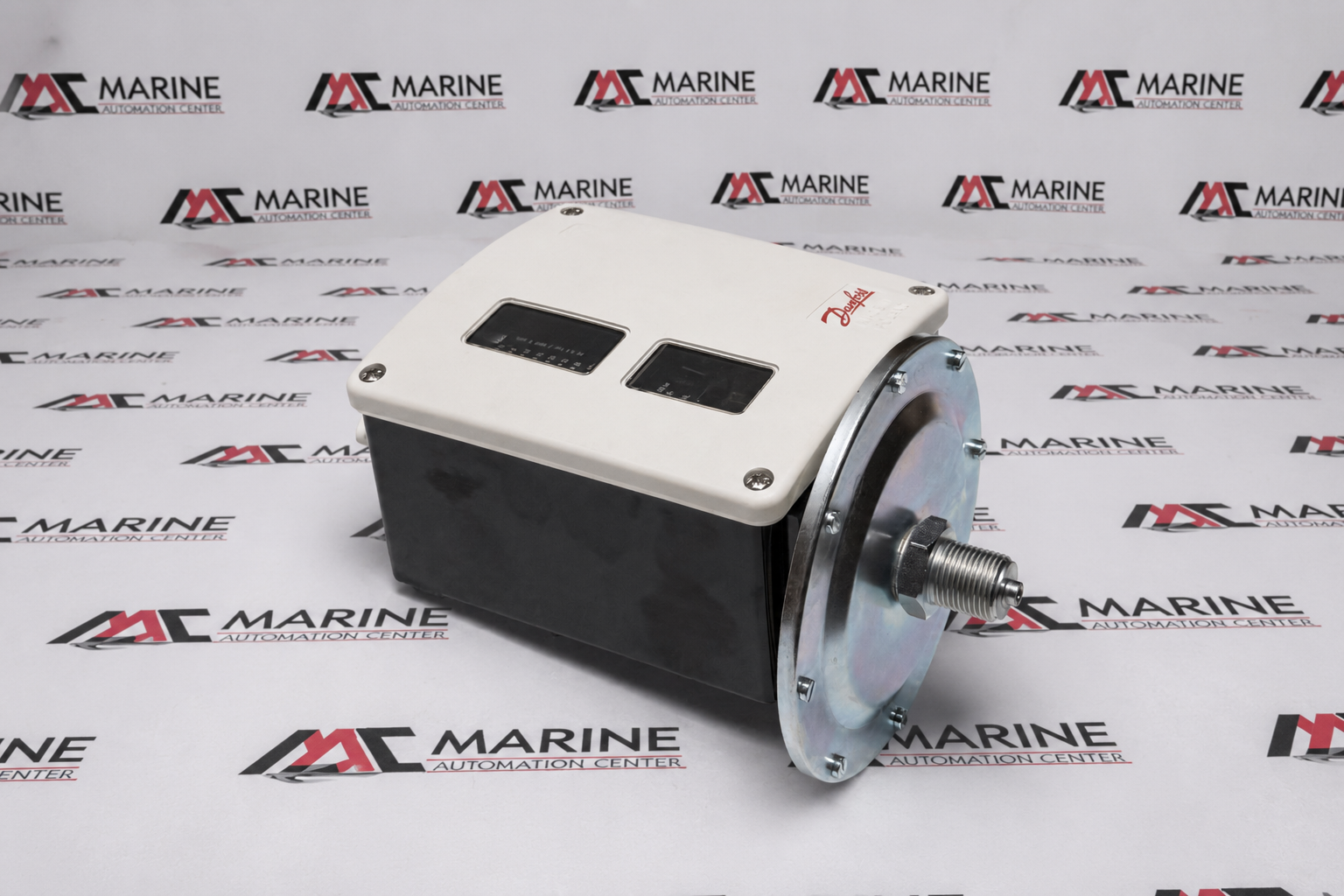

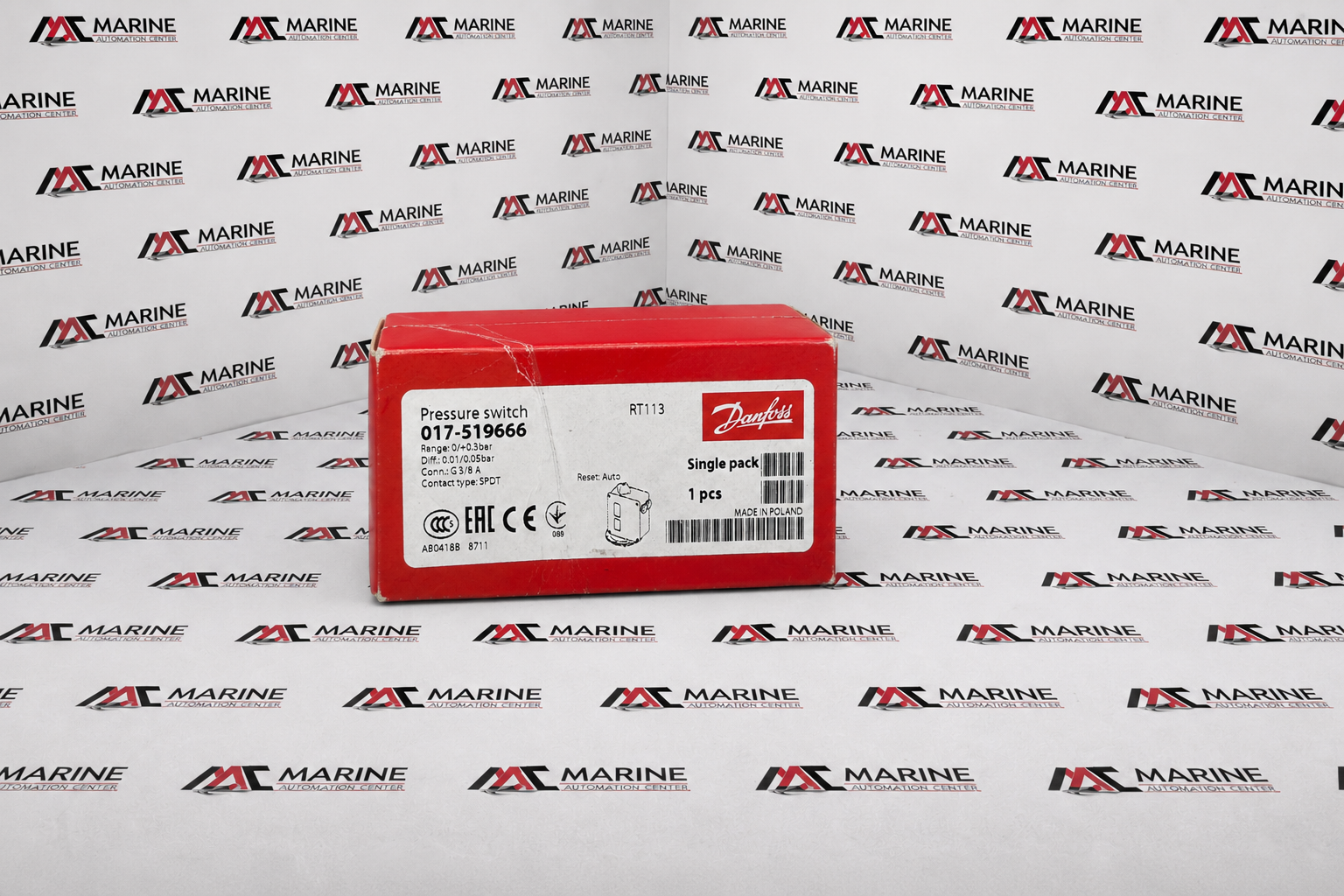

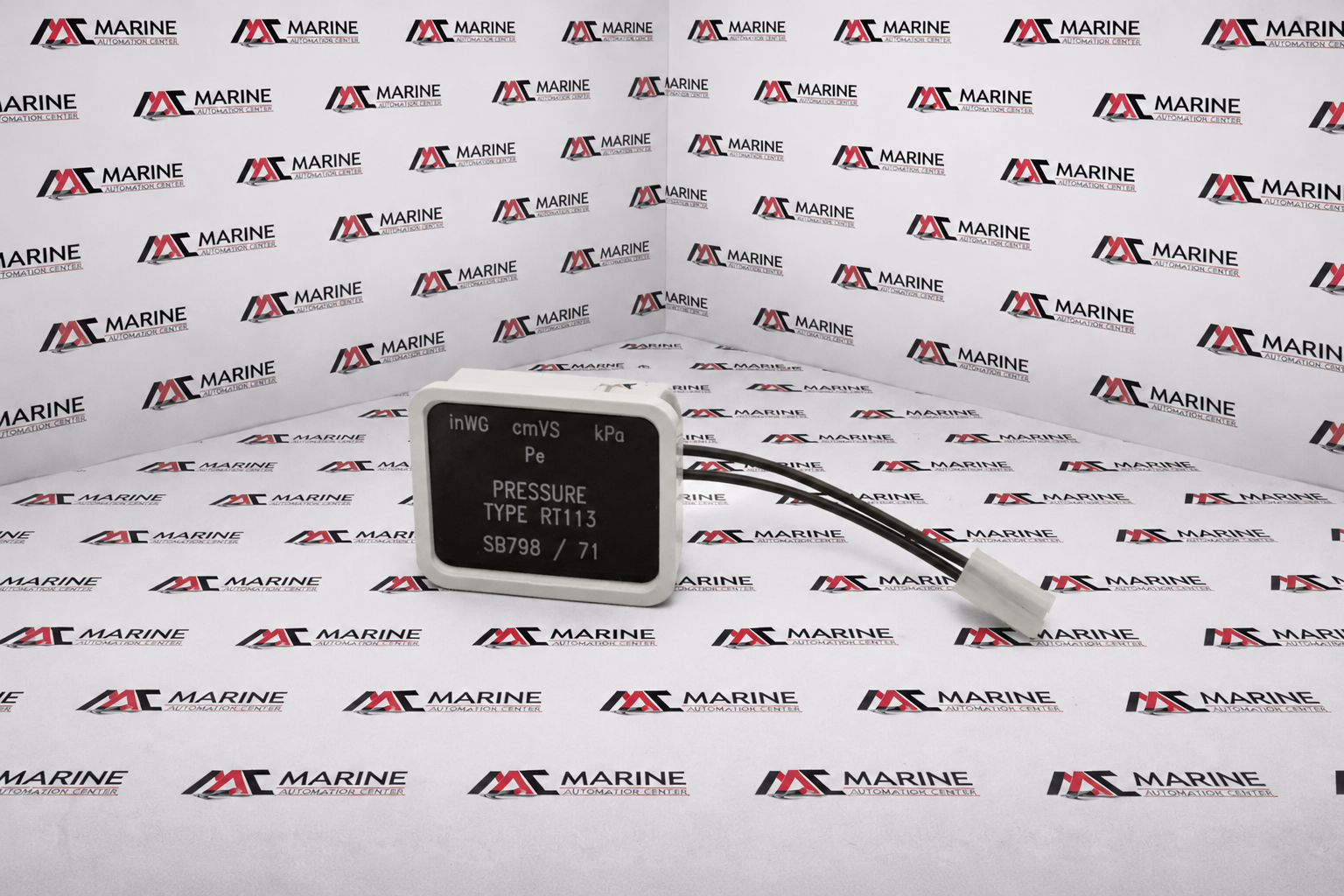

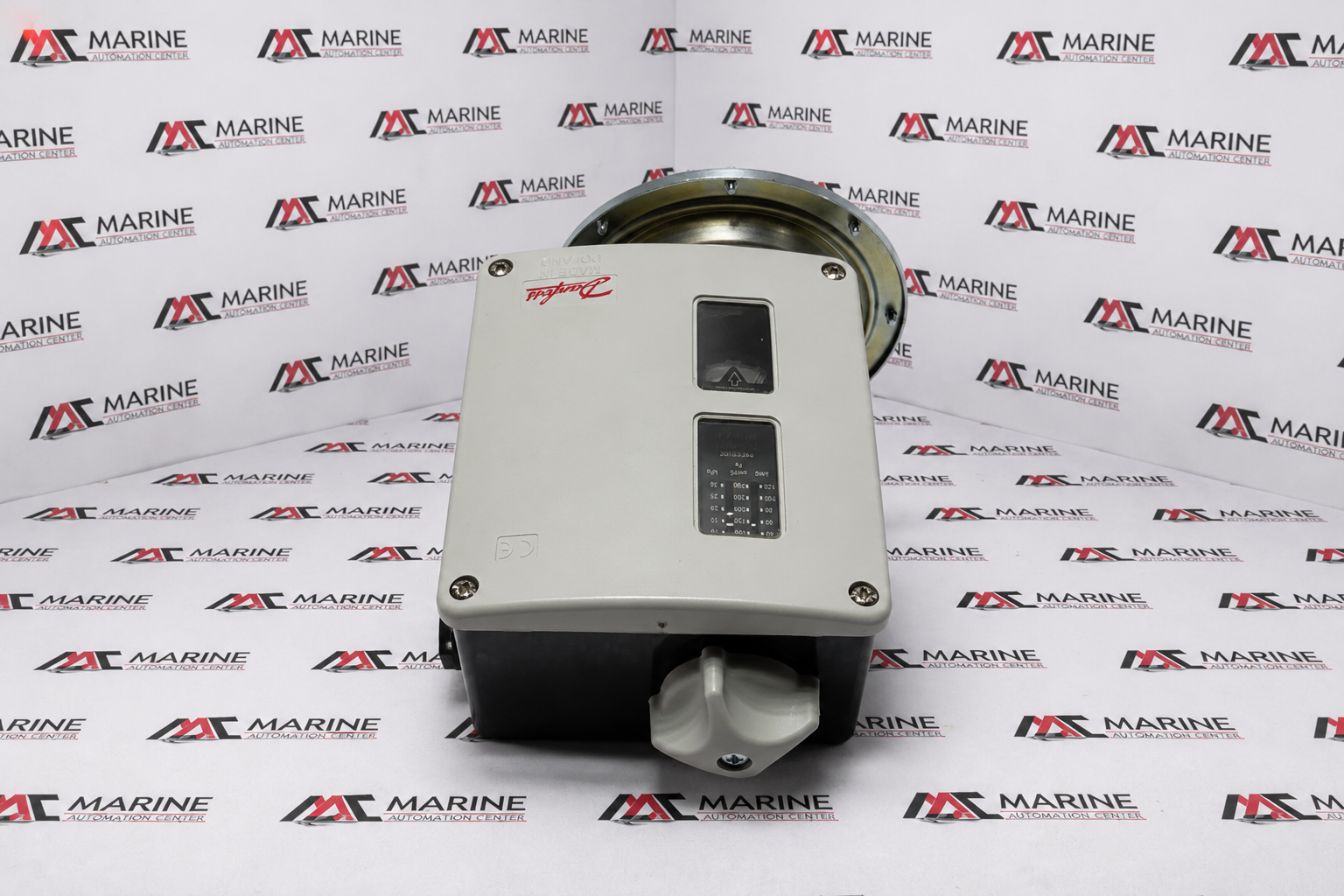

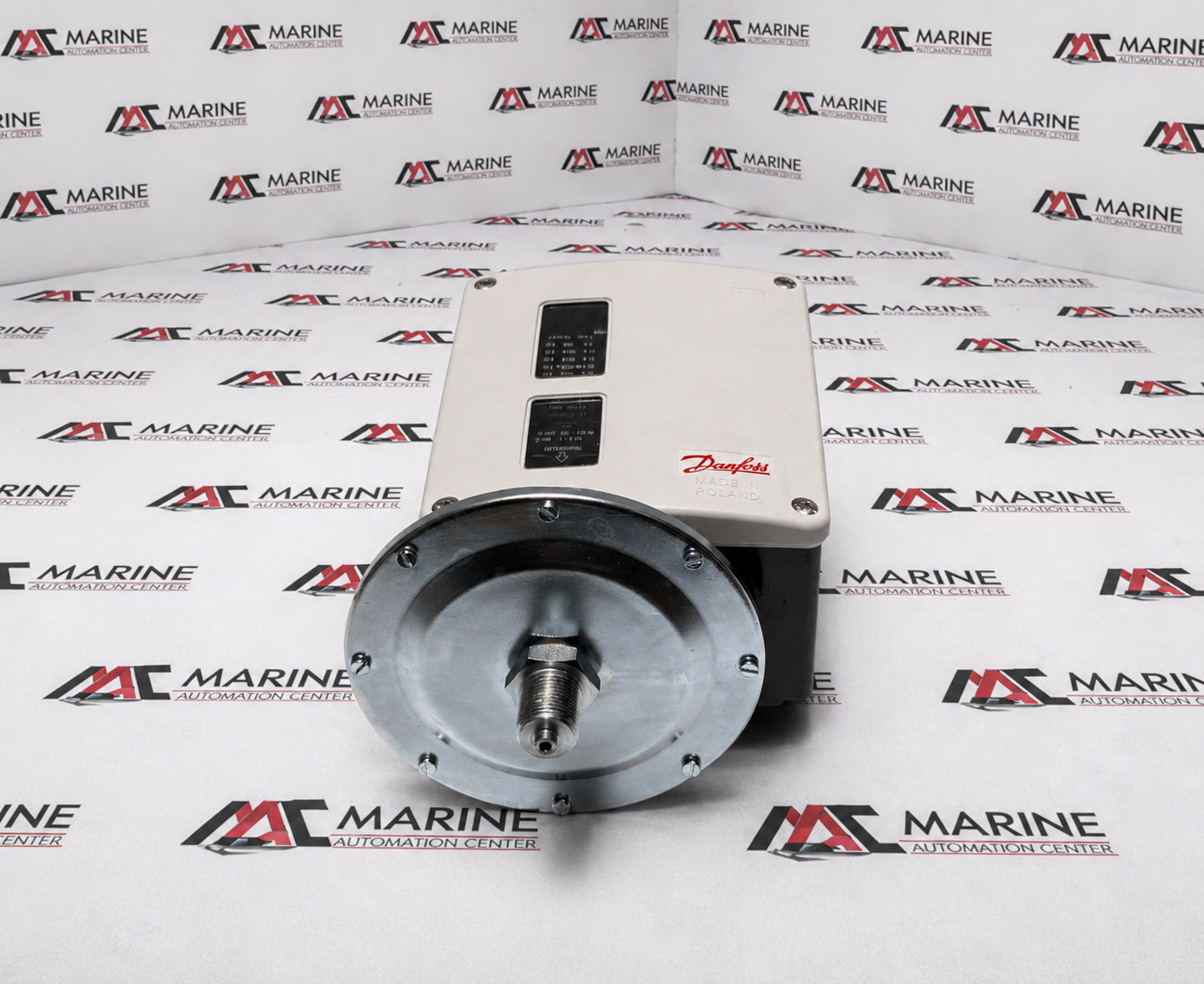

Danfoss RT113 Mechanical Pressure Switch
The Danfoss RT113 (Part No. 017-519666) is a reliable mechanical pressure switch designed for accurate pressure monitoring and control in industrial, HVAC, refrigeration, and process applications. It features an adjustable pressure range, automatic reset, SPDT contacts, and a rugged IP66-rated enclosure for dependable performance in demanding environments
BRAND
Danfoss
TYPE
Pressure Switch
PART NO.
017-519666
MODEL
RT113
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Switch |
| PART NO. | 017-519666 |
| MODEL | RT113 |
| Application | Pressure monitoring and control in industrial, refrigeration, HVAC, hydraulic, pneumatic, and marine systems |
| Pressure Range | 0 to 3 bar |
| Differential | 0.01 to 0.05 bar |
| Pressure Connection | G 3/8 A |
| Contact Type | SPDT (Single Pole Double Throw) |
| Reset Function | Automatic Reset |
| Packaging | Single Pack (1 pcs) |
| Approvals / Certifications | CE, EAC, CCC |
| Mounting | Panel/Equipment mounted pressure switch |
| Operating Principle | Mechanical diaphragm-operated pressure switch with adjustable pressure setting |
| Made In | Poland |
| REF NO | 1534 |
