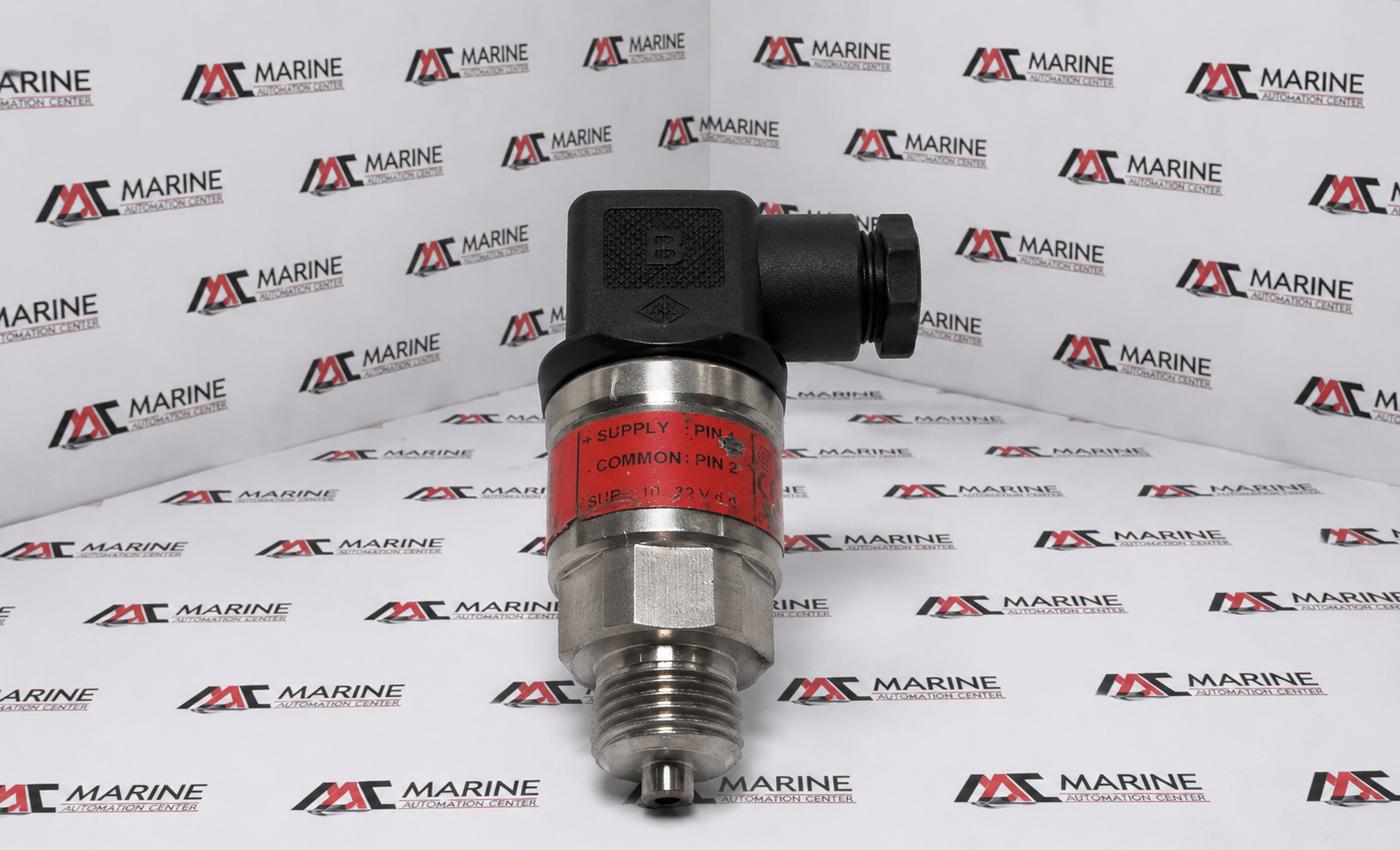

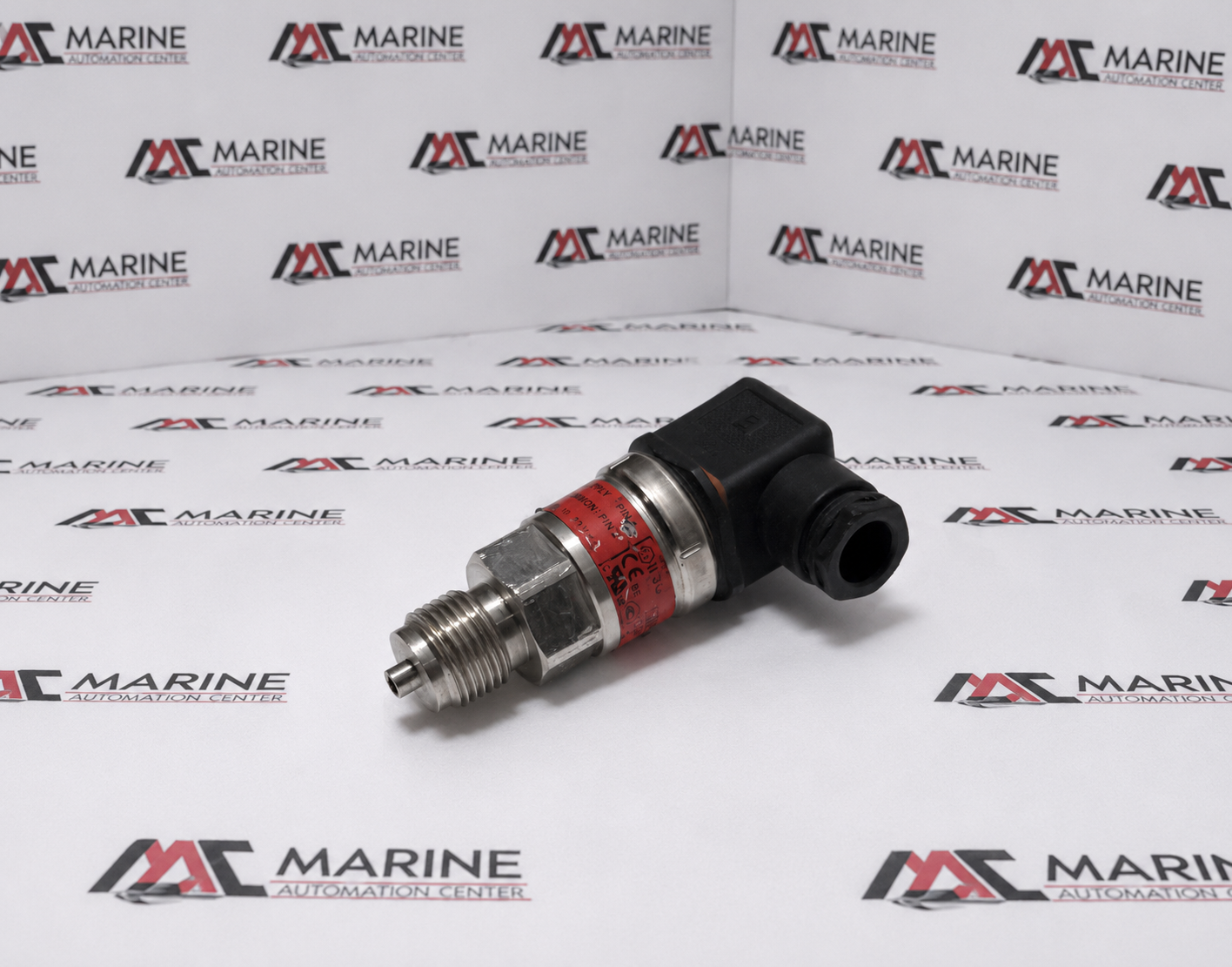

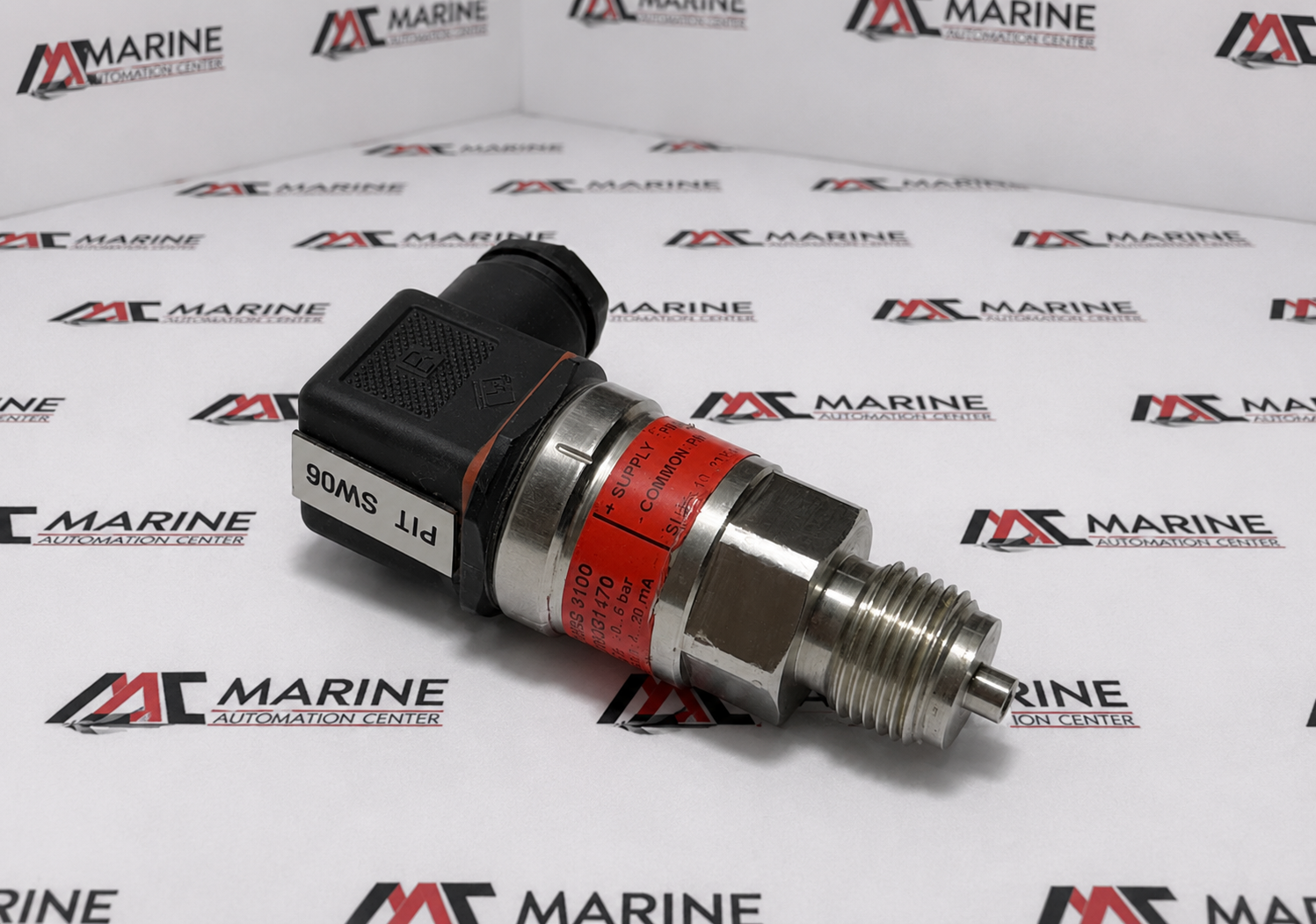

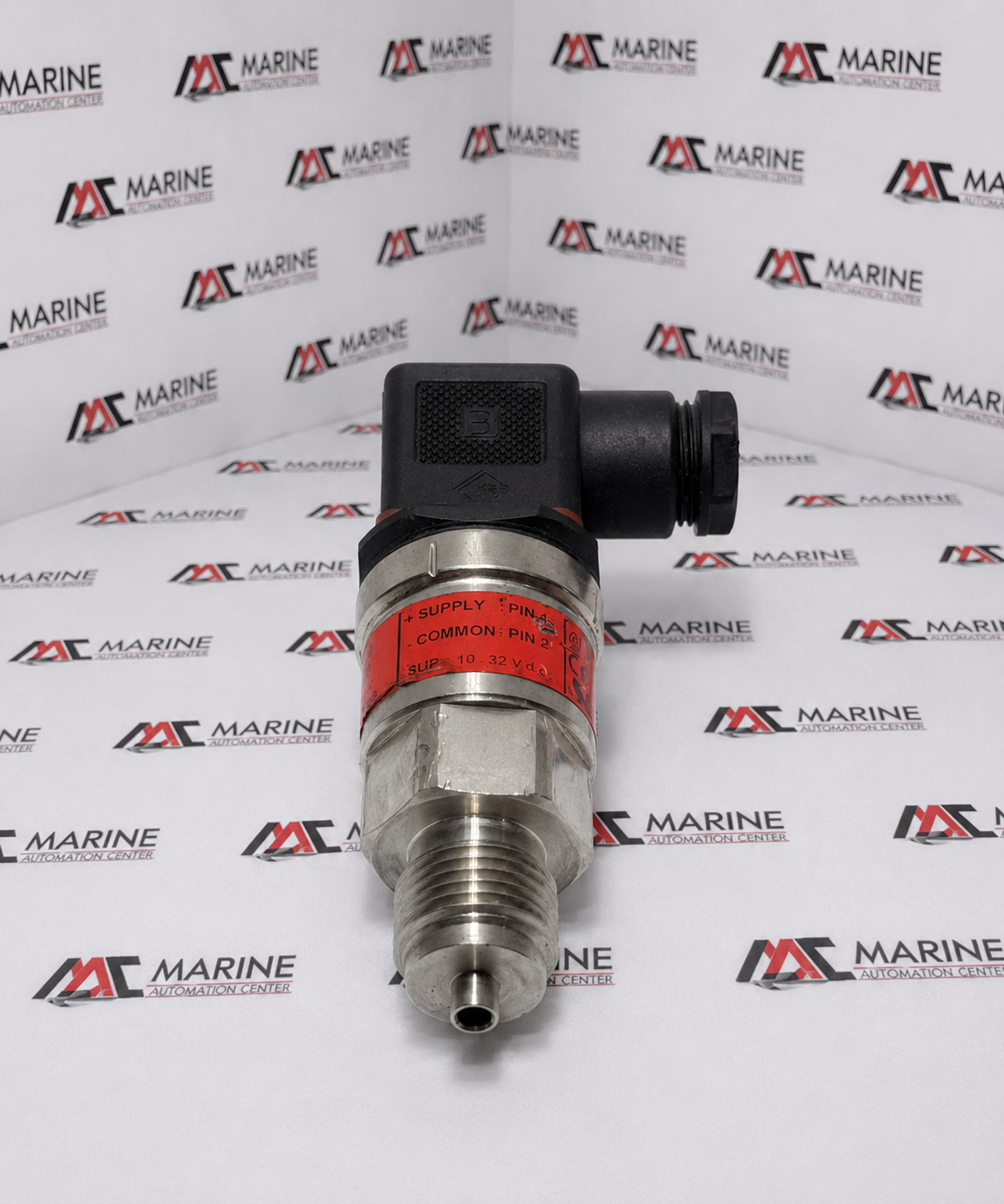

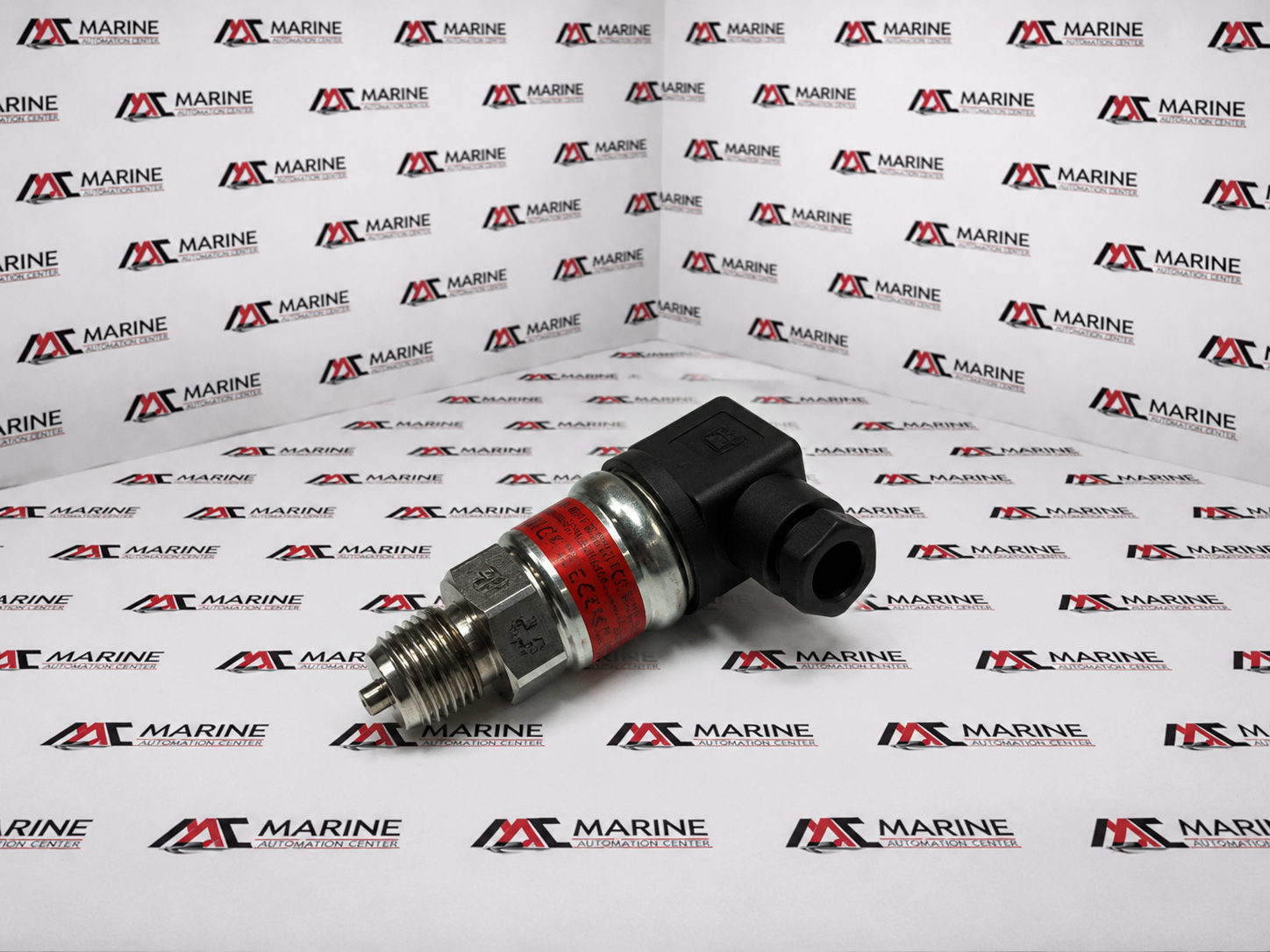

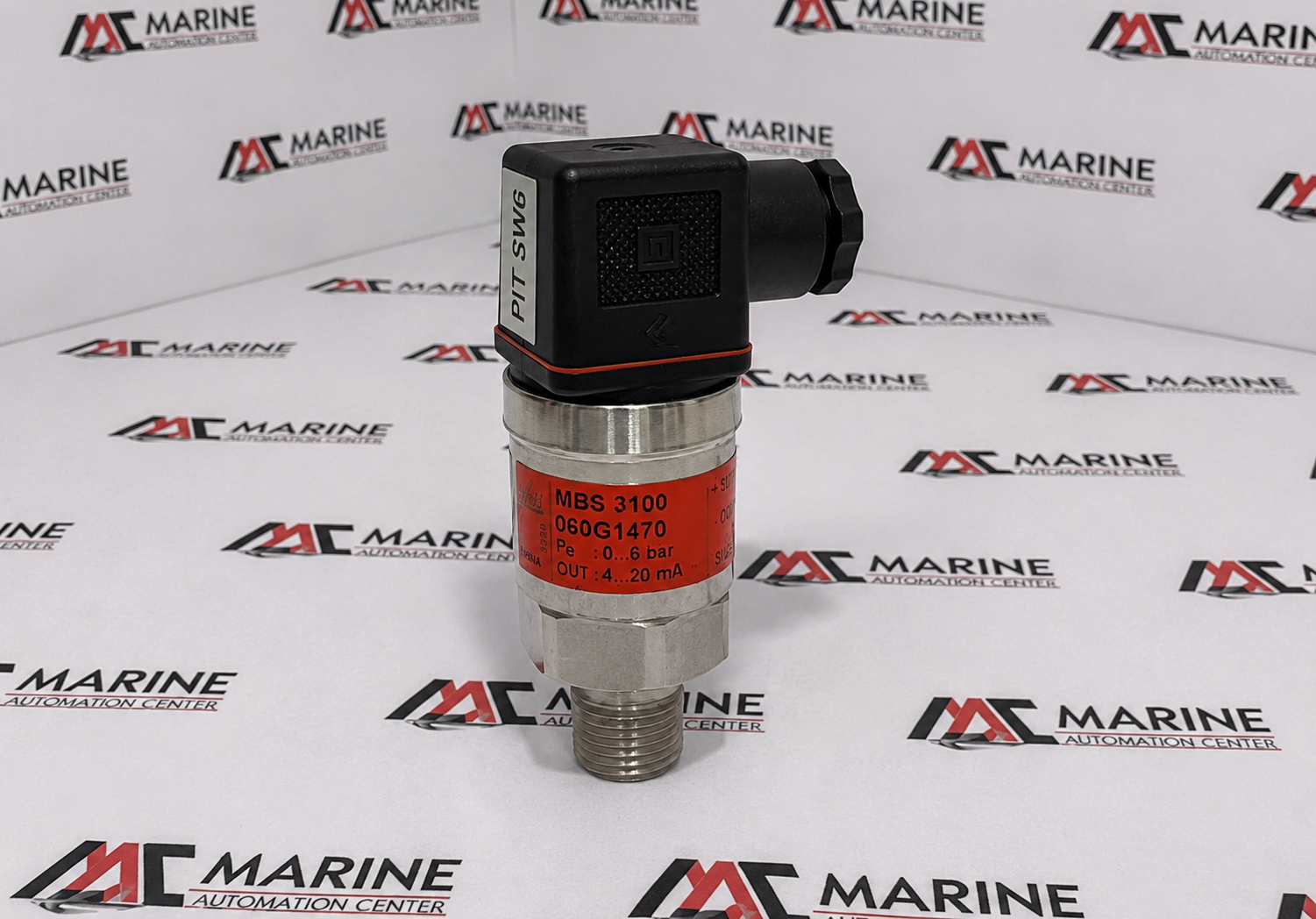

Danfoss Pressure Switch MBS 3100
The Danfoss MBS 3100 Pressure Transmitter (P/N: 060G1470) is a compact industrial pressure transmitter designed to provide accurate and reliable pressure measurement in hydraulic, pneumatic, refrigeration, and process control systems. It converts pressure into a standardized electrical output signal, offering high stability, robust construction, and dependable performance for marine and industrial automation applications.
BRAND
Danfoss
TYPE
Pressure Transmitter
PART NO.
060G1470
MODEL
MBS 3100
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Danfoss |
| TYPE | Pressure Transmitter |
| PART NO. | 060G1470 |
| MODEL | MBS 3100 |
| Series | MBS 3100 Series |
| Pressure Range (Pe) | 0...6 bar |
| Output Signal | 4–20 mA |
| Supply Voltage | 10–32 VDC |
| Maximum Supply Voltage | 32 VDC |
| Application | Pressure measurement and monitoring for hydraulic systems, marine equipment, compressors, pumps, industrial process control, refrigeration, and automation systems. |
| Made In | China |
| REF NO | 1537 |
