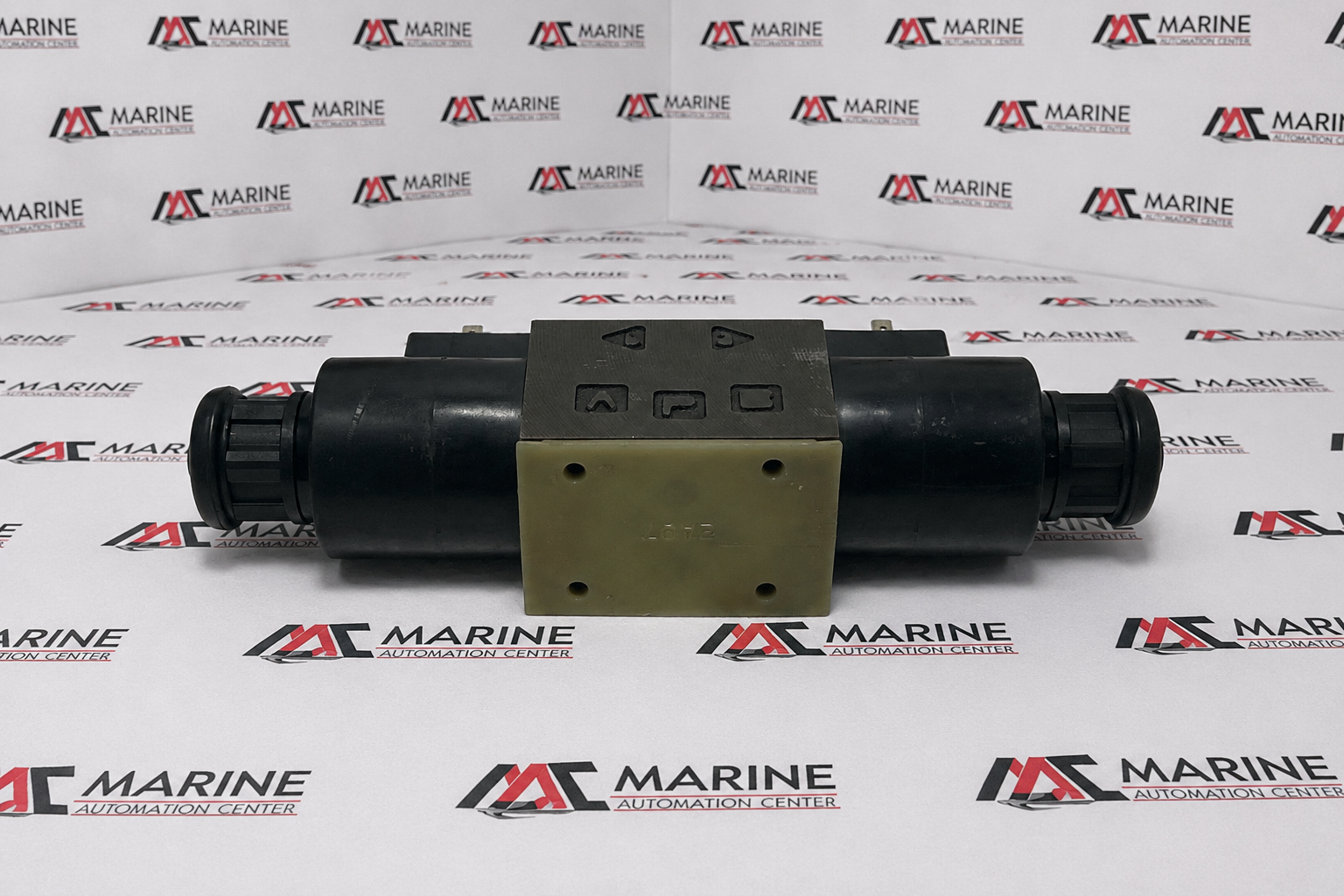

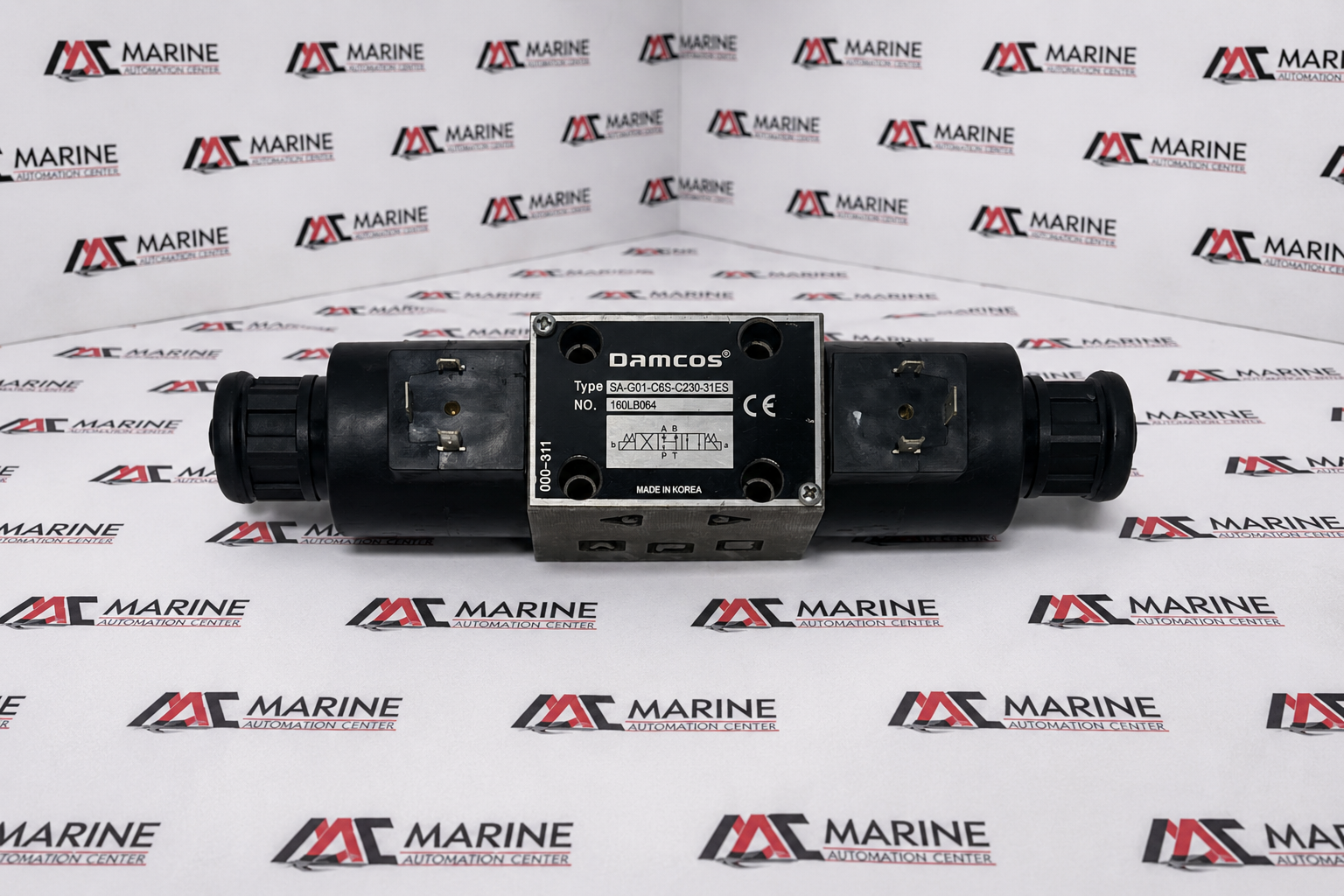

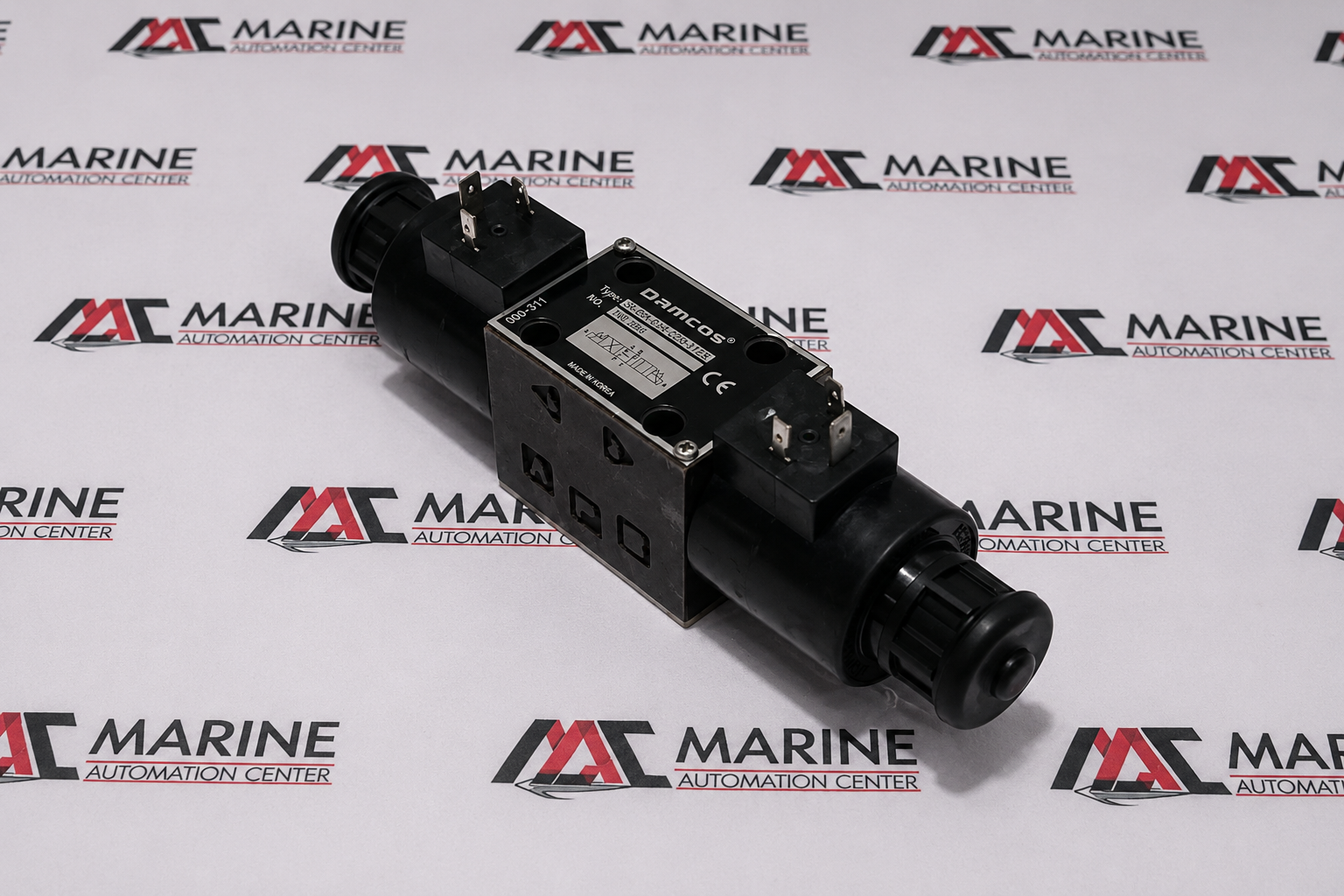

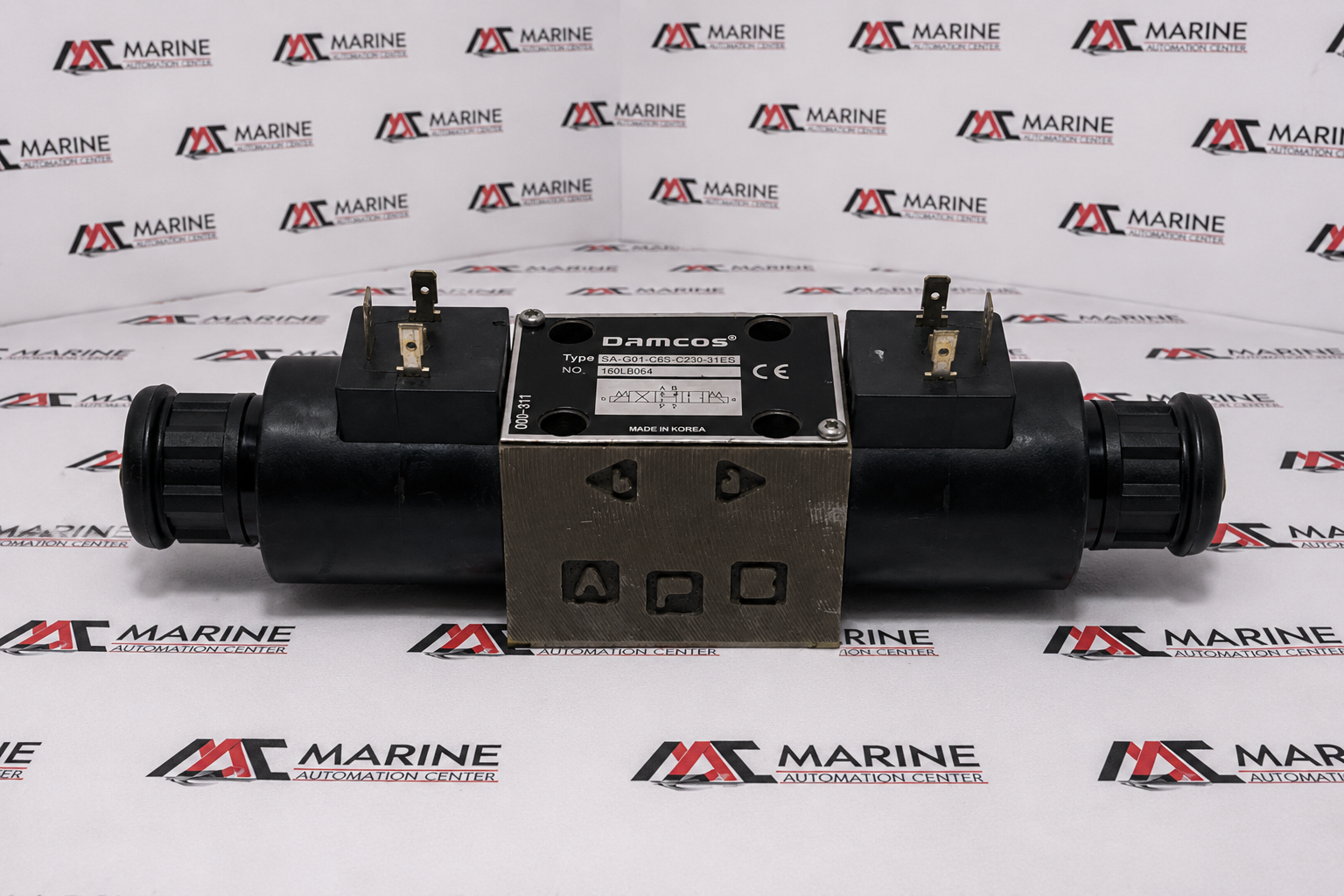

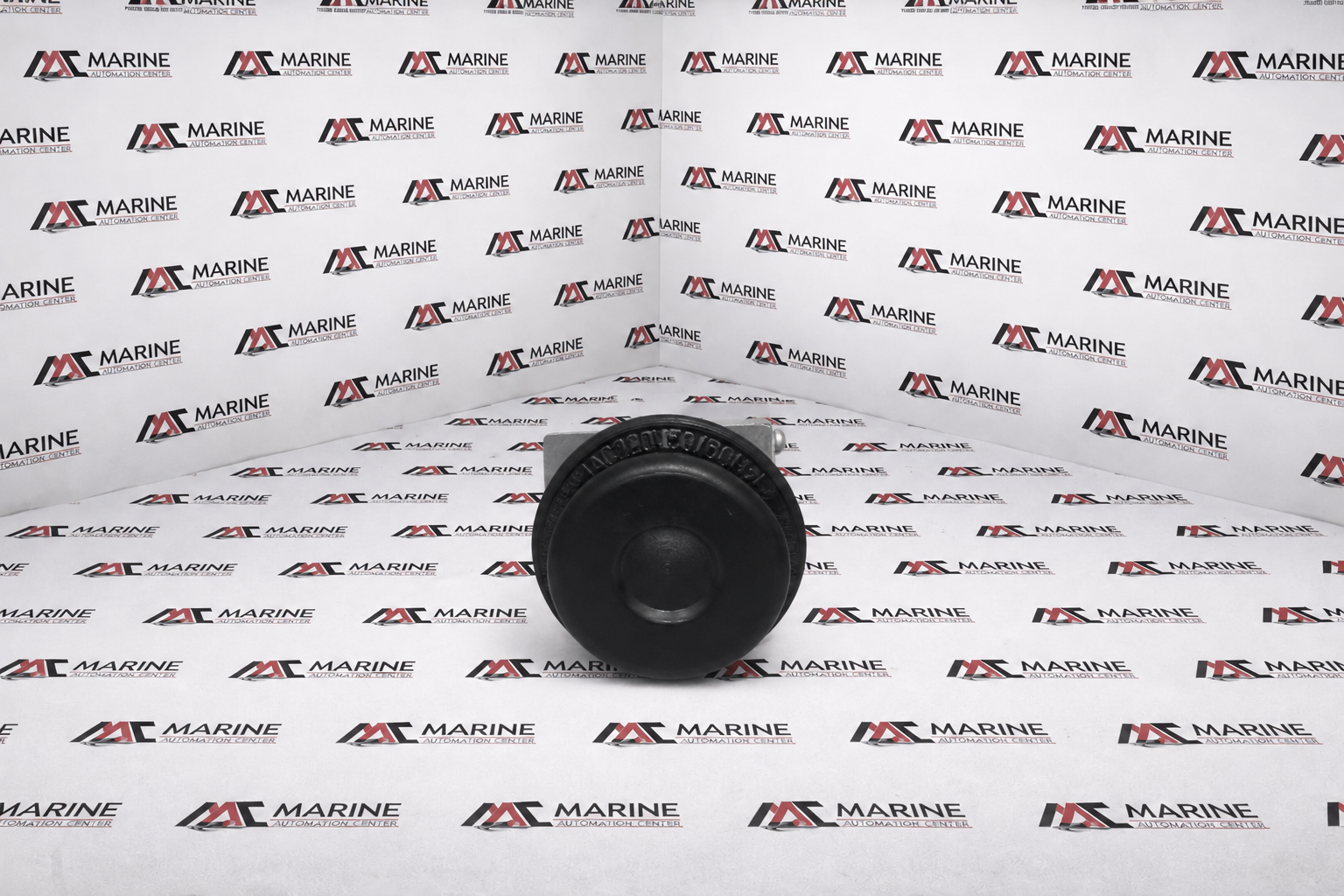

DAMCOS Solenoid Operated Hydraulic Directional Control Valve
The DAMCOS SA-G01-C6S-C230-31ES Solenoid Operated Hydraulic Directional Control Valve (P/N: 160L8064) is a 4/3-way hydraulic directional control valve designed for precise control of hydraulic fluid flow in marine and industrial systems. Equipped with 220/230 VAC dual solenoids, it ensures reliable operation of hydraulic actuators and is widely used in cargo valve control systems, ballast systems, hydraulic power units, and marine automation applications.
BRAND
DAMCOS
TYPE
Solenoid Operated Hydraulic Directional Control Valve
PART NO.
160L8064
MODEL
SA-G01-C6S-C230-31ES
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | DAMCOS |
| TYPE | Solenoid Operated Hydraulic Directional Control Valve |
| PART NO. | 160L8064 |
| MODEL | SA-G01-C6S-C230-31ES |
| Valve Configuration | 4/3 Way, Spring Centered, Double Solenoid Directional Control Valve |
| Spool Type | C6S Spool |
| Series | SA-G01 Series |
| Voltage Rating | AC 220–240 V |
| Coil Voltage | C230 (220/230 VAC) |
| Frequency | 50/60 Hz |
| Electrical Connection | Dual AC Solenoid Coil with DIN Terminal Connection |
| Hydraulic Ports | P (Pressure), T (Tank), A & B (Work Ports) |
| Application | Marine hydraulic remote valve control systems, cargo valve actuators, ballast systems, hydraulic power units (HPU), industrial hydraulic automation and process control. |
| Made In | Korea |
| REF NO. | 1338 |
