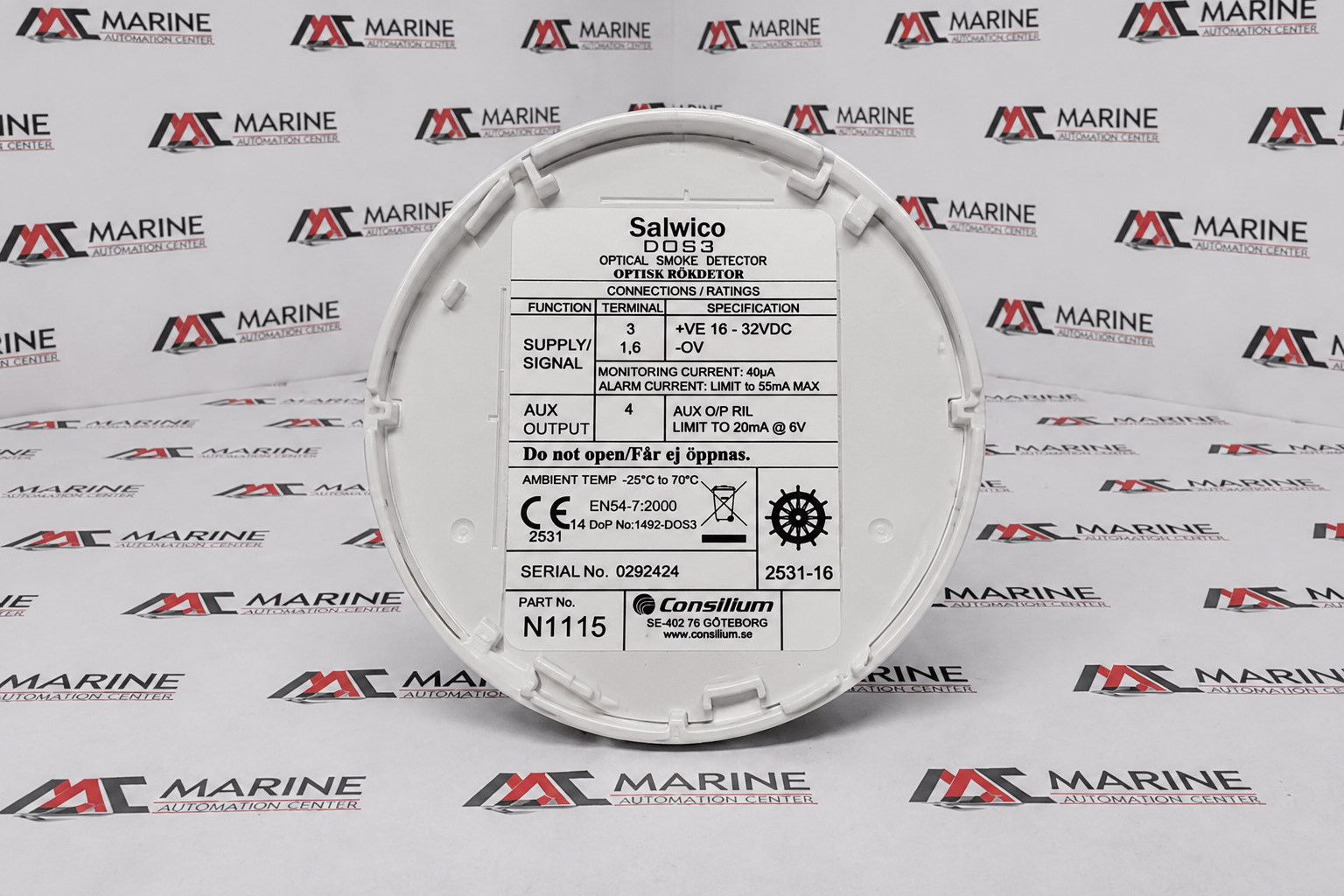

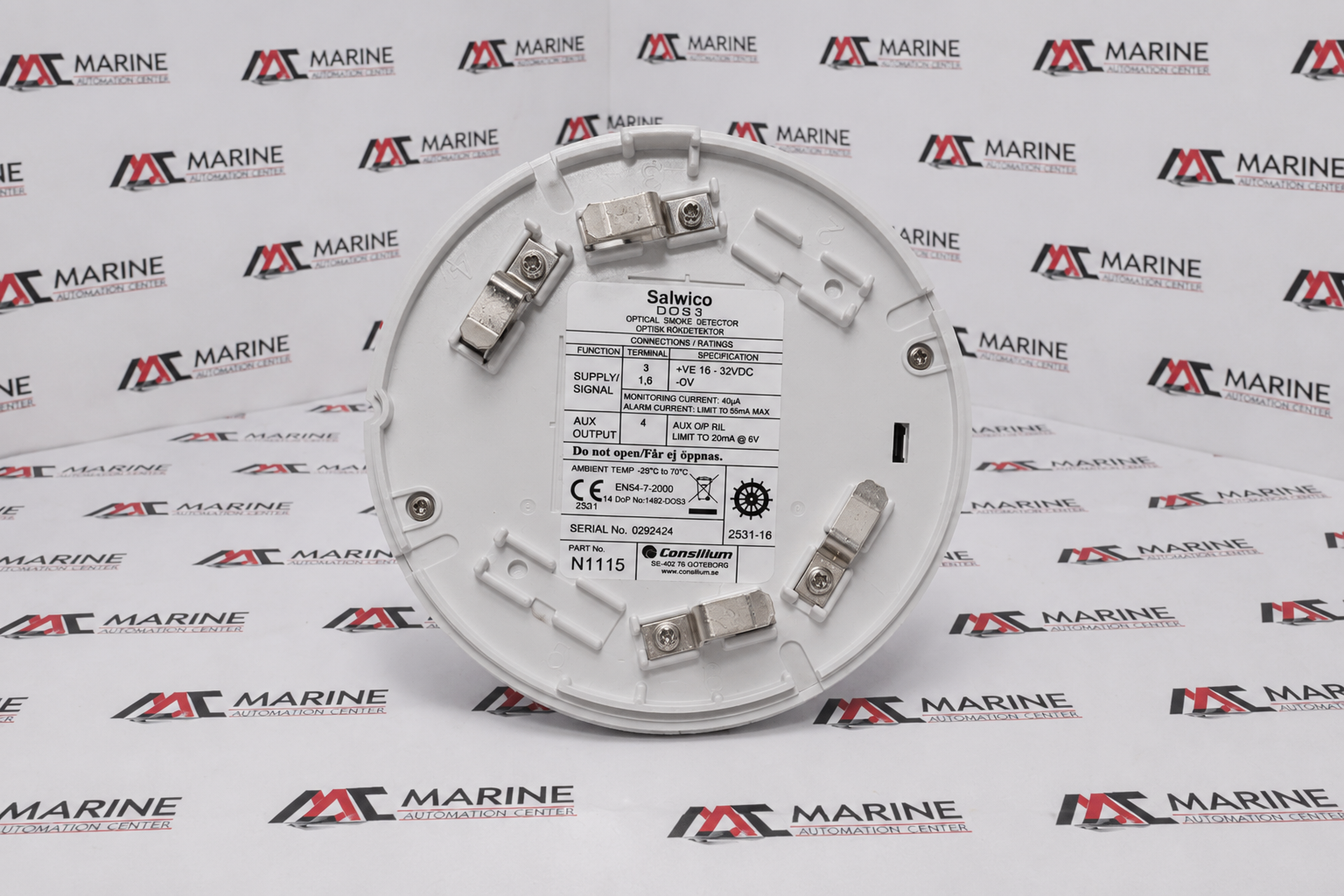

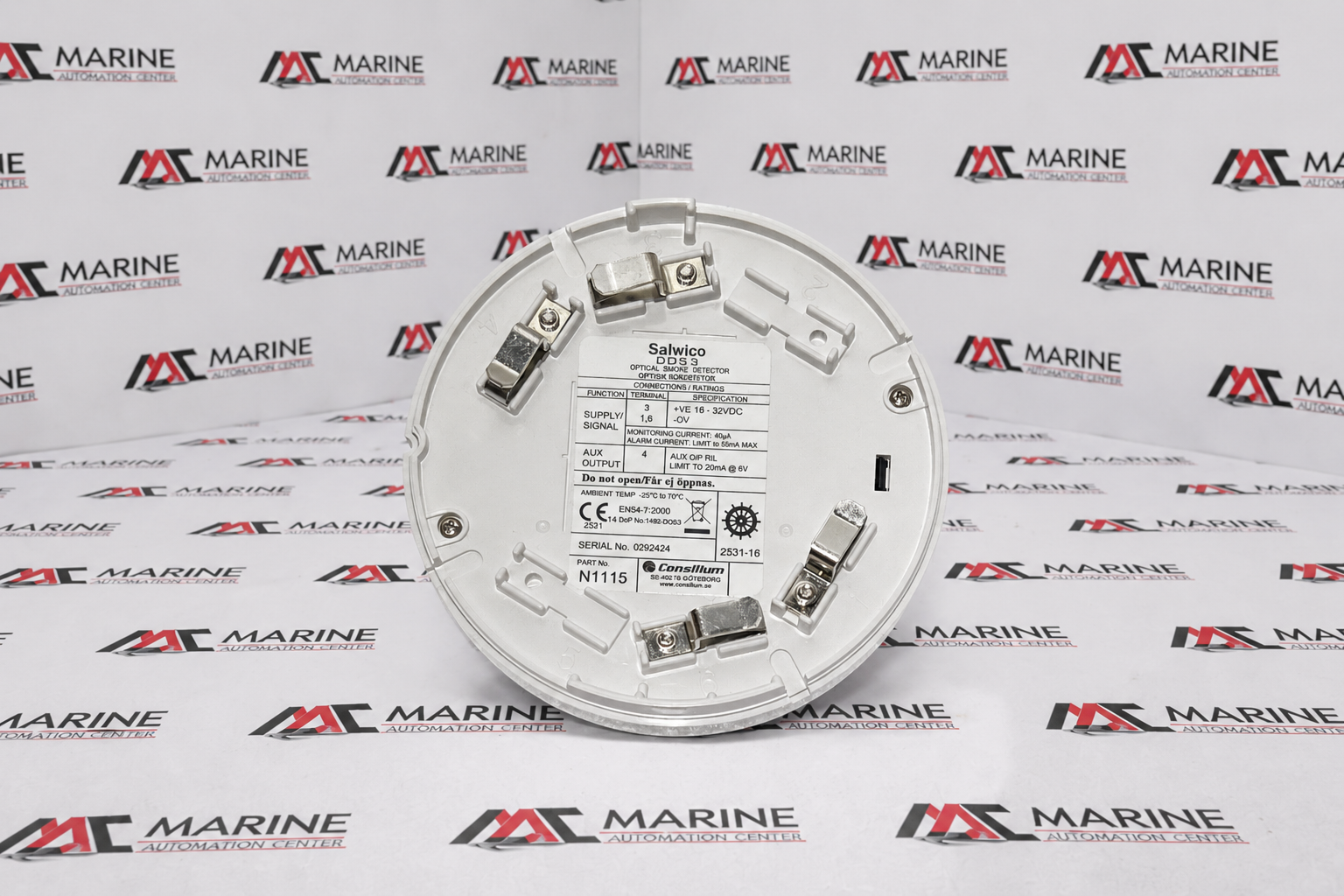

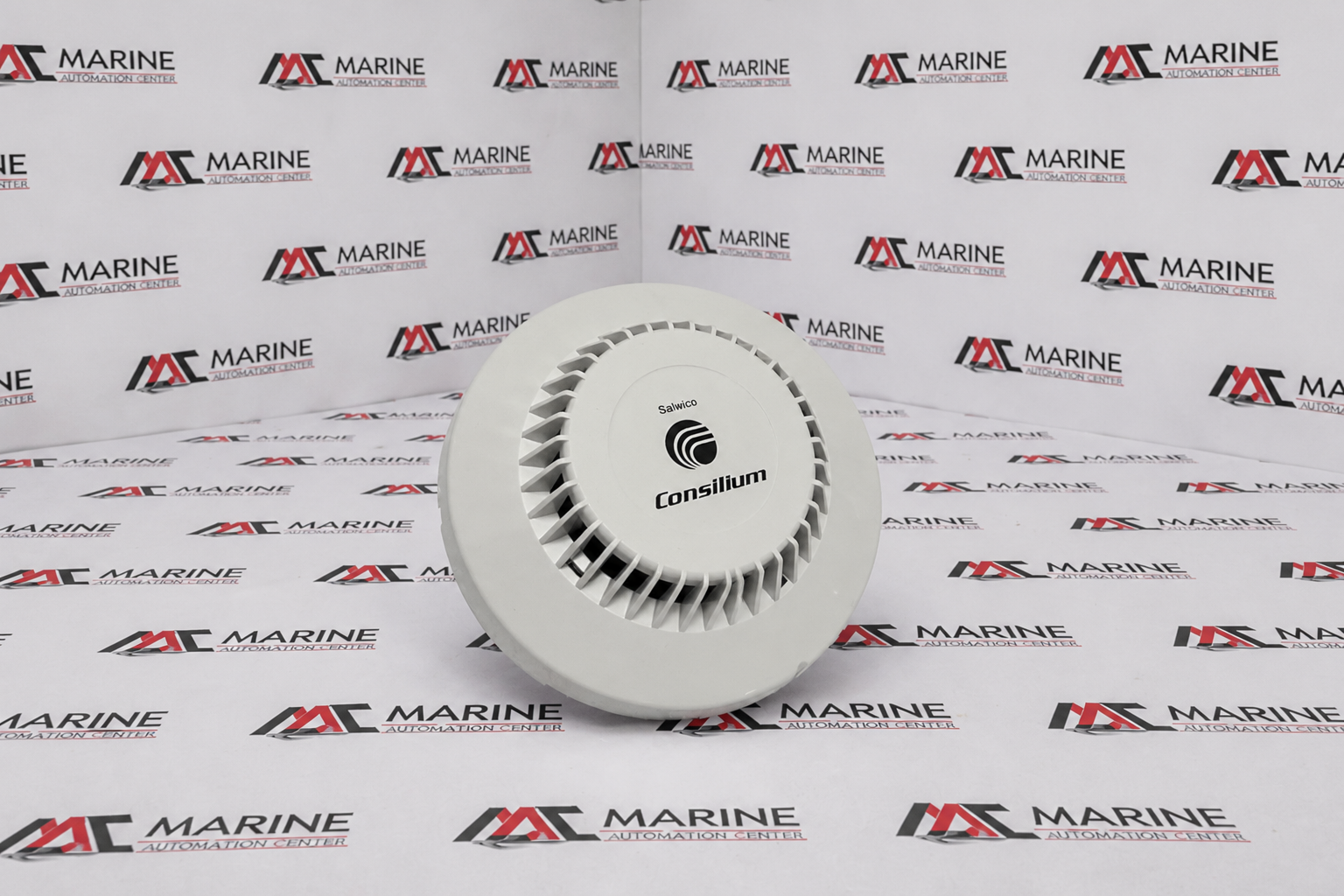

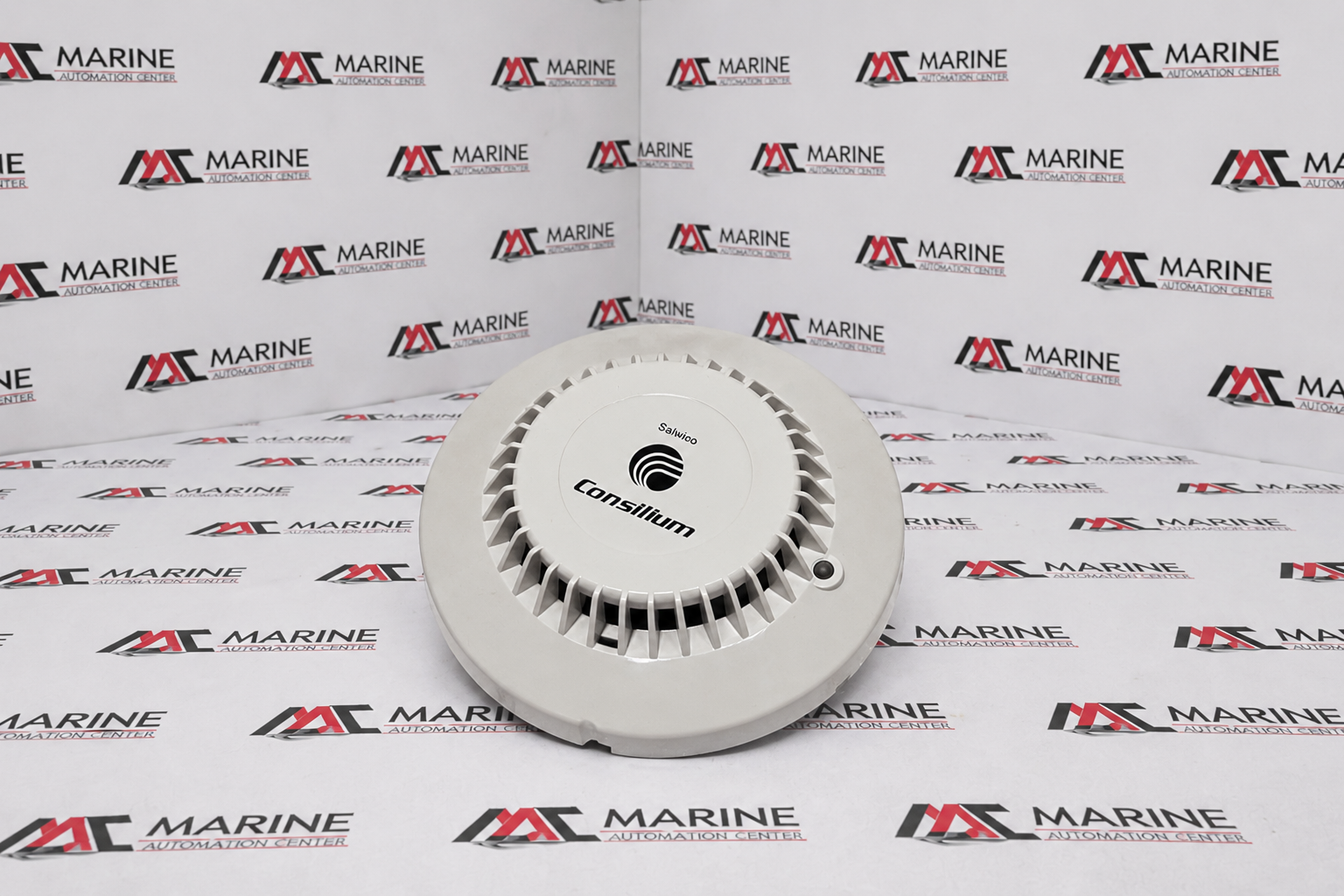

Consilium Salwico DOS3 Optical Smoke Detector
**Consilium Salwico DOS3 Optical Smoke Detector (Part No. N1115)** is a reliable conventional optical smoke detector designed for early smoke detection in marine and industrial fire alarm systems. Engineered for fast response and dependable performance, it helps enhance fire safety through accurate smoke detection. Ideal for replacement, maintenance, and integration into compatible Salwico fire detection systems.
BRAND
Consilium (Salwico)
TYPE
Smoke Detector
PART NO.
N1115
MODEL
DOS3
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| MANUFACTURER | Consilium AB, Göteborg, Sweden |
| Voltage Rating | 16–32 VDC |
| Application | Marine & Industrial Fire Detection and Alarm Systems |
| IEC | EN54-7:2000 |
| Operating Principle | Conventional Optical, Infrared Light Scattering Type |
| Nominal Voltage | 24 VDC |
| Working Voltage | 17–30 VDC |
| Supply Connection | Terminal 3 (+VE), Terminals 1 & 6 (-0V) |
| Monitoring Current | 40 µA |
| Alarm Current | Maximum 55 mA |
| Alarm Resistance | 430 Ω |
| Relative Humidity | 0–95% RH |
| IP Rating | IP42 |
| Mounting | Ceiling Mounted |
| Remote Indicator Support | Yes |
| Weight | Approx. 95 g (Shipping Weight: 0.2 kg) |
| Made In | Sweden |
| REF NO | 1213 |
