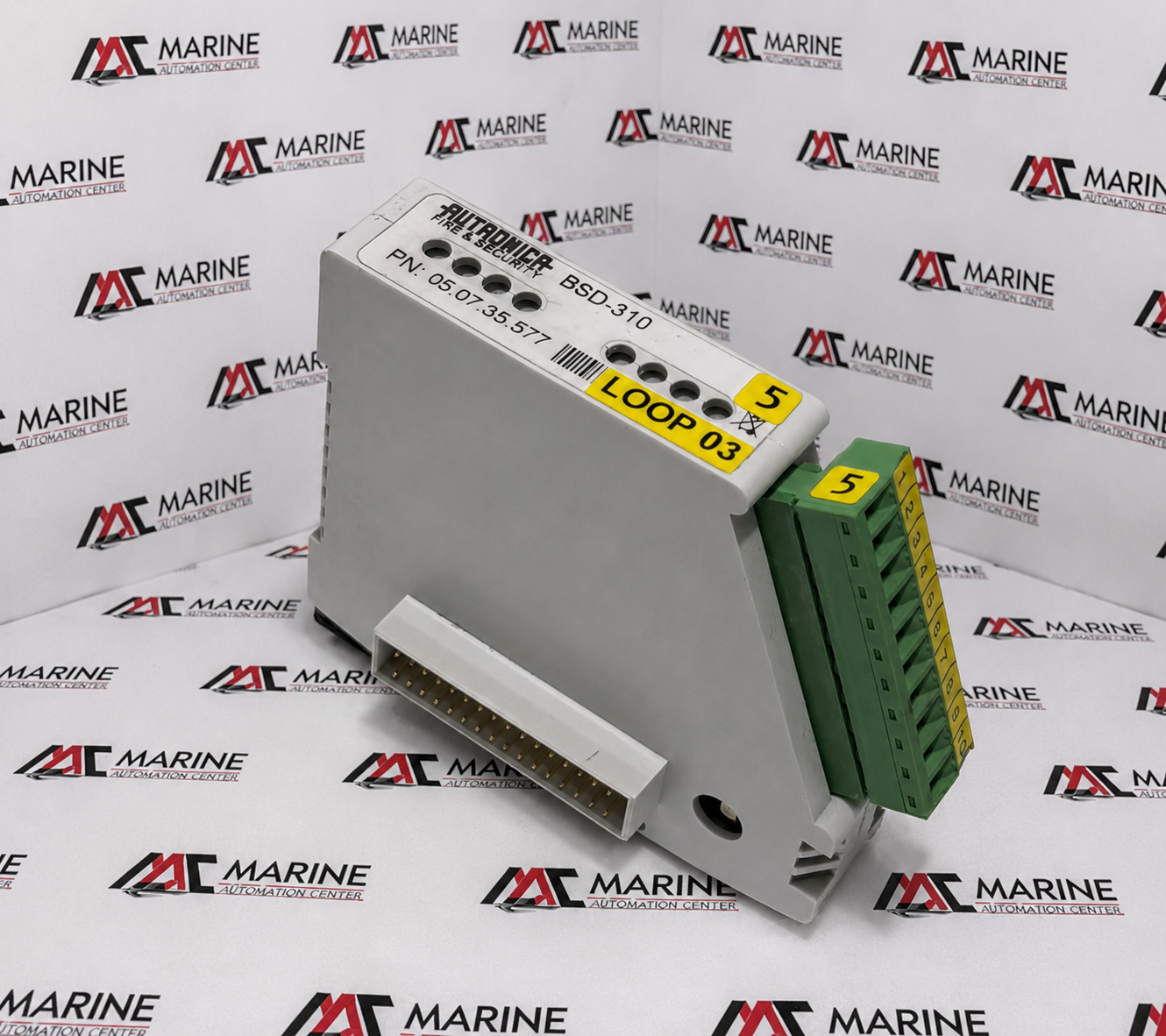

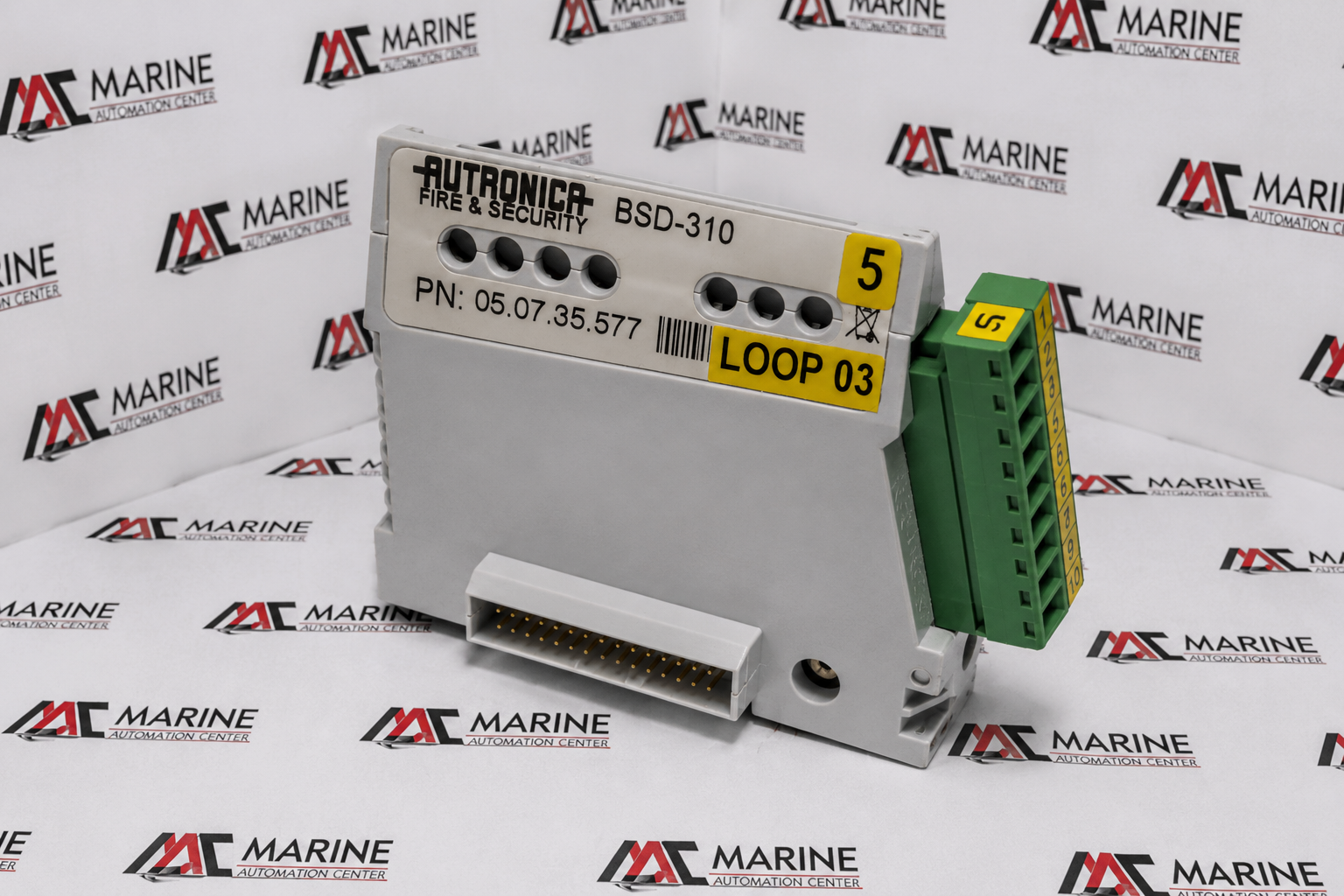

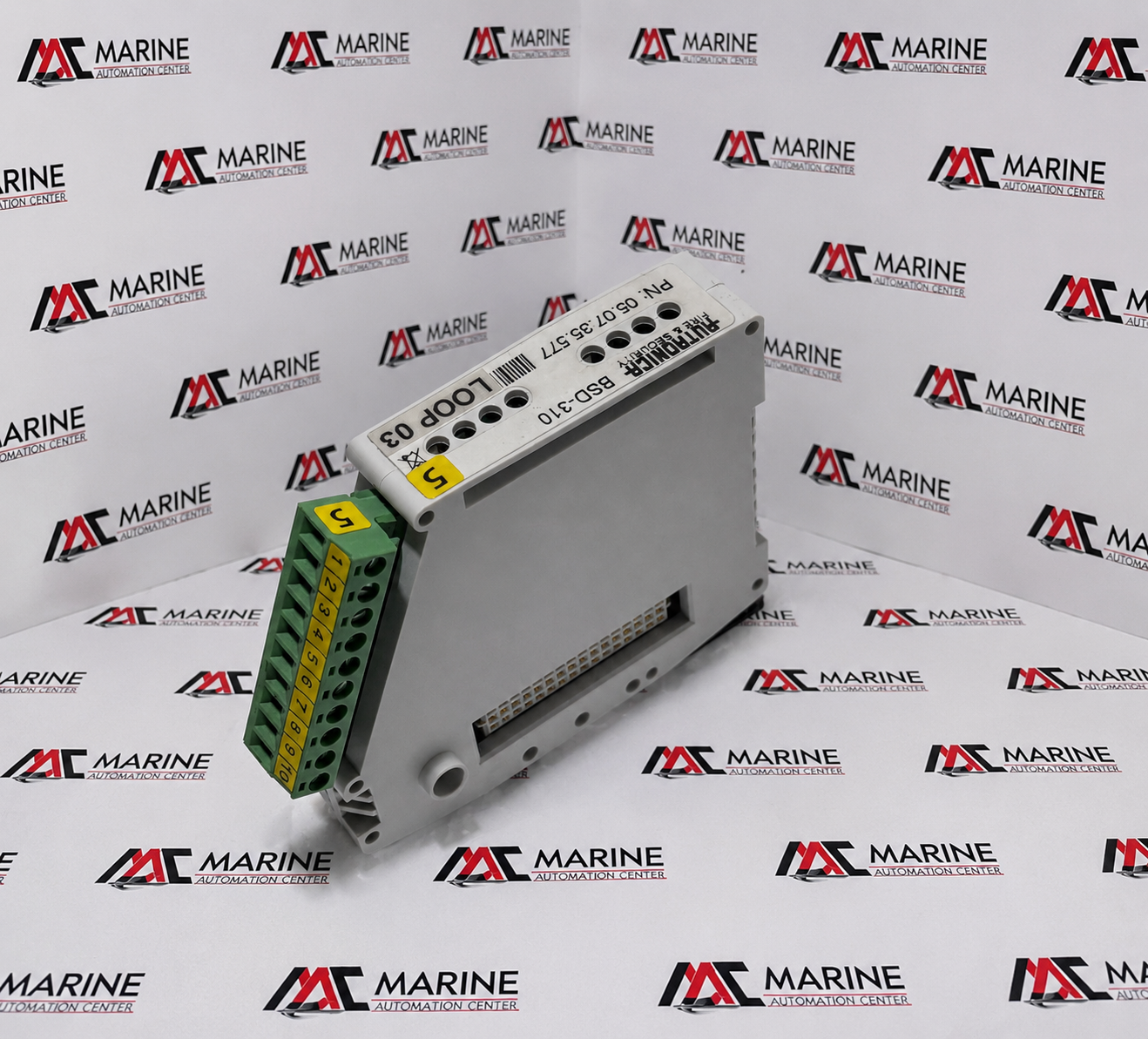

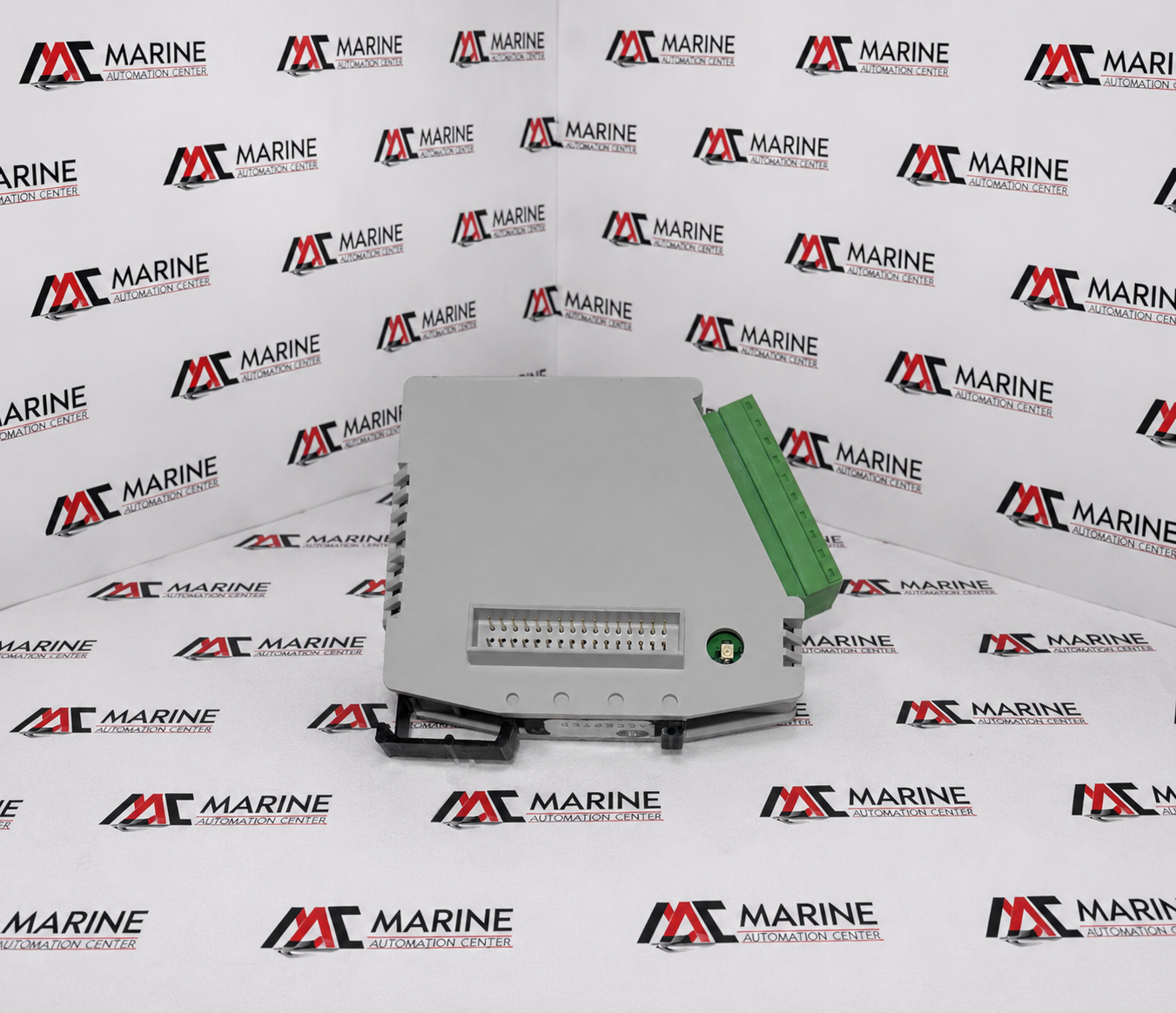

Autronica AutroSafe BSD-310 Loop Driver Module
Autronica AutroSafe BSD-310 Loop Driver Module is a reliable loop driver module designed for the AutroSafe fire and gas detection system. It provides stable communication and power to detection loops, ensuring accurate signal transmission and dependable operation in industrial, marine, and offshore safety applications
BRAND
Autronica
TYPE
Loop Driver Module
PART NO.
05.07.35.577
MODEL
BSD-310
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| BRAND | Autronica |
| TYPE | Loop Driver Module |
| PART NO. | 05.07.35.577 |
| MODEL | BSD-310 |
| Voltage Rating | 24 VDC Loop Output Voltage |
| Application | Data exchange, continuous monitoring (breaks/short-circuits), and communication for up to 127 loop units (detectors, call points, and I/O units) inside AutroSafe fire detection panels. |
| IEC | Conforms to IEC-529 (IP30 equivalent protection class standard when housed in panel cabinet); designed to meet EN-54 requirements. |
| Loop Capacity | Max 127 addressable loop units per single driver board |
| Maximum Loop Output Current | 100 mA |
| Internal Current Consumption | 10 mA (idle state) up to 26 mA |
| Mounting Integration | Slides directly onto standard DIN-rail configurations inside BS-420/BS-310 fire control panels |
| Made In | Norway |
| REF NO | 1391 |
