Understanding the Volcano RDV 1005 100 Flame Detector Relay (AC 90–132V) in Marine Automation

Introduction:

The Volcano RDV 1005 100 Flame Detector Relay (AC 90–132V) is a critical safety component used in marine and industrial automation systems where flame monitoring is essential. Designed to support reliable combustion control, this relay plays an important role in ensuring safe operation of burners, boilers, and fuel-fired equipment onboard marine vessels.

What is the Volcano RDV 1005 100 Flame Detector Relay?

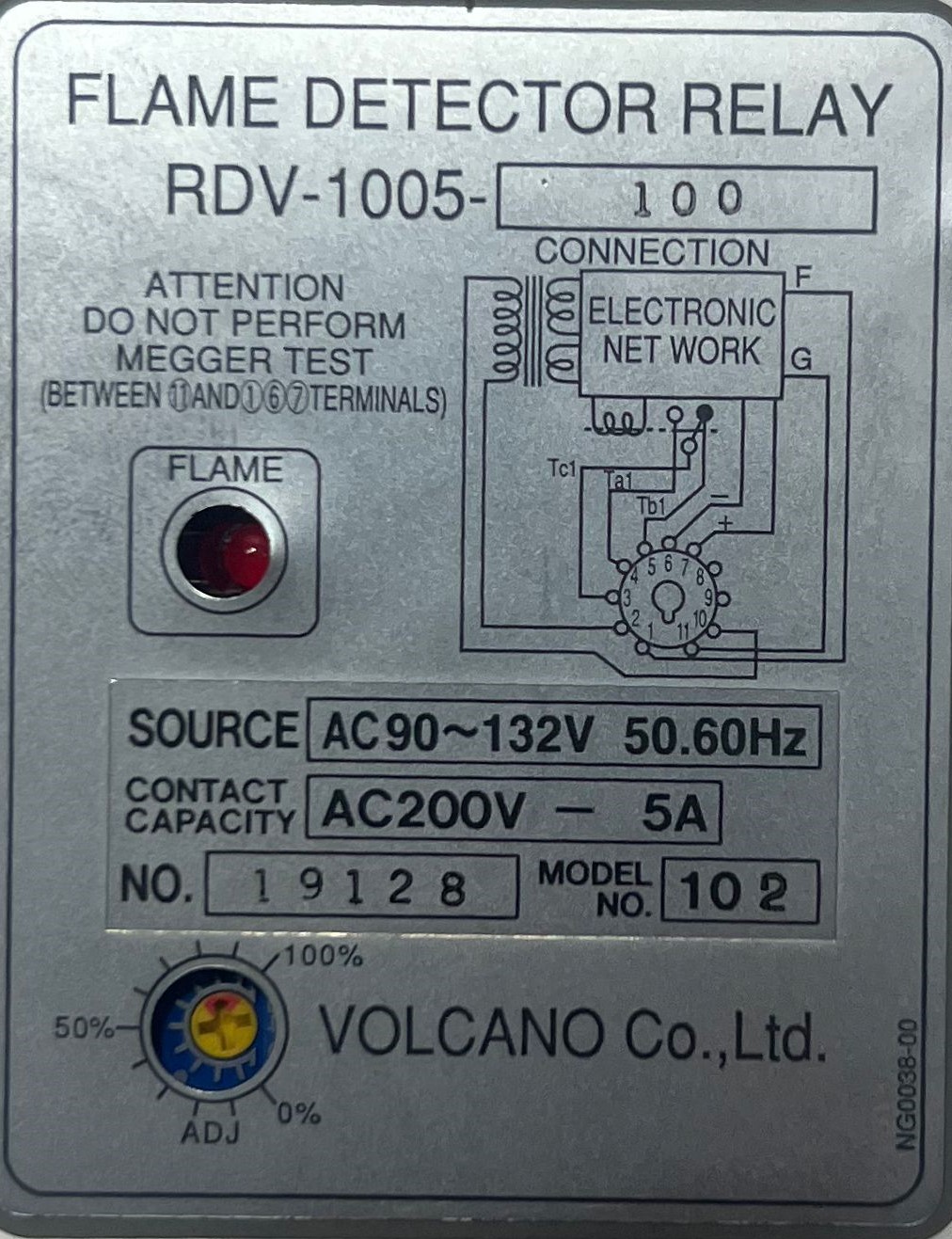

The Volcano RDV 1005 100 is a flame detector relay designed to receive signals from flame sensors and verify the presence of a stable flame. Operating within an AC voltage range of 90–132V, it processes flame detection signals and triggers appropriate control actions, such as allowing fuel flow or initiating shutdowns if a flame failure is detected.

Importance in Marine Automation:

Safety is a top priority in marine environments, especially in systems involving fuel combustion. The flame detector relay ensures that burners and boilers operate only when a proper flame is present. By preventing unburned fuel accumulation and enabling immediate response to flame loss, the relay helps reduce fire hazards and enhances overall vessel safety.

Applications in Marine Systems:

Boiler Management Systems: Monitors flame presence in marine boilers to ensure safe ignition and continuous combustion.

Burner Control Systems: Works alongside burners used in heating and power generation systems to maintain stable flame operation.

Fuel Safety Systems: Shuts down fuel supply automatically when flame failure is detected, preventing dangerous conditions.

Auxiliary Heating Equipment: Supports safe operation of auxiliary heaters used for onboard comfort and system temperature control.

Key Benefits and Features:

High Safety Reliability: Provides continuous flame monitoring to protect equipment and personnel.

Wide Voltage Compatibility: Operates efficiently within the AC 90–132V range, suitable for marine power systems.

Fast Response Time: Detects flame loss quickly, enabling immediate corrective actions.

Robust Design: Built to withstand vibration, temperature variations, and harsh marine operating conditions.

Maintenance and Best Practices:

Regular inspection of the flame detector relay and associated sensors is essential for reliable operation. This includes checking wiring connections, cleaning sensors, and testing relay response during routine maintenance schedules. Ensuring correct installation and calibration helps maintain safety compliance and system efficiency.

Conclusion:

The Volcano RDV 1005 100 Flame Detector Relay (AC 90–132V) is a vital safety device in marine automation systems involving combustion processes. By ensuring reliable flame detection and rapid response to abnormal conditions, it contributes significantly to operational safety, system protection, and regulatory compliance onboard marine vessels.
