Genuine

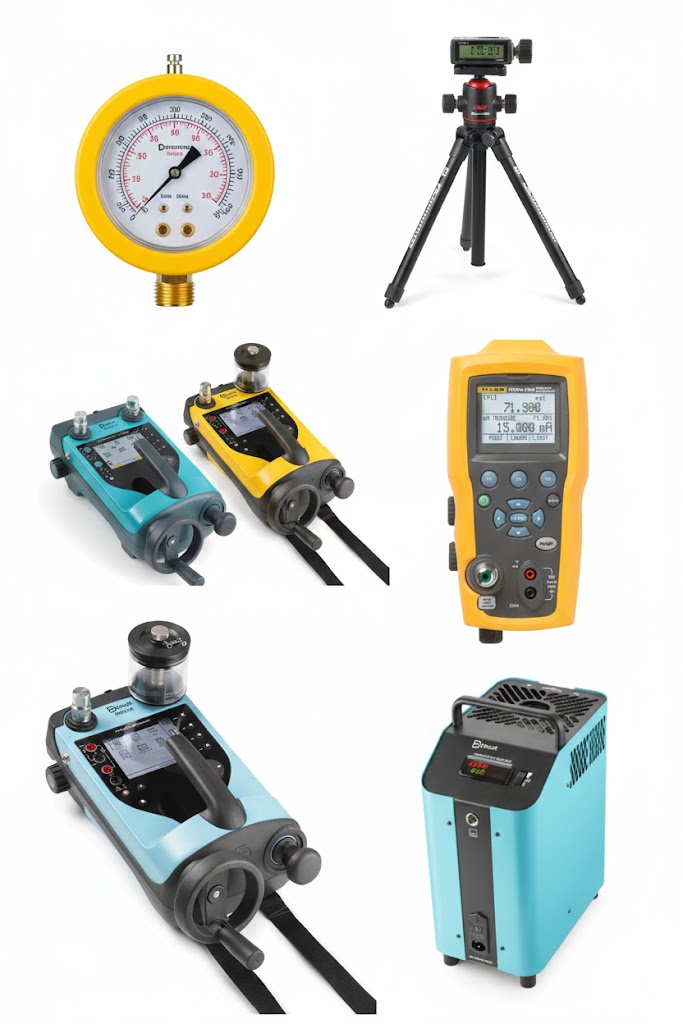

TEMPERATURE & PRESSURE CALIBRATOR
Portable multi-function calibrator for precise calibration of pressure gauges, transmitters, thermocouples, RTDs & temperature indicators onboard
ManufacturerFluke / Druck / Beamex / Additel
Pressure Range-1 to 1000 bar
Temperature Range-40°C to +1500°C (thermocouple simulation)
Accuracy±0.025% FS (pressure) / ±0.05% RDG (temperature)
Full Technical Specifications (Typical) ▶
| Parameter | Value / Description |
|---|---|
| Pressure Measurement | -1 to 1000 bar / vacuum to high pressure |
| Pressure Accuracy | ±0.025% FS or better |
| Temperature Simulation | Thermocouples (J,K,T,E,N,R,S,B) / RTD (Pt100, Pt1000, Ni100) |
| Temperature Accuracy | ±0.05% RDG + 0.1°C (thermocouple) / ±0.015% RDG (RTD) |
| mA / V Source & Measure | 0–24 mA / 0–30 V, accuracy ±0.01% |
| HART / FOUNDATION Fieldbus | Optional communicator support |
| Power Supply | Rechargeable Li-ion battery / 24 V DC adapter |
| Protection Class | IP52 / IP54 (depending on model) |
| Operating Temperature | -10°C to +50°C |
| Approvals | Marine type approved (DNV, ABS, LR), traceable calibration certificate |
| Applications | Onboard calibration of pressure transmitters, temperature sensors, gauges, safety valves |
High-accuracy portable calibrators essential for maintaining traceability and compliance in marine instrumentation — used for pressure, temperature, mA/voltage loop calibration during surveys, dry-docking & routine maintenance.
