Genuine

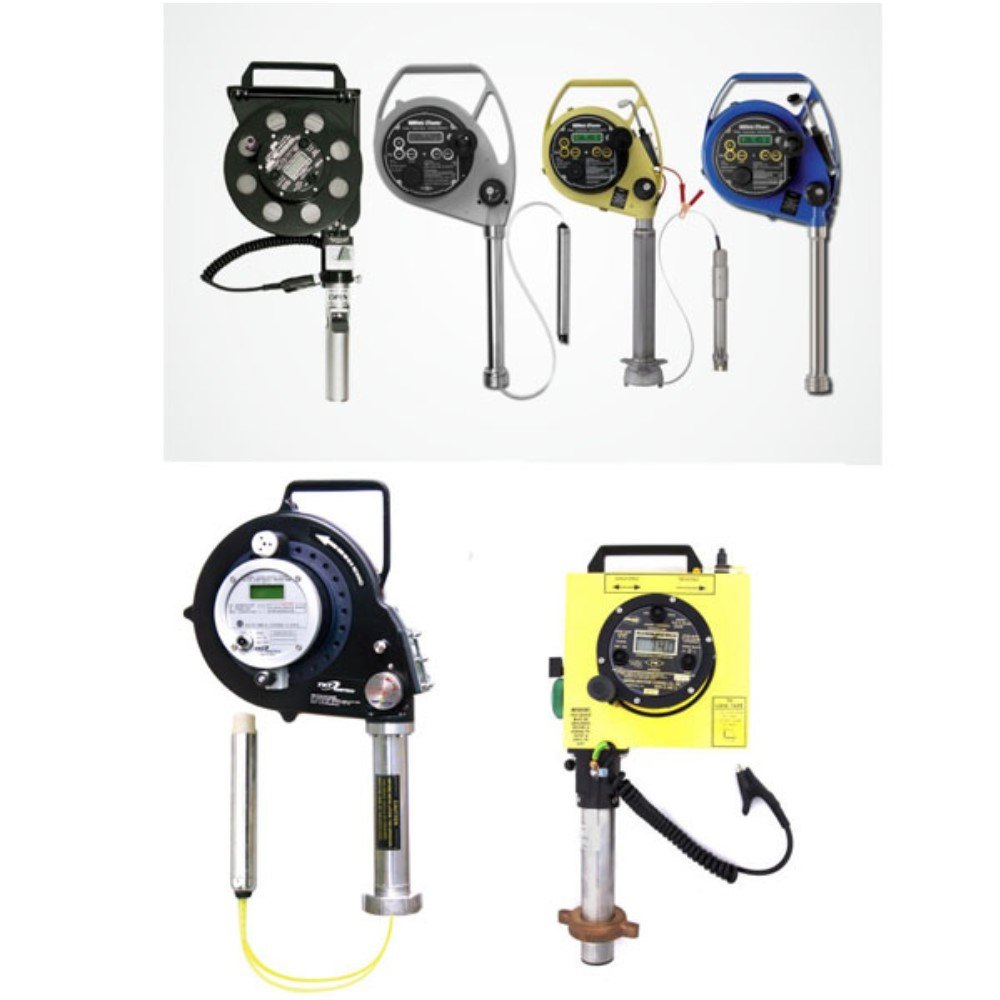

TANK GAUGING TAPE
Marine sounding tape / ullage tape for accurate manual measurement of liquid level, ullage, interface & temperature in cargo, ballast & bunker tanks
ManufacturerTMMC / MMC / Tanktech / Nakakita
Length15 m / 20 m / 30 m / 35 m
Accuracy±2 mm (length) / ±0.5°C (temp)
ApprovalMED / DNV / ABS
Full Technical Specifications ▶
| Parameter | Value / Description |
|---|---|
| Tape Length | 15 m, 20 m, 30 m, 35 m (standard marine sizes) |
| Tape Material | Stainless steel / Coated carbon steel |
| Graduation | Metric (mm) / Imperial (inches) dual scale |
| Accuracy (Length) | ±2 mm (EN ISO 2286 compliant) |
| Temperature Sensor | Pt100 / Thermistor (optional) |
| Temperature Accuracy | ±0.5°C |
| Interface Detection | Oil-water interface detection (optional buzzer / light) |
| Protection Class | IP65 / IP67 (display unit / tape head) |
| Approvals | MED (Wheelmark), DNV, ABS, Lloyd’s Register, BV |
| Applications | Cargo tanks, ballast tanks, bunker tanks, slop tanks, draft survey |
Certified manual tank gauging / ullage tape used for custody transfer, bunker survey, draft reading, and tank sounding — compliant with MARPOL, SOLAS, and class requirements.
